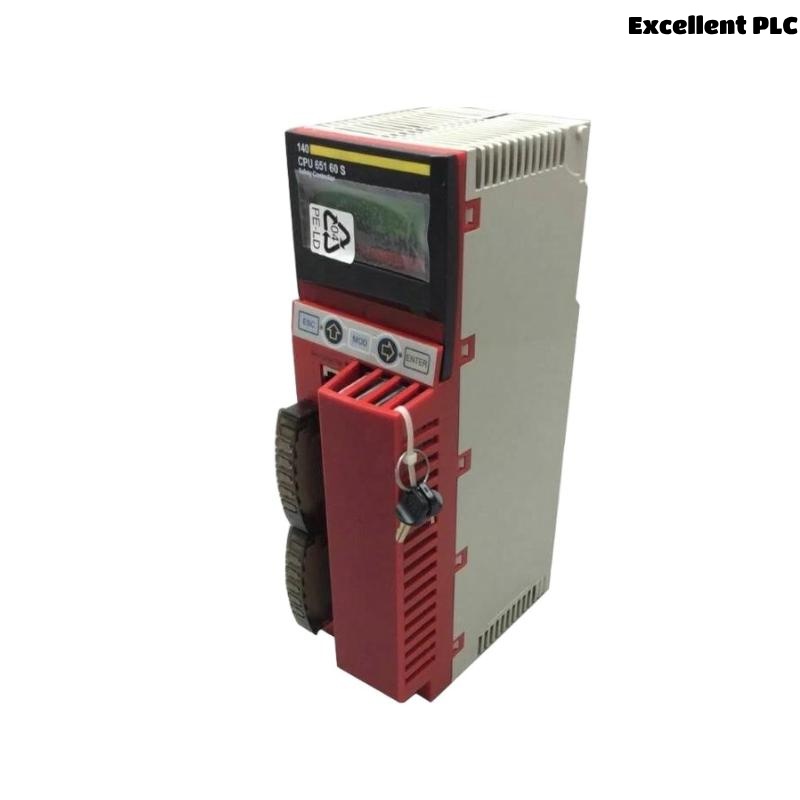

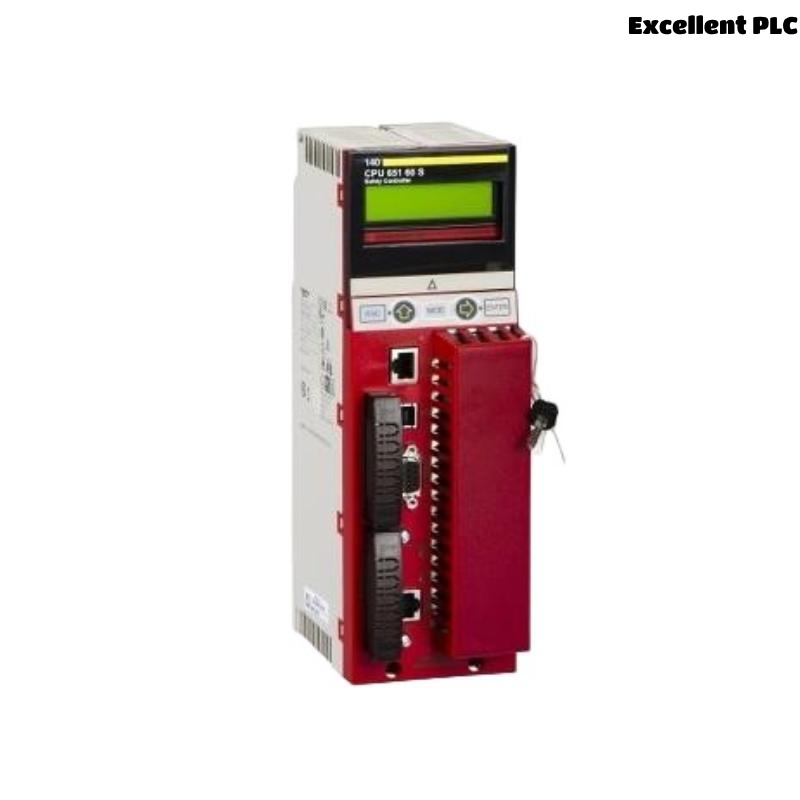

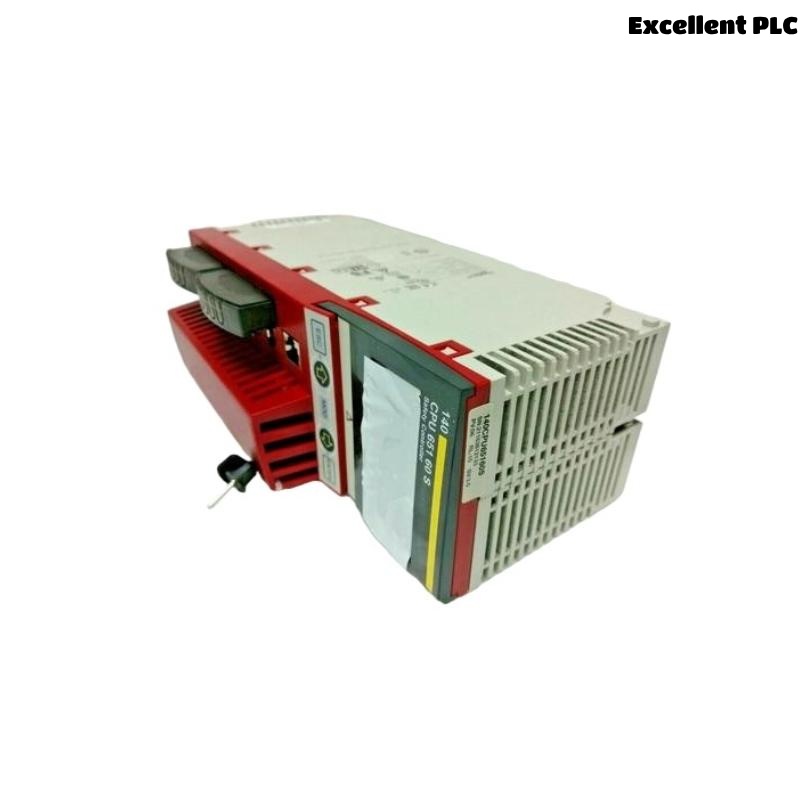

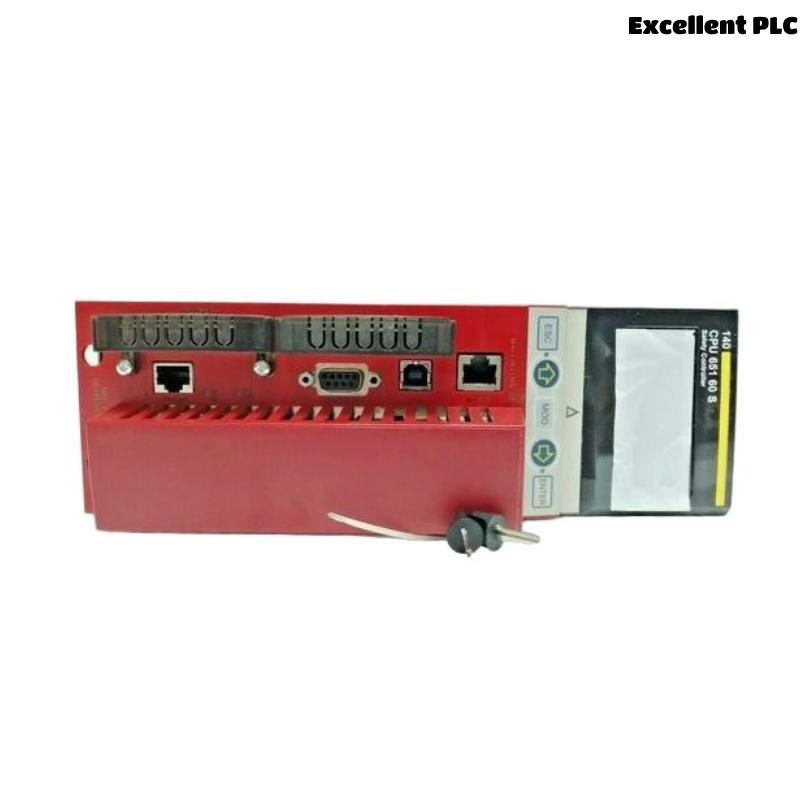

Schneider 140CPU65160S Unity Security Processor

Product Overview

The Schneider Electric 140CPU65160S is a high-end Quantum Unity Processor with integrated security capabilities, designed for demanding industrial automation systems requiring high performance, extensive networking, and enhanced cyber protection. As a flagship CPU module in the Modicon Quantum series, the 140CPU65160S offers a powerful processing engine, Unity Pro programming compatibility, and embedded security features to safeguard control applications against unauthorized access or tampering.

This module supports advanced communication through Ethernet, Modbus, and remote I/O, and is particularly suitable for process industries that require redundancy, determinism, and cyber resilience in a centralized automation strategy. The “S” designation indicates integrated Unity security functions, including authentication and protection mechanisms compliant with international standards such as ISA/IEC 62443.

Key Features

• Unity Pro-compatible Quantum processor

• Integrated cybersecurity features (ISA/IEC 62443 ready)

• 4 MB internal user memory

• 2 Ethernet ports, 1 Modbus port, and optional remote I/O port

• Support for hot standby (redundant CPU) configurations

• Real-time multitasking kernel with deterministic execution

• Password protection and security access levels

• Flash memory for program and data retention

• Embedded diagnostics and watchdog monitoring

• Compatible with all standard Quantum I/O modules

Technical Specifications

Industry Applications

The 140CPU65160S is ideally suited for mission-critical automation systems in the following sectors:

• Oil & Gas – Centralized control of refining, pipelines, and offshore platforms

• Power Generation – High-availability logic for turbines, generators, and grid interface

• Water & Wastewater – Secure supervisory control of distributed treatment and pumping facilities

• Pharmaceuticals – Compliant, traceable process automation in batch and continuous operations

• Chemical & Petrochemical – Deterministic control of complex unit operations with secured access

• Food & Beverage – Centralized PLC control with real-time decision-making and data capture

Product Advantages

• Cybersecurity Built-In – Features integrated authentication and protection measures

• High-Speed Performance – Real-time responsiveness and multitasking architecture

• Redundancy Ready – Easily configured in hot standby systems for uninterrupted operation

• Extensive Networking – Dual Ethernet ports and Modbus connectivity for distributed control

• Unity Pro Integration – Seamless programming and diagnostics using a modern IEC 61131-3 platform

• Scalable & Flexible – Supports a wide range of Quantum I/O modules and network expansions

• Robust Diagnostics – Front-panel LEDs and software tools for error and performance tracking

• Field Proven – Trusted in thousands of control systems worldwide

Frequently Asked Questions (FAQ)

1. Q: What makes the 140CPU65160S different from 140CPU65160?
   A: The “S” version includes embedded Unity Security features for access control and cybersecurity compliance.

2. Q: What software is required to program this CPU?
   A: It is programmed using Unity Pro or EcoStruxure Control Expert.

3. Q: Can this CPU be used in redundant applications?
   A: Yes, it fully supports hot standby redundancy with a paired CPU.

4. Q: How much user memory does it provide?
   A: 4 MB RAM is available for user programs and data.

5. Q: What kind of communication protocols are supported?
   A: Modbus, Modbus TCP, Ethernet/IP, Peer-to-Peer, and Remote I/O.

6. Q: Are there built-in cybersecurity protections?
   A: Yes, including password access control, secure communication, and configuration integrity.

7. Q: Can this CPU connect to third-party systems?
   A: Yes, via open protocols like Modbus TCP or using interface gateways.

8. Q: Is there support for programming standards?
   A: Yes, Unity Pro supports IEC 61131-3 programming languages (LD, ST, FBD, etc.).

9. Q: Does it require a separate power module?
   A: No, it is powered by the Quantum backplane’s 5.1 VDC supply.

10. Q: What are its redundancy and failover times?
    A: In hot standby mode, switchover typically occurs in less than 300 ms.
