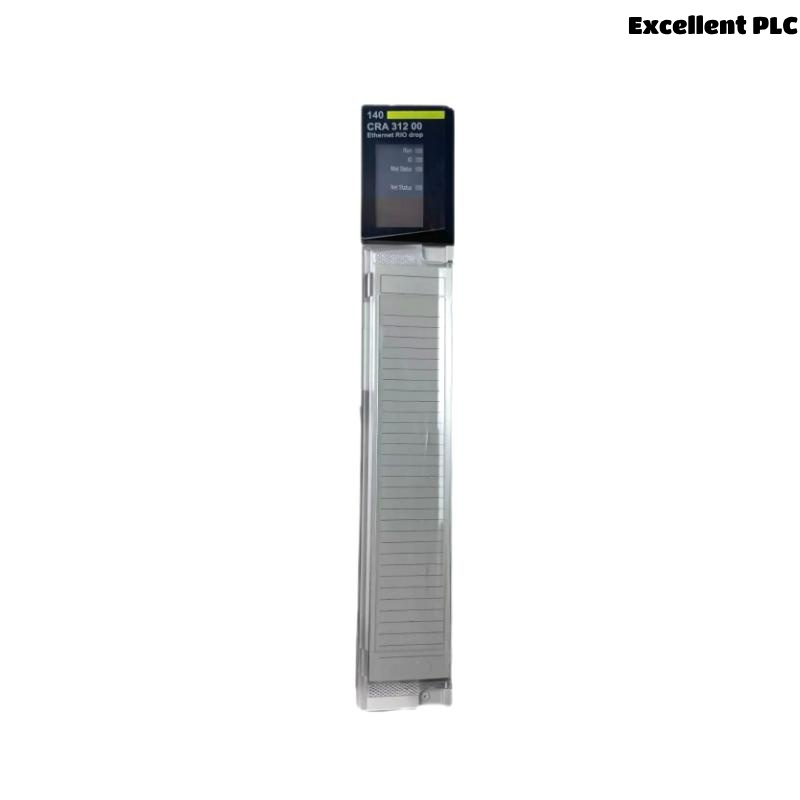

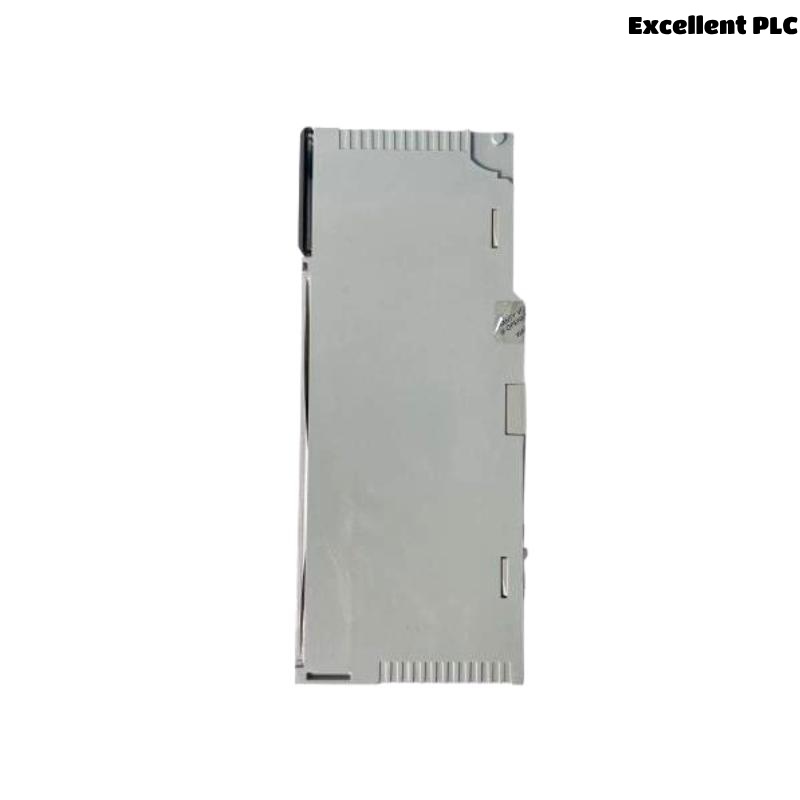

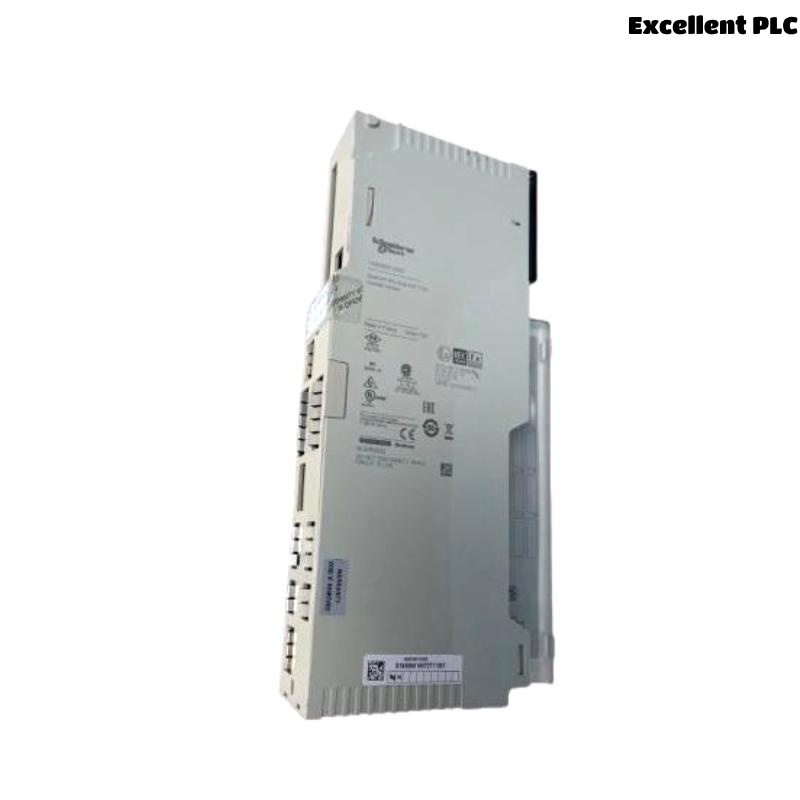

Schneider 140CRA31200C Ethernet RIO Drop Adaptor

Product Introduction

The Schneider Electric 140CRA31200C is a Modicon Quantum Ethernet RIO Drop Adapter designed to provide seamless communication between distributed I/O drops and the Quantum Ethernet I/O (EIO) network. As part of the Modicon Quantum automation system, this module plays a critical role in creating a scalable, high-performance control architecture that meets the demanding requirements of large industrial automation applications.

The 140CRA31200C enables remote I/O racks to be connected over Ethernet, reducing the complexity and cost associated with traditional remote wiring. It facilitates real-time I/O updates and deterministic data exchange between the Quantum CPU and I/O modules, ensuring reliable and responsive control.

Designed for robustness and ease of integration, the adapter supports hot swapping and is compatible with a wide range of Quantum I/O modules. Its industrial-grade design makes it suitable for sectors such as oil and gas, water treatment, manufacturing, and energy.

Product Specifications

Product Applications

• Industrial Automation Systems: Ideal for large distributed control systems where remote I/O modules are spread across multiple cabinets or floors.

• Oil & Gas Refineries: Used in real-time process control networks with hazardous area-rated I/O drops.

• Water & Wastewater Treatment: Provides reliable communication between central controllers and remote pump or sensor stations.

• Pharmaceutical Manufacturing: Supports cleanroom-compliant automation with modular I/O control.

• Energy and Utilities: Enables smart grid and substation automation through Ethernet-based I/O distribution.

• Food & Beverage Plants: Facilitates hygienic and modular system designs with remote scalability.

Product Advantages

• Ethernet-Based Flexibility: Simplifies remote I/O architecture using standard Ethernet infrastructure instead of proprietary wiring.

• High-Speed Communication: Ensures deterministic and real-time updates for fast, responsive control systems.

• Plug-and-Play Integration: Compatible with Schneider’s Modicon Quantum CPUs and I/O modules, enabling quick deployment.

• Diagnostic Capability: LED indicators and system integration tools provide robust diagnostics for uptime maximization.

• Hot-Swap Support: Reduces downtime by allowing modules to be replaced without powering down the system.

• Space-Saving Design: Compact form factor fits easily into dense rack-mounted applications.

• Long Product Lifecycle: Schneider ensures support and backward compatibility for legacy and current Quantum systems.

Frequently Asked Questions (FAQ)

1. What is the function of the 140CRA31200C module?
   It acts as a drop adapter that connects a remote Quantum I/O rack to a CPU via Ethernet.

2. Is this module compatible with all Quantum CPUs?
   It is compatible with most Quantum CPUs that support Ethernet RIO, such as 140CPU65160 and 140CPU67261.

3. Can I use this module with non-Schneider Ethernet networks?
   No, it is designed specifically for the Quantum Ethernet I/O protocol, not for general Ethernet TCP/IP communication.

4. What is the benefit of using Ethernet RIO over traditional remote I/O?
   It reduces cabling complexity, increases update speed, and enhances flexibility in system design.

5. Does it require special configuration software?
   Yes, configuration is typically done through Schneider’s Unity Pro or EcoStruxure Control Expert software.

6. Can the module be hot-swapped?
   Yes, it supports hot-swapping, allowing replacement without shutting down the system.

7. How many devices can be connected using this adapter?
   It supports connection of one remote I/O drop, but multiple drops can be managed across the network using additional adapters.

8. What kind of Ethernet cables should be used?
   Standard Cat5e or Cat6 shielded twisted pair Ethernet cables are recommended.

9. Is this adapter suitable for harsh environments?
   Yes, it is certified for use in industrial environments and supports a wide operating temperature range.

10. Is it backward compatible with older Quantum systems?
    Yes, Schneider ensures backward compatibility with many legacy Modicon Quantum systems.
