Product Introduction

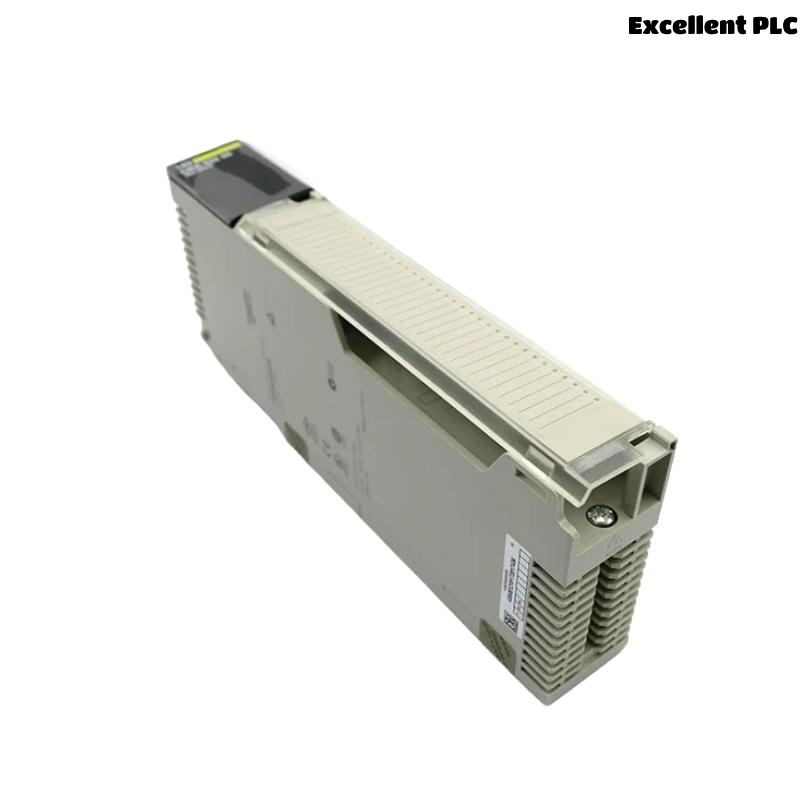

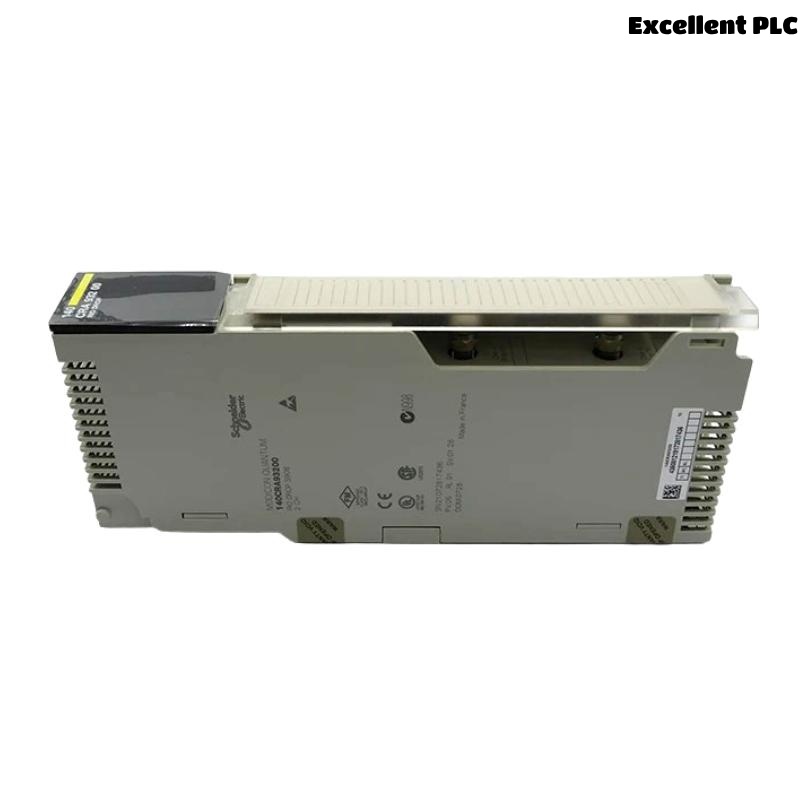

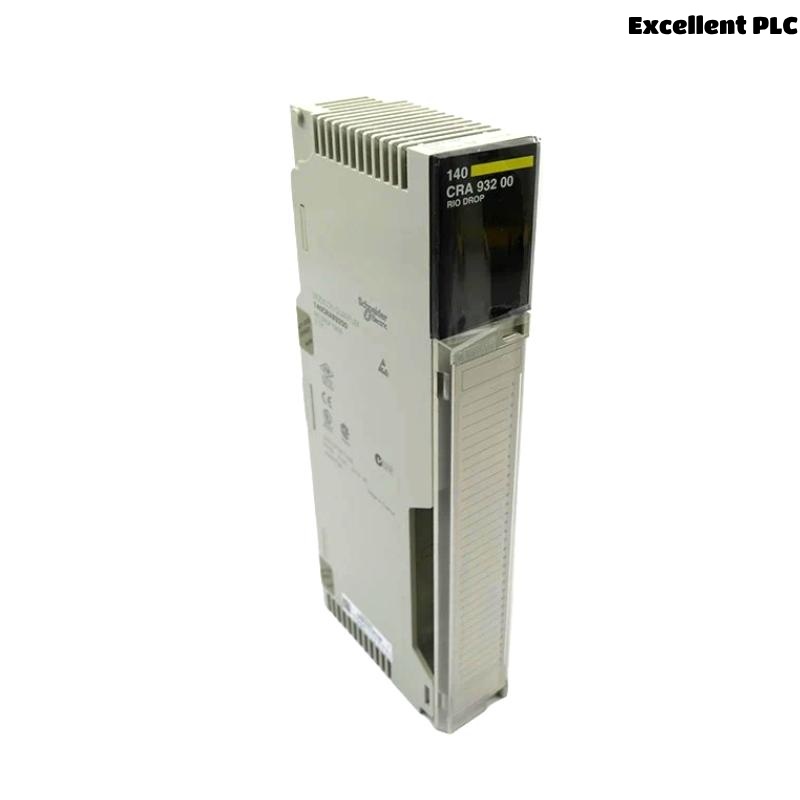

The Schneider Electric 140CRA93200C is a RIO Drop Adaptor Module used within the Modicon Quantum automation platform, specifically for Remote I/O (RIO) architecture. This module is a critical part of Quantum’s distributed control system, enabling the connection of remote I/O drops to a Quantum controller via the RIO network. It serves as a bridge between the RIO head and the distributed I/O modules, supporting high-performance, deterministic communication in real-time control applications.
Designed for use in large-scale industrial automation environments, the 140CRA93200C supports the extended flexibility, scalability, and reliability that Modicon systems are known for. It simplifies system expansion, reduces wiring complexity, and enhances data exchange efficiency across distributed nodes. Its robust design ensures reliable operation even in harsh environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | RIO Drop Adapter Module |
| Part Number | 140CRA93200C |
| Manufacturer | Schneider Electric |
| Platform | Modicon Quantum |
| Communication Interface | Remote I/O (RIO) link – coaxial bus |
| Bus Type | S908 RIO (Remote I/O Bus) |
| Power Supply | 5V DC supplied from the backplane |
| Maximum Power Consumption | 1.5 W |
| Data Rate | 1.544 Mbps (typical for RIO networks) |
| Mounting Type | Standard Quantum backplane (rack-mounted) |
| Slot Size | Single-slot module |
| LED Indicators | Bus activity, error, status |
| Supported Distance | Up to 10,000 ft (approx. 3 km) over coaxial cable |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Package Size | 48 x 164 x 315 mm |
| Package Weight | 0.552 kg |
| Certifications | CE, UL, CSA, ATEX (Zone 2), RoHS compliant |
Applications
The Schneider 140CRA93200C is used in a wide variety of industrial automation environments where distributed control and remote input/output systems are necessary. Typical applications include:
-
Oil & Gas Facilities: Linking remote sensors and actuators to central PLCs in hazardous environments.
-
Manufacturing Plants: Expanding control systems to multiple production lines or processes across long distances.
-
Water and Wastewater Treatment: Distributing I/O across pumping stations or treatment zones.
-
Power Generation and Distribution: Used in turbine control, substation automation, and monitoring.
-
Food & Beverage Industry: Integrating remote I/O islands into cleanroom or process-specific zones.
-
Transportation Systems: Controlling track switches, signaling equipment, and station automation.
Product Advantages
-
High Communication Reliability: Built for deterministic, real-time I/O communication via S908 RIO.
-
System Expansion Flexibility: Enables remote drop integration without major rewiring or reconfiguration.
-
Diagnostic LEDs: Provides quick status information for troubleshooting and maintenance.
-
Compact Design: Single-slot form factor saves valuable rack space in dense cabinet environments.
-
Extended Reach: Supports long-distance communication over industrial-grade coaxial cabling.
-
Robust Construction: Certified for use in harsh and hazardous environments, including ATEX Zone 2.
-
Interoperability: Fully compatible with Modicon Quantum and Schneider’s legacy remote I/O systems.
Frequently Asked Questions (FAQ)
1. What does the 140CRA93200C module do in a Quantum system?
It acts as a remote I/O drop adaptor, connecting a segment of remote I/O modules to the main Quantum controller over the RIO bus.
2. Can I use this module in a non-Schneider system?
No, it is designed specifically for Schneider’s Modicon Quantum architecture and is not interoperable with third-party PLCs.
3. What communication medium does the RIO drop use?
It uses coaxial cable to connect remote I/O drops to the RIO head module, supporting long-distance runs up to 3 km.
4. Does this module support hot-swapping?
Yes, the 140CRA93200C can be inserted or removed while the rack is powered, minimizing system downtime.
5. How many remote drops can be connected to a single RIO head?
A typical RIO network can support up to 31 drops, depending on the configuration and controller capacity.
6. What diagnostic features are available on the module?
It includes LED indicators for power, communication status, and fault detection for easy maintenance.
7. Is any programming required for this module?
No programming is required on the module itself, but configuration through Schneider’s Unity Pro or EcoStruxure Control Expert is needed.
8. What type of connector is used for the RIO coaxial bus?
It uses BNC connectors compatible with RG-11 or similar industrial coaxial cable types.
9. Can this module be used in ATEX-rated environments?
Yes, the 140CRA93200C is certified for use in ATEX Zone 2 hazardous environments.
10. How do I troubleshoot communication errors with this module?
Check the LED indicators, verify termination resistors on the RIO bus, and inspect coaxial cable continuity and grounding.
Related or Same-Series Models
| Model Number | Description | Application | Compatibility |
|---|---|---|---|
| 140CRP93100 | RIO Head Adapter Module | Interfaces Quantum controller to RIO | RIO Bus (S908) |
| 140CRA93100 | RIO Drop Adapter Module (earlier model) | Legacy remote drop connections | Compatible with 140CRP93100 |
| 140CPS12420 | Power Supply Module | 24V DC Quantum power source | All Quantum racks |
| 140NOE77101 | Ethernet Communication Module | Ethernet-based I/O communication | Quantum Ethernet Backplanes |
| 140CHS11000 | 10-Slot Quantum Rack | Mounting base for Quantum modules | All Quantum modules |
| 140CPU65160S | Quantum CPU with high memory | High-end processing control | Entire Quantum I/O system |
