Product Introduction

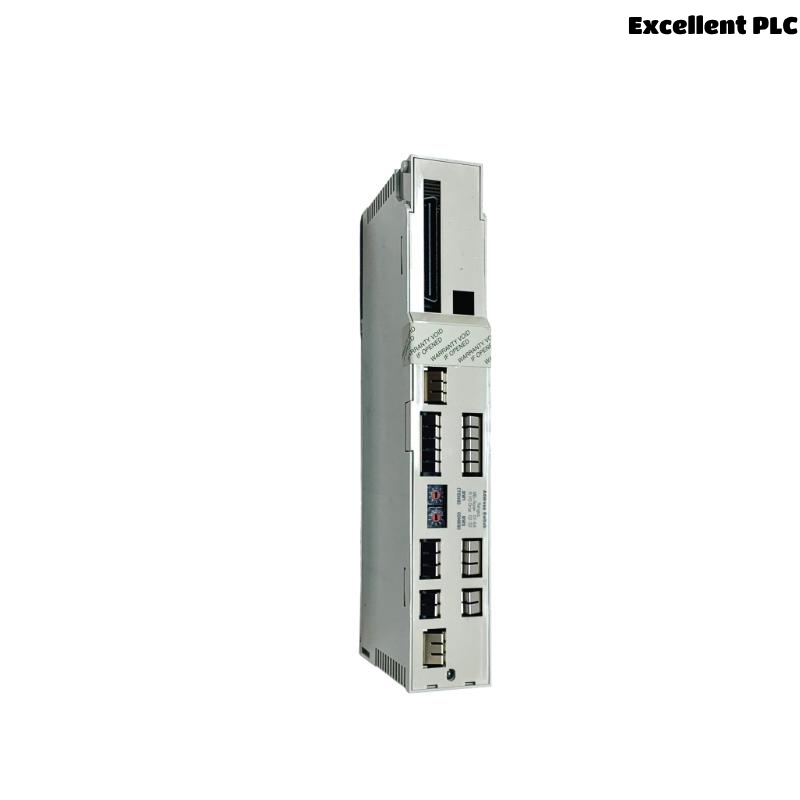

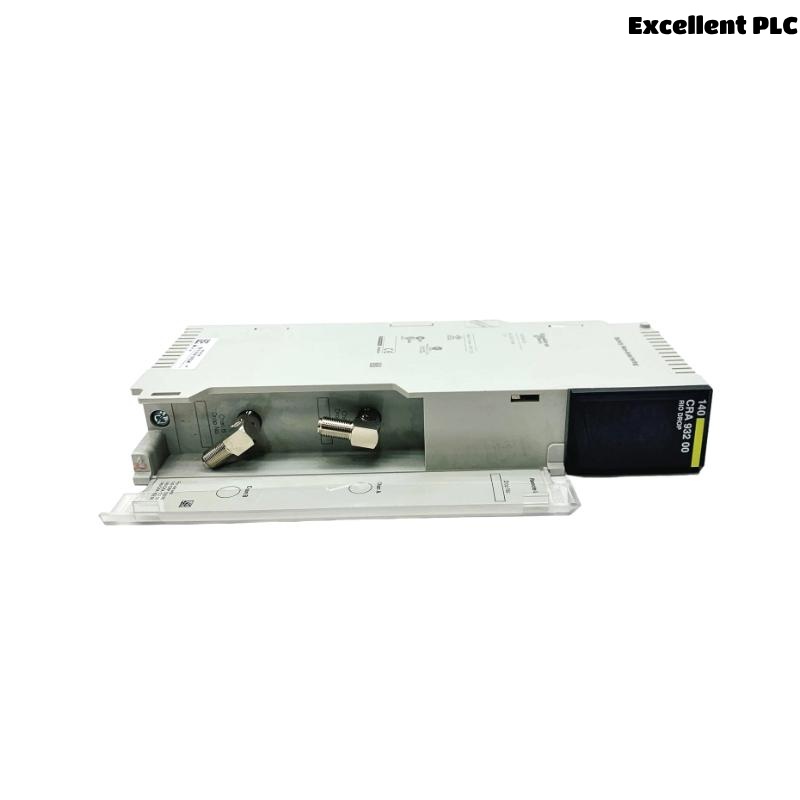

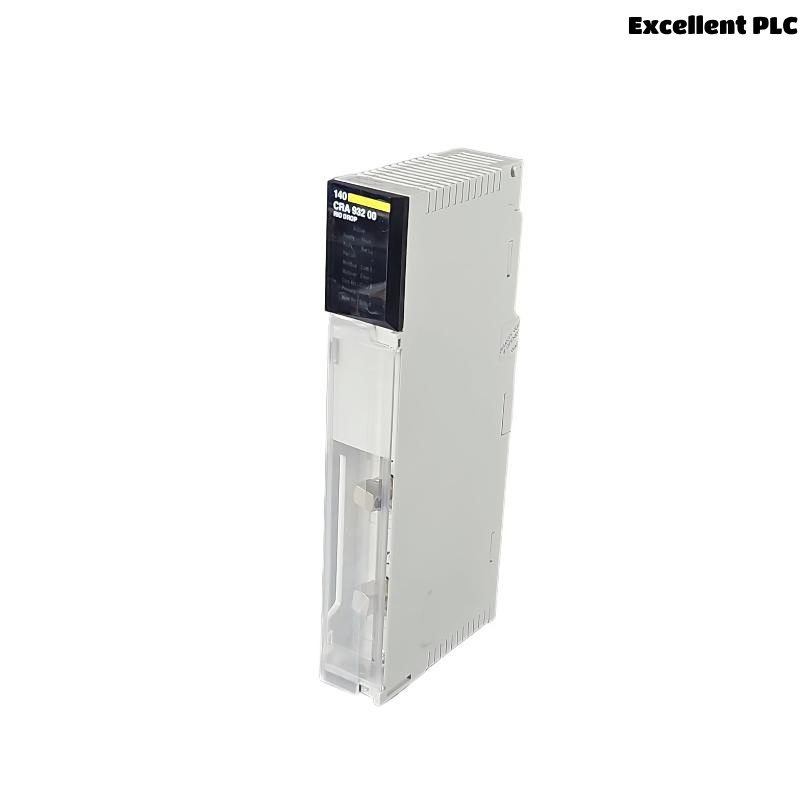

The Schneider Electric 140CRA93200R is a Modicon Quantum RIO (Remote I/O) Drop Adapter Module, engineered for high-reliability communication between a Quantum controller and distributed I/O racks using the RIO remote I/O network. This module allows integration of multiple I/O points across large industrial systems, significantly reducing cabling complexity and enabling scalable architecture.
As part of the Modicon Quantum series, the 140CRA93200R enhances system flexibility by enabling a remote drop to be connected to the Quantum RIO head, usually a CRP module. It works by acting as a communication interface between the I/O base and the remote master, ensuring deterministic data exchange with extremely low latency.
Its rugged design, certified industrial standards, and support for hot swapping make it ideal for critical automation infrastructures in energy, utilities, process industries, and large manufacturing plants.
Product Specifications
Parameter | Details |
---|---|
Model Number | 140CRA93200R |
Manufacturer | Schneider Electric |
Series | Modicon Quantum |
Module Type | Remote I/O Drop Adapter |
Network Type | Remote I/O (RIO) |
Primary Function | Interfaces Quantum I/O rack to RIO head module |
Communication Speed | 1 Mbps |
I/O Drop Support | 1 drop per module |
Channel Type | Fiber optic / coaxial (depending on network configuration) |
LED Indicators | Module Status, Communication Activity |
Hot Swap Capability | Yes |
Compatible Modules | Quantum CPUs, RIO CRP modules |
Backplane Support | Quantum backplane only |
Operating Voltage | Supplied by rack backplane |
Power Consumption | 3 W typical |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Humidity Range | 5% to 95% non-condensing |
Certifications | CE, UL, CSA, ATEX |
Dimensions (H x W x D) | 50 ×165 × 315 mm |
Weight | 0.545 kg |
Product Applications
-
Industrial Process Automation
Used in distributed control systems for industries such as chemical, oil refining, and pharmaceuticals. -
Power Plants and Utilities
Enables wide-area I/O connection across turbines, switchgear, and substations. -
Water and Wastewater Treatment
Ideal for connecting remote sensors, actuators, and valve controllers across a treatment facility. -
Food & Beverage Manufacturing
Facilitates modular expansion of automation infrastructure with minimized downtime. -
Steel & Mining Industries
Supports robust control of heavy equipment and environmental monitoring systems. -
Transportation Systems
Interfaces remote I/O for monitoring and control of intelligent transport infrastructure.
Product Advantages
-
Seamless Integration
Natively compatible with the Quantum platform, reducing programming overhead and ensuring full system synchronization. -
Cost-Effective Expansion
Allows for easy system scaling through remote drops without the need for extensive rewiring. -
Real-Time Data Exchange
Delivers deterministic updates, critical for high-speed, mission-critical control systems. -
High Reliability
Industrial-grade build and immunity against EMI/RFI make it reliable for tough field conditions. -
Diagnostics & Monitoring
Built-in LED indicators and system diagnostics help in quick troubleshooting and maintenance. -
Hot-Swappable Design
Enables module replacement without system shutdown, reducing downtime significantly. -
Compact Size
Saves panel space while maintaining high performance and connectivity standards.
Frequently Asked Questions (FAQ)
-
What is the function of the 140CRA93200R?
It acts as a RIO Drop Adapter Module, connecting a remote Quantum I/O rack to a RIO head (master). -
Is it compatible with the 140CRP93200 RIO head module?
Yes, it is fully compatible and designed to work with CRP93200R or similar head modules. -
How many RIO drops can I connect using this module?
Each CRA93200R supports a single drop; multiple drops can be added with more adapters. -
Can I install the module while the system is running?
Yes, it supports hot-swapping, allowing installation or replacement without power-down. -
What type of communication cable is needed?
Typically, coaxial or fiber optic cable depending on the configuration of the RIO head. -
Is configuration required after installation?
Yes, the drop needs to be configured via Unity Pro or EcoStruxure Control Expert software. -
Does it support remote diagnostics?
Yes, diagnostic features can be accessed via the programming software. -
What is the update speed between CPU and drop?
The communication speed is 1 Mbps with deterministic update cycles. -
Can it be used in hazardous environments?
It carries ATEX and UL certifications, making it suitable for industrial-grade hazardous areas. -
How does it receive power?
The module is powered through the Quantum backplane power supply.
