Product Introduction

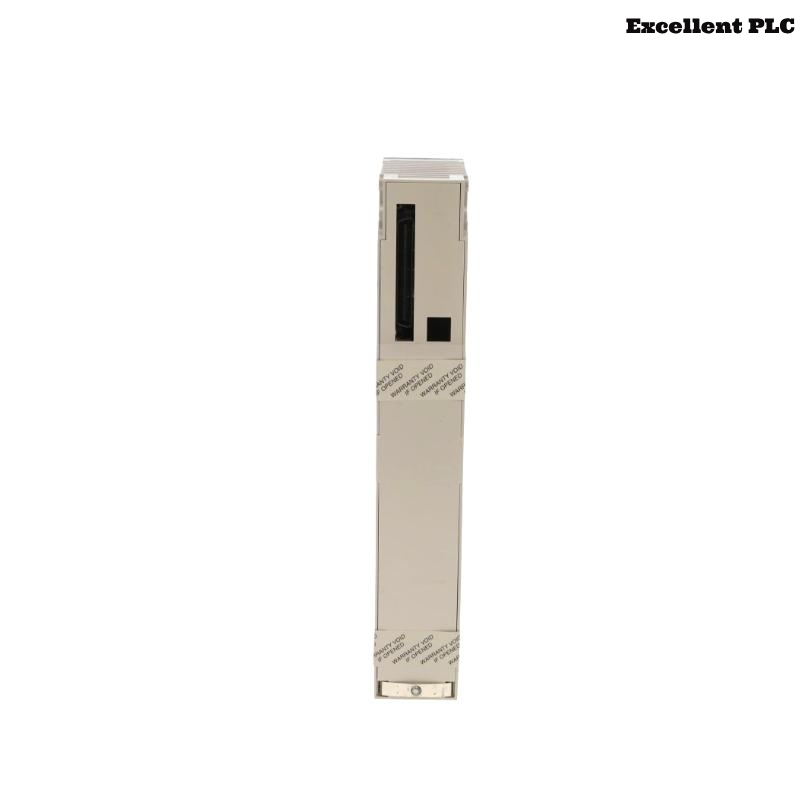

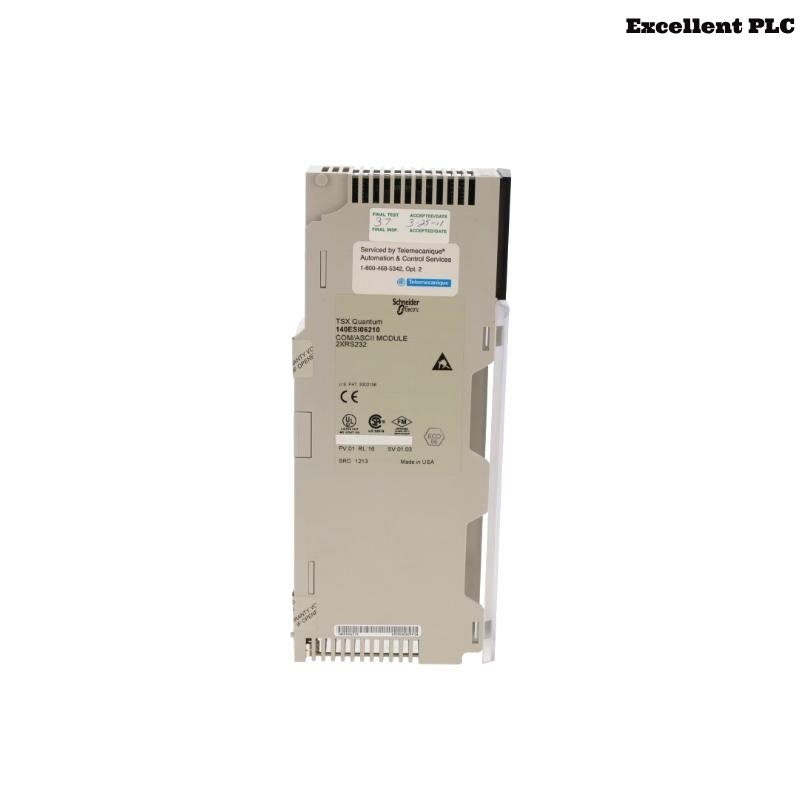

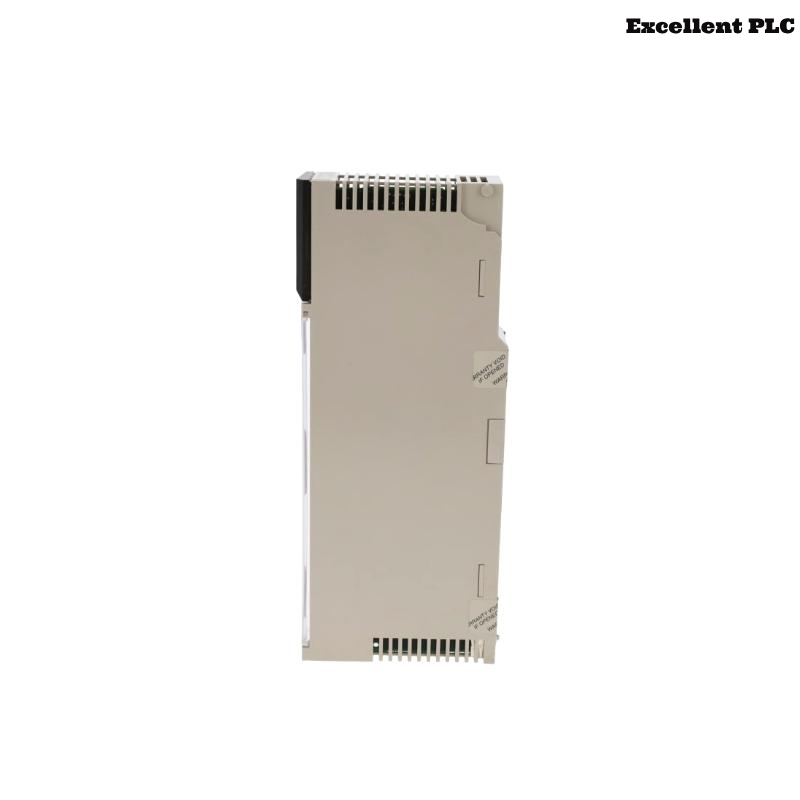

The Schneider Electric 140ESI06210 is an ASCII Serial Link Communication Module designed specifically for use within the Modicon Quantum automation platform. This module provides a robust and flexible serial communication interface that allows the Quantum PLC to connect and communicate with third-party devices that use ASCII-based serial protocols. Its primary role is to establish point-to-point data exchange through RS-232 and RS-485 standards, enabling integration with barcode scanners, printers, controllers, and various serial instruments.
The 140ESI06210 supports both ASCII Master and Slave modes, making it versatile for various communication topologies. With its independent channel configuration, event-driven operation, and customizable data parsing logic, it has become a favored solution for system integrators and OEMs looking to integrate legacy serial devices into modern control architectures.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 140ESI06210 |
| Manufacturer | Schneider Electric |
| Product Type | ASCII Serial Link Communication Module |
| Series | Modicon Quantum |
| Communication Ports | 1 x RS-232 / RS-485 (configurable) |
| Supported Protocols | ASCII (point-to-point communication) |
| Baud Rates | Configurable from 300 to 115200 bps |
| Parity Options | None, Even, Odd |
| Stop Bits | 1 or 2 |
| Data Bits | 7 or 8 |
| Flow Control | None, XON/XOFF, RTS/CTS |
| Modes Supported | Master, Slave, Transparent |
| Connector Type | DB9 Female |
| Power Consumption | < 1.5 W |
| Isolation | Channel-to-bus and channel-to-channel isolation |
| LED Indicators | TX/RX Activity, Channel Status |
| Diagnostic Support | Yes (module-level and communication diagnostics) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting Type | Rack-mounted (on Quantum backplane) |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
Product Applications
The Schneider 140ESI06210 module is widely deployed in industrial environments where legacy serial communication is still vital. Below are common application scenarios:
-
Barcode and RFID Scanning: Receiving serial ASCII strings from scanning devices on production lines.
-
Label Printers and Serial Displays: Sending data to industrial printers or serial-based HMIs.
-
Weighing Systems: Collecting data from weighbridges and balances with serial output.
-
Legacy Controller Integration: Bridging communication with older controllers or PLCs that only support ASCII.
-
Energy Monitoring Systems: Acquiring serial data from standalone meters and analyzers.
-
Laboratory Instruments: Connecting lab and test devices with serial ASCII data exchange.
Product Advantages
-
Flexible Configuration: Supports various baud rates, parity, and framing options to match a wide range of serial devices.
-
Dual Mode Operation: Operates as either a master or slave, increasing application versatility.
-
Built-in Isolation: Ensures electrical separation between communication channels and the main PLC bus, improving robustness.
-
Efficient Parsing: Custom string handling for interpreting ASCII messages efficiently within logic applications.
-
Legacy Compatibility: Facilitates integration with older equipment without requiring hardware upgrades.
-
Diagnostics and Monitoring: Built-in indicators and diagnostic registers simplify commissioning and troubleshooting.
Frequently Asked Questions (FAQ)
-
Q: What types of devices can I connect to the 140ESI06210 module?
A: Any device that communicates via ASCII over RS-232 or RS-485, such as barcode readers, label printers, or serial meters. -
Q: Can the module be configured to use RS-232 and RS-485 simultaneously?
A: No, it supports one serial communication type at a time per channel. -
Q: Does the module support Modbus protocol?
A: No, this module specifically supports ASCII character-based communication, not Modbus RTU or TCP. -
Q: Is the module suitable for high-speed data exchange?
A: It supports baud rates up to 115200 bps, which is sufficient for most ASCII communication needs. -
Q: How is data handled in the PLC application?
A: ASCII strings received are stored in user-defined memory areas and can be parsed using string manipulation functions. -
Q: Can I use multiple 140ESI06210 modules in one Quantum rack?
A: Yes, multiple modules can be installed as long as the backplane has available slots and power. -
Q: What software is used to configure this module?
A: Unity Pro or EcoStruxure Control Expert software is typically used for configuration and diagnostics. -
Q: Does the module support transparent mode communication?
A: Yes, it allows unstructured data pass-through for flexible protocol handling. -
Q: How are transmission errors handled?
A: Errors can be detected using diagnostic bits and handled within the PLC logic or via retries. -
Q: Is the module firmware-upgradable?
A: Firmware is generally fixed, but always check with Schneider’s support portal for possible updates.
