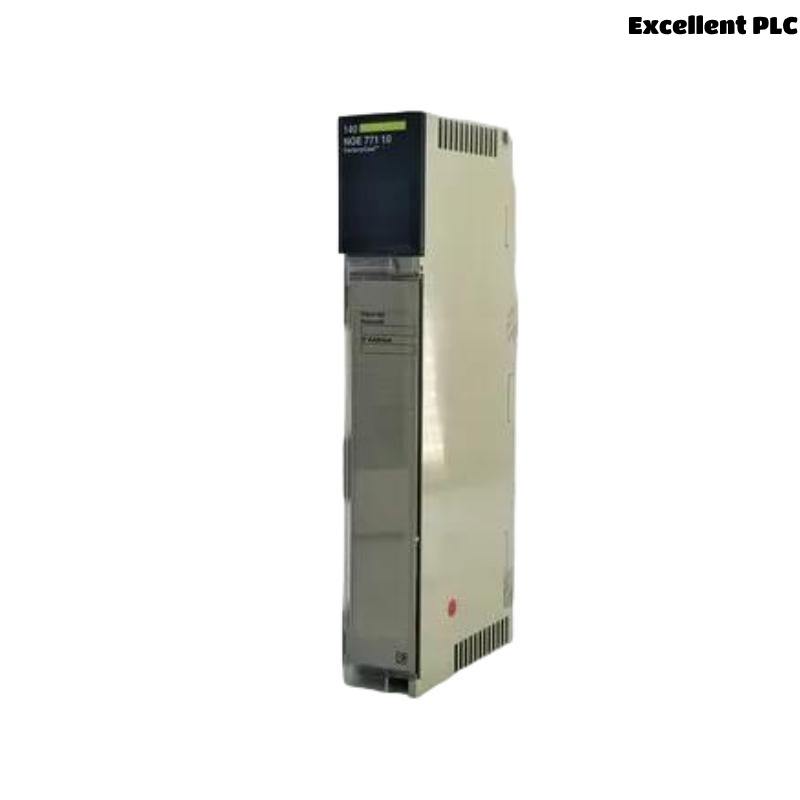

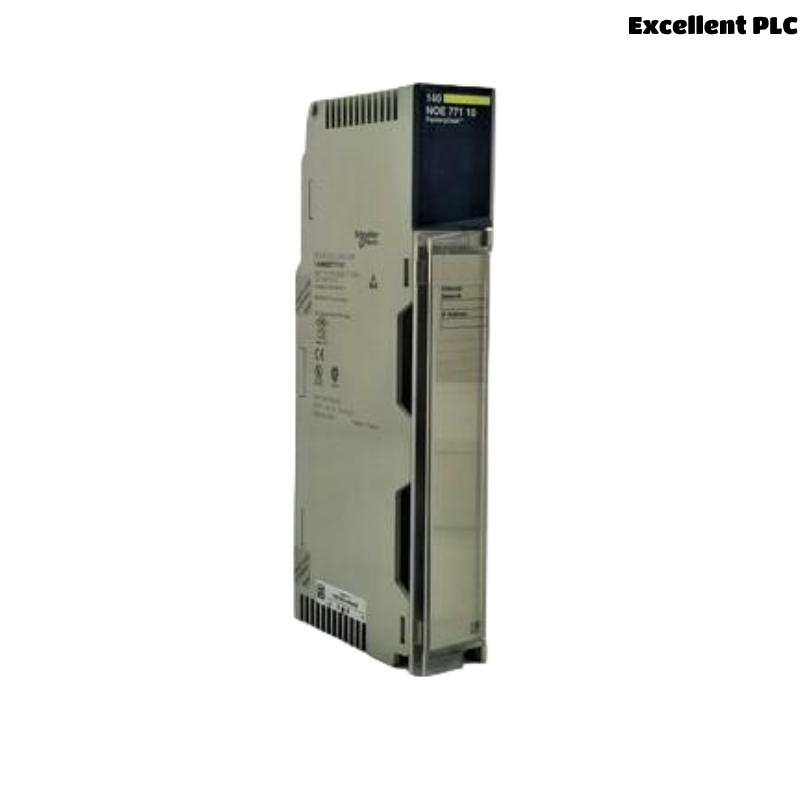

Schneider Electric 140NOE77110C Product Overview
The Schneider Electric 140NOE77110C is a high-performance network interface module designed for industrial automation and control systems. It serves as a communication gateway, enabling seamless integration between Modicon Quantum PLCs and Ethernet networks. This module is widely used in applications requiring robust data exchange, remote monitoring, and system diagnostics.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 140NOE77110C |
| Communication Protocol | Ethernet TCP/IP, Modbus TCP |
| Ports | 1 x RJ45 Ethernet port |
| Voltage Supply | 5V DC (via backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Dimensions (W x H x D) | 45 mm x 126 mm x 117 mm (1.77″ x 4.96″ x 4.61″) |
| Weight | 0.5 kg (1.1 lbs) |
| Certifications | CE, UL, cUL |
| Compatibility | Modicon Quantum PLCs |
Product Applications
The 140NOE77110C is ideal for:
-
Industrial Automation: Facilitates real-time data exchange between PLCs and SCADA systems.
-
Energy Management: Enables remote monitoring of power distribution systems.
-
Water/Wastewater Treatment: Supports communication between control systems and sensors.
-
Manufacturing: Integrates production line equipment with central control units.
-
Oil & Gas: Provides reliable communication in harsh environments.
Product Advantages
-
High-Speed Communication: Supports Ethernet TCP/IP for fast data transfer.
-
Easy Integration: Plug-and-play design compatible with Modicon Quantum PLCs.
-
Robust Construction: Durable housing for industrial environments.
-
Remote Diagnostics: Enables troubleshooting via network connectivity.
-
Wide Compatibility: Works with third-party systems using Modbus TCP.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 140NOE77110C?
It acts as an Ethernet communication interface for Modicon Quantum PLCs. -
Does this module support wireless communication?
No, it requires a wired Ethernet connection. -
What is the maximum operating temperature?
60°C (140°F). -
Can it be used with non-Schneider PLCs?
Yes, if the system supports Modbus TCP. -
Is the module hot-swappable?
No, power must be turned off before installation/removal. -
What certifications does it have?
CE, UL, and cUL. -
How many devices can connect to it simultaneously?
It supports multiple connections depending on network configuration. -
What is the warranty period?
Typically 1 years, depending on region. -
Does it require additional software for configuration?
Yes, Schneider’s Unity Pro software is recommended. -
Can it be used in hazardous environments?
No, it is not rated for explosive atmospheres.
