Product Introduction

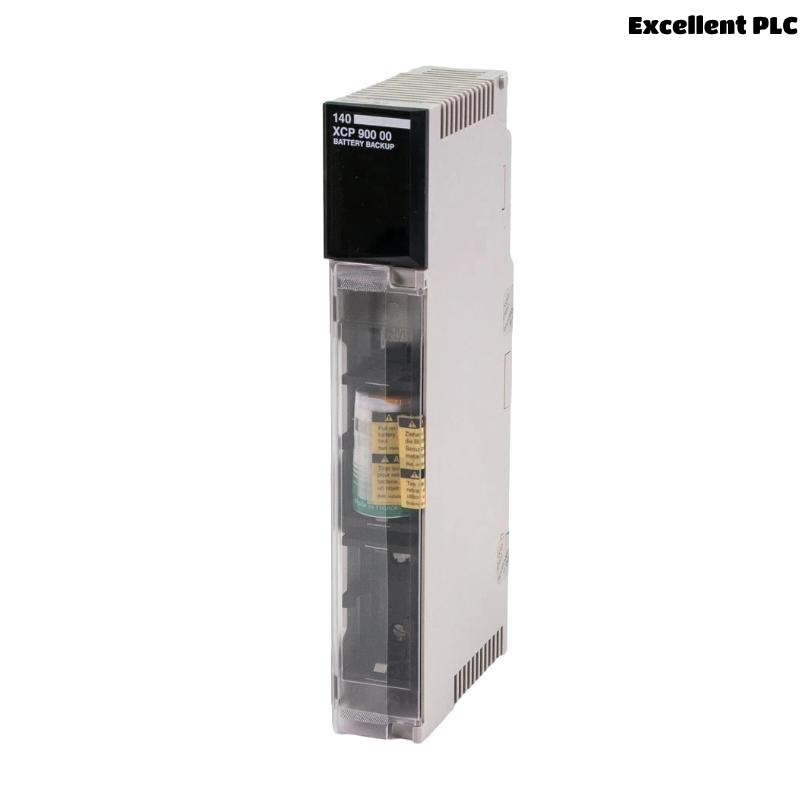

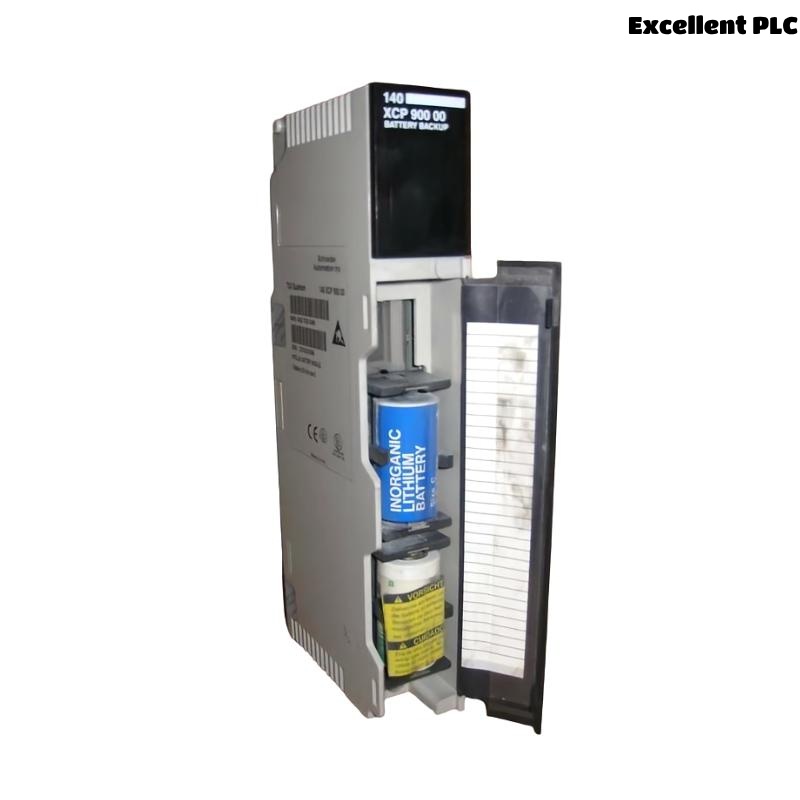

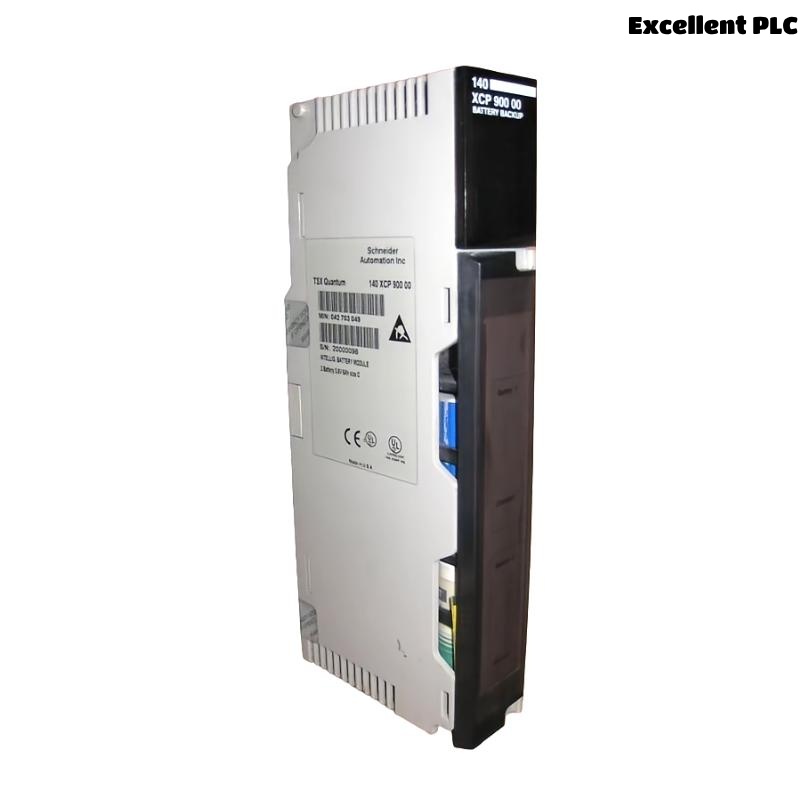

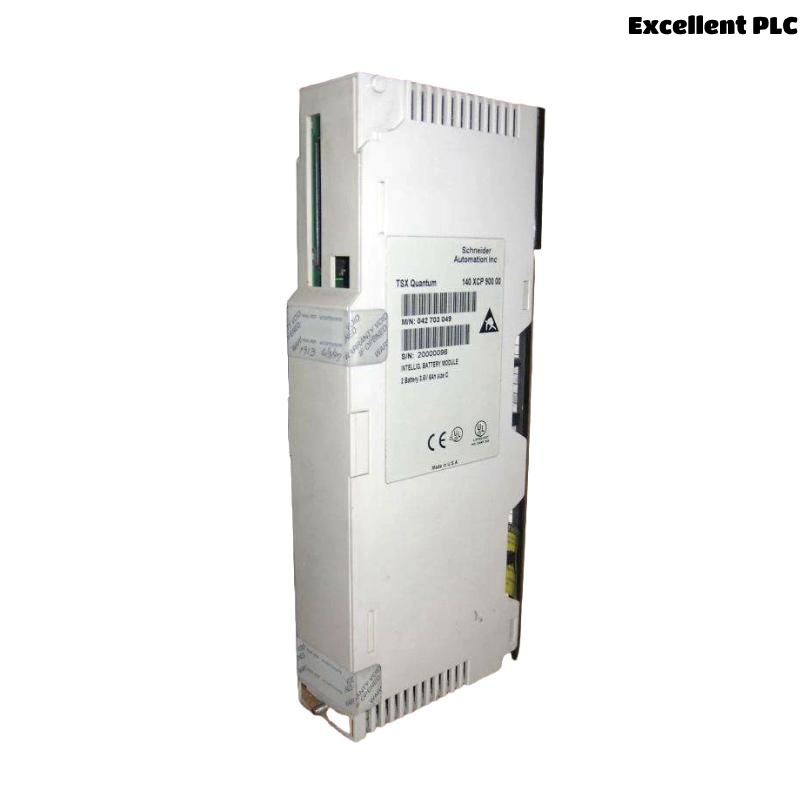

The Schneider 140XCP90000 Backup Battery Holder Module is a crucial accessory designed to support the continuity and integrity of critical automation system operations. Specifically developed for use with Modicon Quantum programmable logic controllers (PLCs), this module securely houses the backup battery that preserves volatile memory when the main power source is unavailable. It ensures that important system configurations, program logic, and runtime data remain intact during power failures or maintenance procedures.
This module represents Schneider Electric’s dedication to modular reliability, enabling industrial facilities to maintain system stability and prevent downtime-related data losses. The robust design and easy integration make it an essential component in a wide range of control systems across industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Schneider 140XCP90000 Backup Battery Holder |
| Manufacturer | Schneider Electric |
| Part Number | 140XCP90000 |
| Function | Battery holder module for Quantum PLCs |
| Compatibility | Modicon Quantum Series |
| Mounting Type | Rack-mounted / Panel-mounted |
| Backup Battery Support | 3.6V Lithium battery (typically TL-5903 or equivalent) |
| Electrical Interface | Plug-and-play connector |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% (non-condensing) |
| Housing Material | Industrial-grade thermoplastic |
| Dimensions (W x H x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.5 kg |
| Certifications | CE, RoHS, UL, CSA |
Applications
The Schneider 140XCP90000 module is widely used in critical industrial environments where system memory retention is vital. Typical applications include:
-
Power plants and substations (SCADA & RTU systems)
-
Manufacturing automation (FMCG, automotive, textiles)
-
Oil & gas process control systems
-
Water treatment and pumping stations
-
Building automation and HVAC systems
-
Transportation control and signaling infrastructure
Product Advantages
-
Reliable Memory Protection: Maintains vital data in volatile memory of the Quantum PLCs during power loss.
-
Seamless Integration: Fully compatible with Modicon Quantum platforms with simple plug-in installation.
-
Long Service Life: Supports high-quality lithium batteries that last up to 10 years under normal conditions.
-
Minimal Maintenance: Designed for easy replacement and low-touch operation.
-
Compact & Durable: Occupies minimal space and withstands industrial environmental stressors.
-
Certified Quality: Complies with key industrial standards including CE, UL, and RoHS.
Frequently Asked Questions (FAQ)
1. What type of battery is supported by the 140XCP90000 module?
This battery holder is designed to accommodate a 3.6V lithium battery, such as the TL-5903 or an equivalent industrial-grade model.
2. How does this module contribute to PLC system reliability?
It ensures that volatile memory in the Quantum PLC retains all operational data and settings during power outages, reducing downtime and preventing data loss.
3. Is it necessary to shut down the system before replacing the battery?
Yes, for safety and to avoid potential memory corruption, it is recommended to shut down the PLC before replacing the battery in the holder.
4. How do I know when the battery needs to be replaced?
The Quantum PLC system provides diagnostics and alerts that indicate battery health status, helping you determine the optimal replacement time.
5. Can this holder be installed in outdoor or high-moisture environments?
While it is rugged, it should be installed in a protected enclosure rated for the environmental conditions to ensure proper operation and battery life.
6. Does this module require configuration or firmware updates?
No, it is a hardware-only component with plug-and-play functionality. No programming or firmware is involved.
7. What maintenance does the module require over time?
Minimal maintenance is needed aside from scheduled battery checks and replacements every 8–10 years depending on environmental factors.
8. Is the module secured against vibration and industrial shock?
Yes, it is constructed using durable materials and mounting methods that support industrial-grade vibration resistance.
9. Can I use a rechargeable battery with this module?
No, it is not designed to support rechargeable batteries. Only use the specified non-rechargeable 3.6V lithium battery models.
10. How can I ensure compatibility with my existing Quantum system?
The 140XCP90000 is officially compatible with all Modicon Quantum PLC systems. Always consult your system manual or Schneider documentation for verification.
Related Models in the Same Series or Function Group
| Model | Description |
|---|---|
| 140CPU65160 | Quantum CPU module with Ethernet |
| 140CPS11420 | Power supply module, 115/230V input |
| 140DAI55300 | Digital Input Module, 32 points |
| 140DDO35300 | Digital Output Module, 32 points |
| 140ACI03000 | Analog Current Input Module |
| 140XBP01600 | 16-slot backplane for Quantum rack |
