Product Introduction

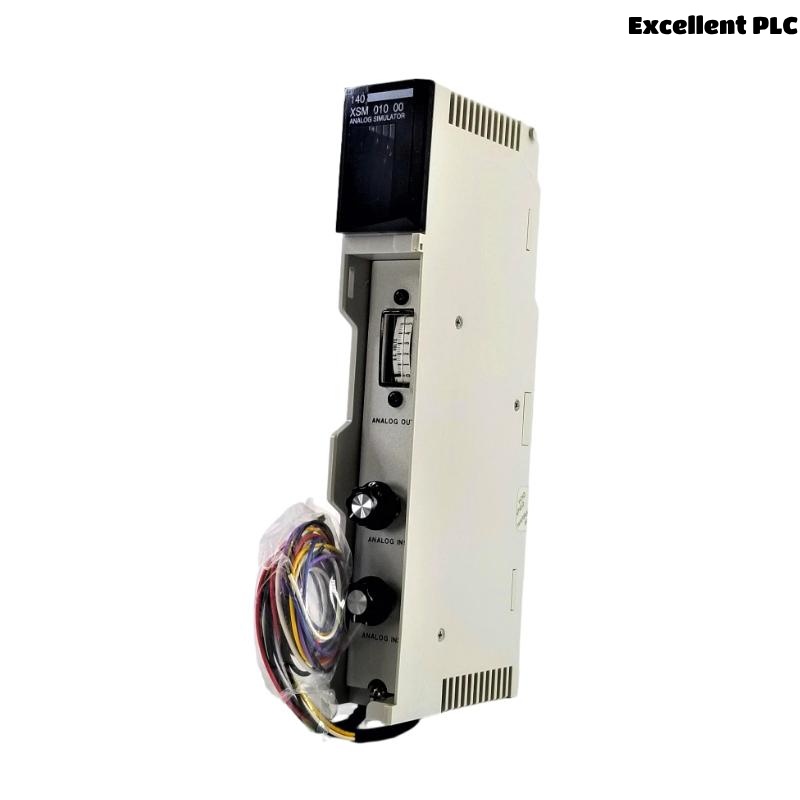

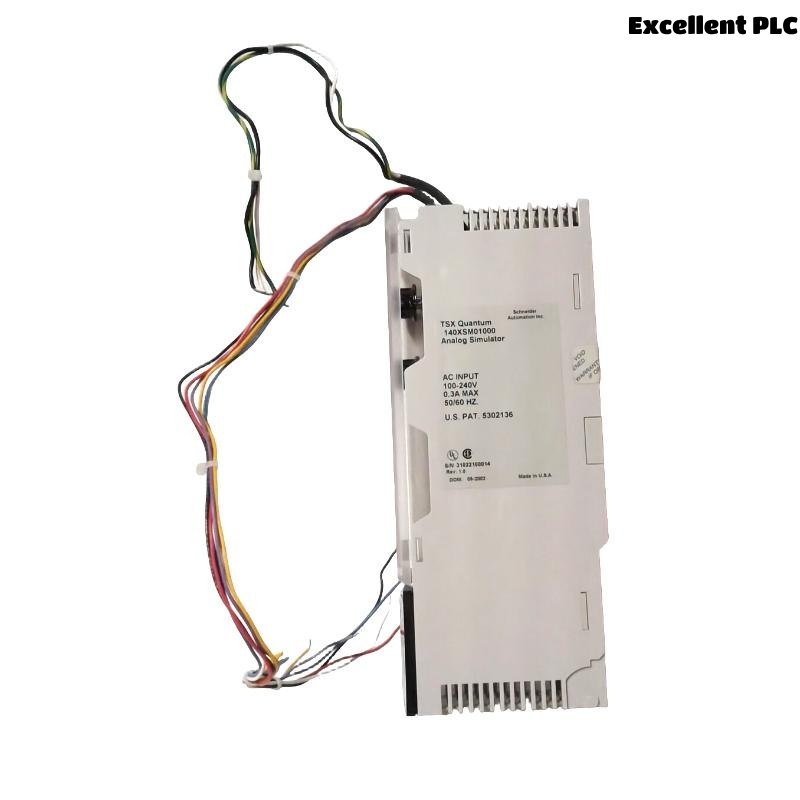

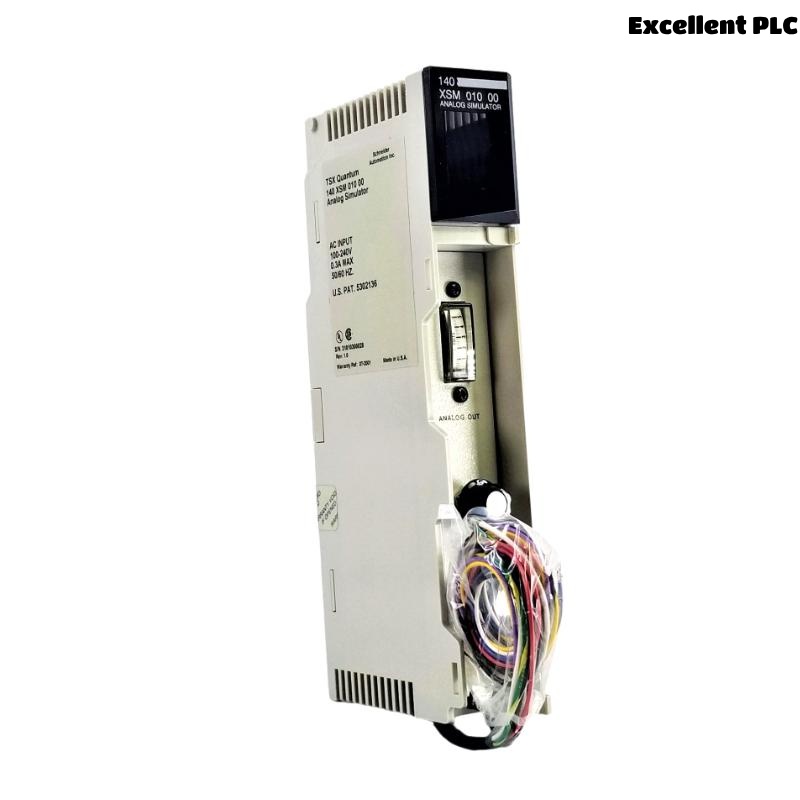

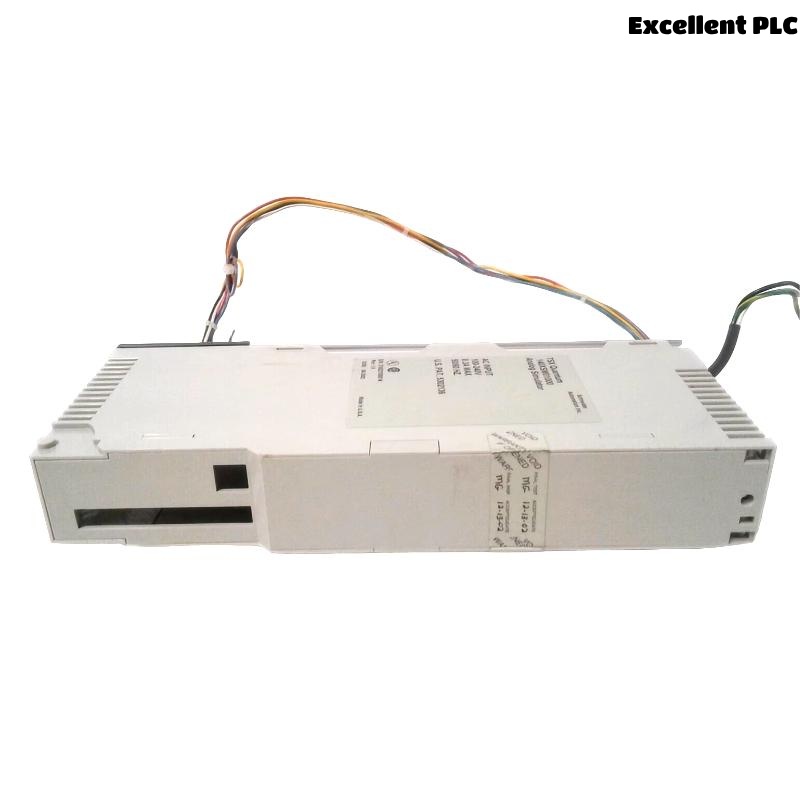

The Schneider 140XSM01000 is a versatile Analog I/O Simulator module designed for Modicon Quantum PLC systems. This simulator allows engineers and technicians to test analog input/output modules in real-time without the need for actual field devices. It’s an essential tool in system integration, factory acceptance testing (FAT), troubleshooting, and training environments, providing a safe and controlled method to simulate current and voltage signals.
The 140XSM01000 simulates standard analog signals such as 0–10V, 4–20mA, and ±10V, which are widely used in industrial control environments. It helps reduce commissioning time, prevents potential wiring errors, and offers immediate signal diagnostics—making it an indispensable asset in automation workflows.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Schneider Electric |
| Product Model | 140XSM01000 |
| Product Type | Analog I/O Simulator Module |
| Compatible System | Modicon Quantum Series |
| Signal Types Supported | 0–10 V, 4–20 mA, ±10 V |
| Channels | Multiple simulation points for both input and output |
| Power Supply | Supplied via the Quantum rack (typically 5V DC) |
| Interface Type | Direct front-panel access via test knobs and ports |
| Mounting | Standard Quantum slot or standalone bench use |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions (W x H x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.5 kg |
Product Applications
The Schneider 140XSM01000 finds utility across multiple industrial scenarios, including:
-
Factory Acceptance Testing (FAT): Simulates real-time analog I/O for testing system response.
-
Training Labs: Ideal for educating technicians and engineers without needing live process equipment.
-
System Commissioning: Enables validation of control loops and wiring before final deployment.
-
Signal Debugging: Used to isolate I/O faults and verify input/output behavior of analog modules.
-
Development Environments: A safe way to simulate sensor signals during PLC program development.
-
Remote Testing: Can be configured for remote diagnostics in control room simulations.
Product Advantages
-
Time-Efficient Troubleshooting: Rapidly isolates analog signal issues without waiting for field devices.
-
Cost Savings: Reduces need for expensive physical instruments and sensors during testing.
-
Modular and Compact: Designed to fit seamlessly into Quantum racks or be used independently on a bench.
-
Precise Simulation: Provides accurate analog signal emulation with fine-tuned adjustments.
-
Flexible Usage: Supports a variety of standard industrial signal ranges, enhancing versatility.
-
Enhanced Safety: Allows safe signal testing in high-risk environments without energizing real equipment.
Frequently Asked Questions (FAQ)
1. What does the Schneider 140XSM01000 simulator actually do?
It allows users to manually simulate analog input and output signals for testing PLC configurations and control systems without connecting actual field instruments.
2. How does this simulator help during PLC program development?
It enables engineers to verify analog signal processing logic by supplying adjustable, controlled input values, ensuring correct system behavior before going live.
3. Can this simulator be used to test both input and output modules?
Yes, it is designed to simulate signals in both directions—analog inputs to the PLC and analog outputs from the PLC to simulated loads.
4. Is the 140XSM01000 plug-and-play, or does it require complex setup?
It is a plug-and-play module that requires no programming. Users simply connect it and manually control the signal levels via knobs or switches.
5. What signal types can it simulate?
It can generate and receive standard analog signal types, including 0–10V, ±10V, and 4–20 mA, which are common in industrial automation.
6. Can the module operate independently of a PLC system?
While it is designed for use in the Modicon Quantum PLC rack, it can also be used independently in lab environments for signal generation and testing.
7. Is the 140XSM01000 safe for use in live industrial environments?
Yes, it is safe for use in operational settings but is typically used in controlled environments such as test benches or control panels during commissioning and troubleshooting.
8. How precise are the simulated signals?
The module provides finely adjustable, stable analog signals with a high degree of accuracy suitable for testing automation systems.
9. Is the module field-calibrated, or does it need adjustment?
The simulator is factory-calibrated and designed to maintain accuracy without frequent recalibration under normal operating conditions.
10. Does the 140XSM01000 need external power supply?
No, it is powered directly via the Quantum PLC rack.
Related Models (Same Series or Similar Function)
| Model Number | Description | Signal Type | Compatibility |
|---|---|---|---|
| 140XSM01010 | Enhanced Analog I/O Simulator | 0–10V, 4–20mA | Modicon Quantum |
| 140XBP00600 | 6-Slot Backplane Module | N/A | Modicon Quantum |
| 140CPU43412A | Quantum CPU, 486 Processor | N/A | Modicon Quantum |
| 140ACI03000 | Analog Current Input Module (8 Ch.) | 4–20 mA | Modicon Quantum |
| 140AII33000 | Analog Input Module (Voltage) | 0–10V | Modicon Quantum |
| 140A0I33010 | Analog Output Module | 0–20 mA | Modicon Quantum |
