Schneider 140XTS10215 CableFast System Cable

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

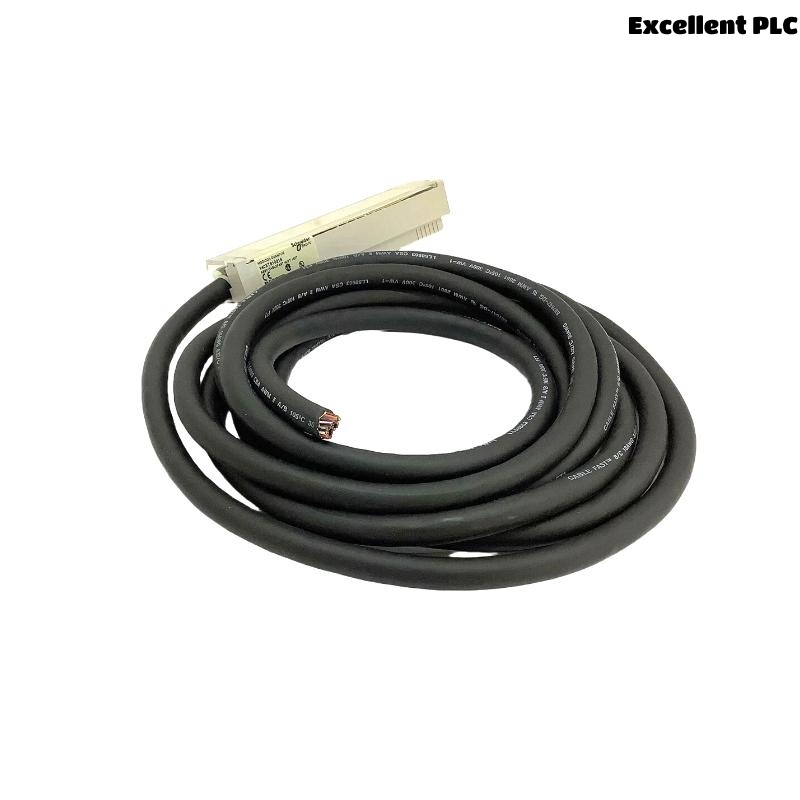

The Schneider Electric 140XTS10215 is a high-performance CableFast System Cable, designed specifically for the Modicon Quantum automation platform. This cable enables efficient and reliable connectivity between Quantum I/O modules and field wiring termination assemblies, streamlining the wiring process and enhancing system maintainability.

With its pre-engineered plug-and-play configuration, the 140XTS10215 reduces manual wiring errors and significantly decreases installation time. It is an integral part of Schneider Electric’s CableFast system—an innovative modular wiring solution that supports large-scale industrial automation deployments by offering flexibility, speed, and field-proven durability.

Whether used in factory automation, energy infrastructure, or critical process control, this cable ensures long-lasting performance and consistent signal transmission, even in demanding environments.

---

Product Specifications

---

Applications

The Schneider 140XTS10215 Cable is used extensively in modern industrial control systems, especially where modular wiring solutions are needed to improve efficiency and reduce complexity. Its typical applications include:

• Large Process Plants: Ideal for wiring long-distance remote I/O blocks in oil, gas, and chemical plants.

• Automotive Manufacturing: Speeds up machine tool I/O panel installations.

• Energy Sector: Used in power plants and substations for interconnecting field signals with centralized PLCs.

• Water and Wastewater Treatment: Facilitates modular wiring for pumps, valves, and instrumentation.

• Pharmaceutical Production Lines: Clean and organized wiring with minimal maintenance.

• Data Center Infrastructure: Reliable connection of building automation systems.

---

Product Advantages

• Long-Distance Connectivity: At 4.6 meters, it’s ideal for distributed architectures in large plants.

• Time-Saving Design: Significantly reduces labor during installation and commissioning.

• Signal Integrity: Double-shielding protects against EMI and electrical noise.

• Standardized Architecture: Ensures consistent connection practices across all installations.

• Plug-and-Play Operation: Preassembled and tested for error-free connection.

• Industrial Durability: Built for harsh industrial environments with vibration, temperature, and humidity variations.

---

Frequently Asked Questions (FAQ)

1. Q: How is the 140XTS10215 cable terminated on both ends?

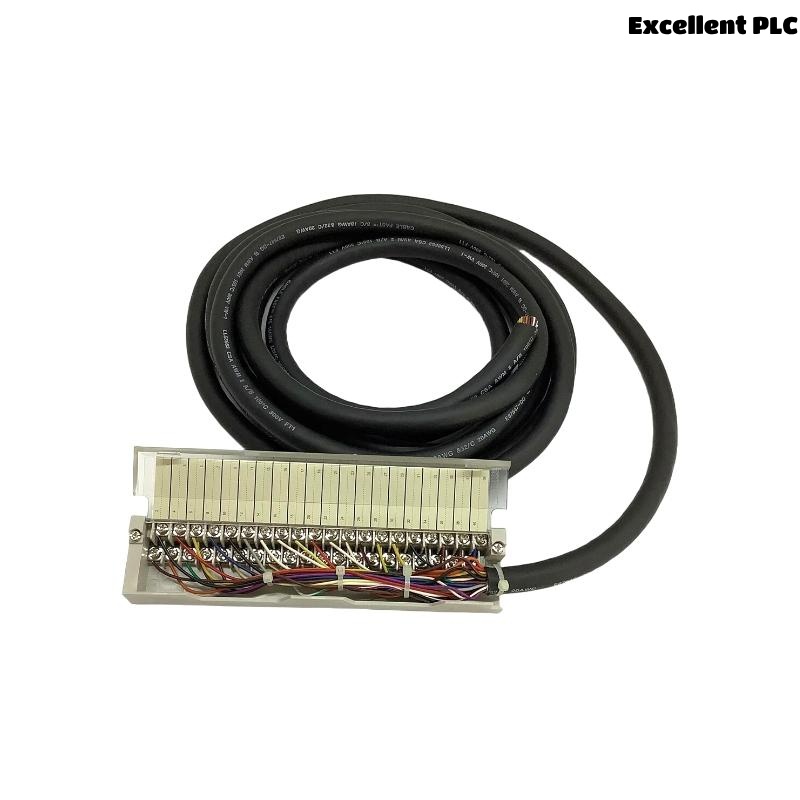

   A: One end comes with a pre-attached 40-pin connector that interfaces directly with Modicon Quantum I/O modules. The opposite end is factory-sealed and matches specific terminal block assemblies within the CableFast system, eliminating the need for field termination.

2. Q: Can this cable be installed in control panels with high EMI noise?
   A: Yes, the cable is fully shielded with both foil and braided layers, offering strong protection against electromagnetic interference typically found in industrial control cabinets.

3. Q: What happens if the cable is bent too sharply during installation?
   A: Sharp bends can damage internal shielding or conductor insulation, compromising signal integrity. The minimum bend radius should be respected, and Schneider typically recommends avoiding bends tighter than 10 times the cable diameter.

4. Q: Is there a locking mechanism on the connector for vibration resistance?
   A: Yes, the connector includes a mechanical locking clip that secures the cable to the I/O module, ensuring it stays connected even in environments with mechanical vibration.

5. Q: Can I route this cable through a cable tray with other power cables?
   A: While physically possible, it’s recommended to route signal cables like the 140XTS10215 separately from high-voltage power lines to prevent induced noise, even though it’s shielded.

6. Q: Is the cable jacket resistant to common industrial cleaning agents?
   A: The outer PVC jacket offers limited chemical resistance. If exposed regularly to harsh cleaning solvents or oils, additional protective conduit or alternative cable types should be considered.

7. Q: Can I cut and re-terminate the cable in the field if it’s too long?
   A: No, the cable is factory-terminated and not designed to be shortened or field-wired. Cutting it voids the warranty and compromises its integrity.

8. Q: What should I do if the cable gets damaged during installation?
   A: It should be fully replaced. Splicing or repairing the cable is not recommended due to its shielding structure and precision terminations.

9. Q: Does this model support both analog and digital signals?
   A: The cable is primarily used with digital I/O modules in the Modicon Quantum series. For analog modules, ensure compatibility with the terminal block before use.

10. Q: How should unused lengths of the cable be managed in the cabinet?
    A: Any slack should be loosely coiled and secured with cable ties, avoiding tight coils or sharp bends. Avoid placing excess cable near high-voltage components to maintain signal quality.

---
