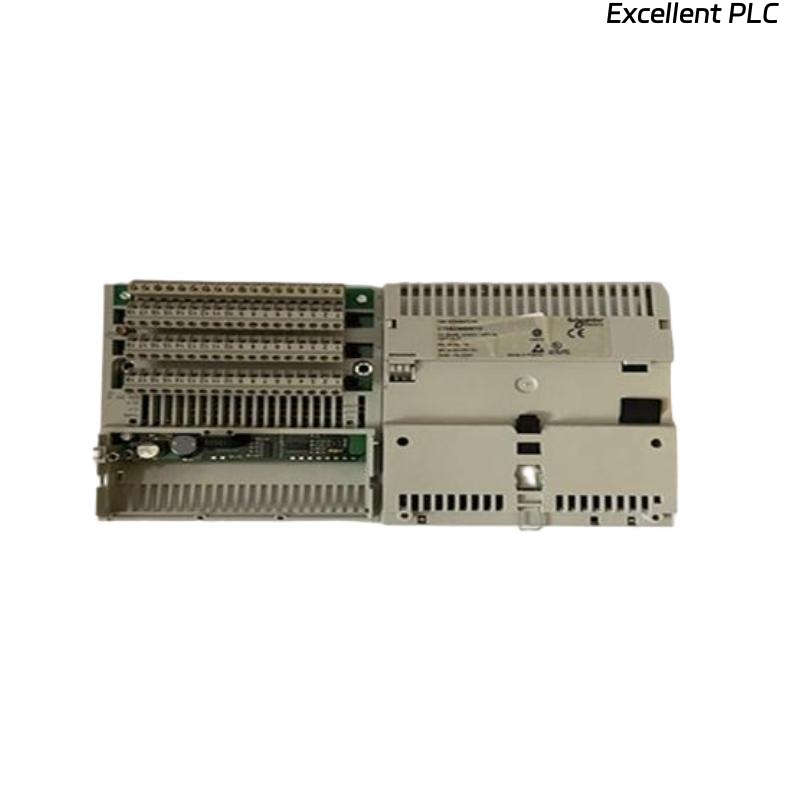

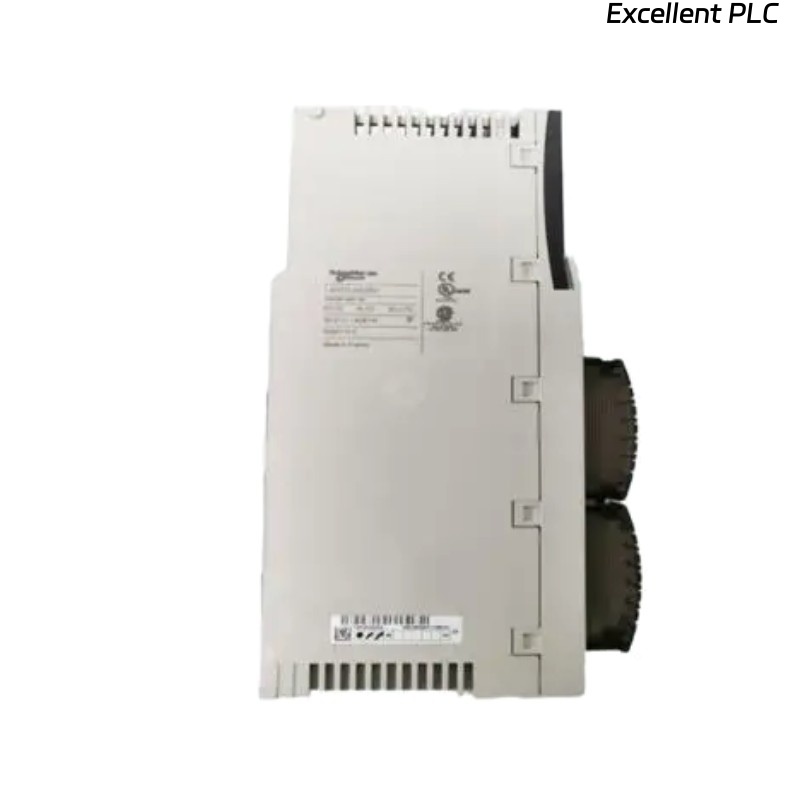

Schneider 140XTS33200 Product Introduction
The Schneider Electric 140XTS33200 is a powerful and versatile expansion module designed for use in automated control systems. It is part of Schneider Electric’s Modicon M340 range, known for its high performance and reliability in industrial applications. The 140XTS33200 module offers advanced functionality in monitoring and control, making it an essential component for a variety of automation setups, including process control and discrete control applications.
The module integrates seamlessly with the Modicon M340 system, offering flexibility and high scalability. Its compact design, coupled with a range of communication options, makes it ideal for complex systems that demand efficient, real-time data exchange. This product helps improve operational performance, reduce downtime, and optimize the control of industrial equipment.
Product Specifications
The following table outlines the technical specifications of the Schneider 140XTS33200 expansion module.
| Specification | Details |
|---|---|
| Module Type | Expansion Module |
| Compatible Series | Modicon M340 |
| I/O Channels | 32 Inputs / 32 Outputs |
| Power Supply | 24V DC |
| Weight | 0.15 kg |
| Dimensions | 110 x 100 x 55 mm |
| Environmental Operating Temperature | -25°C to +60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Type | DIN Rail Mount |
| Communication Protocol | Modbus, Ethernet, CANOpen |
Applications of the Schneider 140XTS33200
The 140XTS33200 is commonly used in applications such as:
-
Industrial Automation Systems: It is frequently employed in control panels and automation systems for industries like manufacturing, processing, and automotive.
-
Energy Management: The module aids in controlling and monitoring energy systems, improving energy efficiency and reliability.
-
Process Control Systems: The device is essential in process industries such as chemicals and food & beverage, where accurate monitoring and control are critical.
-
Building Automation: It is widely used in HVAC, lighting, and other building systems, offering central management capabilities.
-
Machine Control: Ideal for complex machine setups where accurate data input and output are necessary.
Advantages of Schneider 140XTS33200
-
Seamless Integration: As part of the Modicon M340 series, this module integrates easily with other Schneider Electric products, offering a cohesive automation solution.
-
High Scalability: It can be used in both small-scale and large-scale applications, making it highly versatile across industries.
-
Compact Design: With its small form factor, the 140XTS33200 is easy to install in tight spaces, saving room in control cabinets.
-
Reliability: Designed for tough industrial environments, the module ensures reliable performance even under harsh conditions.
-
Advanced Communication Options: The module supports various communication protocols, enabling real-time data exchange across diverse systems.
-
Energy Efficiency: The 140XTS33200 helps optimize energy consumption by enabling more efficient control of industrial processes.
FAQs (Frequently Asked Questions)
1. What is the primary function of the Schneider 140XTS33200?
Answer: The Schneider 140XTS33200 is an expansion module used in industrial automation systems to provide additional I/O channels and facilitate communication between the control system and external equipment.
2. Can the 140XTS33200 be used with other Schneider products?
Answer: Yes, it is designed to be fully compatible with other products in the Modicon M340 range, as well as other Schneider Electric industrial automation equipment.
3. What is the voltage requirement for the 140XTS33200?
Answer: The module operates on a 24V DC power supply.
4. What is the maximum operating temperature for the 140XTS33200?
Answer: The module can operate in temperatures ranging from -25°C to +60°C.
5. How many I/O channels does the 140XTS33200 support?
Answer: The module supports 32 digital inputs and 32 digital outputs.
6. Is the Schneider 140XTS33200 suitable for harsh environments?
Answer: Yes, the module is built to withstand harsh industrial environments with its rugged design and wide operating temperature range.
7. Can the 140XTS33200 be mounted on a standard DIN rail?
Answer: Yes, the module is designed to be mounted on a DIN rail, making installation quick and easy.
8. What communication protocols does the 140XTS33200 support?
Answer: The module supports Modbus, Ethernet, and CANOpen communication protocols.
9. How does the 140XTS33200 improve system efficiency?
Answer: By offering more I/O channels and advanced communication capabilities, the module helps streamline data transfer and reduces downtime in automation systems, improving overall system efficiency.
10. What industries benefit most from the Schneider 140XTS33200?
Answer: The 140XTS33200 is widely used in industries such as manufacturing, energy management, process control, and building automation.
Recommended Models (Same Series/Related Models)
| Model | Description | Specifications |
|---|---|---|
| 140XTS33100 | Digital Input/Output Expansion Module | 16 Inputs / 16 Outputs, 24V DC, DIN Rail |
| 140XTS33300 | Analog I/O Expansion Module | 8 Analog Inputs / 8 Analog Outputs |
| 140XTS33400 | Communication Expansion Module | Modbus, Ethernet, CANOpen Support |
| 140XTS33250 | High-Speed Digital I/O Module | 32 Inputs, 32 Outputs, High-Speed Processing |
| 140XTS33500 | Remote I/O Module | Remote Communication, Modbus, CANOpen |
| 140XTS33600 | Controller Expansion Module | I/O Expansion for Modicon M340 |
