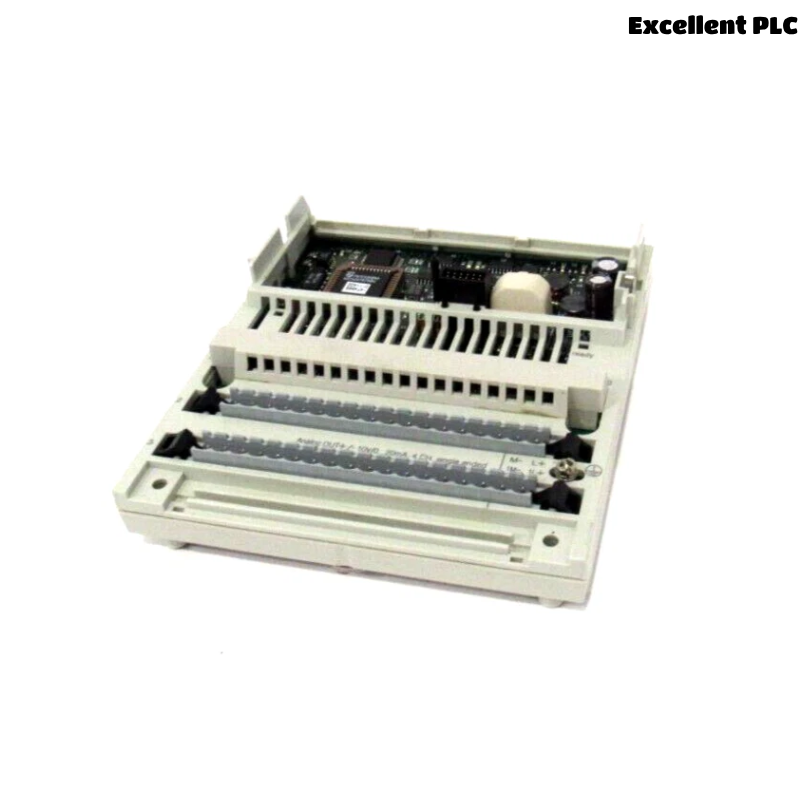

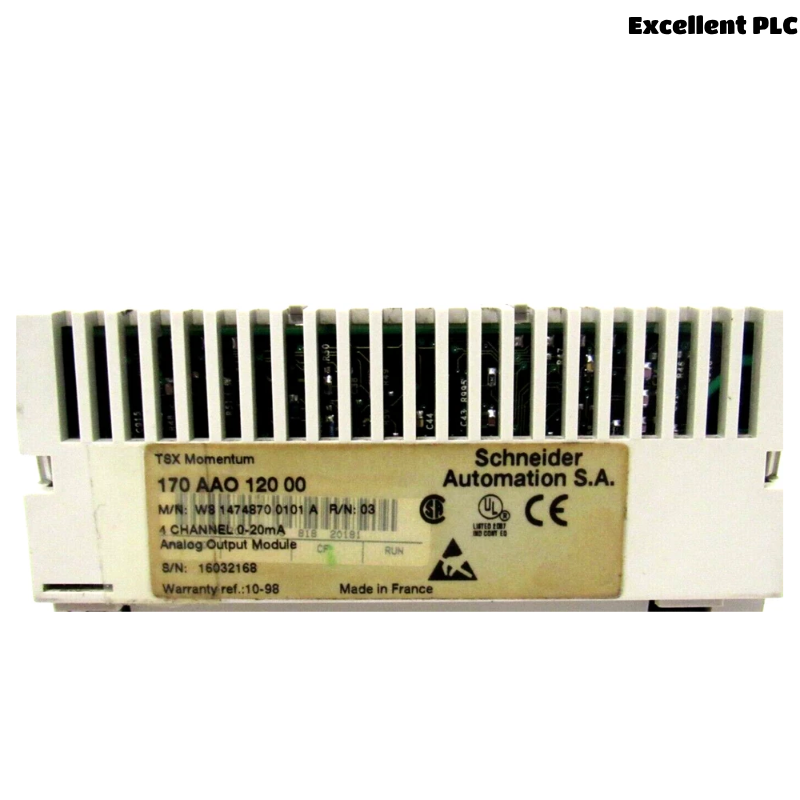

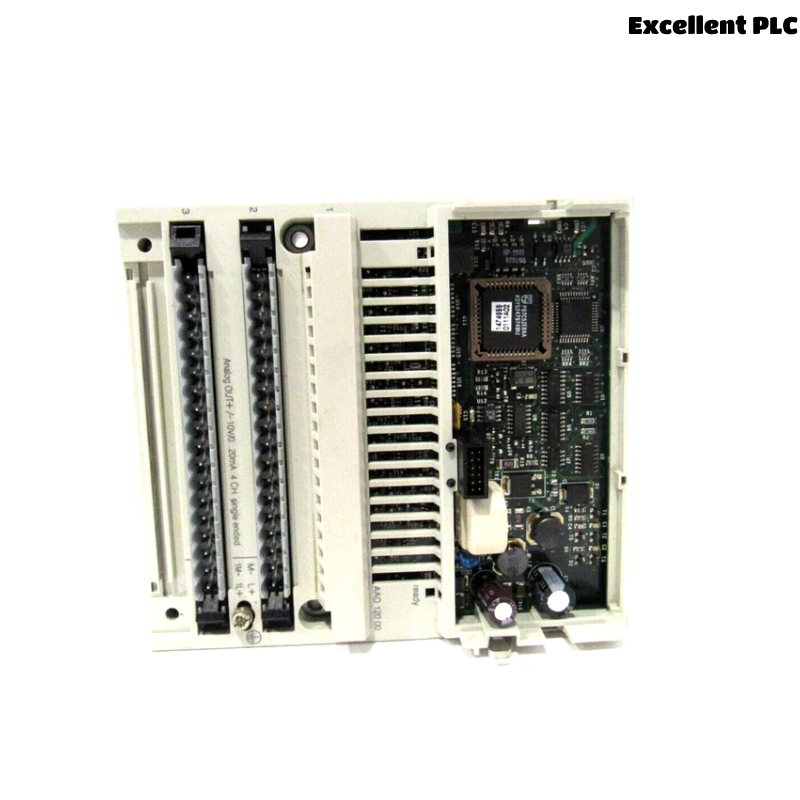

The Schneider 170AAO12000 is an analog output module designed specifically for the Modicon Momentum automation platform. Renowned for its reliability and adaptability, this module provides 2 channels of analog output, making it an ideal choice for industrial automation systems requiring precise and stable analog signal generation.
It integrates seamlessly into distributed I/O architectures, and thanks to its compact footprint, it’s suitable for installation in space‑constrained control cabinets. With a focus on robustness, accuracy, and ease of use, the 170AAO12000 helps ensure high performance in demanding industrial applications.
Product Parameters
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 170AAO12000 |
| Type | Analog output module |
| Number of channels | 2 analog outputs |
| Output type | Current (4–20 mA) and voltage (0–10 V, configurable) |
| Resolution | 12 bits |
| Accuracy | ±0.5% of full scale |
| Supply voltage | 24 V DC nominal |
| Power consumption | 1.5 W |
| Operating temperature | 0 °C to +60 °C |
| Storage temperature | –40 °C to +85 °C |
| Dimensions | 47.5 × 125 × 141.5 mm |
| Weight | 0.215 kg |
| Certifications | CE, UL, CSA, RoHS compliant |
| Mounting method | DIN rail or panel mounting |
Product Applications
The Schneider 170AAO12000 is widely used in applications where reliable and accurate analog output is essential. Typical applications include:
-
Industrial process control for pumps, valves, and actuators
-
HVAC (heating, ventilation, and air conditioning) systems to manage temperature and pressure
-
Water and wastewater treatment facilities for precise dosing control
-
Energy management systems to modulate equipment loads
-
Food and beverage production lines for temperature and pressure regulation
-
Factory automation for proportional control of drives and other devices
By supporting both current and voltage outputs, this module easily adapts to a broad range of devices and process requirements.
Product Advantages
-
Flexible configuration: Supports both voltage and current outputs, making it suitable for diverse industrial needs.
-
High precision: With 12‑bit resolution and ±0.5% accuracy, ensures reliable process control.
-
Compact design: Small footprint saves space in control panels and distributed I/O stations.
-
Proven durability: Built to operate reliably in harsh industrial environments and over wide temperature ranges.
-
Easy integration: Seamless compatibility with Modicon Momentum CPUs and bases; plug‑and‑play installation reduces setup time.
-
Global certifications: Meets CE, UL, and CSA standards, ensuring compliance for international projects.
FAQ
Q1: What type of output signals does the 170AAO12000 support?
A1: It supports both voltage outputs (0–10 V) and current outputs (4–20 mA), configurable per channel.
Q2: How many analog output channels are available?
A2: The module provides 2 independent analog output channels.
Q3: What is the resolution of the output?
A3: It has a 12‑bit resolution, allowing precise control of analog devices.
Q4: Can the module be used in high‑temperature environments?
A4: Yes, it is rated for operation between 0 °C and +60 °C.
Q5: Is it compatible with other Schneider Momentum modules?
A5: Absolutely. It integrates smoothly with other I/O modules and the Momentum CPU modules.
Q6: What is the typical use case for this module?
A6: Controlling variable speed drives, valves, dampers, and other process equipment that require analog signals.
Q7: How is the module mounted?
A7: It can be mounted directly on a DIN rail or panel.
Q8: Does it have built‑in protection?
A8: Yes, it includes short‑circuit and overload protection to enhance reliability.
Q9: What certifications does it carry?
A9: CE, UL, CSA, and RoHS, making it suitable for global markets.
Q10: How much does the module weigh?
A10: 0.215 kg, which keeps it lightweight and easy to handle.
Recommended Models (Same Series or Related)
-
170AAI14000 – Analog input module (4 channels, current)
-
170AAI52000 – Analog input module (2 channels, thermocouple)
-
170AAI03000 – Analog input module (4 channels, voltage)
-
170AAO13000 – Analog output module (2 channels, voltage only)
-
170ADM35010 – Discrete output module (24 V DC, 16 channels)
-
170DNT11003 – DeviceNet communication adapter
These models can be used together to build a complete and versatile automation solution.
Popular Schneider Models (With Specifications)
| Model | Type | Channels | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 140CPU65150 | CPU module | – | 198 × 100 × 60 | 550 g |
| 140DAO84000 | Analog output module | 8 channels | 140 × 50 × 80 | 300 g |
| 140DDO35300 | Discrete output module | 32 channels | 140 × 50 × 80 | 320 g |
| 140DDI35300 | Discrete input module | 32 channels | 140 × 50 × 80 | 310 g |
| 140ACI04000 | Analog input module | 4 channels | 140 × 50 × 80 | 290 g |
| 140CRA31200 | RIO drop adapter | – | 140 × 50 × 80 | 280 g |
