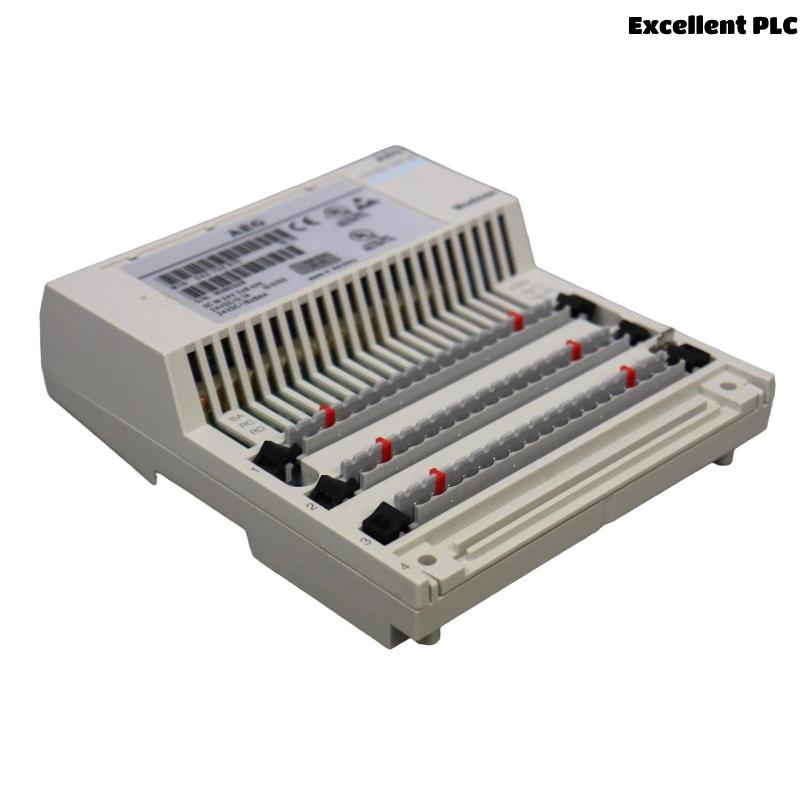

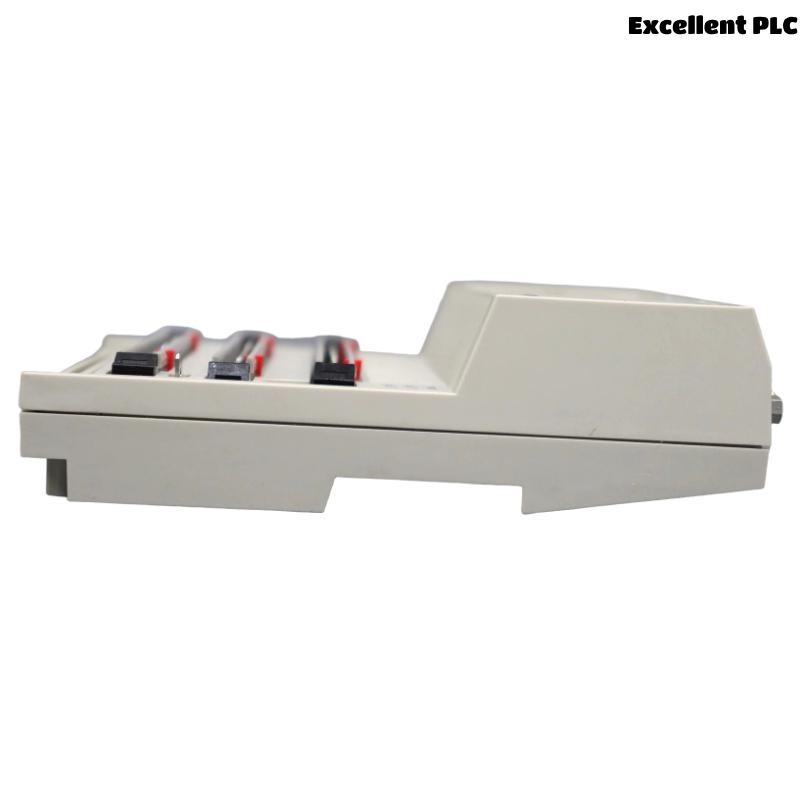

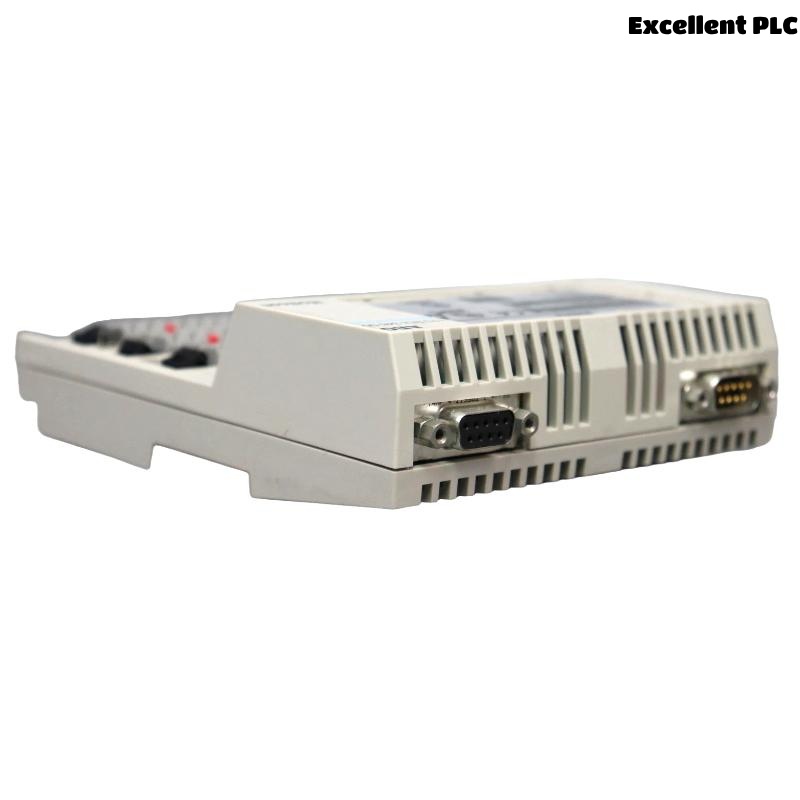

Schneider 170BDI34600 Input Module

Product Introduction

The Schneider Electric 170BDI34600 is a discrete input module from the Modicon Momentum series, a trusted line of automation components for decentralized control applications. Designed to interface with a wide range of digital sensors and devices, this module enables the acquisition of 24 VDC sink-type discrete input signals across 32 input channels, making it a high-density, cost-effective solution for industrial applications.

With its robust construction, DIN rail mountability, and plug-in design, the 170BDI34600 provides reliable digital input acquisition in space-constrained environments. It is typically used in conjunction with a Momentum base and communication adapter module to form a complete I/O node. This module plays a critical role in distributed architectures where speed, modularity, and maintainability are essential.

Product Specifications

Product Applications

The 170BDI34600 is widely utilized in various industries where high-density digital signal acquisition is required. Its 32-input design allows for efficient wiring and compact installation, making it ideal for:

• Material Handling Systems: Collects feedback from sensors, limit switches, and actuators.

• Automated Manufacturing Lines: Monitors presence sensors, emergency stops, and interlocks.

• Water Treatment Plants: Captures digital input data from pump status, valve positions, and safety switches.

• Packaging Machinery: Tracks machine cycles and actuator feedback.

• Building Automation: Gathers signals from alarms, lighting controls, and HVAC systems.

• Renewable Energy Facilities: Interfaces with control panel inputs in solar and wind power systems.

Product Advantages

• High-Density Input: 32 channels in a single module reduce space and wiring complexity.

• Fast Response Time: 1 ms reaction enables precise digital event detection.

• Plug-and-Play Design: Quick installation into Momentum bases without complex configuration.

• Flexible Integration: Works seamlessly with Modicon Momentum communication adapters (Ethernet, Modbus, etc.).

• Low Power Consumption: Efficient electronics reduce heat and energy costs.

• Diagnostics Ready: Built-in fault detection supports system reliability.

• LED Status Feedback: Allows quick identification of input states during operation or troubleshooting.

• Industrial Durability: Operates reliably under vibration, EMI, and temperature extremes.

• Modular Scalability: Easily expanded by adding additional Momentum I/O modules.

• Universal Compatibility: Compatible with various field sensors and control systems.

Frequently Asked Questions (FAQ)

1. What type of discrete input is supported by the 170BDI34600?
   This module supports 24 VDC sink-type inputs, meaning it accepts signals sourced from devices with a common negative.

2. Does the 170BDI34600 provide per-channel isolation?
   The module uses optical isolation to separate the input signals from the internal logic, ensuring noise immunity.

3. Is this module compatible with Modbus TCP/IP systems?
   Yes, when used with a compatible communication adapter (e.g., 170ENT11001), it can integrate into Modbus TCP/IP networks.

4. How are the inputs grouped electrically?
   Inputs are typically grouped in banks of 8, each with a shared common, improving wiring organization.

5. Can I wire 2-wire sensors directly to the 170BDI34600?
   Yes, provided the sensors are compatible with 24 VDC sink input logic.

6. Are the input statuses visible without software?
   Yes, each group of 8 inputs has an associated LED indicator showing the ON/OFF status.

7. Can I hot swap this module without shutting down the system?
   Yes, Momentum I/O modules including the 170BDI34600 support hot swapping in compatible bases.

8. How does the module receive its power?
   Power is delivered through the base backplane, connected to the communication adapter and system power.

9. Is filtering available to debounce signals from mechanical switches?
   Yes, input signal filtering is typically managed through the controller or communication adapter.

10. What happens if a signal wire disconnects or shorts?
    Input-level diagnostics at the module can detect signal faults, reported through the control system.
