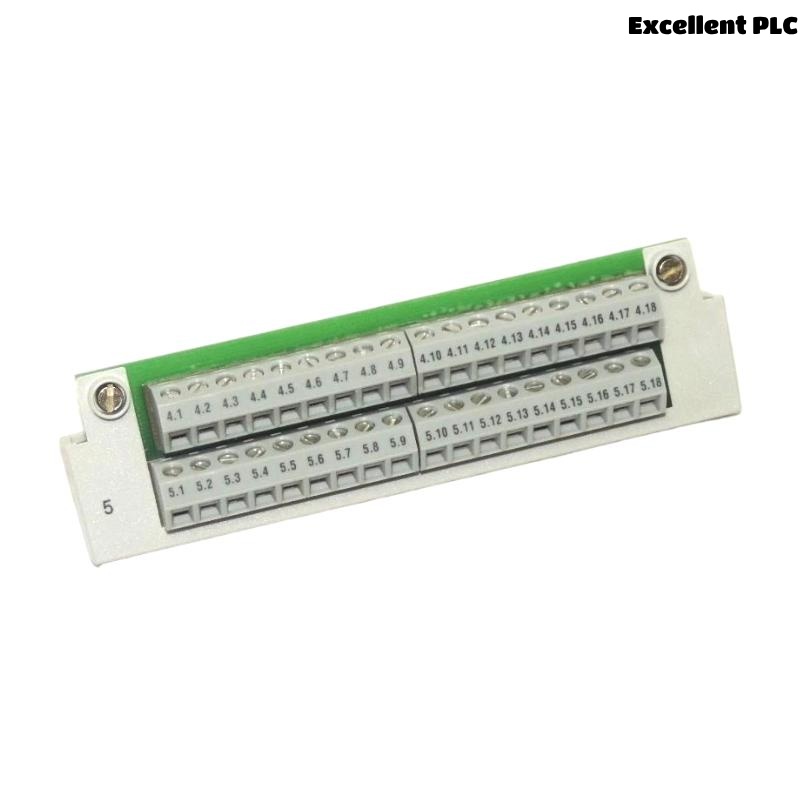

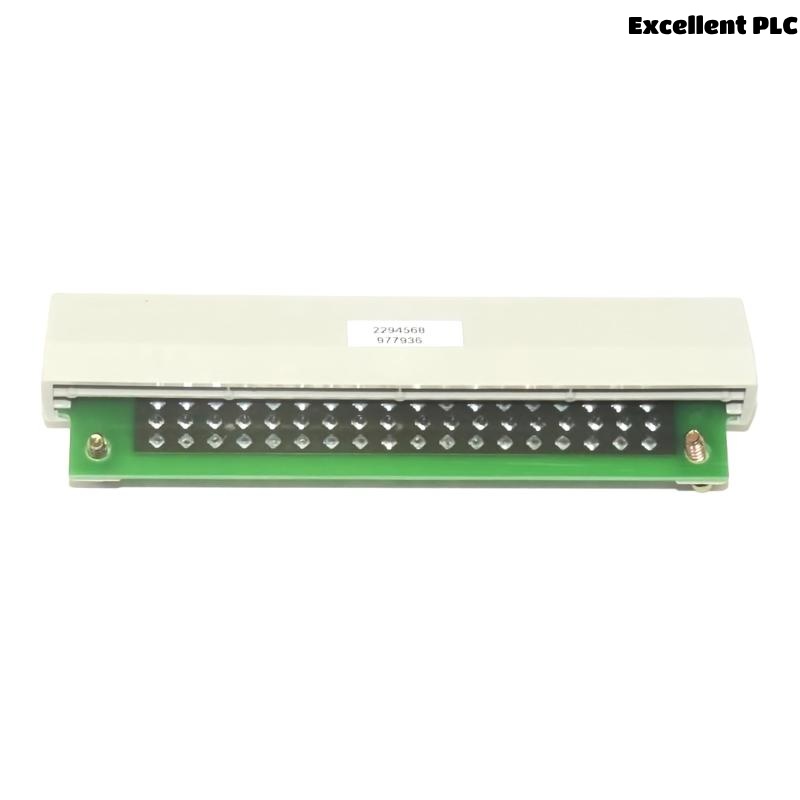

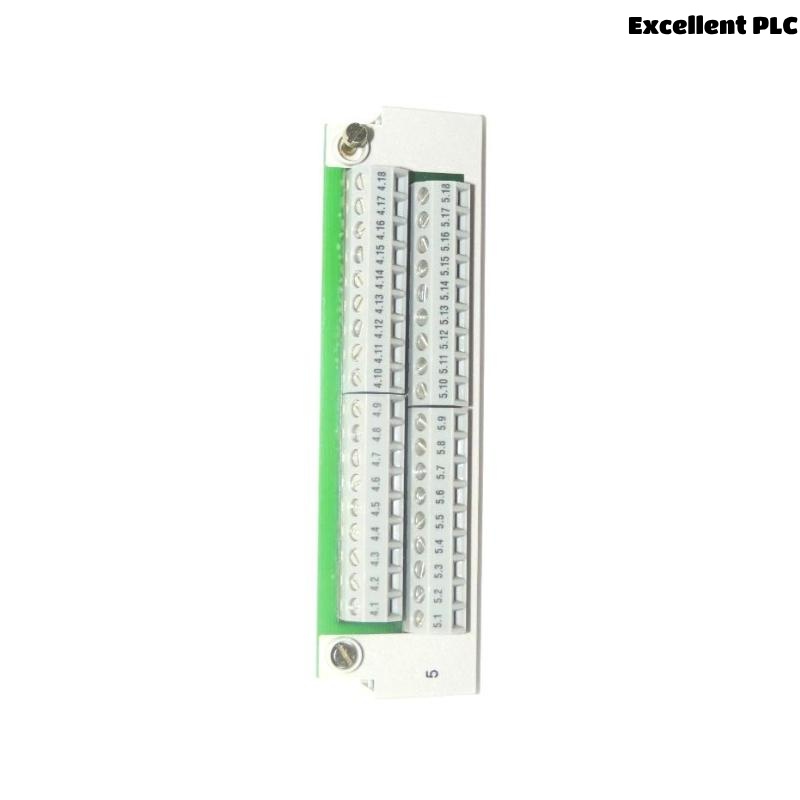

Schneider 170XTS00501 Busbar 2 Rows

Product Introduction

The Schneider 170XTS00501 double-row busbar is a high-quality power distribution accessory designed to support Schneider Modicon systems and industrial automation panels. This busbar is used to efficiently and safely distribute power or signals between multiple modules in a compact, organized manner. Its double-row configuration enables reliable electrical connections while minimizing wiring complexity, making it an ideal choice for high-density control cabinets.

Designed for durability and excellent conductivity, the 170XTS00501 ensures stable power transmission, reduced installation time, and easy maintenance in industrial and commercial environments. Designed to comply with international standards, it provides a safe and efficient solution for power and signal distribution.

Product Specifications

Product Applications

• Industrial Automation Panels: Distributes power or control signals to multiple I/O modules and PLC units.

• Modicon PLC Systems: Designed to integrate with Schneider Modicon platforms for reliable electrical distribution.

• Control Cabinets: Ensures neat and secure wiring in high-density panel installations.

• Energy Management Systems: Provides efficient power distribution for monitoring and control devices.

• Machine Control Systems: Supplies power or signal distribution to machine control modules.

• Building Automation: Used in centralized control systems for HVAC and lighting management.

• Process Control Systems: Offers reliable electrical connectivity in demanding industrial environments.

Product Advantages

• Compact 2-Row Design: Maximizes wiring density while maintaining easy access for maintenance.

• High Conductivity: Copper with tin plating ensures low-resistance and stable power transfer.

• Flexible Integration: Compatible with multiple Schneider Modicon systems and DIN rail mounting.

• Enhanced Safety: Meets IEC, UL, and CSA standards for electrical insulation and performance.

• Durable Construction: Thermoplastic insulation and robust copper conductors withstand harsh environments.

• Reduced Wiring Complexity: Simplifies installation and minimizes the risk of wiring errors.

• Wide Operating Range: Suitable for use in various industrial and commercial applications.

• Low Maintenance: Provides stable performance with minimal upkeep over time.

FAQ

1. What type of electrical systems is the 170XTS00501 busbar compatible with?
   It is compatible with Schneider Modicon PLC systems and standard industrial control panels.

2. What is the rated current capacity of the busbar?
   The busbar supports a current range of 16 A to 32 A depending on the configuration.

3. What conductive material is used in the 170XTS00501?
   It uses copper conductors with a tin-plated finish for enhanced conductivity and corrosion resistance.

4. Can the busbar be used for both AC and DC applications?
   Yes, it supports both AC and DC voltage levels within its rated specifications.

5. What type of mounting does the busbar support?
   It can be mounted on DIN rails or panels depending on the cabinet design.

6. Is the busbar insulated?
   Yes, it uses a high-strength thermoplastic insulation material for safety and reliability.

7. Does the bus duct comply with international standards?
   It complies with IEC 60947-1, UL and CSA standards for industrial electrical components.

8. Can it be used in high temperature environments?
   Yes, it operates reliably in temperatures ranging from -25°C to +70°C.

9. How many rows does this model have?
   The 170XTS00501 has a 2-row configuration to optimize power distribution.

10. What type of connection terminals does it use?
    It uses screw terminal connections to ensure safe and stable wiring.

Recommended related models

Recommended popular Schneider models

FAQ

1. What types of electrical systems are the 170XTS00501 bus duct compatible with?
   It is compatible with Schneider Modicon PLC systems and standard industrial control panels.

2. What is the rated current capacity of the busbar?
   The busbar supports currents ranging from 16 A to 32 A, depending on the configuration.

3. What conductive material is used in the 170XTS00501?
   It uses tinned copper conductors for enhanced conductivity and corrosion resistance.

4. Can the bus duct be used for both AC and DC applications?
   Yes, it supports both AC and DC voltage levels within the rated specifications.

5. Which mounting method does the busbar support?
   Depending on the cabinet design, the busbar can be mounted on a DIN rail or a panel.

6. Is the busbar insulated?
   Yes, it uses high-strength thermoplastic insulation material, which is safe and reliable.

7. Does the bus duct comply with international standards?
   It complies with IEC 60947-1, UL and CSA standards for industrial electrical components.

8. Can it be used in high temperature environments?
   Yes, it operates reliably in temperatures ranging from -25°C to +70°C.

9. How many rows does this model have?
   The 170XTS00501 has a 2-row configuration to optimize power distribution.

10. What type of connection terminals does it use?
    It uses screw terminal connections to ensure safe and stable wiring.
