Product Introduction

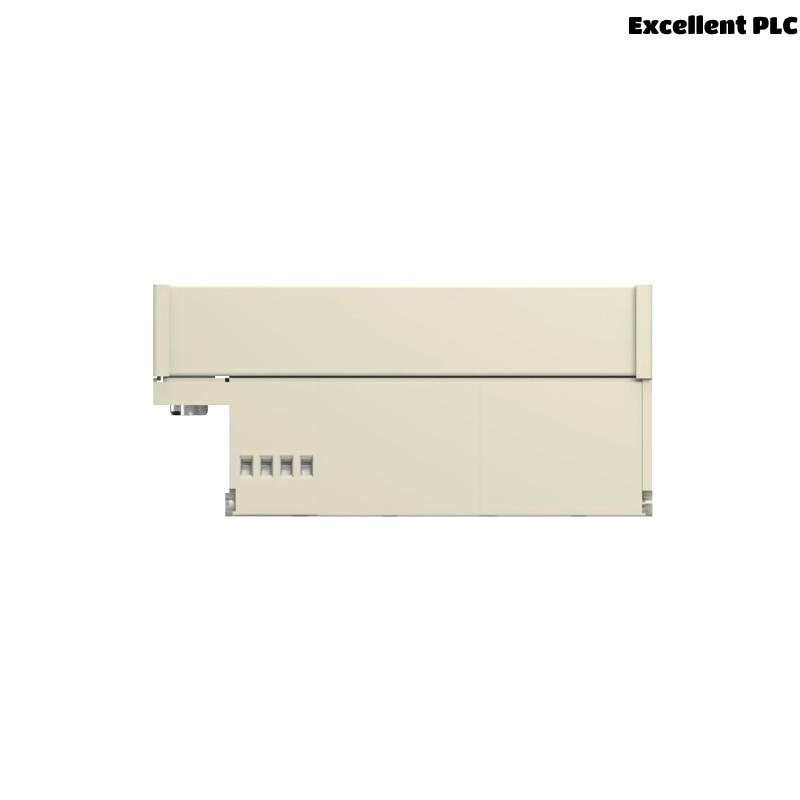

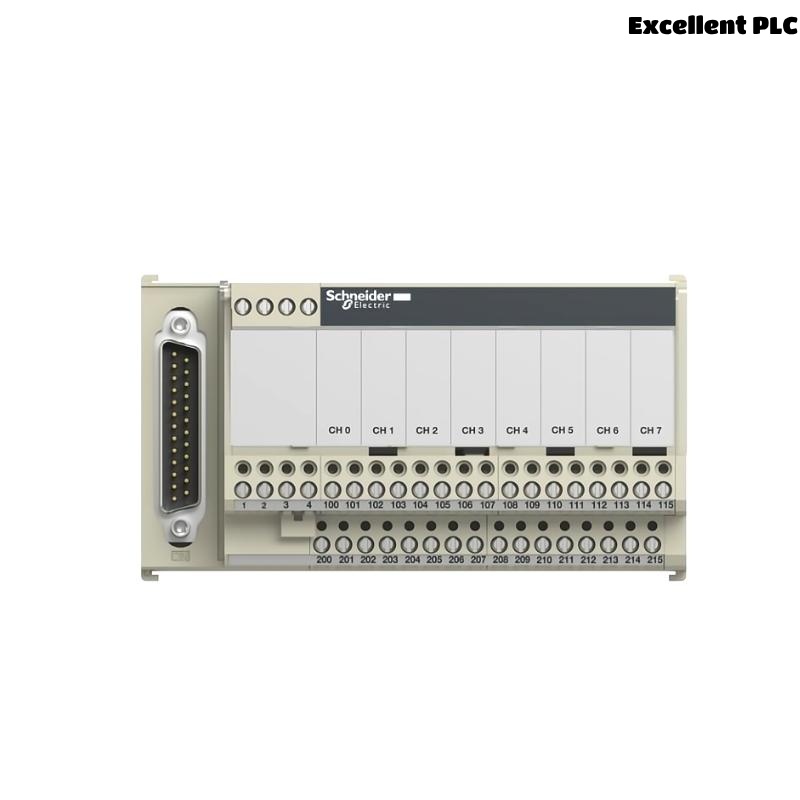

The Schneider Electric ABE7CPA03 is a high-performance connection sub-base designed to serve as an interface between I/O modules and external field wiring. Part of the well-regarded Telemecanique ABE7 series, this unit ensures modularity, reliability, and ease of installation in industrial automation systems. With a 12-point interface and a robust terminal connection system, the ABE7CPA03 allows for clean and organized wiring, minimizing installation and maintenance times while boosting system reliability.
Designed to integrate seamlessly with PLCs and I/O modules in control systems, this sub-base excels in applications where accuracy, efficiency, and safety are paramount. It’s built with durability and functionality in mind, capable of withstanding harsh industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model | ABE7CPA03 |
| Product Type | Connection Sub-Base |
| Series | ABE7 |
| I/O Points Supported | 12 |
| Compatible I/O Modules | Telefast I/O Modules (24 V DC discrete signals) |
| Mounting Type | DIN Rail |
| Connector Type | HE10 20-pin male connector |
| Terminal Type | Screw clamp terminal |
| Operating Voltage | 24 V DC |
| Material | High-strength thermoplastic |
| Insulation Resistance | > 10 MΩ at 500 V DC |
| Ingress Protection | IP20 |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 125 x 70 x 67 mm |
| Weight | 0.33 kg |
| Certifications | CE, RoHS, UL, CSA |
Product Applications
The ABE7CPA03 is designed for versatile use in a wide range of industrial and commercial environments. Typical applications include:
-
Factory Automation: Facilitates quick and organized connections between sensors/actuators and the PLC.
-
Process Control Systems: Used in chemical, water treatment, and food processing industries.
-
Packaging Machines: Ensures clean wiring for rapid troubleshooting and modular control.
-
Material Handling: Used in conveyor systems and robotic assembly lines.
-
HVAC Systems: Interfaces control devices with centralized control systems.
-
Energy Management: Integrated in power distribution panels and monitoring setups.
Product Advantages
-
Simplified Wiring: Reduces errors and clutter by centralizing signal connections.
-
Time-Saving Design: Speeds up installation and troubleshooting with labeled terminals and standard connectors.
-
Reliable Performance: Built to endure harsh industrial environments with high electrical insulation.
-
Modular Integration: Easily connectable to various Schneider and Telemecanique I/O modules.
-
Enhanced Safety: Conforms to stringent international safety standards.
-
Cost Efficiency: Lowers maintenance costs by enabling quick module replacements.
Frequently Asked Questions (FAQ)
-
What type of modules can be connected to ABE7CPA03?
It connects to discrete I/O modules, particularly 24 V DC Telefast modules. -
Is the ABE7CPA03 compatible with all Schneider PLCs?
It is primarily designed for use with Telemecanique and Schneider’s Modicon systems. -
How many signals can the ABE7CPA03 support?
It supports up to 12 individual I/O points. -
What type of connector does it use?
It uses a HE10 20-pin male connector for signal interfacing. -
Can this sub-base be mounted on any type of panel?
It is designed for DIN rail mounting for standardized installation. -
What is the operating temperature range for this product?
The operating range is from -5°C to +60°C. -
Does the ABE7CPA03 require additional accessories for installation?
No special tools or accessories are required; standard DIN rail and wiring tools suffice. -
Is this product certified for use in North America?
Yes, it is UL and CSA certified in addition to CE and RoHS compliance. -
How long does the product last under normal operating conditions?
With proper installation and usage, it can last several years, even in industrial environments. -
What kind of maintenance is required?
Occasional checks for terminal tightness and connector integrity are recommended.
Related Models from ABE7 Series
| Model | Description | I/O Points | Connector Type | Mounting Type |
|---|---|---|---|---|
| ABE7CPA02 | Connection Sub-Base, 8-channel | 8 | HE10 16-pin | DIN Rail |
| ABE7CPA20 | Sub-Base with Relay Interface | 12 | HE10 20-pin | DIN Rail |
| ABE7CPA31 | Analog Sub-Base for current signals | 8 | HE10 20-pin | DIN Rail |
| ABE7CFA20 | Sub-Base with Fuse Protection | 12 | HE10 20-pin | DIN Rail |
| ABE7R16S111 | Sub-Base with Relays, 16-channel | 16 | Spring terminals | DIN Rail |
| ABE7CPA212 | Double Sub-Base for compact modules | 24 | HE10 40-pin | DIN Rail |
