Product Introduction

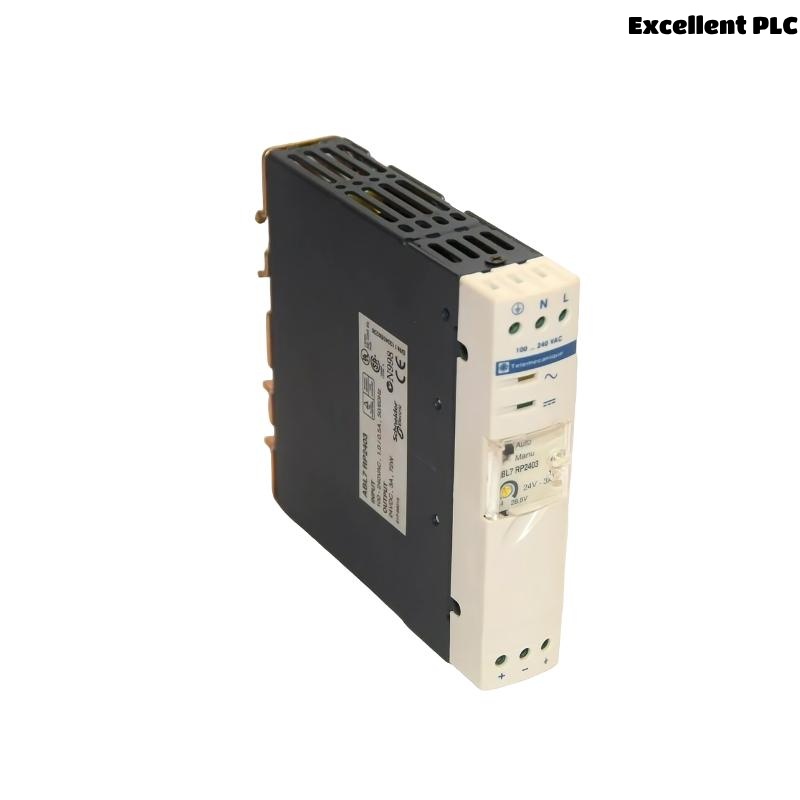

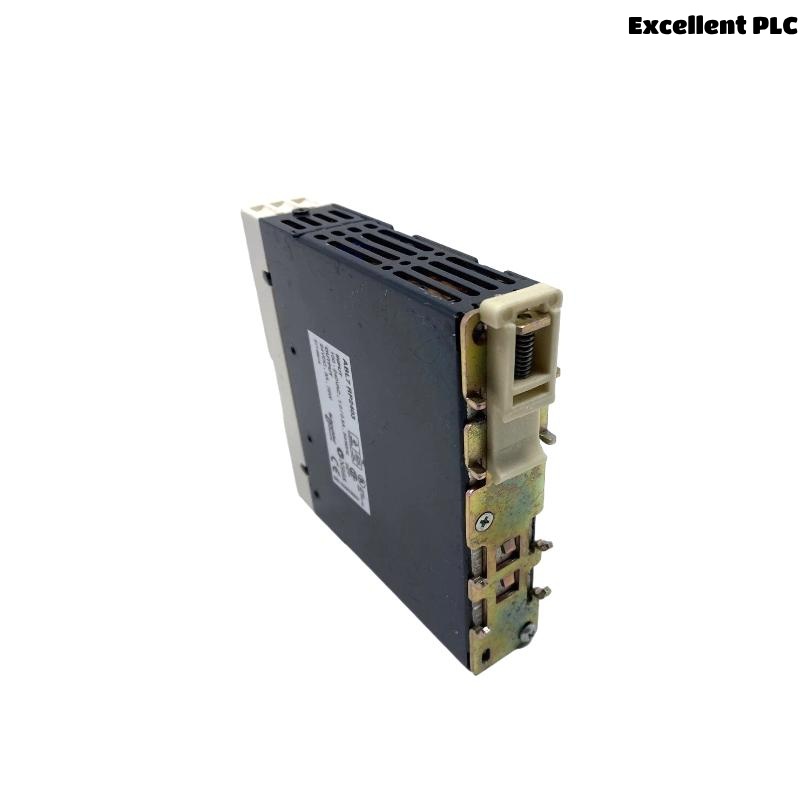

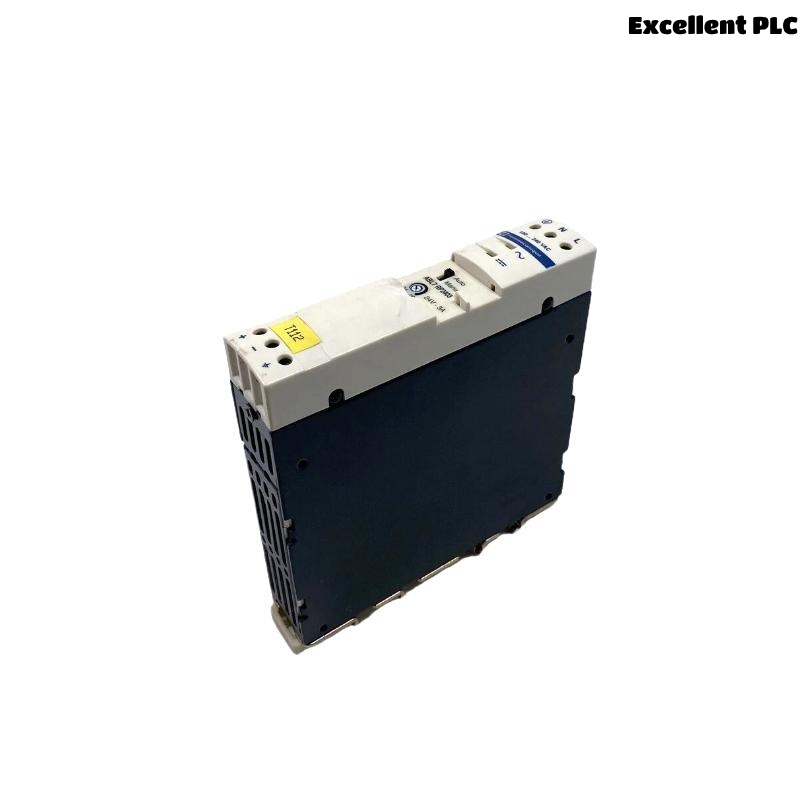

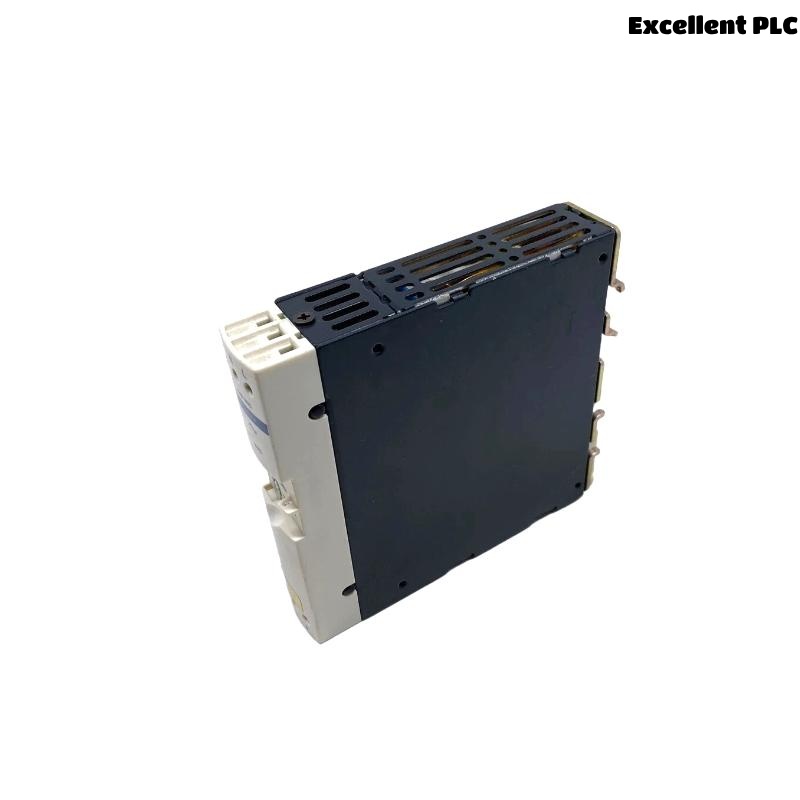

The Schneider Electric ABL7RP2403 is a high-quality regulated switching power supply designed for use in industrial and automation systems. This compact, efficient unit delivers 24 V DC output at 3 A (72 W) and is built to meet the demanding requirements of modern electrical panels and control systems. Belonging to the Phaseo ABL7RP series, this model ensures stable and safe power conversion from AC to DC, offering consistent voltage regardless of input fluctuations.
With its reliable design, thermal protection, and short-circuit handling, the ABL7RP2403 is widely adopted across industrial applications ranging from process automation to building management. Its slim footprint and ease of DIN rail mounting make it ideal for panel integration.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | ABL7RP2403 |
| Product Series | Phaseo ABL7RP |
| Power Supply Type | Regulated Switching Power Supply |
| Input Voltage Range | 100–240 V AC (single-phase), 50/60 Hz |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24 V DC (regulated) |
| Output Current | 3 A |
| Output Power | 72 W |
| Efficiency | ≥ 87% |
| Hold-up Time | > 10 ms at full load and 230 V input |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Ripple and Noise | ≤ 150 mV peak-to-peak |
| Protection Features | Overload, Short Circuit, Overvoltage, Thermal Protection |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Cooling Method | Natural Convection |
| Mounting Type | DIN Rail |
| Certifications | CE, UL, CSA, EAC, RCM |
| Dimensions (W x H x D) | 160 x 100 x 40 mm |
| Weight | 0.5 kg |
| Housing Material | Self-extinguishing thermoplastic UL 94-V0 |
| IP Degree of Protection | IP20 |
Product Applications
The ABL7RP2403 is designed to support a wide range of low-voltage DC applications in industrial and commercial environments. Common usage scenarios include:
-
PLC and Industrial Controller Power Supply – Provides clean and stable voltage to logic controllers and I/O systems.
-
HMI and Display Systems – Powers human-machine interface units requiring low ripple.
-
Sensor and Transducer Supply – Feeds analog and digital sensors with reliable 24 V DC.
-
Control Panel Integration – Easily mounts in control cabinets for standardized voltage output.
-
Building Automation – Used in HVAC controllers, access systems, and fire alarms.
-
Machine Tooling and Robotics – Delivers power to actuators, drives, and embedded control modules.
Product Advantages
-
High Reliability: Engineered for continuous operation in harsh environments with built-in protection.
-
Compact Design: Space-saving form factor allows for installation in dense control panels.
-
Thermal Protection: Automatically shuts down in over-temperature conditions to prevent damage.
-
Excellent Regulation: Maintains stable voltage under fluctuating input and output conditions.
-
Tool-free Mounting: DIN rail clip ensures fast, secure installation and removal.
-
Global Certifications: CE, UL, and CSA listed for international deployment.
-
Wide Input Range: Operates from 100 to 240 VAC without switch selection.
-
Efficient and Silent: High energy efficiency combined with fanless natural convection cooling.
-
Low Ripple: Ideal for sensitive control equipment with noise-sensitive electronics.
-
Backed by Schneider: Supported globally by Schneider’s warranty and service infrastructure.
Frequently Asked Questions (FAQ)
-
What is the rated output of the ABL7RP2403?
The unit delivers a regulated 24 V DC at 3 A, providing 72 watts of power. -
Can this power supply operate on both 120 V and 230 V AC?
Yes, it has a wide input voltage range from 100 to 240 V AC. -
Is the ABL7RP2403 suitable for DIN rail mounting?
Absolutely. It is designed for quick and secure DIN rail installation. -
Does the device offer overload protection?
Yes, it has integrated protection against overload, short circuit, overvoltage, and overheating. -
What is the cooling method?
It uses natural convection—no fan required—making it silent and reliable. -
What type of environments can it operate in?
It operates between -10°C and +55°C, suitable for most industrial environments. -
What is the efficiency of the unit?
The typical efficiency is 87% or higher, helping reduce energy losses. -
Can I use this power supply with a PLC system?
Yes, it’s ideal for powering PLCs and other automation hardware. -
What standards does it comply with?
CE, UL, CSA, and several international safety standards. -
Is this power supply isolated?
Yes, it provides electrical isolation between input and output as required in industrial supplies.
Recommended Related Models (Same Series or Compatible Units)
| Model Number | Output Voltage | Output Current | Power (W) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ABL7RP2405 | 24 V DC | 5 A | 120 W | 70 x 124 x 110 | 0.64 |
| ABL7RP2401 | 24 V DC | 1.3 A | 30 W | 35 x 124 x 110 | 0.3 |
| ABL7RE2402 | 24 V DC | 2.5 A | 60 W | 50 x 124 x 110 | 0.44 |
| ABL7RM24025 | 24 V DC | 2.5 A | 60 W | 45 x 124 x 110 | 0.42 |
| ABL8REM24030 | 24 V DC | 3 A | 72 W | 54 x 124 x 110 | 0.46 |
| ABL8RPM24030 | 24 V DC | 3 A | 72 W | 54 x 124 x 110 | 0.47 |
Popular Schneider Electric Models (High-Demand Units)
| Model Number | Description | Application Area | Type | Weight (kg) |
|---|---|---|---|---|
| TM241CE24T | Modicon M241 Logic Controller | Machine Automation | PLC Controller | 0.56 |
| BMXCPS2010 | Modicon X80 Power Supply | Industrial DCS/PLC | Power Supply | 0.7 |
| ATV630D55N4 | Altivar Process Drive 55kW | Pump/Fan Control | Variable Speed Drive | 42.0 |
| HMISTU855 | HMI Touch Panel (5.7″) | Machine Interface | Human-Machine Interface | 0.72 |
| TSXPSY2600 | Premium Series Power Supply | Modular PLC | Power Supply | 1.1 |
| ABL8WPS24200 | Modular Power Supply 24 V / 20 A | Panel Systems | Power Supply | 1.9 |
