Product Overview

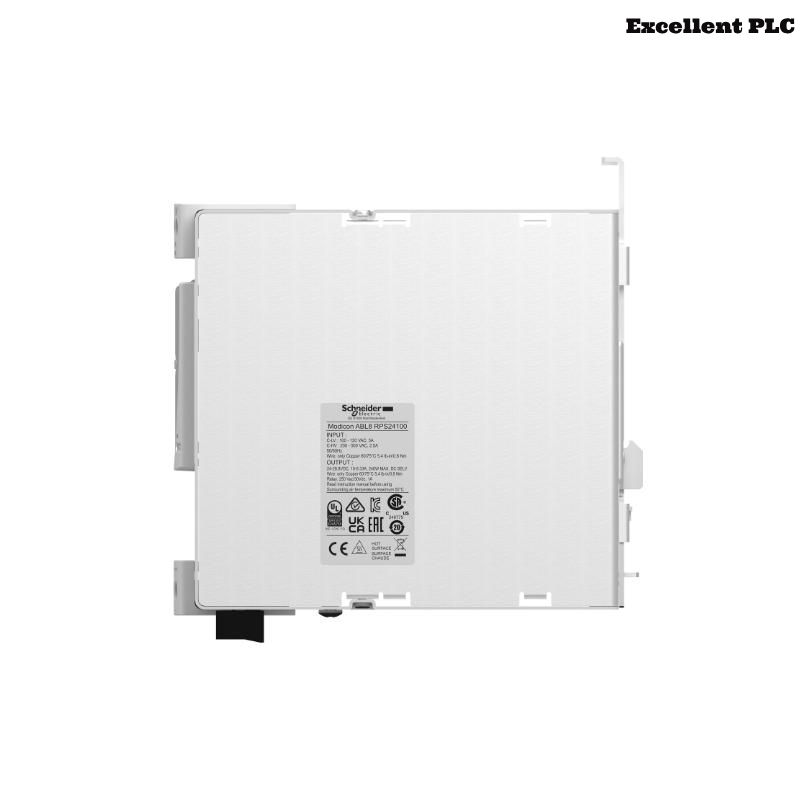

The Schneider Electric ABL8RPS24100 is a regulated switch mode power supply (SMPS) designed to deliver consistent and reliable 24V DC output at 10A, totaling 240W. Engineered for versatility, it accommodates a broad input voltage range from 100V to 500V AC, making it suitable for various industrial, commercial, and residential applications. Its compact design and DIN rail mounting capability facilitate easy integration into control panels and automation systems.
Specifications
The following table provides detailed specification for the Schneider Electric ABL8RPS24100:
| Specification | Details |
| Model | ABL8RPS24100 |
| Input Voltage Range | 100–120V AC (Single-phase), 200–500V AC (Phase-to-phase) |
| Output Voltage | 24V DC |
| Output Current | 10A |
| Output Power | 240W |
| Efficiency | High efficiency with integrated Power Factor Correction (PFC) filter |
| Operating Temperature | -25°C to +70°C |
| Dimensions (WxHxD) | 125 x 143 x 86 mm |
| Weight | 1 kg |
| Cooling Method | Natural convection |
| Protection Features | Overload, short-circuit, overvoltage protection |

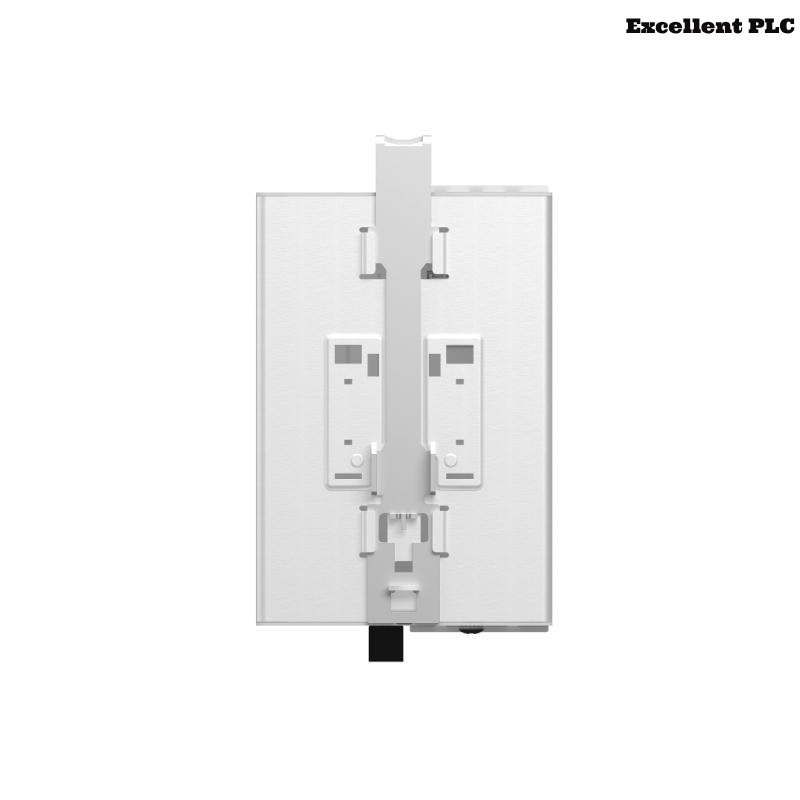

| Mounting | DIN rail mountable |
| Certifications | UL 508, CSA C22.2 No. 60950-1 |
| Diagnostics | LED indicators for operational status |
Applications
The ABL8RPS24100 is designed for a wide range of applications, including:
-
Industrial Automation: Supplies power to PLCs, sensors, and actuators in manufacturing environments.
-
Conveying Systems: Provides reliable power for conveyor belt control systems in logistics and material handling.
-
Packaging Machinery: Ensures consistent operation of automated packaging equipment.
-
Food & Beverage Industry: Powers control systems in processing and packaging lines, adhering to industry standards.
-
Mining Operations: Supports equipment control systems in mining applications, offering durability in harsh conditions.
-
Oil & Gas Sector: Delivers stable power to control systems in exploration and refining processes.
-
Water Treatment Facilities: Powers monitoring and control systems essential for water purification and distribution.
Advantages
-
Wide Input Voltage Range: Accommodates various power supply networks globally, enhancing flexibility in deployment.
-
High Efficiency with PFC: Integrated Power Factor Correction filter ensures efficient energy use and compliance with IEC 61000-3-2 standards.
-
Compact Design: Slim profile (85mm width) allows for space-saving installation in control panels.
-
Robust Protection Mechanisms: Equipped with overload, short-circuit, and overvoltage protection to safeguard connected equipment.
-
Wide Operating Temperature Range: Functions reliably in environments ranging from -25°C to +70°C.
-
Easy Installation: DIN rail mounting simplifies integration into existing systems.
-
LED Diagnostics: Front-facing LED indicators provide immediate visual status updates for troubleshooting.
-
Compliance with Standards: Meets UL 508 and CSA C22.2 No. 60950-1 certifications, ensuring adherence to safety and performance standards.
Latest News Headlines
-
“Schneider Electric Enhances Industrial Automation with ABL8RPS24100 Power Supply”
-
“New ABL8RPS24100 SMPS: A Game-Changer for Packaging and Conveying Systems”
-
“Schneider’s ABL8RPS24100: Meeting the Demands of the Food & Beverage Industry”
-
“Innovative Power Solutions: The ABL8RPS24100 in Mining Applications”
-
“Oil & Gas Sector Benefits from Reliable Power with Schneider’s ABL8RPS24100”
-
“Water Treatment Facilities Achieve Efficiency with ABL8RPS24100 Integration”
-
“Schneider Electric’s ABL8RPS24100: Compact Design Meets High Performance”
-
“Ensuring Equipment Safety: The Protective Features of ABL8RPS24100”
-
“Global Compatibility: ABL8RPS24100’s Wide Input Voltage Range Advantage”
-
“Schneider Electric Sets New Standards with ABL8RPS24100 Power Supply”
Frequently Asked Questions (FAQ)
-
What input voltage ranges does the ABL8RPS24100 support?
-
It supports 100–120V AC for single-phase and 200–500V AC for phase-to-phase connections.
-
-
What is the output capacity of the ABL8RPS24100?
-
It provides a 24V DC output with a maximum current of 10A, totaling 240W.
-
-
Does the ABL8RPS24100 include protection features?
-
Yes, it includes overload, short-circuit, and overvoltage protection mechanisms.
-
-
What are the dimensions and weight of the ABL8RPS24100?
-
The unit measures 125 x 143 x 86 mm and weighs 1 kg.
-
-
Can the ABL8RPS24100 operate in extreme temperatures?
-
Yes, it operates reliably within a temperature range of -25°C to +70°C.
-
-
How is the ABL8RPS24100 mounted?
-
It is designed for DIN rail mounting, facilitating easy installation.
-
-
Does the power supply have diagnostic indicators?
-
Yes, it features front-facing LED indicators for operational status and troubleshooting.
-
-
Is the ABL8RPS24100 compliant with international standards?
-
Yes, it meets UL 508 and CSA C22.2 No. 60950-1 certifications.
-
-
What applications are suitable for the ABL8RPS24100?
-
It’s suitable for industrial automation, conveying systems, packaging machinery, and more.
-
-
Does the ABL8RPS24100 include a Power Factor Correction (PFC) filter?
-
Yes, it is equipped with an integrated PFC filter conforming to IEC 61000-3-2 standards.
-
Related Models from the Phaseo ABL8 Series
| Model Number | Output Voltage | Output Current | Output Power | Input Voltage Range | Description |
| ABL8RPS24030 | 24 VDC | 3 A | 72 W | 100–500 V AC / 120–250 V DC | Compact, ideal for low-power applications |
| ABL8RPS24050 | 24 VDC | 5 A | 120 W | 100–500 V AC / 120–250 V DC | Versatile power supply with high efficiency |
| ABL8RPS24100 | 24 VDC | 10 A | 240 W | 100–500 V AC / 120–250 V DC | High-performance regulated power supply |
| ABL8REM24015 | 24 VDC | 1.5 A | 36 W | 100–240 V AC | Miniature version for compact installations |
| ABL8REM24030 | 24 VDC | 3 A | 72 W | 100–240 V AC | Regulated supply for control systems |
| ABL8WPS24100 | 24 VDC | 10 A | 240 W | 380–500 V AC (3-phase) | Designed for 3-phase supply systems |
| ABL8RPS24150 | 24 VDC | 15 A | 360 W | 100–500 V AC / 120–250 V DC | For demanding loads requiring higher power |
| ABL8RPS24400 | 24 VDC | 40 A | 960 W | 100–500 V AC / 120–250 V DC | High-power solution for large-scale systems |
