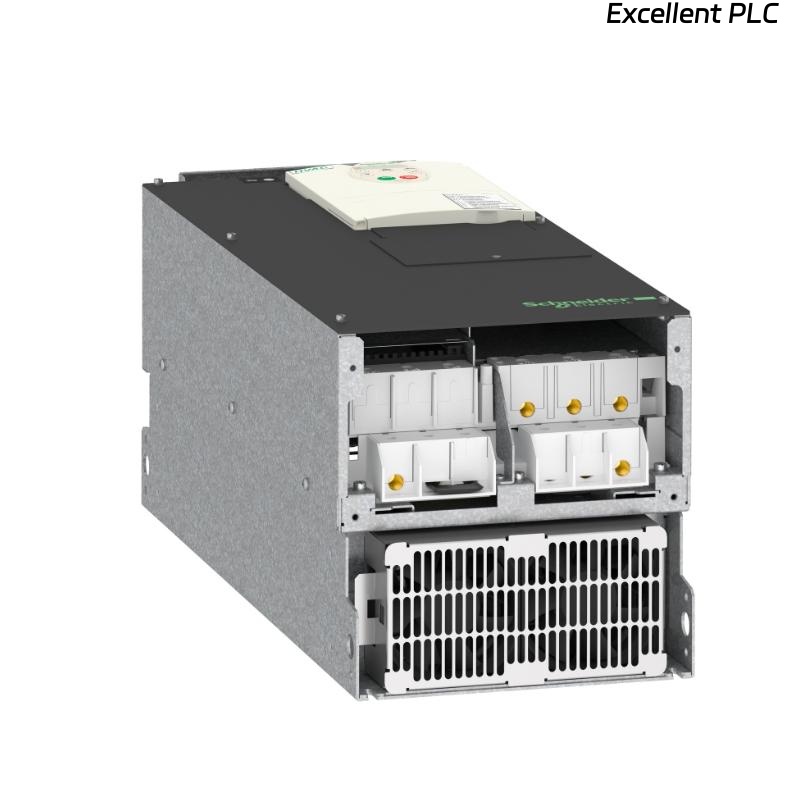

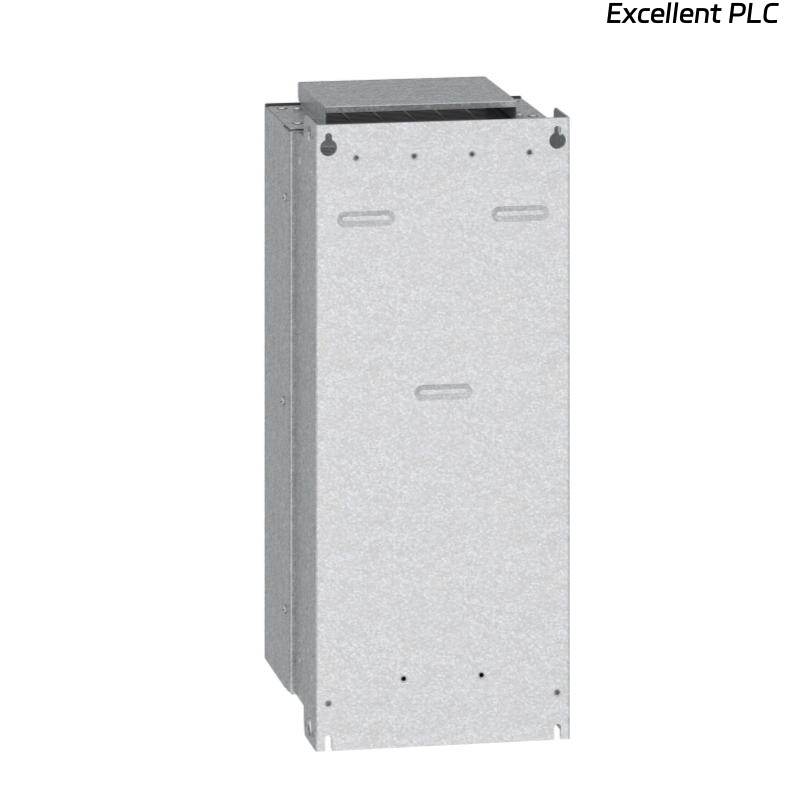

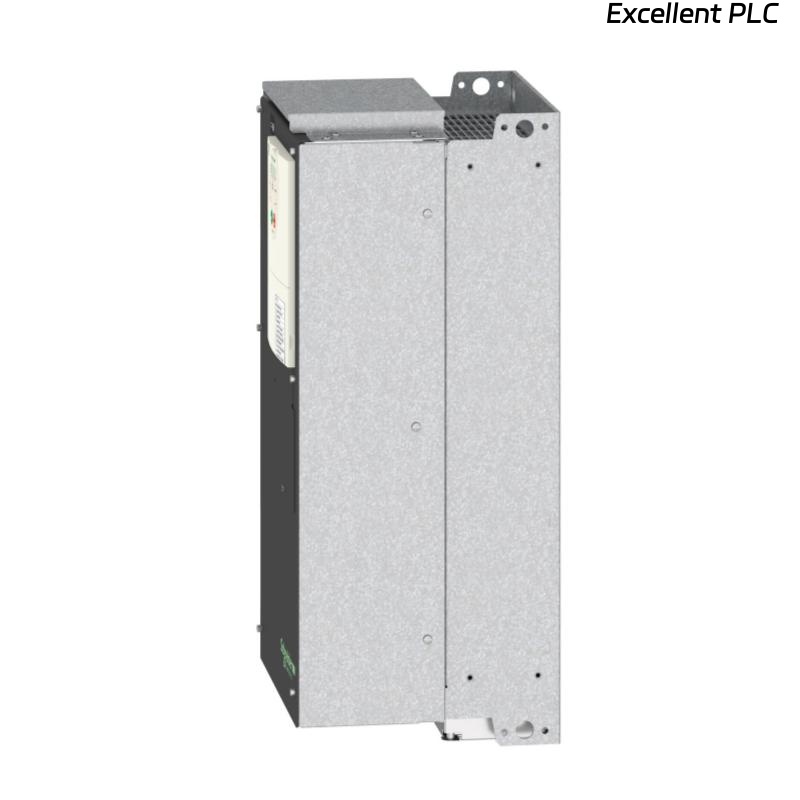

Schneider ATV212HD37N4 Variable Speed Drive

Product Introduction

The Schneider Electric ATV212HD37N4 is a variable speed drive specifically engineered to control three-phase asynchronous motors in energy-sensitive fluid management systems. As a member of the Altivar 212 series, it is optimized for HVAC and pumping applications where variable torque control and energy efficiency are critical.

This drive operates on a rated supply voltage of 380–480 V AC and supports motors up to 37 kW (50 hp). It features an IP21 enclosure, an integrated EMC filter, and advanced harmonic mitigation technology, allowing stable and disturbance-free operation without the need for external line chokes or DC chokes.

Designed for vertical panel mounting, the ATV212HD37N4 meets international safety, EMC, and environmental standards, making it a reliable solution for modern commercial building automation systems.

Product Specifications

Applications

• HVAC Systems: Speed control of ventilation fans and air handling units.

• Pumping Systems: Energy-efficient control of water and fluid pumps.

• Commercial Buildings: Centralized motor control for heating and cooling systems.

• Water Distribution: Flow and pressure regulation in utility installations.

• Infrastructure Facilities: Continuous-duty operation in fluid transport systems.

Advantages

• HVAC-Focused Design: Optimized for variable torque loads such as fans and pumps.

• High Energy Efficiency: Reduces energy consumption by up to 70%.

• Integrated EMC Filtering: Eliminates the need for external EMC components.

• Advanced Harmonic Mitigation: Avoids additional line or DC chokes.

• Cable Temperature Rise Suppression: Ensures smooth startup and stable operation.

• Extended Motor Cabling Capability: Optional motor chokes reduce terminal disturbances.

• International Compliance: Certified for global commercial and industrial use.

FAQ

1. What type of motors can the ATV212HD37N4 control?
   It is designed for three-phase asynchronous motors commonly used in HVAC and pumping systems.

2. What supply voltage range is supported?
   The drive operates with a three-phase input voltage range of 380–480 V AC.

3. Is an external EMC filter required?
   No, the drive includes an integrated EMC filter compliant with IEC/EN standards.

4. Does the drive require line reactors or DC chokes?
   No, its internal harmonic mitigation technology allows operation without additional components.

5. How does the drive achieve energy savings?
   By dynamically adjusting motor speed to actual load demand in variable torque applications.

6. Can long motor cables be used with this drive?
   Yes, optional motor chokes can be added to increase cable length and limit disturbances.

7. Is the drive suitable for continuous operation?
   Yes, it is designed for continuous-duty operation in commercial building environments.

8. What level of enclosure protection does it provide?
   The IP21 enclosure is suitable for installation inside electrical panels.

9. What mounting orientation is required?
   The drive is designed for vertical mounting with a tolerance of ±10°.

10. Does the drive comply with environmental regulations?
    Yes, it complies with RoHS and WEEE environmental directives.
