Product Introduction

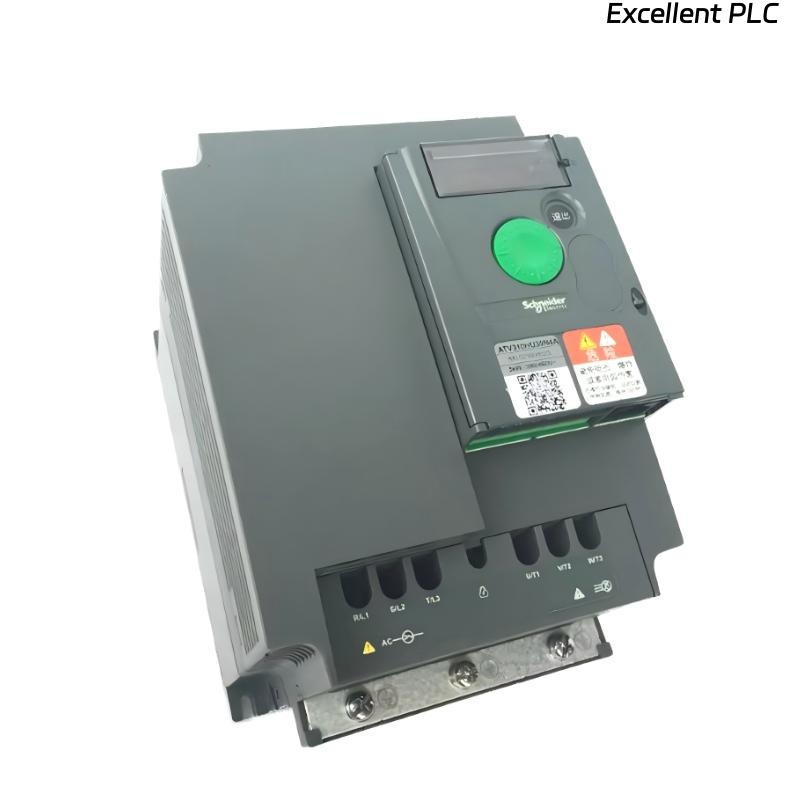

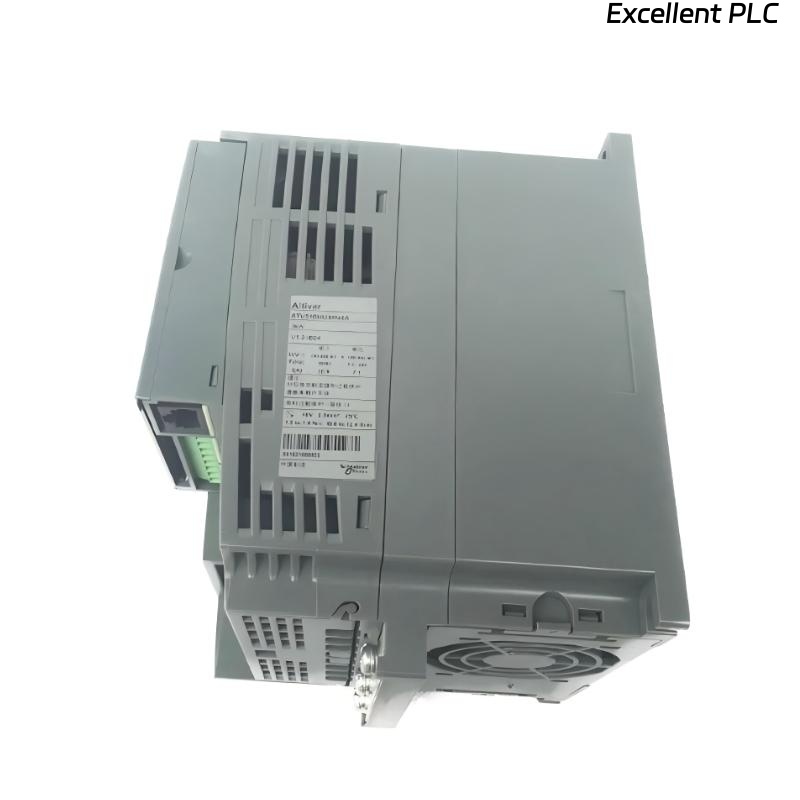

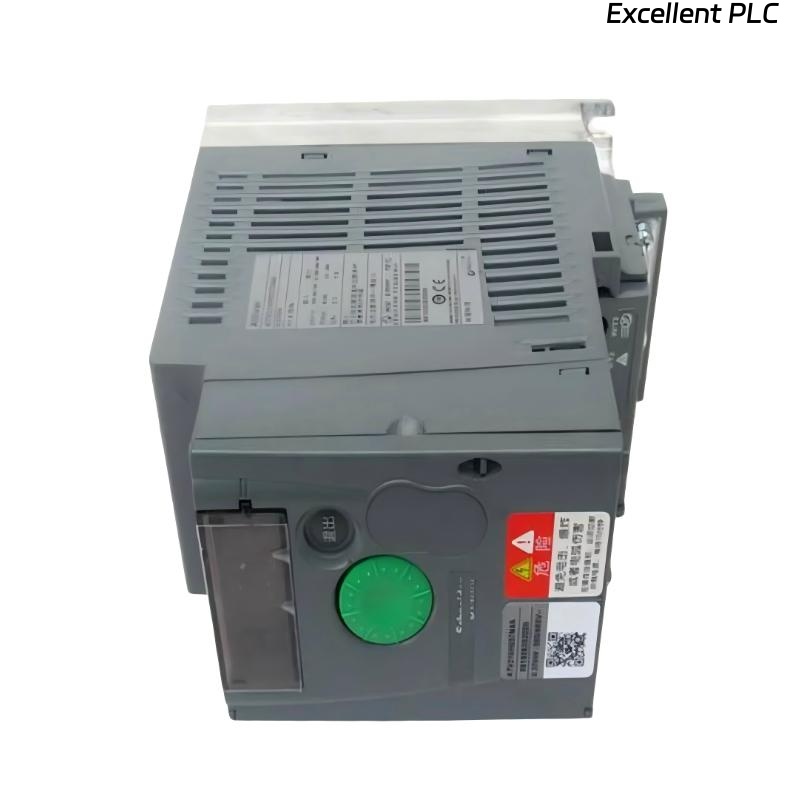

The Schneider ATV310H037N4A Variable Speed Drive (VSD) belongs to the Easy Altivar 310 series, designed for controlling three-phase asynchronous motors. It features a compact and robust design, plug-and-play installation, and integrated motor control functions for versatile industrial applications.
Rated at 0.37 kW (0.5 HP) and operating on 380–460 V AC, the drive is ideal for small to medium industrial machinery. Its IP20 protection ensures safe operation in standard indoor environments, while integrated functions simplify setup and enhance reliability.
This VSD is suitable for applications in textile machinery, machine tools, woodworking, material handling, packaging, printing, and ceramic machinery.
Product Specifications
| Parameter |
Description |
| Product Type |
Variable Speed Drive (VSD) |
| Series / Model |
Schneider Easy Altivar 310 / ATV310H037N4A |
| Motor Type |
Three-phase asynchronous motor |
| Rated Power |
0.37 kW (0.5 HP) |
| Input Voltage |
380–460 V AC |
| Frequency |
50/60 Hz |
| Control Type |
Integrated V/F control |
| Protection Rating |
IP20 |
| Mounting |
Panel or enclosure mounting |
| Dimensions |
143 × 72 × 130 mm |
| Weight |
0.8 kg |
| Key Features |
Plug-and-play installation, integrated motor control functions |
Applications
• Textile Machinery – Drives motors for looms, spindles, and conveyors.
• Machine Tools – Controls speed of milling, grinding, and lathing machines.
• Woodworking Equipment – Powers routers, saws, and sanders with precise speed control.
• Material Handling Systems – Supports conveyors, hoists, and lifting equipment.
• Packaging and Printing Machinery – Provides accurate speed regulation for packaging lines and printers.
• Ceramic Machinery – Controls motors for kilns, mixers, and tile production equipment.
Advantages
• Compact Design – Saves panel space and allows flexible installation.
• Plug-and-Play Installation – Minimizes setup time and simplifies commissioning.
• Integrated Functions – Built-in motor control and safety features reduce need for external components.
• Robust Build – Durable design suitable for standard industrial environments.
• Wide Application Range – Suitable for multiple industries including textiles, woodworking, packaging, and ceramics.
• Reliable Operation – Ensures stable speed control and reduces motor wear.
FAQ
1. What type of motor is compatible with the ATV310H037N4A?
It is designed for three-phase asynchronous motors, supporting standard industrial ratings and typical small machinery loads.
2. What is the rated power and operational capacity of the drive?
The drive provides 0.37 kW (0.5 HP) output, with built-in thermal protection to prevent overheating during continuous operation.
3. Which AC input voltages are supported?
The drive operates on 380–460 V AC, 50/60 Hz, and includes voltage tolerance features to maintain stable operation under minor fluctuations.
4. How does the drive control motor speed?
Speed regulation is achieved through integrated V/F control, ensuring smooth acceleration, deceleration, and stable torque at low speeds.
5. What protection mechanisms are included?
Overload, short-circuit, and overtemperature protections are built in, along with under-voltage and phase loss detection to protect both the drive and motor.
6. Can the drive operate in electrically noisy environments?
Yes, it includes EMC filtering and robust internal circuitry to maintain stable performance in typical industrial electrical noise conditions.
7. How flexible is the installation of the drive?
It supports panel or enclosure mounting and plug-and-play installation, reducing setup time and minimizing wiring errors.
8. Can the drive handle frequent start-stop operations?
Yes, it is designed for high-cycle applications such as conveyors, packaging, and other automated machinery.
9. How does the drive improve motor performance and efficiency?
It provides stable speed and torque control, reduces mechanical stress on the motor, and optimizes energy consumption during partial load operation.
10. Which industries and applications is the drive best suited for?
Textile machinery, machine tools, woodworking, material handling, packaging, printing, and ceramic machinery, where reliable and compact motor control is needed.
