Product Introduction

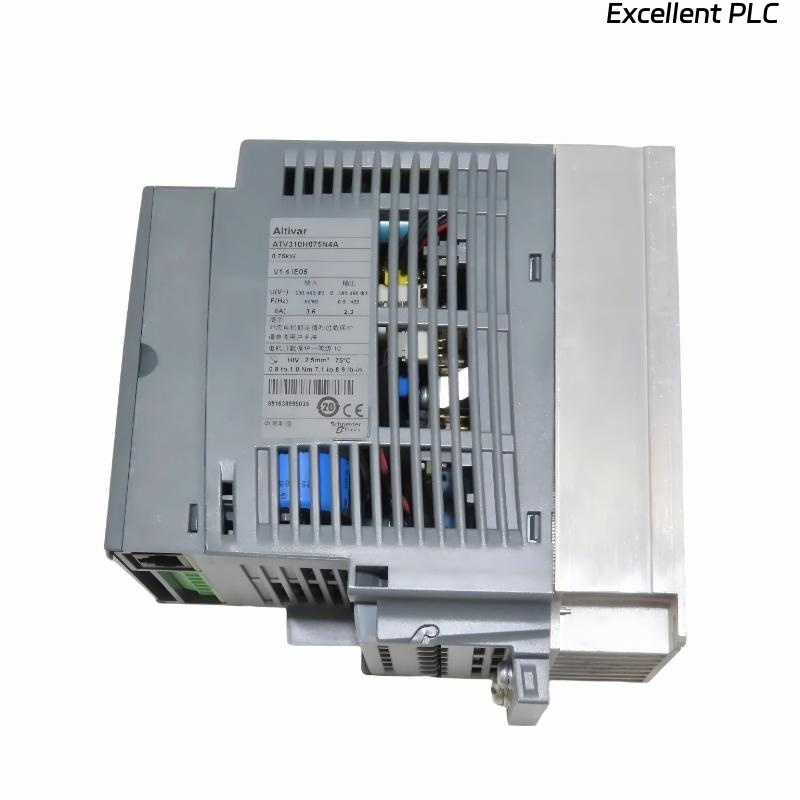

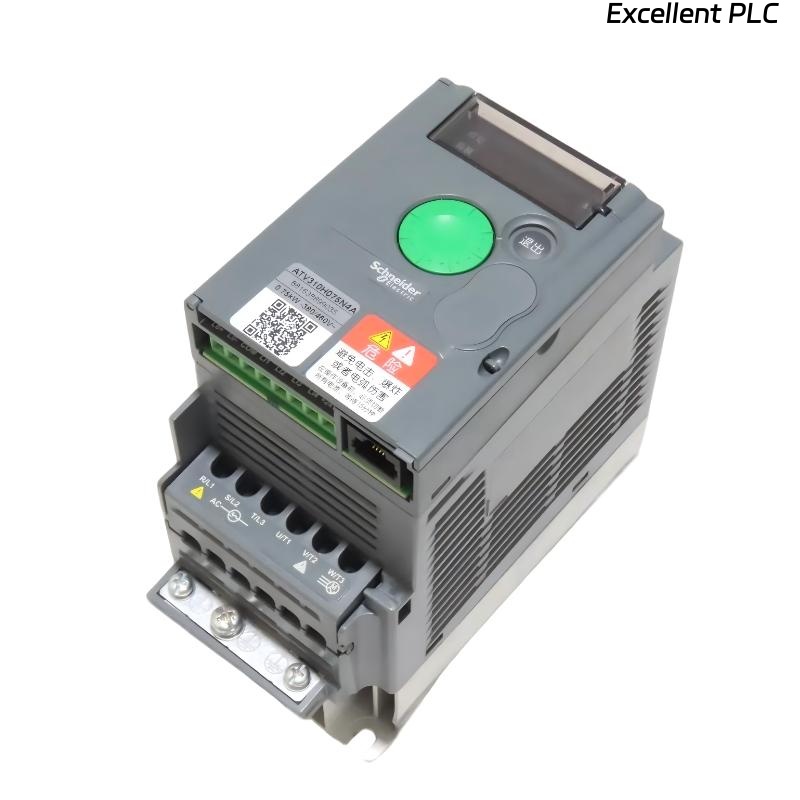

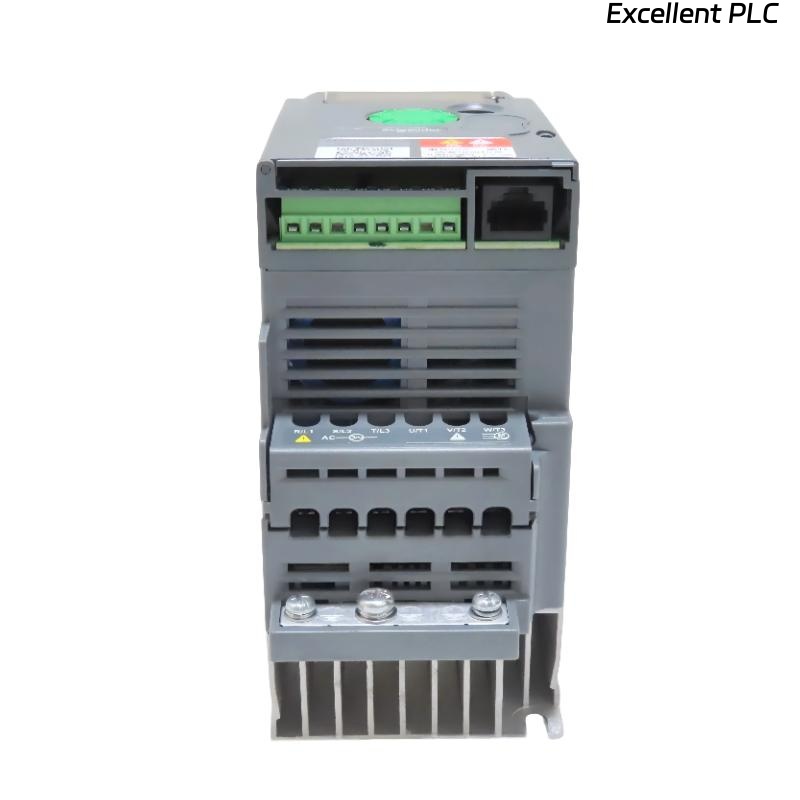

The Schneider ATV310H075N4A Variable Speed Drive (VSD) is part of the Easy Altivar 310 series, designed for three-phase asynchronous motors. It features a compact and robust design, plug-and-play installation, and integrated motor control functions for versatile industrial applications.
Rated at 0.75 kW (1 HP) and operating on 380–460 V AC, this drive is ideal for small to medium industrial machinery. Its IP20 protection ensures safe operation in standard indoor environments, while integrated functions simplify setup and enhance reliability.
The ATV310H075N4A is particularly suitable for general industrial applications including textile machinery, machine tools, woodworking, material handling, packaging, printing, and ceramic machinery.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Variable Speed Drive (VSD) |
| Series / Model | Schneider Easy Altivar 310 / ATV310H075N4A |
| Motor Type | Three-phase asynchronous motor |
| Rated Power | 0.75 kW (1 HP) |
| Input Voltage | 380–460 V AC |
| Frequency | 50/60 Hz |
| Control Type | Integrated V/F control |
| Protection Rating | IP20 |
| Mounting | Panel or enclosure mounting |
| Dimensions | 143 × 72 × 140 mm |
| Weight | 0.8 kg |
| Key Features | Compact size, plug-and-play installation, integrated motor control functions |
Applications
• Textile Machinery – Drives motors for looms, spindles, and conveyors.
• Machine Tools – Controls milling, grinding, and lathing machines.
• Woodworking Equipment – Powers routers, saws, and sanding machines with precise speed control.
• Material Handling Systems – Supports conveyors, hoists, and lifting equipment.
• Packaging and Printing Machinery – Provides accurate speed regulation for packaging lines and printers.
• Ceramic Machinery – Controls motors for kilns, mixers, and tile production equipment.
Advantages
• Compact Design – Optimizes panel space and allows flexible installation.
• Plug-and-Play Installation – Reduces setup time and simplifies commissioning.
• Integrated Functions – Built-in motor control and safety features reduce the need for additional components.
• Robust Construction – Durable design ensures reliable operation in standard industrial environments.
• Wide Application Range – Suitable for multiple industries including textiles, woodworking, packaging, and ceramics.
• Reliable Motor Control – Maintains stable speed and torque, reducing wear and energy consumption.
