Product Introduction

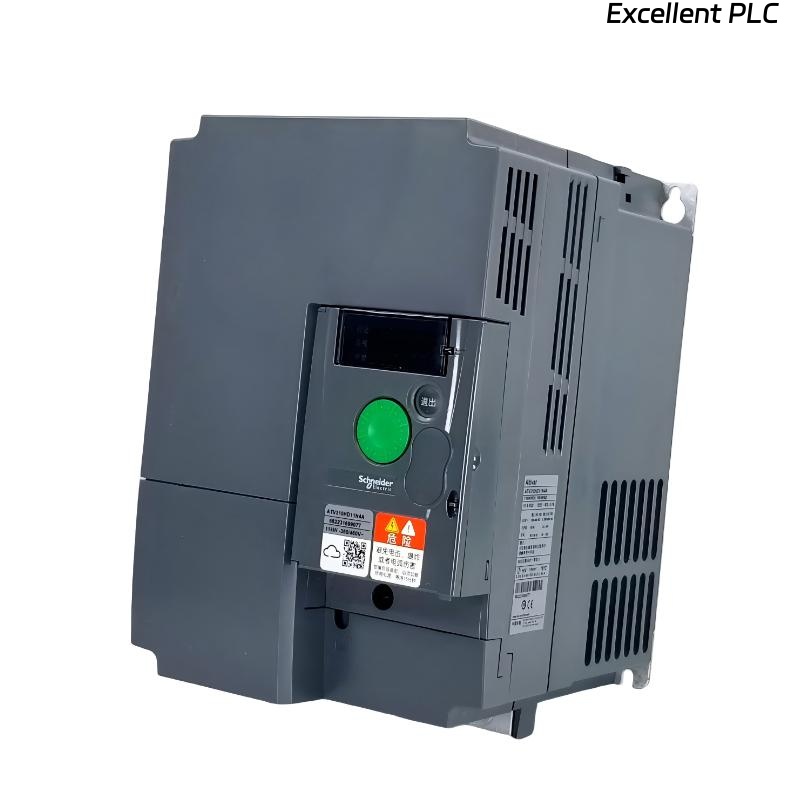

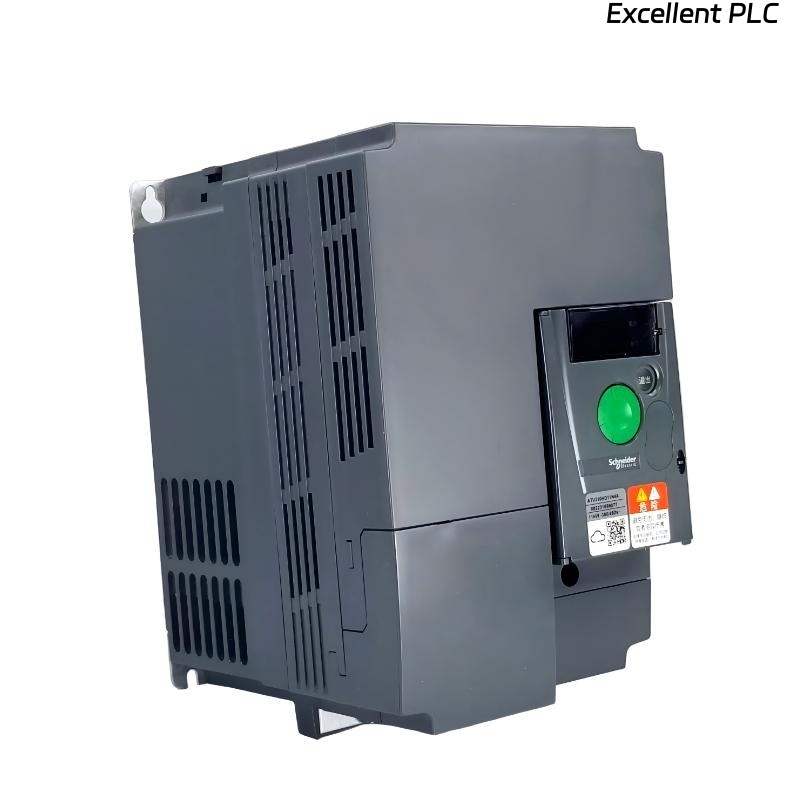

The Schneider ATV310HD11N4A Variable Speed Drive (VSD) is part of the Easy Altivar 310 series, designed for three-phase asynchronous motors. It features a compact yet robust design, plug-and-play installation, and integrated motor control functions suitable for a wide range of industrial applications.
Rated at HD 11 kW (15 HP) or ND 15 kW (20 HP) with an input voltage of 380–460 V AC, this drive supports medium to large industrial machinery. Its IP20 protection ensures safe operation in standard indoor environments. Integrated functions simplify setup, enhance operational reliability, and reduce the need for additional components.
The ATV310HD11N4A is ideal for applications including textile machinery, machine tools, woodworking equipment, material handling, packaging, printing, and ceramic machinery.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Variable Speed Drive (VSD) |
| Series / Model | Schneider Easy Altivar 310 / ATV310HD11N4A |
| Motor Type | Three-phase asynchronous motor |
| Rated Power | HD 11 kW (15 HP) / ND 15 kW (20 HP) |
| Input Voltage | 380–460 V AC |
| Frequency | 50/60 Hz |
| Control Type | Integrated V/F control |
| Protection Rating | IP20 |
| Mounting | Panel or enclosure mounting |
| Dimensions | 232 × 150 × 171 mm |
| Weight | 3.7 kg |
| Key Features | Plug-and-play installation, integrated motor control, robust industrial design |
Applications
• Textile Machinery – Drives motors for looms, spindles, and conveyors.
• Machine Tools – Controls milling, grinding, and lathing machines.
• Woodworking Equipment – Powers routers, saws, and sanding machines with precise speed regulation.
• Material Handling Systems – Supports conveyors, hoists, and lifting equipment.
• Packaging and Printing Machinery – Ensures accurate speed control for packaging lines and printing machines.
• Ceramic Machinery – Controls motors for kilns, mixers, and tile production equipment.
Advantages
• High Power Capacity – Suitable for medium to large industrial motors up to 15–20 HP.
• Compact and Robust Design – Saves panel space while providing a durable, industrial-grade build.
• Plug-and-Play Installation – Minimizes setup time and reduces wiring errors.
• Integrated Functions – Built-in motor control, protection, and monitoring features reduce additional component needs.
• Wide Industrial Application – Ideal for textiles, machine tools, woodworking, material handling, packaging, printing, and ceramics.
• Reliable Operation – Ensures stable speed and torque control while reducing motor stress and energy consumption.
