Product Introduction

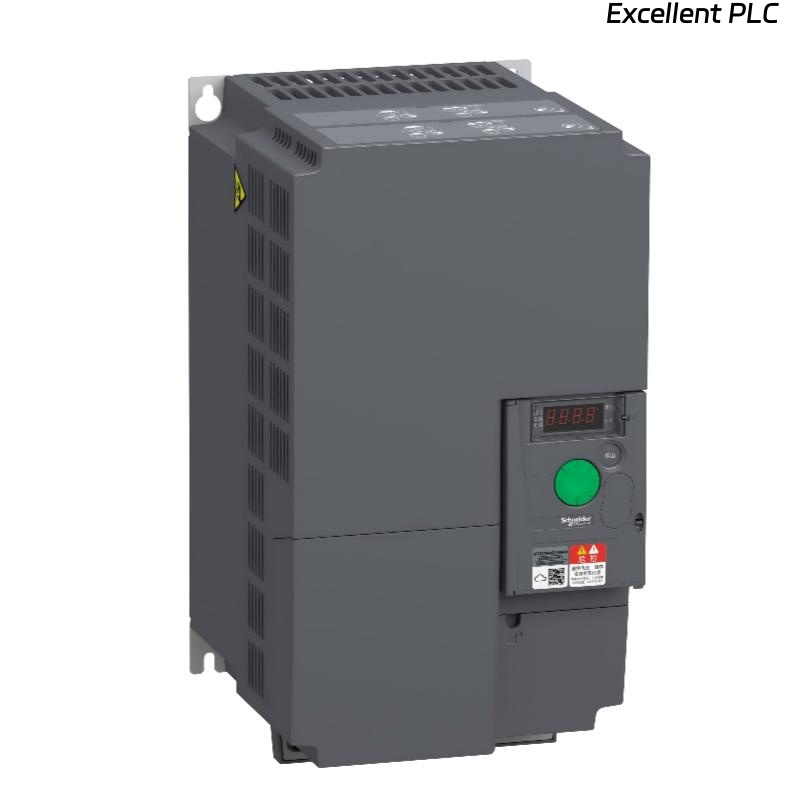

The Schneider ATV310HD15N4A Variable Speed Drive (VSD) is a member of the Easy Altivar 310 series, engineered for reliable control of three-phase asynchronous motors in demanding industrial environments. It combines a robust mechanical design with integrated control functions and a plug-and-play installation concept, making it suitable for both industrial machinery and selected consumer-oriented equipment.
This model supports HD 15 kW (20 HP) operation or ND 18.5 kW (25 HP) operation within an input voltage range of 380–460 V AC. With an IP20 protection rating, it is intended for installation inside electrical cabinets or controlled indoor environments. The integrated functions reduce system complexity while ensuring stable motor operation, efficient energy usage, and consistent performance.
The ATV310HD15N4A is widely used in general industry, including textile machinery, machine tools, woodworking equipment, material handling systems, packaging and printing machines, and ceramic machinery.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Variable Speed Drive (VSD) |
| Series / Model | Schneider Easy Altivar 310 / ATV310HD15N4A |
| Motor Type | Three-phase asynchronous motor |
| Rated Power | HD 15 kW (20 HP) / ND 18.5 kW (25 HP) |
| Input Voltage | 380–460 V AC |
| Frequency | 50/60 Hz |
| Control Type | Integrated V/F control |
| Protection Rating | IP20 |
| Mounting | Panel or enclosure mounting |
| Dimensions | 330 × 180 × 191 mm |
| Weight | 6.3 kg |
| Key Features | Plug-and-play installation, integrated motor control and protection functions |
Applications
• Textile Machinery – Controls motors for spinning, weaving, and conveying equipment.
• Machine Tools – Provides stable speed control for milling, drilling, grinding, and cutting machines.
• Woodworking Equipment – Drives saws, planers, routers, and sanding machines with smooth speed regulation.
• Material Handling Systems – Suitable for conveyors, lifts, and automated handling equipment.
• Packaging and Printing Machinery – Ensures accurate and repeatable speed control in production lines.
• Ceramic Machinery – Used for mixers, kilns, forming machines, and tile production equipment.
Advantages
• High Power Capability – Supports larger motors up to 25 HP under normal duty conditions.
• Robust Industrial Design – Built to withstand continuous operation in standard industrial environments.
• Plug-and-Play Concept – Simplifies installation and commissioning, reducing setup time.
• Integrated Control Functions – Minimizes the need for external components and complex wiring.
• Wide Application Coverage – Suitable for multiple industries and machine types.
• Stable and Reliable Operation – Maintains consistent torque and speed while reducing motor stress.
