Product Introduction

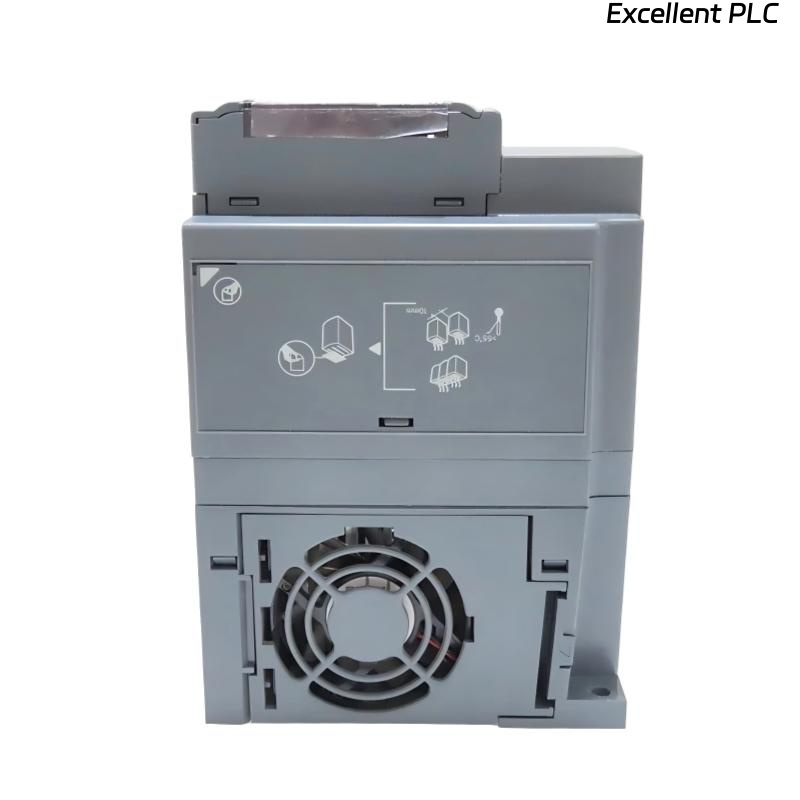

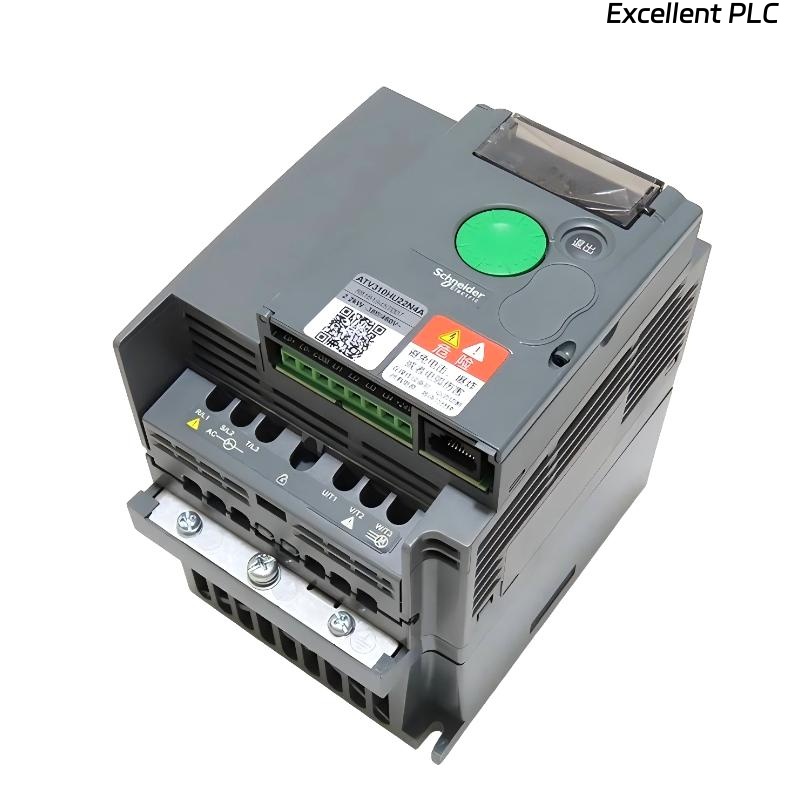

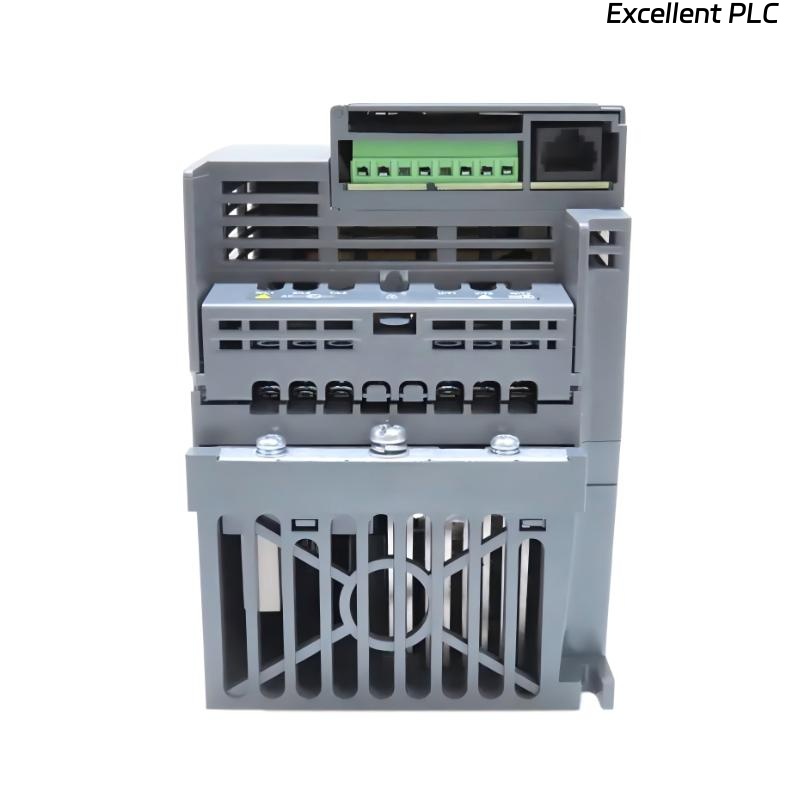

The Schneider ATV310HU11N4A Variable Speed Drive (VSD) belongs to the Easy Altivar 310 series and is designed for reliable control of three-phase asynchronous motors. It combines a compact footprint with a robust industrial design, making it suitable for installation in standard control cabinets where space efficiency and reliability are required.
With a rated power of 2.2 kW (3 HP) and an operating voltage range of 380–460 V AC, this drive supports a wide range of general-purpose industrial applications. Its IP20 protection rating ensures safe operation in controlled indoor environments. The plug-and-play concept and integrated control functions significantly reduce commissioning time and simplify system design.
The ATV310HU11N4A is especially suited for industrial machinery and selected equipment applications, offering stable performance, flexible control, and dependable operation across multiple industries.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Variable Speed Drive (VSD) |
| Series / Model | Schneider Easy Altivar 310 / ATV310HU11N4A |
| Motor Type | Three-phase asynchronous motor |
| Rated Power | 2.2 kW (3 HP) |
| Input Voltage | 380–460 V AC |
| Frequency | 50/60 Hz |
| Control Type | Integrated V/F control |
| Protection Rating | IP20 |
| Mounting | Panel or enclosure mounting |
| Dimensions | 151 × 105 × 143 mm |
| Weight | 1.1 kg |
| Key Features | Compact design, plug-and-play installation, integrated motor control functions |
Applications
• Textile Machinery – Controls motors for spinning, weaving, and conveying systems.
• Machine Tools – Provides stable speed regulation for drilling, milling, and cutting equipment.
• Woodworking Machinery – Drives saws, routers, and sanding machines with smooth motor control.
• Material Handling Systems – Suitable for conveyors, lifting equipment, and automated handling lines.
• Packaging and Printing Machinery – Ensures precise speed control for packaging lines and printing processes.
• Ceramic Machinery – Supports mixers, forming machines, and production equipment used in ceramic manufacturing.
Advantages
• Compact Structure – Saves installation space while maintaining full industrial functionality.
• Plug-and-Play Installation – Simplifies wiring and reduces commissioning time.
• Integrated Control Functions – Minimizes the need for external control components.
• Robust Industrial Design – Ensures reliable operation under continuous working conditions.
• Wide Application Compatibility – Suitable for various general-purpose industrial machines.
• Stable Motor Performance – Provides consistent torque and smooth speed control, reducing mechanical stress.
