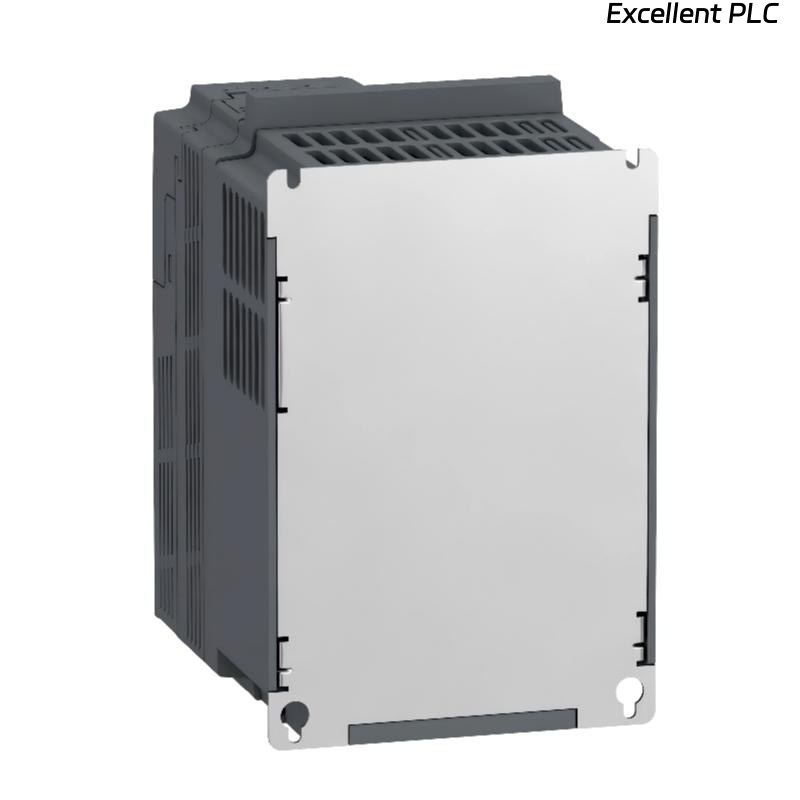

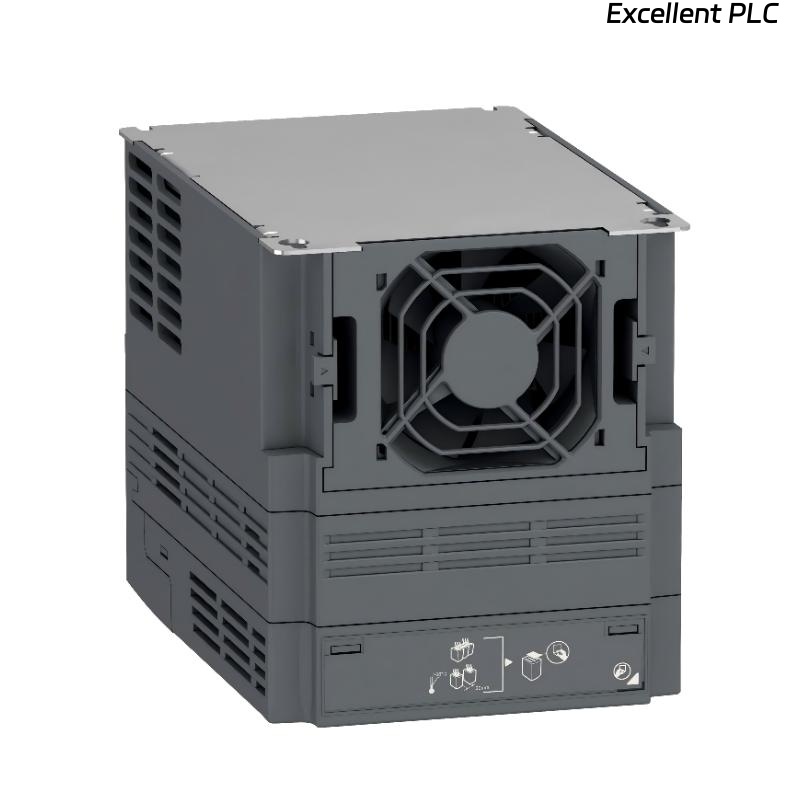

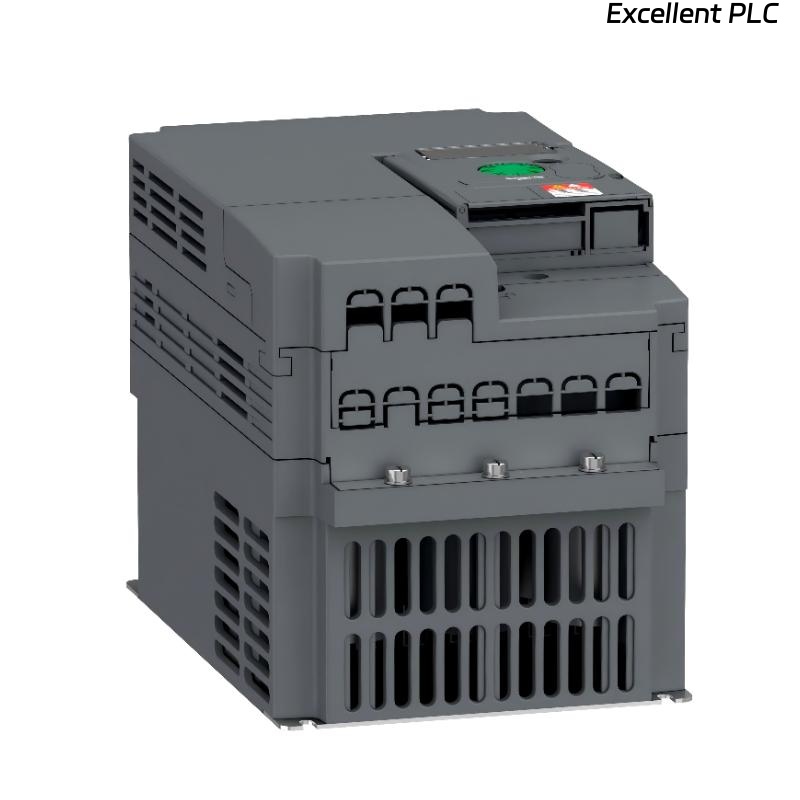

Schneider ATV310HU75N4A Variable Speed Drive

Product Introduction

The Schneider ATV310HU75N4A Variable Speed Drive is part of the Easy Altivar 310 series, designed for speed control of three-phase asynchronous motors in standard industrial environments. It supports a rated power of 7.5 kW (10 HP) in heavy-duty operation and up to 11 kW (15 HP) in normal-duty operation, with a rated supply voltage range of 380–460 V AC.

The drive features an IP20 protection level, a compact yet robust mechanical structure, and an integrated functional design. Based on a plug-and-play operating concept, it allows fast commissioning while maintaining stable motor control performance. The ATV310HU75N4A is particularly suitable for industrial machinery as well as selected equipment used in semi-industrial or consumer-oriented applications.

Its integrated control functions cover the most common motion control requirements, making it well adapted for textile machines, machine tools, woodworking equipment, material handling systems, packaging and printing machinery, and ceramic machines.

---

Product Specifications

---

Applications

• Textile machinery requiring reliable speed control and consistent motor torque under continuous operation

• Machine tools such as milling, drilling, and cutting machines with variable speed requirements

• Woodworking machines including saws, planers, and shaping equipment

• Material handling systems such as conveyors, feeders, and lifting mechanisms

• Packaging and printing machines where controlled acceleration and deceleration improve process stability

• Ceramic machinery involving forming, shaping, and finishing processes

• General industrial equipment that demands compact drives with integrated motor control functionality

---

Advantages

• Dual-duty power capability (HD / ND) allows flexible adaptation to different load profiles

• Compact mechanical design despite higher power rating, enabling efficient cabinet space utilization

• Robust industrial construction suitable for continuous-duty operation

• Plug-and-play configuration concept simplifies commissioning and reduces setup time

• Integrated motor control functions minimize the need for external control components

• Stable speed and torque performance across a wide operating range

• Energy-efficient operation contributing to reduced system power consumption

• Broad application compatibility across multiple industrial sectors

FAQ

1. What motor types are supported by the ATV310HU75N4A?
   The drive is designed for controlling three-phase asynchronous induction motors.

2. What is the difference between heavy-duty and normal-duty operation?
   Heavy-duty operation supports 7.5 kW with higher overload capability, while normal-duty operation allows up to 11 kW under standard load conditions.

3. What output frequency range can be configured?
   The output frequency is adjustable and typically supports ranges up to 400 Hz, depending on parameter settings.

4. How does the drive handle overload conditions?
   Electronic motor protection functions monitor current and thermal conditions and respond with controlled fault handling.

5. Is stable torque available at low motor speeds?
   Yes, optimized voltage-to-frequency control enables reliable torque output at low speeds.

6. Can the drive operate continuously at rated power?
   Yes, the drive is designed for continuous industrial operation within its specified ratings.

7. How does the drive respond to load variations?
   It dynamically adjusts output parameters to maintain stable motor speed under changing load conditions.

8. Is the drive suitable for multi-drive systems?
   Yes, multiple drives can operate within the same system when coordinated by external control logic.

9. Does the drive support process-oriented speed control?
   Yes, it provides precise speed regulation suitable for process-driven industrial applications.

10. What industries commonly use this drive model?
    It is widely used in textile, woodworking, material handling, packaging, printing, and ceramic industries.
