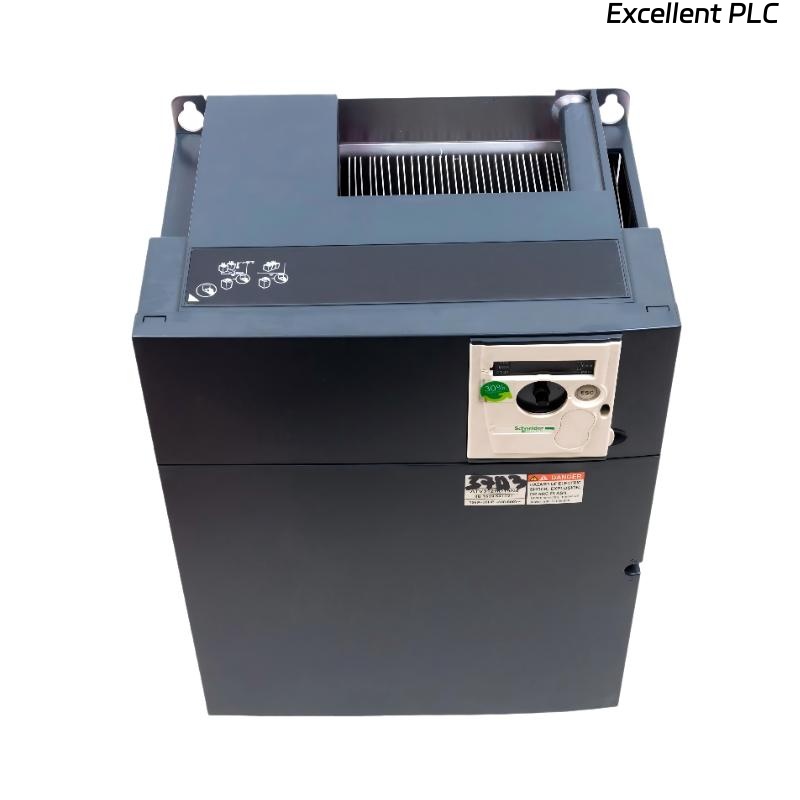

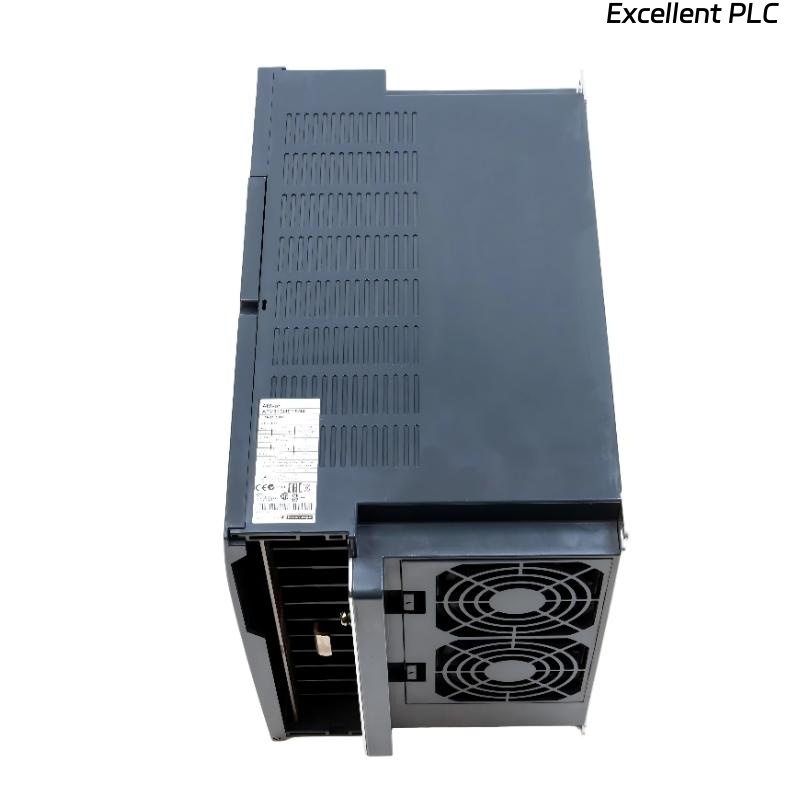

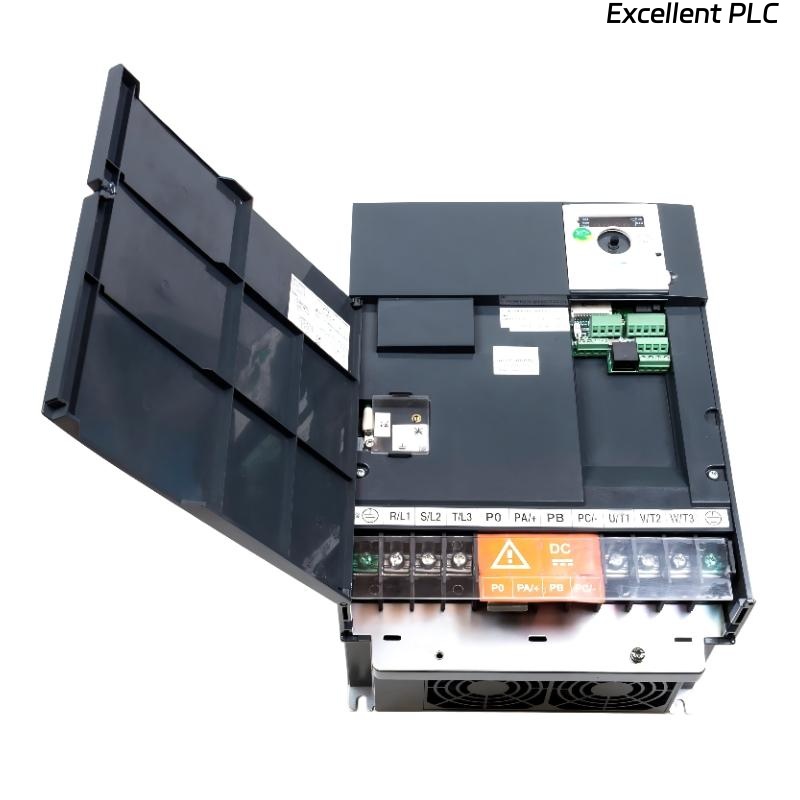

Schneider ATV312HD15N4 Variable Speed Drive

Product Introduction

The Schneider Electric ATV312HD15N4 is a three-phase variable speed drive from the Altivar 312 series, designed for robust speed control of asynchronous motors in demanding industrial environments. With a rated power of 15 kW and a rated apparent power of 32 kVA, this drive supports 380 V to 500 V AC supply systems, making it suitable for a wide range of global industrial installations.

The drive combines reliable motor control performance with practical user-oriented features such as an integrated EMC filter, intuitive navigation interface, and clear status indication. Its design focuses on ease of commissioning, operational stability, and maintenance efficiency, making it a dependable solution for both OEM machinery and end-user applications.

---

Product Specifications

---

Applications

• Material handling equipment
Provides stable speed control for conveyors, hoists, and automated handling systems.

• Packaging and packing machines
Ensures precise motor speed regulation for consistent packaging quality and throughput.

• Textile machinery
Supports smooth motor operation for spinning, weaving, and auxiliary textile processes.

• Pumps and fans
Optimizes energy consumption and process control in HVAC and fluid handling applications.

• Special-purpose industrial machines
Suitable for OEM-designed equipment requiring reliable and flexible motor speed control.

---

Advantages

• Reliable motor speed control
Delivers stable and repeatable performance for three-phase asynchronous motors.

• Integrated EMC filtering
Reduces electromagnetic interference and simplifies compliance with industrial standards.

• User-friendly operation interface
Features a jog dial navigation button and clear LED display for fast parameter access.

• Efficient commissioning and maintenance
SoMove software compatibility enables quick configuration backup and restoration, minimizing downtime.

• Designed for industrial robustness
Engineered to operate reliably in continuous-duty industrial environments.

FAQ

1. What type of motors can the ATV312HD15N4 control?
   It is designed for three-phase asynchronous (induction) motors.

2. Does this drive support operation on 400 V industrial networks?
   Yes, it supports input voltages from 380 V to 500 V AC.

3. Is an EMC filter included in this model?
   Yes, the drive includes an integrated EMC filter.

4. How are parameters configured on the drive?
   Parameters can be set using the local keypad or via SoMove software.

5. Can configurations be transferred to a replacement drive?
   Yes, SoMove software allows saving and transferring configurations to spare drives.

6. Is the drive suitable for pump and fan applications?
   Yes, it is commonly used for pumps, fans, and HVAC-related machinery.

7. Does the drive provide fault and status indication?
   Yes, status and fault information are clearly displayed on the LED interface.

8. Is the drive suitable for OEM machine integration?
   Yes, it is widely used by OEMs for packaging, textile, and special-purpose machines.

9. What control method does this drive use?
   It uses a V/f control method suitable for general-purpose applications.

10. Can the drive be integrated into Schneider Electric automation systems?
