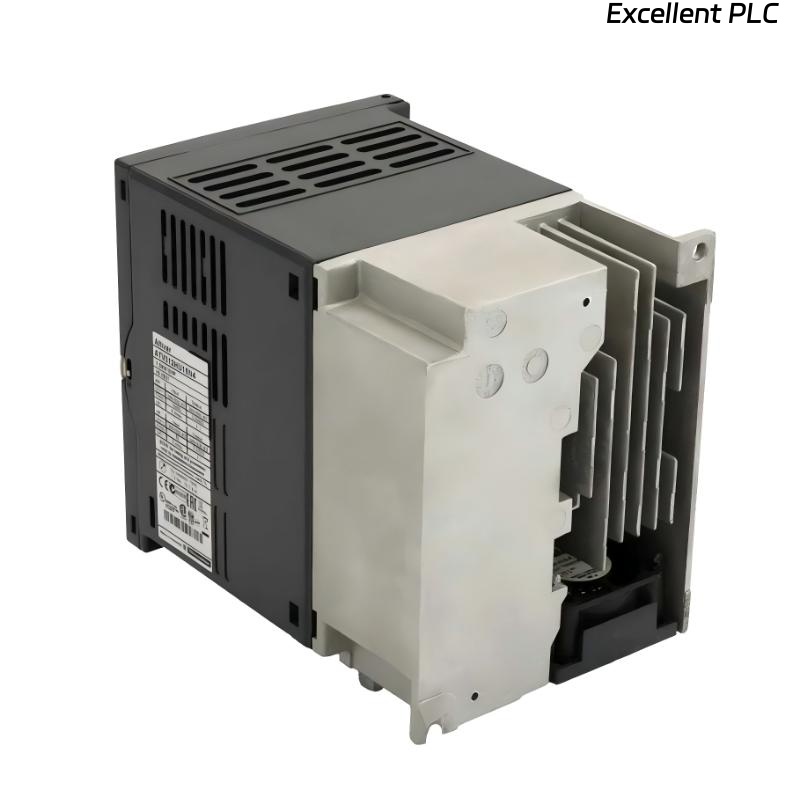

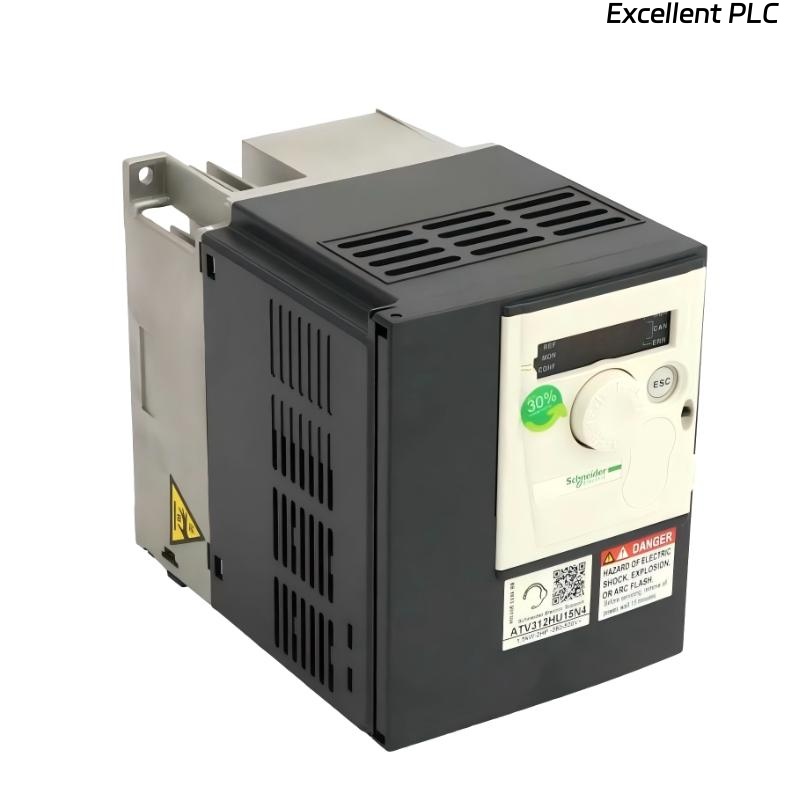

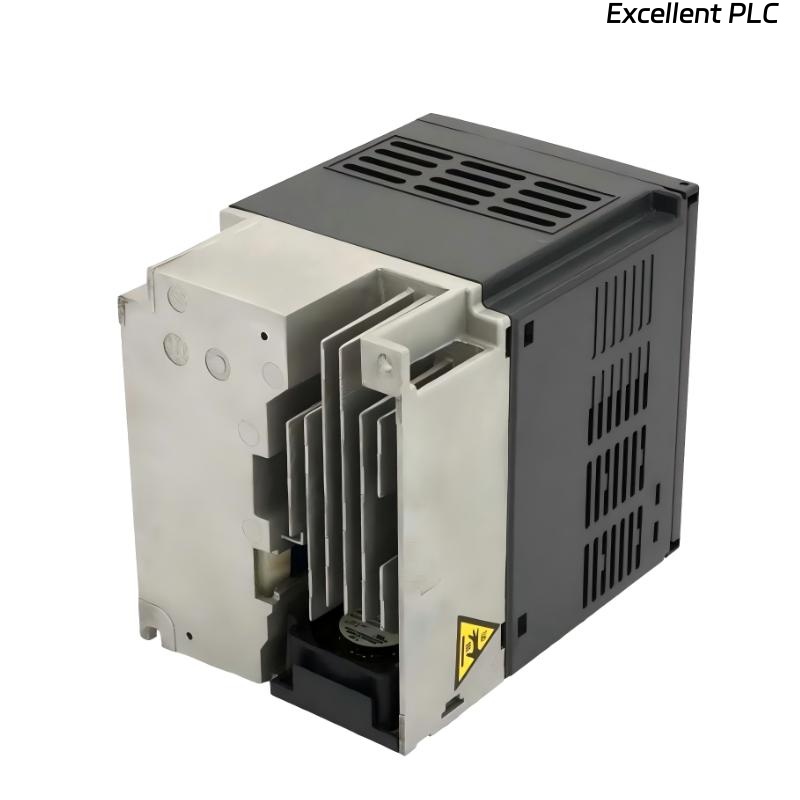

Schneider ATV312HU15N4 Variable Speed Drive

Product Introduction

The Schneider Electric ATV312HU15N4 is a three-phase variable speed drive belonging to the Altivar 312 series, designed to deliver cost-effective and reliable adjustable speed control for asynchronous motors. With a rated motor power of 1.5 kW, this drive is optimized for small to medium industrial machinery requiring precise motor regulation and stable operation.

Altivar 312 drives are widely recognized for their balance between functionality and simplicity. The ATV312HU15N4 integrates essential features such as an EMC filter, intuitive local control interface, and software-based configuration support, making it suitable for both new installations and retrofit projects. Its design focuses on reducing commissioning time, simplifying maintenance, and ensuring consistent performance across a wide range of industrial applications.

---

Product Specifications

---

Applications

• Material handling equipment
Used for conveyors, feeders, and auxiliary handling systems requiring controlled motor speed.

• Packaging and packing machines
Provides stable and repeatable speed control to maintain production consistency.

• Textile machinery
Supports smooth motor operation in spinning, winding, and auxiliary textile processes.

• Pumps and fans
Enables energy-efficient operation and flexible speed adjustment for fluid and air movement.

• Special-purpose industrial machines
Well suited for OEM-designed equipment with standard asynchronous motors.

---

Advantages

• Cost-effective speed control solution
Delivers essential VFD functionality without unnecessary complexity.

• Reliable motor performance
Ensures stable operation across a wide range of industrial load conditions.

• Integrated EMC compliance
Built-in EMC filter simplifies system design and reduces external components.

• User-friendly operation and setup
Jog dial navigation and clear LED display allow fast parameter access.

• Reduced commissioning and maintenance time
SoMove software enables quick configuration transfer and backup management.

FAQ

1. What motor types can be controlled by the ATV312HU15N4?
   It is designed for three-phase asynchronous (induction) motors.

2. What is the supported input voltage range?
   The drive supports three-phase input from 380 V to 500 V AC.

3. Does this model include an EMC filter?
   Yes, an EMC filter is integrated as standard.

4. How are parameters adjusted on the drive?
   Parameters can be configured via the local keypad or SoMove software.

5. Can configurations be copied to another drive?
   Yes, SoMove allows saving and transferring configurations to spare drives.

6. Is this drive suitable for pump and fan applications?
   Yes, it is commonly used in pump and fan control systems.

7. Does the drive provide fault diagnostics?
   Yes, status and fault information are displayed on the LED interface.

8. Is the ATV312HU15N4 suitable for OEM machinery?
   Yes, it is widely used by OEMs for standardized machine designs.

9. What control method does this drive use?
   It uses V/f control, suitable for general-purpose motor applications.

10. Can it be integrated into Schneider Electric automation systems?
    Yes, it is designed for seamless integration within Schneider Electric ecosystems.
