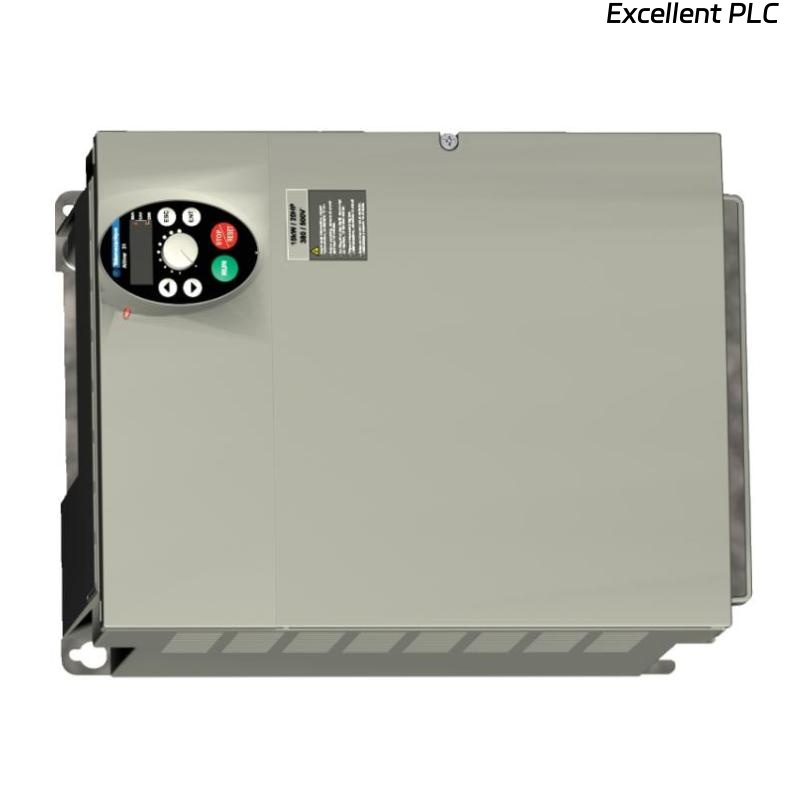

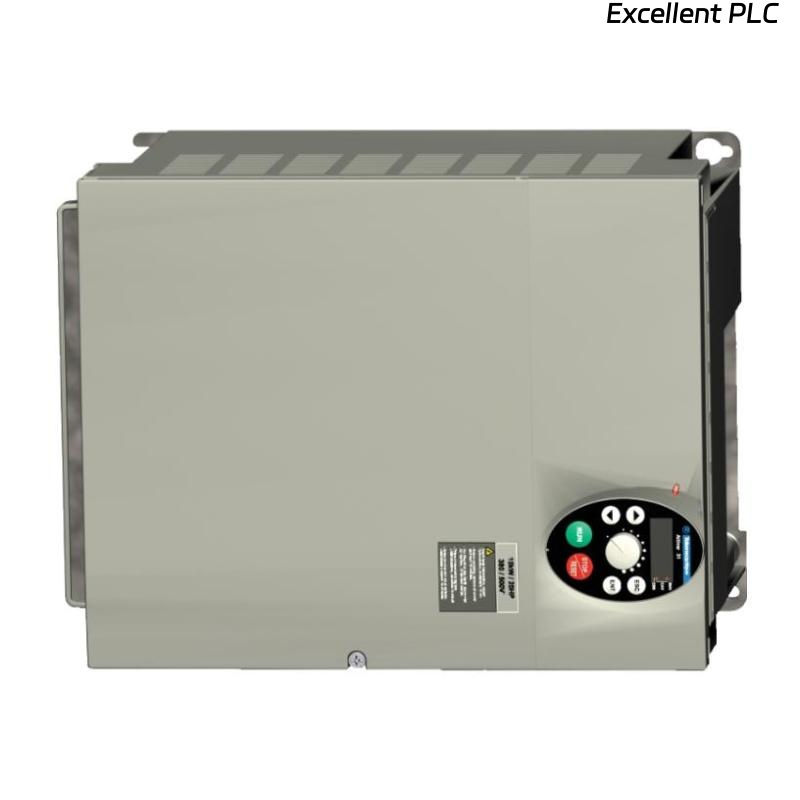

Schneider ATV31HD15N4A Variable Speed Drive

Product Introduction

The Schneider Electric ATV31HD15N4A is a robust variable speed drive (VSD) designed for precise motor control in industrial automation environments. It is part of the Altivar 31 series, which is widely recognized for its reliability, ease of integration, and suitability for standard asynchronous motor applications in manufacturing and process industries.

The drive is engineered to provide accurate speed, torque, and direction control for three-phase AC motors, enabling optimized machine performance and improved energy efficiency. By adjusting motor speed according to actual process demand, the ATV31HD15N4A helps reduce mechanical stress, minimize energy consumption, and enhance overall system stability.

With a focus on operational simplicity and dependable performance, the ATV31HD15N4A integrates essential control functions, protection mechanisms, and communication capabilities required in modern control architectures. Its design supports long-term continuous operation in industrial electrical cabinets, making it a practical choice for engineers seeking a balance between functionality, durability, and cost-effective motor control.

---

Product Specifications

---

Applications

• Conveyor systems, providing smooth speed regulation and controlled starting and stopping

• Pumps and fans, optimizing energy consumption through variable speed operation

• Packaging machines, enabling accurate motion control and repeatable process performance

• Material handling equipment, reducing mechanical shock and extending drivetrain serviceability

• General-purpose machinery, where reliable and flexible motor control is required

• Industrial production lines, supporting stable operation under varying load conditions

---

Advantages

• Reliable motor control, ensuring consistent speed and torque across different operating conditions

• Energy efficiency improvement, by matching motor speed to actual process demand

• Comprehensive motor protection, reducing the risk of electrical and mechanical damage

• Simple parameter configuration, allowing quick commissioning and troubleshooting

• Compact industrial design, suitable for standard electrical cabinets

• Proven Altivar platform, widely adopted and supported in industrial environments

• Stable operation under load variation, improving machine performance and process quality

FAQ

1. What motor types can be controlled by the ATV31HD15N4A?
   The drive is designed primarily for standard three-phase asynchronous AC motors used in industrial applications.

2. Does the drive support speed control via analog signals?
   Yes, it supports analog reference inputs, allowing speed control through external signals such as voltage or current.

3. How does the drive protect the motor from overload conditions?
   Integrated motor thermal modeling and current monitoring provide effective overload protection.

4. Can acceleration and deceleration times be adjusted?
   Acceleration and deceleration ramps are fully programmable to ensure smooth motor operation.

5. Is the drive suitable for continuous operation?
   The unit is designed for continuous industrial duty when installed and cooled correctly.

6. How does the drive respond to sudden load changes?
   The control algorithm maintains stable motor operation by adjusting output parameters dynamically.

7. Can the drive be integrated into automated control systems?
   Yes, it supports digital I/O and communication interfaces for integration with PLC-based systems.

8. What protections are provided against supply voltage issues?
   The drive includes overvoltage and undervoltage protection to safeguard internal components.

9. Is braking functionality supported?
   Dynamic braking can be implemented using external braking components, depending on application requirements.

10. Can parameters be adjusted during operation?
    Most parameters can be modified during operation, allowing fine-tuning without stopping the system.
