Product Introduction

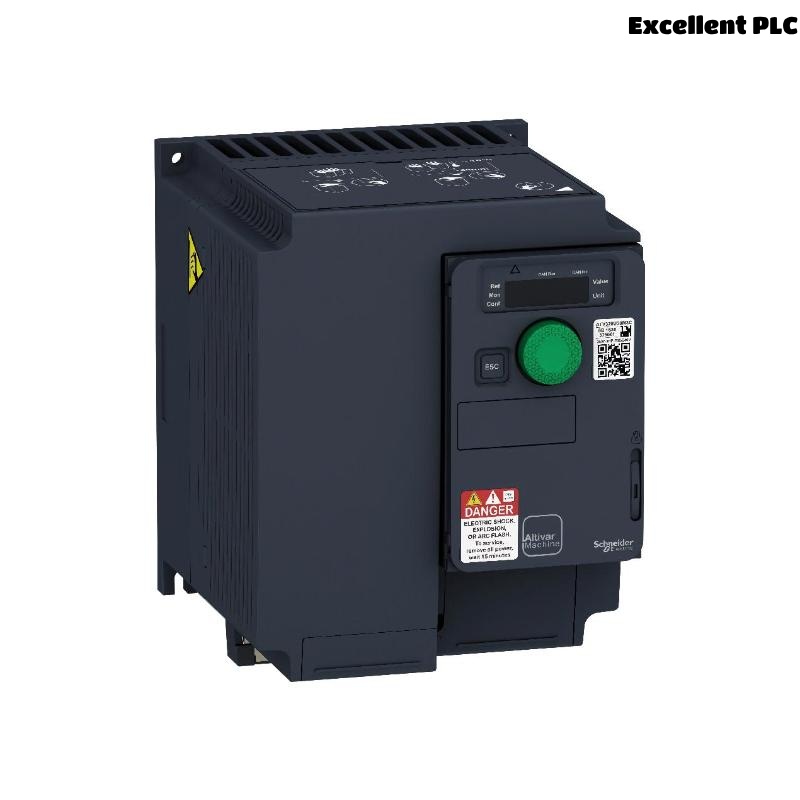

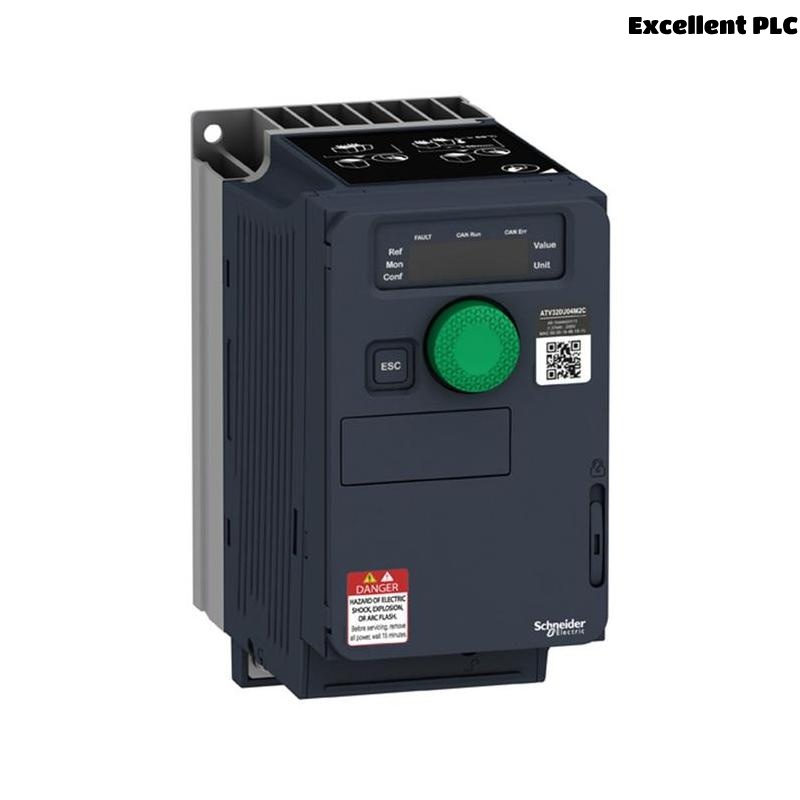

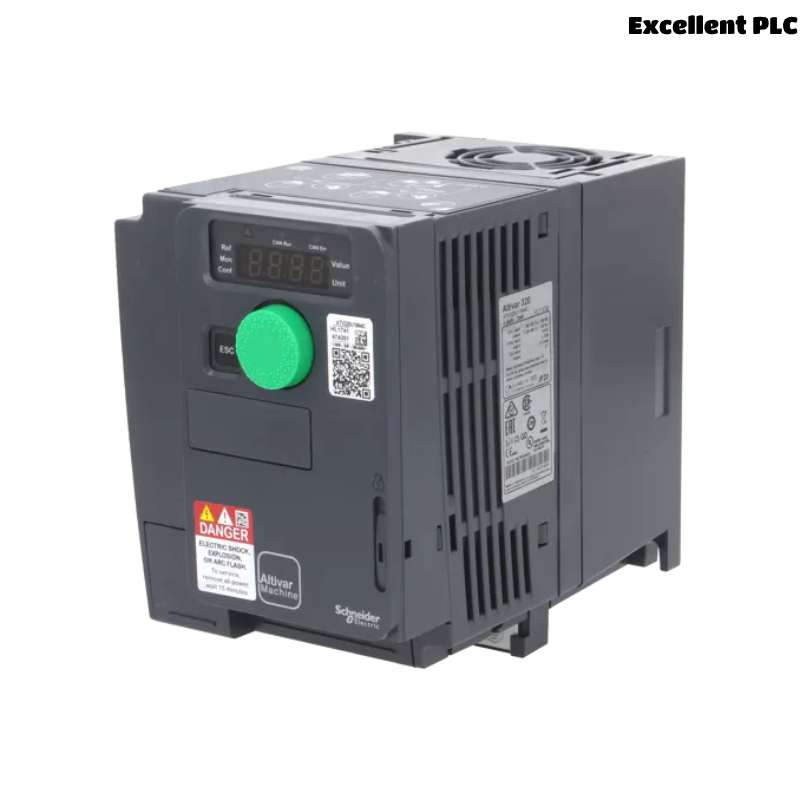

The Schneider ATV320U15N4C is an advanced variable speed drive (VSD) from the Altivar Machine ATV320 series, designed specifically to meet the diverse demands of machine manufacturers. Supporting asynchronous and permanent magnet motors, it offers robust performance and precise motor control in a compact and highly durable enclosure. Its flexibility and integration capabilities make it an essential component for automation, packaging, material handling, and a broad range of machine applications where space, reliability, and easy integration are priorities.
Product Advantages
– Versatile motor support: Compatible with both asynchronous motors and permanent magnet motors.
– Compact design: Saves cabinet space, ideal for machine builders and retrofits.
– Integrated safety: Includes built-in Safe Torque Off (STO) function to simplify compliance with machine safety standards.
– Flexible communication: Supports a variety of industrial protocols including Modbus, CANopen, and options for Ethernet-based networks.
– Wide operating temperature range: Designed to operate reliably in harsh environments.
– Energy efficiency: Reduces power consumption through advanced motor control algorithms.
– Simple setup & diagnostics: Intuitive programming via integrated display and software tools like SoMove.
– Global standards compliance: Meets international standards such as IEC, UL, CSA, and EAC, supporting worldwide applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Schneider ATV320U15N4C |
| Series | Altivar Machine ATV320 |
| Input Voltage | Three-phase 380–500 V AC |
| Power Rating | 1.5 kW (2 HP) |
| Maximum Output Frequency | 599 Hz |
| Motor Control Type | V/F, Sensorless Vector Control, PM motor control |
| Integrated Safety Function | Safe Torque Off (STO) |
| Protection Degree | IP20 |
| Ambient Temperature Range | -10°C to +50°C without derating |
| Dimensions | 142x 158x 105mm |
| Weight | 1.3 kg |
| Communication Protocols | Modbus, CANopen (integrated) |
| Compliance Standards | CE, UL, CSA, EAC, etc. |
Product Applications
The ATV320U15N4C is widely used in:
– Packaging machinery requiring precise speed and torque control
– Material handling systems including conveyors, hoists, and lifts
– Textile machines demanding reliable motor performance
– Food & beverage processing equipment
– Printing and paper machinery where space and efficiency matter
– Light machine tools and woodworking equipment
– Any small to mid-size machine application requiring flexible motor control
Product Advantages (Detailed)
In addition to the main features listed earlier, the ATV320U15N4C provides:
– Plug & play design: Quick connection for peripherals and option modules.
– Integrated EMC filters: Helps meet electromagnetic compatibility requirements.
– Expandable functionality: Can be paired with optional communication cards.
– Diagnostics & monitoring: Built-in event logging for quick troubleshooting.
– Reduced downtime: Robust design extends product life and minimizes service interruptions.
Frequently Asked Questions (FAQ)
Q1: What motors can the ATV320U15N4C control?
A1: It controls standard asynchronous (induction) motors and permanent magnet motors, offering flexibility in machine design.
Q2: Can I use it directly on a 400 V network?
A2: Yes, it is designed for three-phase networks from 380–500 V AC.
Q3: Does it have built-in safety functions?
A3: Yes, it includes Safe Torque Off (STO), certified up to SIL 3 / PLe.
Q4: Is software required for basic setup?
A4: No, the drive can be configured directly through its local keypad; software like SoMove is optional for advanced setup.
Q5: What communication protocols are supported?
A5: Modbus and CANopen are integrated; optional modules add Ethernet/IP, ProfiNet, EtherCAT, etc.
Q6: Is it suitable for harsh environments?
A6: Yes, it operates up to +50°C without derating and features robust design.
Q7: How is maintenance performed?
A7: Preventive maintenance is supported by event logs and status monitoring, helping plan service before failure.
Q8: Can it be mounted side-by-side?
A8: Yes, thanks to its compact IP20 design, saving valuable panel space.
Q9: What is the typical lifespan?
A9: When used within specified conditions, it often exceeds 5 years of service.
Q10: How long is the warranty period?
A10: The standard warranty is 1 years, subject to proper usage and conditions.
Recommended Related Models (Same Series / Similar)
– ATV320U07N4C (0.75 kW)
– ATV320U22N4C (2.2 kW)
– ATV320U30N4C (3 kW)
– ATV320U40N4C (4 kW)
– ATV320U55N4C (5.5 kW)
– ATV320U75N4C (7.5 kW)
Other Popular Schneider Models (With Specs)
| Model | Series | Power Rating | Input Voltage | Dimensions (H×W×D) mm | Weight |
|---|---|---|---|---|---|
| ATV12H075M2 | Altivar 12 | 0.75 kW | 200–240 V | 142×72×130 | 1.1 kg |
| ATV212HU15N4 | Altivar 212 | 1.5 kW | 380–480 V | 184×110×152 | 2.2 kg |
| ATV340U22N4E | Altivar 340 | 2.2 kW | 380–480 V | 233×90×221 | 2.7 kg |
| ATV630D22N4 | Altivar Process | 2.2 kW | 380–480 V | 320×180×232 | 6.8 kg |
| ATV71HU15N4 | Altivar 71 | 1.5 kW | 380–480 V | 184×105×152 | 3.0 kg |
| ATV930D15N4 | Altivar Process | 1.5 kW | 380–480 V | 280×130×215 | 5.9 kg |
