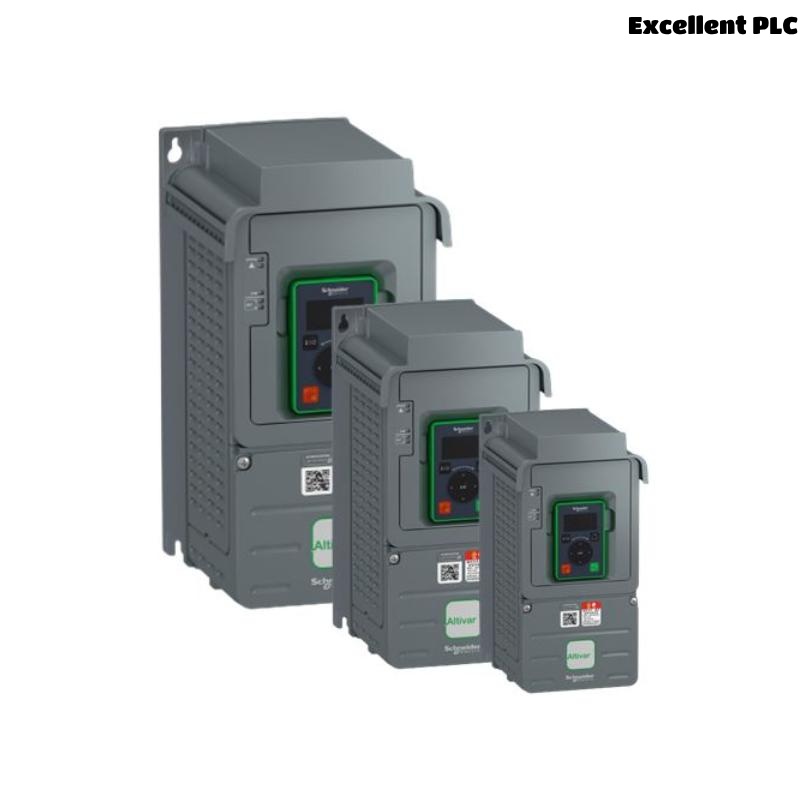

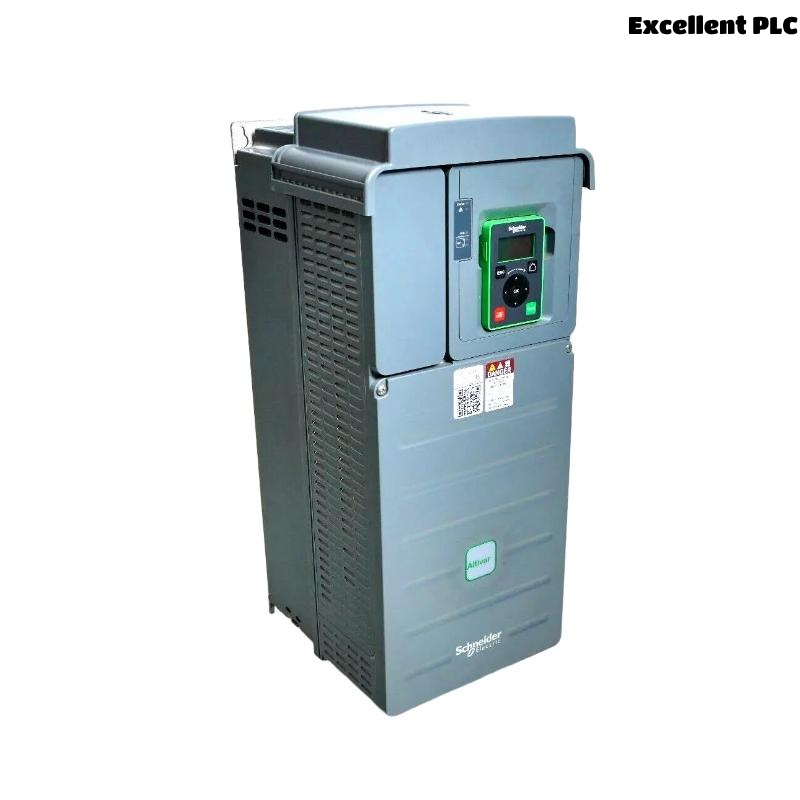

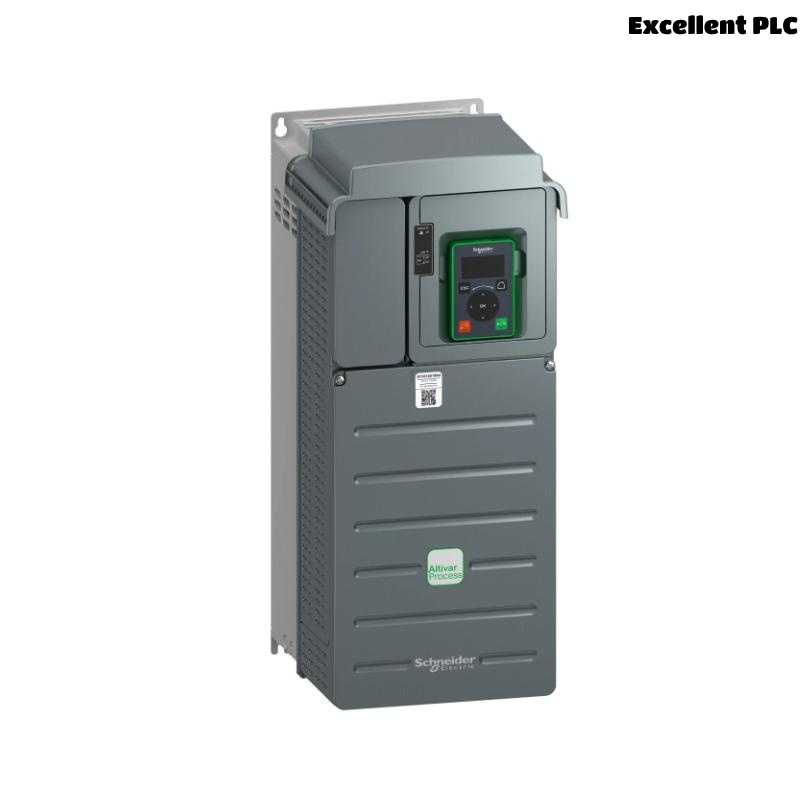

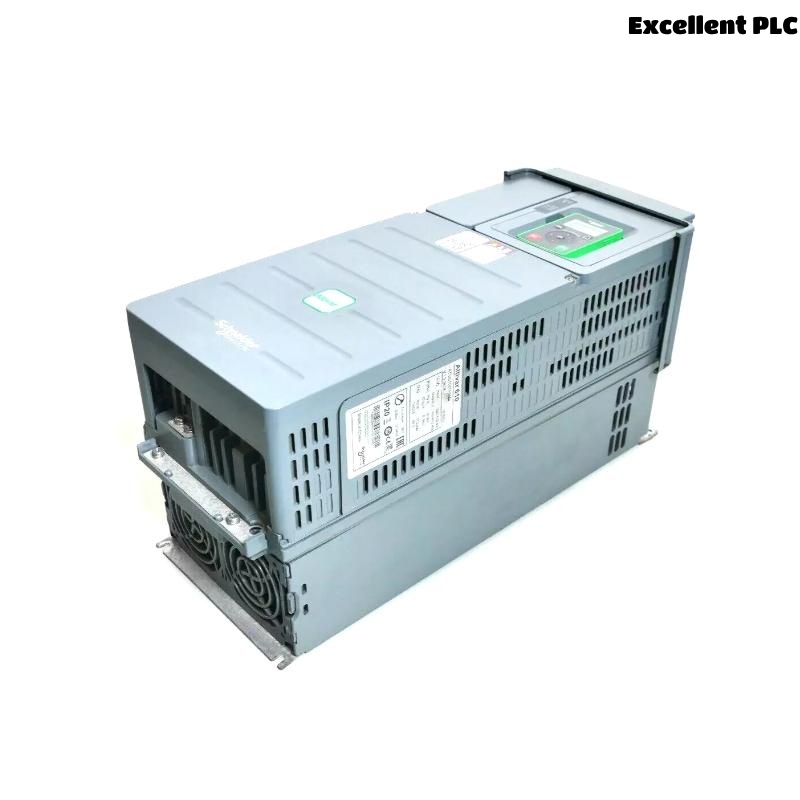

Schneider ATV610D18N4 Variable Speed Drive Overview
The Schneider ATV610D18N4 is a robust variable speed drive designed for controlling three-phase asynchronous motors. With reliable performance and energy efficiency, it is ideal for industrial and commercial motor control applications, especially in HVAC, pumping, and material handling systems.
Key Features and Advantages
-
High energy efficiency with optimized motor control
-
Supports multiple control modes including constant torque and variable torque
-
Wide operating voltage range for industrial environments
-
Compact design for easy installation and maintenance
-
Integrated safety and communication options
Applications
-
HVAC systems in commercial buildings
-
Water supply and wastewater treatment plants
-
Conveyor and material handling systems
-
Industrial pumping stations
-
Fans and compressors
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Rating | 18.5 kW (25 HP) |
| Input Voltage | 380–480 V AC, 3-phase |
| Output Voltage | 0–full line voltage |
| Output Frequency | 0.1–500 Hz |
| Control Method | V/F, Sensorless Vector |
| Dimensions (H x W x D) | 211 x 580 x 232 mm |
| Weight | 13.5 kg |
| Operating Temperature | -10°C to +50°C |
| Protection Class | IP21 |
| Communication Options | Modbus, CANopen (optional) |
Frequently Asked Questions
Q1: What is the maximum power output of the ATV610D18N4?
A1: The drive supports motors up to 18.5 kW (25 HP).
Q2: Which motor types can this drive control?
A2: It is designed for standard three-phase asynchronous induction motors.
Q3: Does the drive support communication protocols?
A3: Yes, it supports Modbus and optional CANopen interfaces.
Q4: What is the enclosure protection level of this model?
A4: The ATV610D18N4 has an IP21 protection class.
Q5: Can it be used in high-temperature environments?
A5: It can operate in temperatures up to +50°C with possible derating above 40°C.
Q6: Is sensorless vector control available?
A6: Yes, it offers sensorless vector control for better torque performance.
Q7: What is the output frequency range?
A7: The output frequency ranges from 0.1 Hz to 500 Hz.
Q8: How much does the drive weigh?
A8: The unit weighs approximately 13.5 kg.
Q9: What type of maintenance does it require?
A9: Regular dust cleaning and periodic inspection of connections are recommended.
Q10: Does it include any built-in safety functions?
A10: Yes, it has integrated motor protection and fault diagnostics.
Recommended Related Models
| Model | Power Rating | Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ATV610D22N4 | 22 kW | 380–480 V | 211 x 580 x 232 | 14.2 kg |
| ATV610D30N4 | 30 kW | 380–480 V | 250 x 660 x 232 | 18.5 kg |
| ATV610D37N4 | 37 kW | 380–480 V | 250 x 660 x 232 | 21.5 kg |
| ATV610D45N4 | 45 kW | 380–480 V | 250 x 740 x 232 | 24.0 kg |
| ATV610D55N4 | 55 kW | 380–480 V | 280 x 780 x 300 | 30.5 kg |
| ATV610D75N4 | 75 kW | 380–480 V | 280 x 850 x 300 | 39.0 kg |
Popular Schneider Models
| Model | Product Type | Power Rating | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ATV930D18N4 | High-Performance Drive | 18.5 kW | 211 x 580 x 232 | 14.0 kg |
| ATV320U22N4C | Compact Drive | 2.2 kW | 130 x 250 x 180 | 3.5 kg |
| ATV71HU30N4 | Advanced Process Drive | 3 kW | 161 x 350 x 232 | 5.5 kg |
| ATV12H075M2 | Simple Machine Drive | 0.75 kW | 72 x 150 x 130 | 1.0 kg |
| ATV630D22N4 | Process Drive | 22 kW | 211 x 580 x 232 | 14.5 kg |
| ATV650D30N4 | HVAC Drive | 30 kW | 250 x 660 x 232 | 19.0 kg |
