Product Introduction

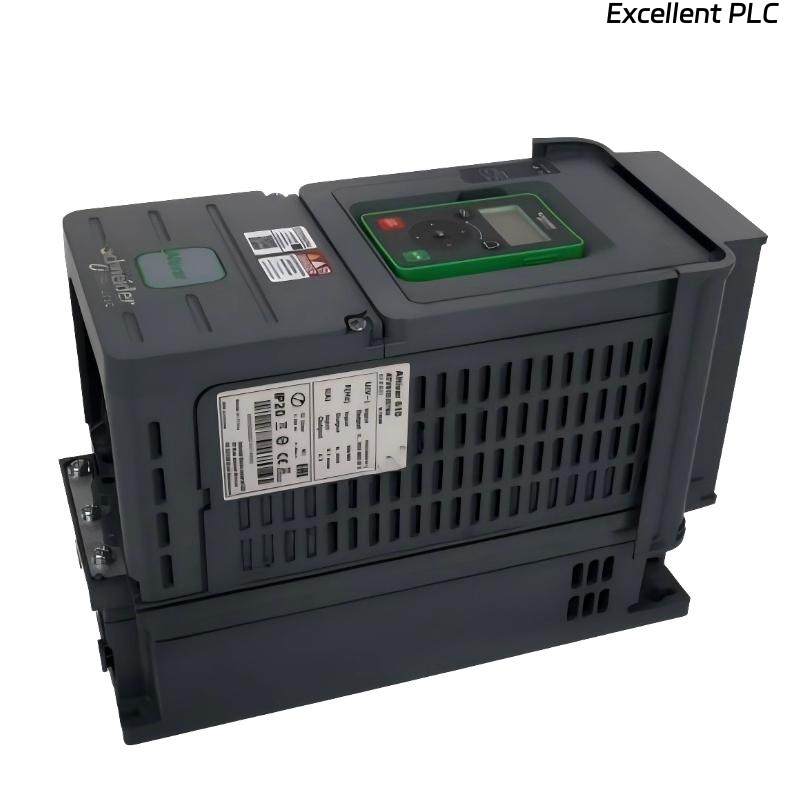

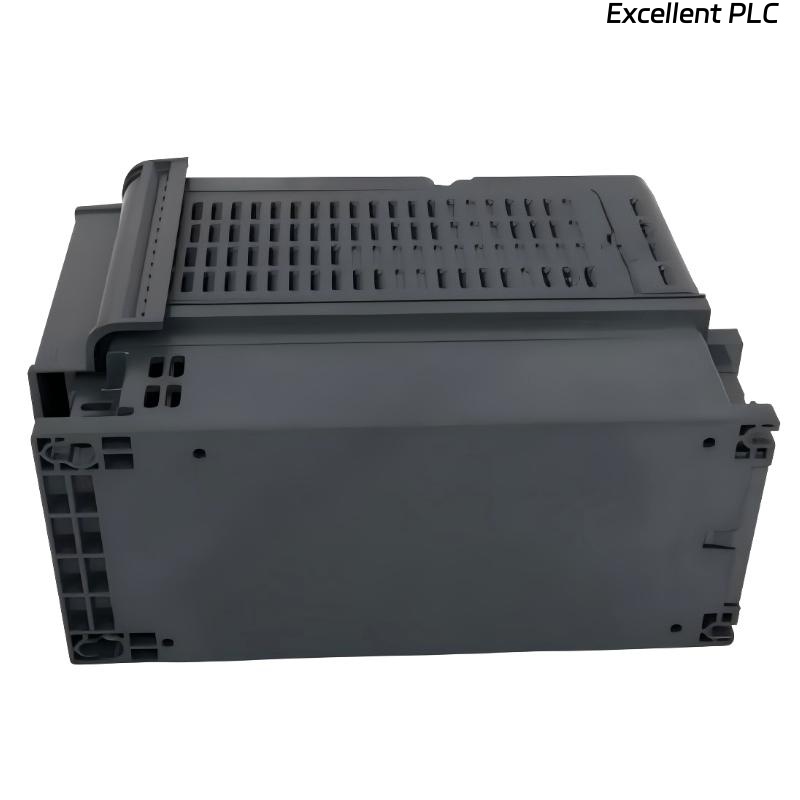

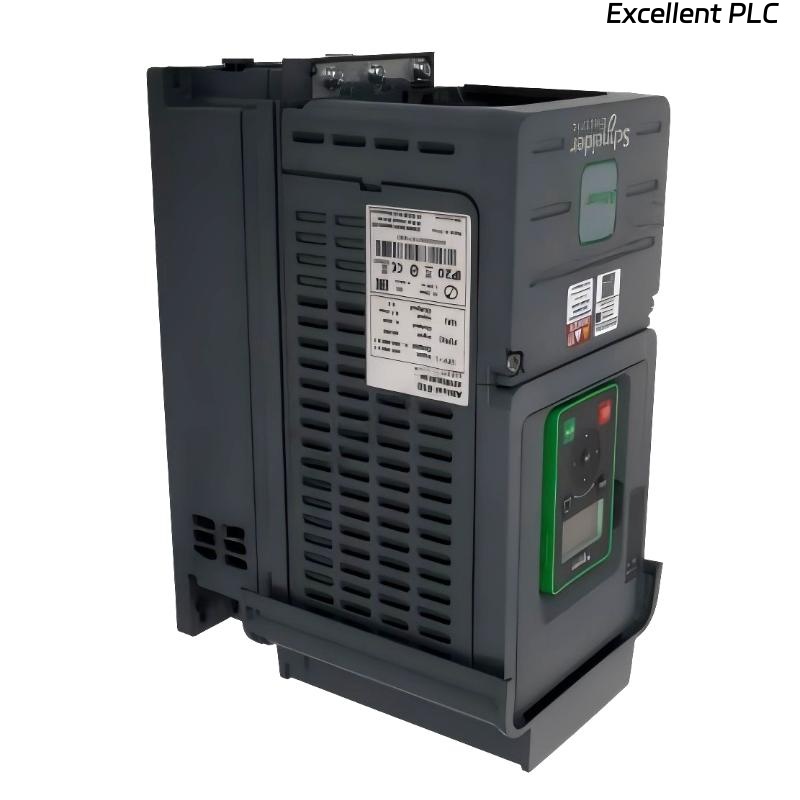

The Schneider Electric ATV610U07N4 Variable Speed Drive is part of the Easy Altivar 610 series, designed as a compact and reliable frequency inverter for three-phase asynchronous and synchronous motors. It operates on a rated supply voltage range of 380–460 V AC and is optimized for standard industrial applications where simplicity, robustness, and efficiency are key requirements.
This drive supports motors up to 0.75 kW (1 hp) for applications with slight overload requirements (up to 120%) and up to 0.37 kW (0.5 hp) for applications demanding higher overload capability (up to 150%). Its plug-and-play concept allows factory-preset parameters, significantly reducing commissioning time and minimizing setup complexity for users.
The ATV610U07N4 includes integrated radio interference input filters compliant with IEC/EN 61800-3, category C3, making it suitable for both environment 1 and environment 2. It has been specifically developed for standard applications in water and wastewater, oil and gas, as well as process, machine, and building management domains, delivering dependable performance in demanding industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Range | Easy Altivar 610 |
| Product or Component Type | Variable Speed Drive |
| Motor Type | 3-phase asynchronous and synchronous motors |
| Rated Motor Power (Slight Overload) | 0.75 kW / 1 hp (up to 120%) |
| Rated Motor Power (High Overload) | 0.37 kW / 0.5 hp (up to 150%) |
| Power Supply Voltage | 380…460 V AC |
| Supply Phases | 3 phase |
| Overload Capability | 120% (slight), 150% (significant) |
| EMC Compliance | IEC/EN 61800-3, edition 2, category C3 |
| Integrated EMC Filter | Yes |
| Control Concept | Plug & play, factory preset parameters |
| Target Applications | Water & wastewater, oil & gas, process and building management |
| Dimensions | 297 × 145 × 203 mm |
| Weight | 3.135 kg |
Applications
• Water and Wastewater Systems
Ideal for pumps and auxiliary equipment requiring stable and energy-efficient motor control.
• Oil and Gas Industry
Suitable for standard motor-driven equipment in upstream and downstream processes.
• Process Automation
Supports reliable speed control in general industrial process equipment.
• Machine Management
Used in simple machine applications where quick commissioning is essential.
• Building Management Systems
Applicable to HVAC-related motors and building service equipment.
Advantages
• Plug-and-Play Design
Factory-preset parameters reduce commissioning time and setup effort.
• Flexible Overload Capability
Supports both slight and significant overload applications depending on motor rating.
• Compact and Lightweight
Space-saving design with a low overall weight for easy panel integration.
• Integrated EMC Filtering
Ensures compliance with IEC/EN 61800-3 without additional external filters.
• Optimized for Standard Applications
Designed specifically for common industrial use cases in fluids and process control.
• Reliable Operation
Engineered for stable performance in demanding industrial environments.
