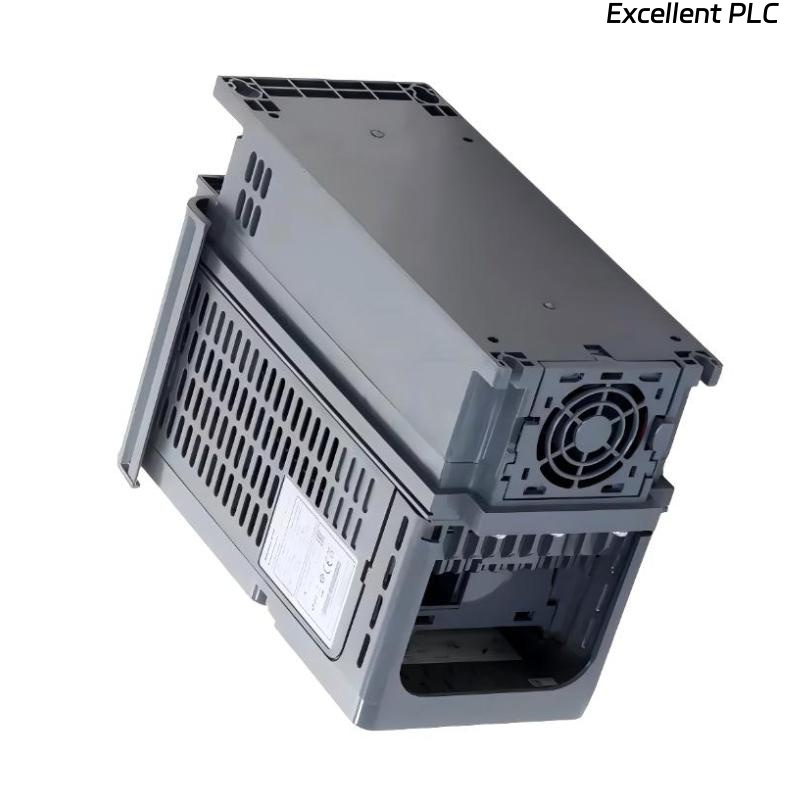

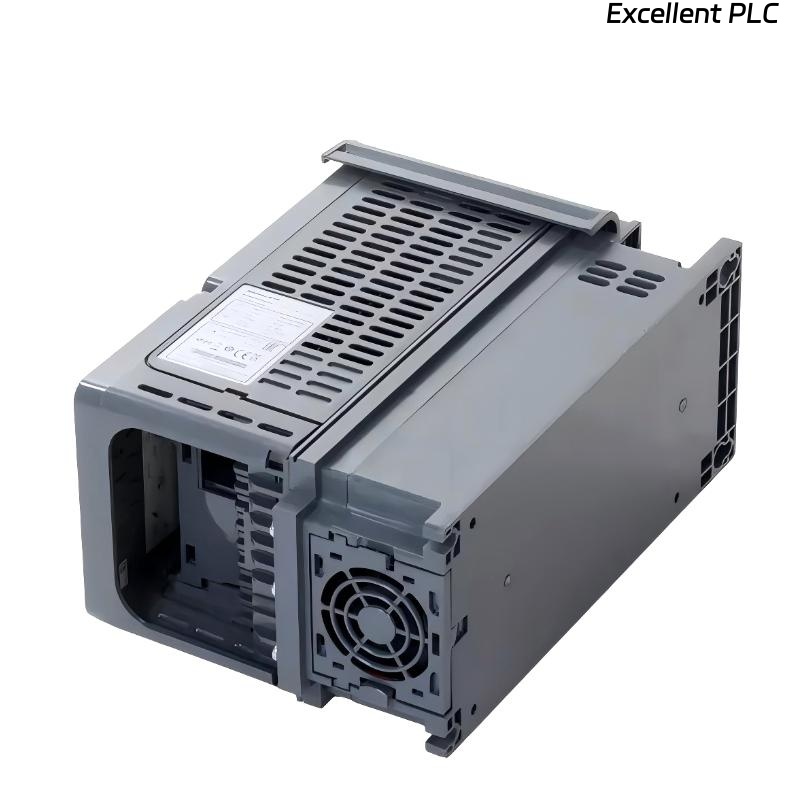

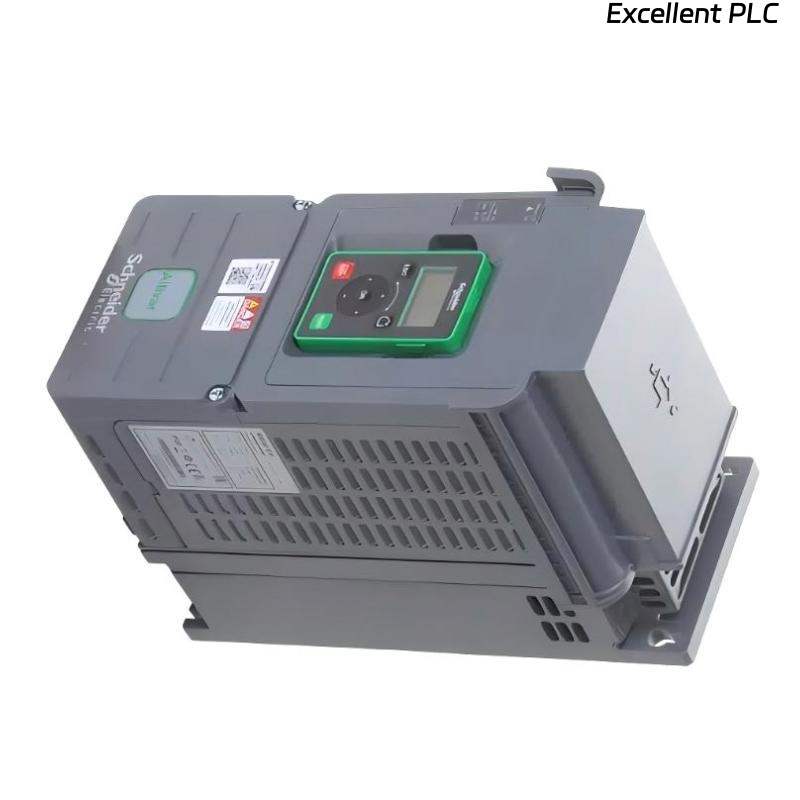

Schneider ATV610U30N4 Variable Speed Drive

Product Introduction

The Schneider Electric ATV610U30N4 is an Easy Altivar 610 Variable Speed Drive (VSD) designed for speed control of three-phase asynchronous and synchronous motors. It operates with a rated supply voltage range of 380 to 460 VAC, making it suitable for standard low-voltage industrial power systems.

This drive supports motors with a rated power of up to 3 kW in light overload applications and up to 2.2 kW (3 hp) in severe overload conditions. It is optimized for applications that require stable motor control, moderate overload capability, and straightforward commissioning.

The ATV610U30N4 provides a plug-and-play solution, with factory-preset parameters that reduce commissioning effort and save process setup time. An integrated input EMC filter ensures compliance with IEC/EN 61800-3 (Edition 2), Category C3, for both first and second environments.

This model is specifically designed for water and wastewater treatment, oil and gas, as well as standard applications in process management, equipment management, and building management systems, where reliability and simplicity are key requirements.


Product Specifications

Parameter Description
Product Name Schneider Electric ATV610U30N4
Product Series Easy Altivar 610
Product Type Variable Speed Drive (VSD)
Motor Type Supported Three-phase asynchronous and synchronous motors
Rated Supply Voltage 380 – 460 VAC
Rated Motor Power (Light Overload) Up to 3 kW (≤120% overload)
Rated Motor Power (Heavy Overload) Up to 2.2 kW / 3 hp (≤150% overload)
Control Method Scalar (V/f) control
Integrated EMC Filter Yes
EMC Compliance IEC/EN 61800-3, Category C3
Application Category Standard industrial applications
Cooling Method Forced air cooling
Dimensions 297 × 145 × 203 mm
Weight 3.135 kg

Applications

Water and wastewater treatment, including pumps, blowers, and circulation systems.

Oil and gas auxiliary systems, where stable motor speed control is required.

Process management systems, supporting consistent and repeatable motor operation.

Equipment management, such as conveyors, mixers, agitators, and fans.

Building management systems, enabling energy-efficient motor control for HVAC and utilities.


Advantages

Factory-preset parameters, enabling fast commissioning and reduced setup time.

Integrated EMC filter, minimizing external components and simplifying cabinet design.

Flexible overload capability, covering both light-duty and demanding applications.

Compact and standardized dimensions, consistent across the ATV610 series.

Reliable performance, tailored for continuous industrial operation.

FAQ

1. What motor power range does the ATV610U30N4 support?
It supports motors up to 3 kW for light overload applications and up to 2.2 kW (3 hp) for severe overload conditions.

2. Which motor types are compatible with this drive?
It supports three-phase asynchronous and synchronous motors.

3. Is this drive suitable for pump and fan applications?
Yes, it is well suited for pumps, fans, and similar variable-torque loads.

4. Does it require complex configuration during startup?
No, the drive is delivered with factory-preset parameters for plug-and-play commissioning.

5. Is an external EMC filter required?
No, an EMC input filter is integrated into the drive.

6. Can it be used in water treatment facilities?
Yes, it is specifically designed for water and wastewater treatment environments.

7. What control method is used?
The ATV610U30N4 uses scalar (V/f) motor control.

8. Is it suitable for continuous operation?
Yes, it is designed for continuous-duty industrial applications.

9. Can it be installed in standard control cabinets?
Yes, its compact size allows easy integration into standard cabinets.

10. Does it comply with international EMC standards?
Yes, it complies with IEC/EN 61800-3 Category C3 requirements.

Related Models

Model Type Description
ATV610U22N4 Variable Speed Drive Lower power variant within the same series
ATV610U15N4 Variable Speed Drive Compact solution for light-duty applications
ATV610U07N4 Variable Speed Drive Entry-level model for small motors
ATV630U30N4 Variable Speed Drive Advanced process-oriented drive
ATV320U30N4 Variable Speed Drive Machine control applications
ATV212HD30N4 Variable Speed Drive HVAC and building automation

Popular Models

Model Series Typical Use
ATV610U22N4 Easy Altivar 610 Pumps and fans
ATV610U30N4 Easy Altivar 610 Water and wastewater systems
ATV630U22N4 Altivar Process Energy and process optimization
ATV320U22N4 Altivar Machine Conveyors and mixers
ATV212HD22N4 Altivar 212 HVAC applications
ATV930D30N4 Altivar Process Heavy-duty industrial processes
