Product Introduction

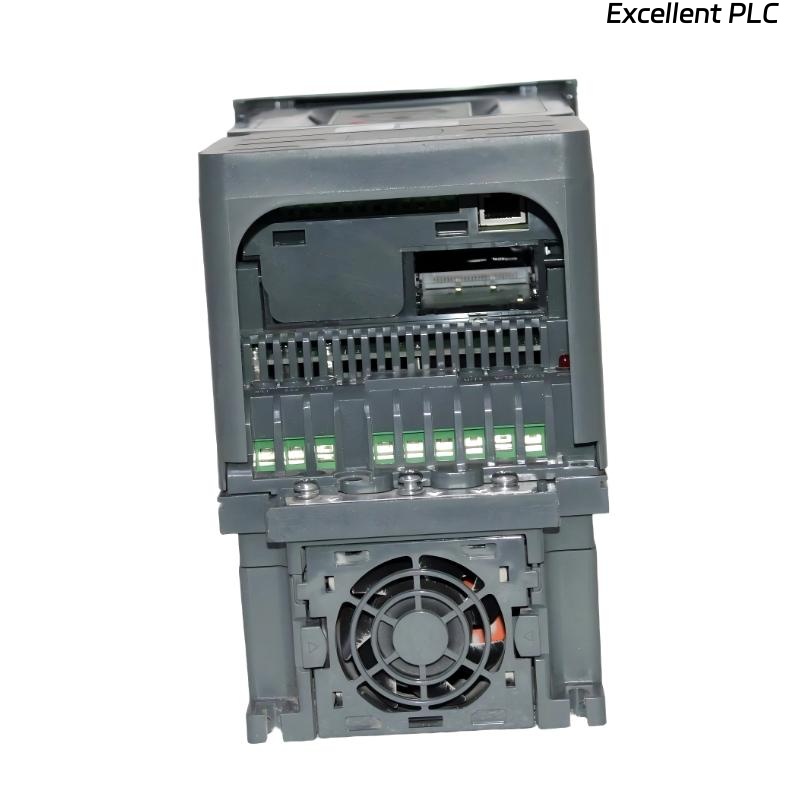

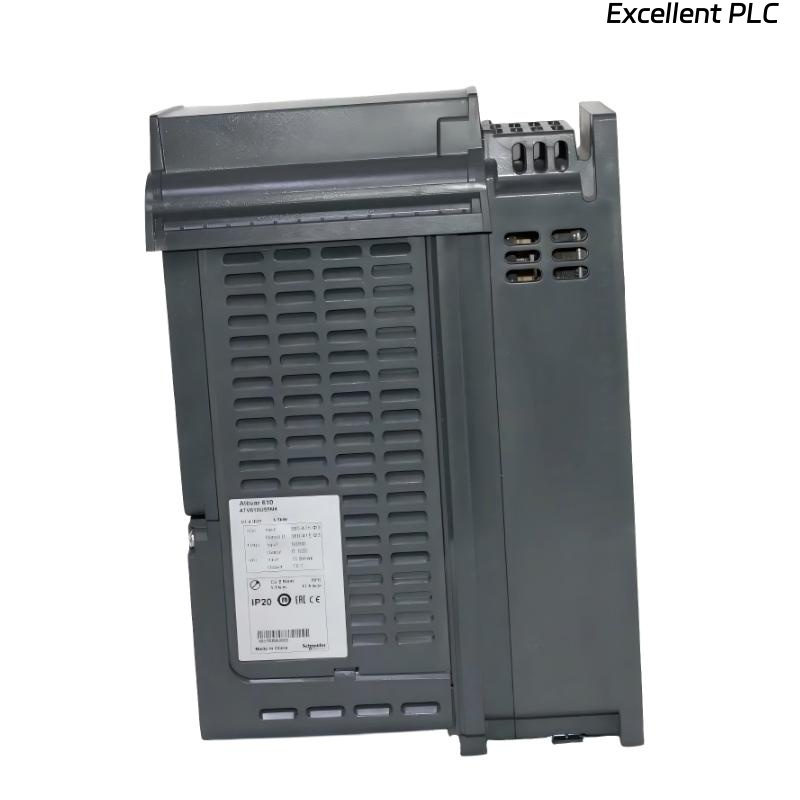

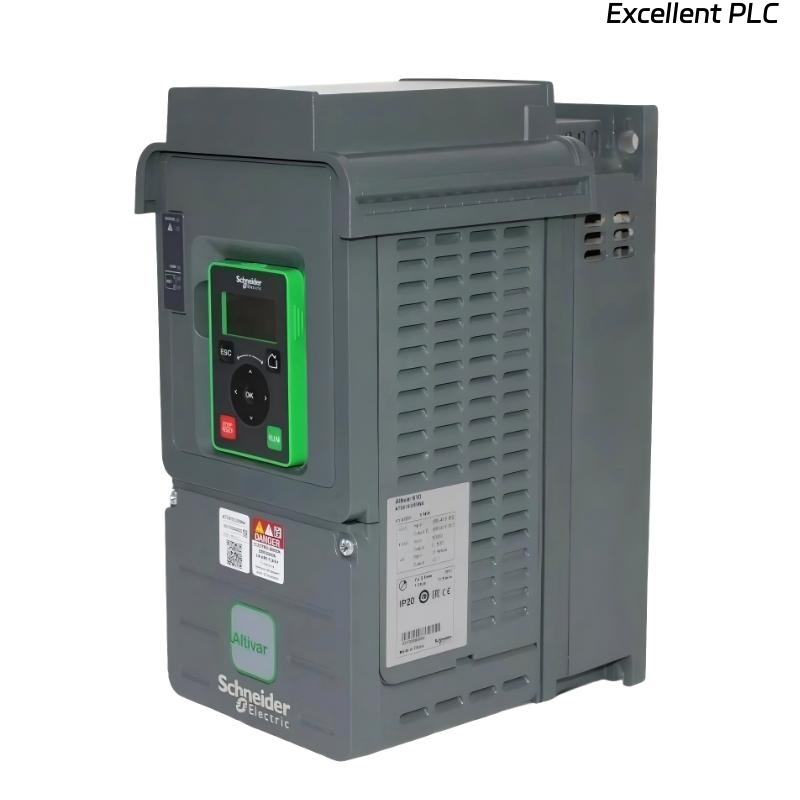

The Schneider Electric ATV610U55N4 is a standard-version Easy Altivar 610 variable speed drive, designed for dependable speed control of three-phase asynchronous and synchronous motors. It operates within a rated supply voltage range of 380 to 460 VAC and supports industrial power networks with 50/60 Hz frequency.
This drive is intended for general-purpose industrial applications such as fans, pumps, compressors, and conveyors, where stable motor operation and straightforward integration are essential. With its cabinet-mounted design and forced convection cooling, the ATV610U55N4 is well suited for installation in standard control panels.
The drive features an integrated EMC filter compliant with IEC 61800-3 Category C3, reducing electromagnetic interference and simplifying system design. As part of the Easy Altivar 610 range, it emphasizes ease of use, fast commissioning, and reliable long-term operation in typical industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Schneider Electric ATV610U55N4 |
| Range of Product | Easy Altivar 610 |
| Product Type | Variable Speed Drive |
| Device Short Name | ATV610 |
| Variant | Standard version |
| Product Destination | Asynchronous motors, Synchronous motors |
| Product-Specific Applications | Fan, pump, compressor, conveyor |
| Mounting Mode | Cabinet mount |
| Network Number of Phases | 3 phases |
| Supply Frequency | 50 / 60 Hz ±5% |
| Rated Supply Voltage | 380 – 460 V (−15% / +10%) |
| EMC Filter | Integrated, IEC 61800-3 Category C3 |
| Degree of Protection | IP20 |
| Cooling Method | Forced convection |
| Dimensions | 297 × 145 × 203 mm |
| Weight | 4.575 kg |
Applications
• Fan systems, enabling smooth airflow regulation and energy-efficient operation.
• Pump installations, especially in water handling and circulation processes.
• Compressors, providing controlled motor speed and stable startup behavior.
• Conveyor systems, supporting consistent material transport in industrial lines.
• General-purpose motor control, suitable for standard industrial equipment.
Advantages
• Broad application compatibility, covering fans, pumps, compressors, and conveyors.
• Integrated EMC filtering, reducing installation complexity and external components.
• Compact cabinet-mounted structure, ideal for standard electrical enclosures.
• Reliable thermal management, ensured by forced convection cooling.
• Easy commissioning, aligned with the Easy Altivar 610 design philosophy.
