Product Introduction

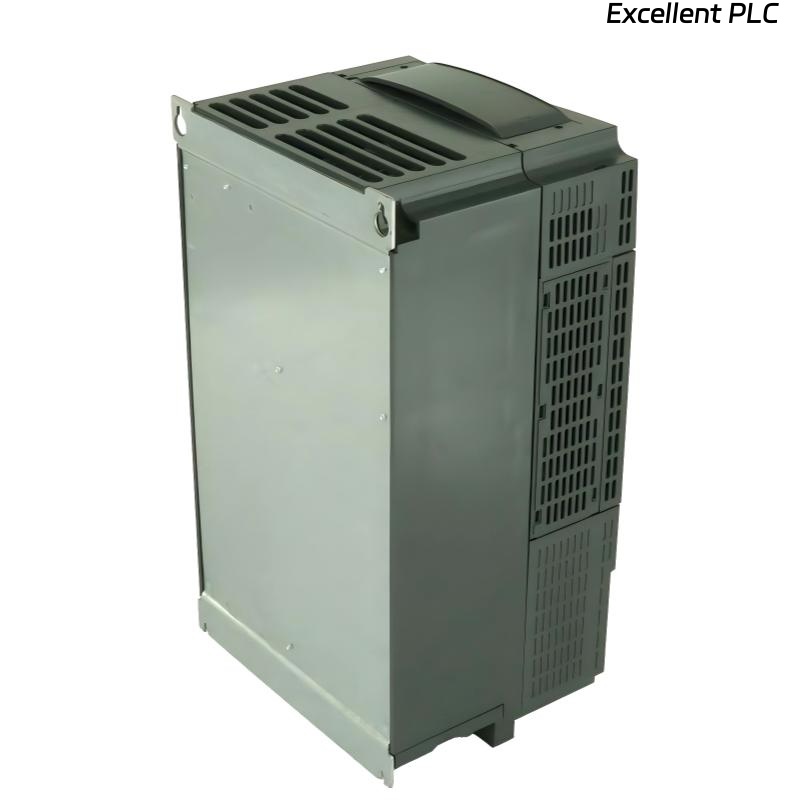

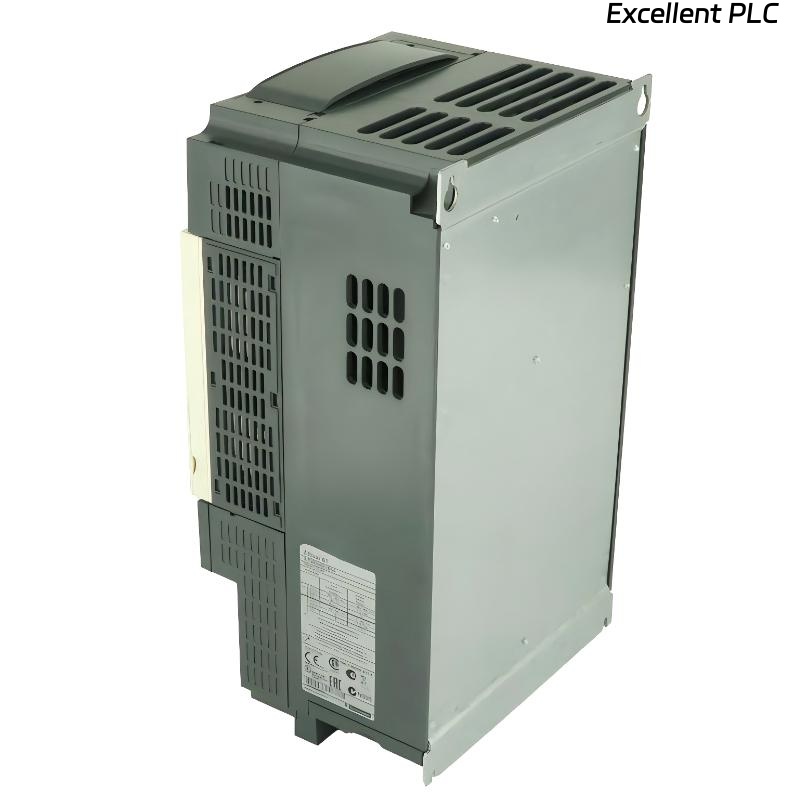

The Schneider Electric ATV61HD15N4 is a variable speed drive from the Altivar 61 (ATV61) series, developed for variable torque applications in industrial and commercial environments. The Altivar 61 drive family is designed to support a wide power range and is widely used in pump- and fan-based systems requiring reliable speed control and energy optimization.
This model is commonly applied in fan systems, single-pump and multi-pump installations, and general fluid handling applications. It provides smooth motor operation, stable performance, and compliance with major international standards. For applications requiring the latest process control features, Schneider Electric also offers the Altivar Process ATV600 drive family, while the ATV61HD15N4 remains a proven and widely deployed solution.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | Altivar 61 (ATV61) |
| Product Type | Variable Speed Drive |
| Application Type | Variable torque |
| Supply Voltage | 380–480 V AC |
| Supply Frequency | 50 / 60 Hz |
| Phase Configuration | 3-Phase |
| Control Technology | Variable frequency motor control |
| Standards & Certifications | CE, UL, CSA, C-Tick |
| Installation Type | Panel mounted |
| Dimensions | 400 × 213 × 230 mm |
| Weight | 22 kg |
Applications
• Fan systems in HVAC and industrial ventilation
• Single and multi-pump systems for water and fluid transfer
• Pump stations in commercial buildings and industrial facilities
• Energy-efficient motor control in variable torque applications
• Auxiliary process equipment requiring stable speed regulation
Advantages
• Optimized for variable torque applications, especially pumps and fans
• Smooth and stable motor operation, reducing mechanical stress
• Compliance with international standards, enabling global use
• Reliable Altivar 61 platform, proven in long-term operation
• Compact cabinet-mounted design, suitable for control panels
