Product Overview

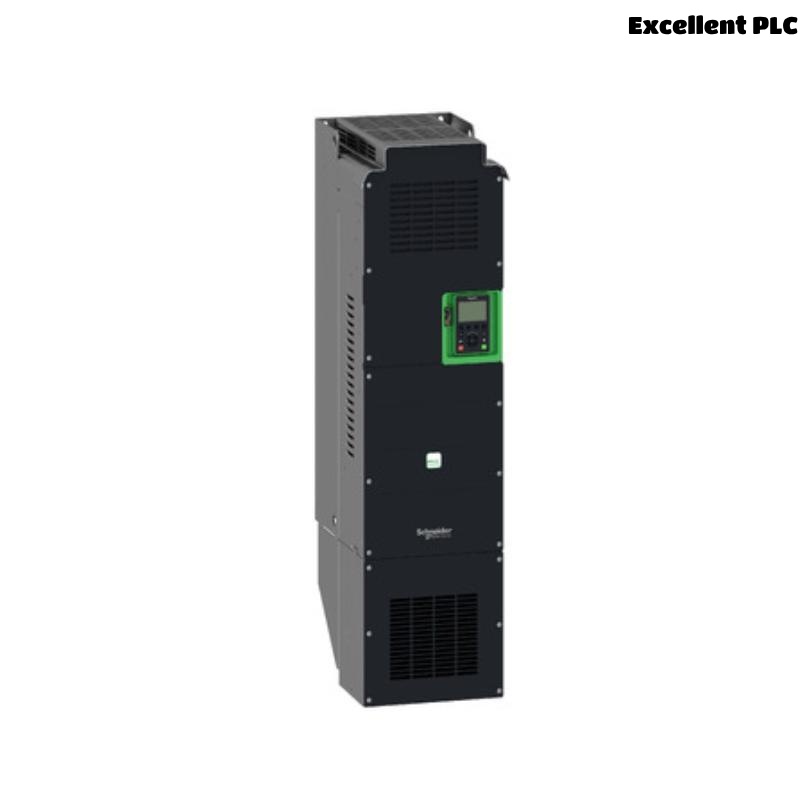

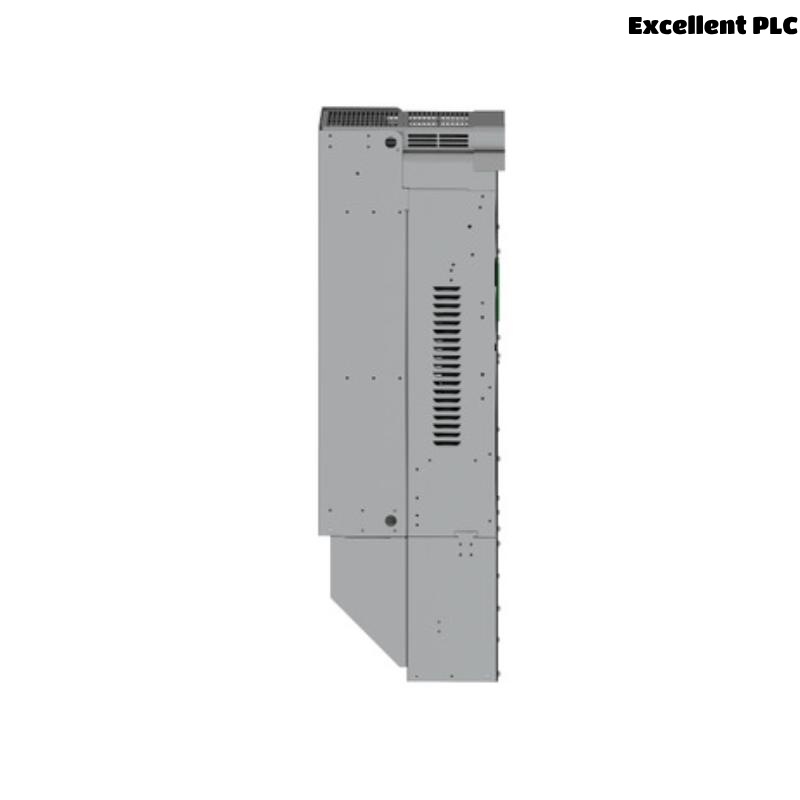

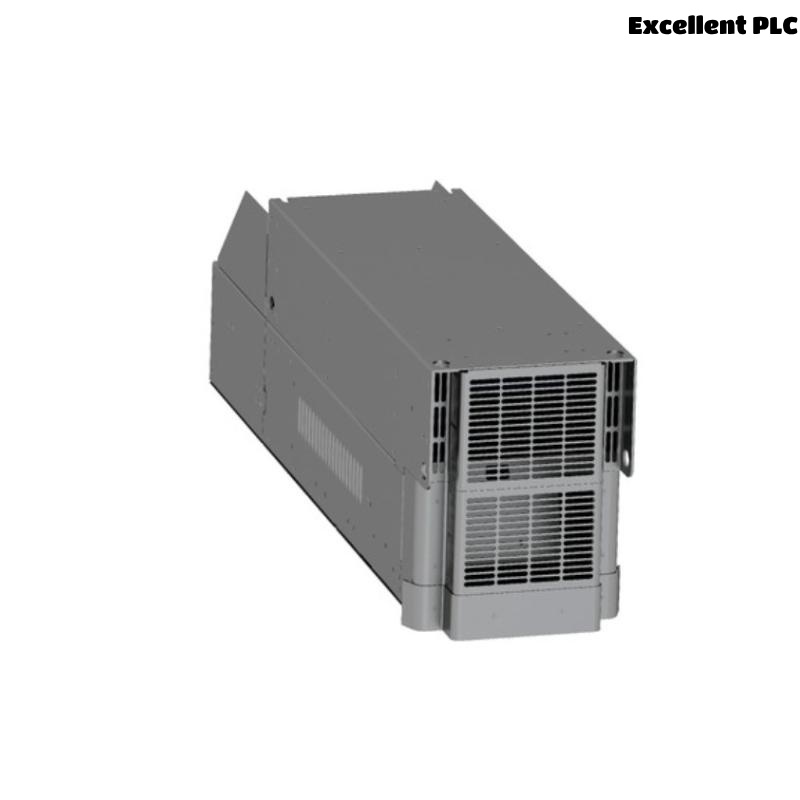

The Schneider Electric ATV630C11N4 is a premium Altivar Process ATV630 series Variable Speed Drive (VSD) designed to enhance energy efficiency and improve process performance in complex industrial environments. Engineered for motors from 90 kW to 110 kW (125 HP), this 3-phase drive supports 380–480 V power systems and provides robust control for pumps, fans, compressors, and other fluid management applications.
With advanced connectivity, built-in application functions, and embedded cybersecurity, the ATV630C11N4 offers a smart, connected solution for industrial automation. It is designed for simplified integration with automation systems and features an intuitive user interface for fast commissioning and diagnostics.
Key Features
-
Power rating: 110 kW (150 HP)
-
Voltage: 380–480 V AC, 3-phase input
-
Motor control type: Sensorless vector control, flux vector control
-
IP21/NEMA Type 1 enclosure for indoor use
-
Built-in EMC filter for reduced electrical noise
-
Integrated LCD keypad with navigation dial
-
Embedded Ethernet, Modbus, CANopen, and optional communication modules
-
Energy-saving features with intelligent load management
-
Compliance with IEC/EN standards and efficiency regulations
-
Conformal coating on PCB for enhanced protection in harsh environments
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | ATV630C11N4 |
| Series | Altivar Process ATV630 |
| Power Rating | 110 kW (150 HP) |
| Supply Voltage | 380–480 V AC, 3-phase |
| Frequency Range | 50/60 Hz ±5% |
| Output Frequency | 0.1 to 599 Hz |
| Output Current (Nominal) | 201 A |
| Motor Control Type | Sensorless Vector, Flux Vector, V/f |
| Enclosure Rating | IP21 (NEMA Type 1) |
| Communication Protocols | Modbus TCP, Ethernet/IP, CANopen (standard) |
| Display Interface | LCD graphical keypad with dial navigation |
| Overload Capacity | 150% for 60 sec, 120% for 60 sec |
| EMC Filtering | Integrated Category C3 filter |
| Operating Temperature Range | -15°C to +50°C (without derating) |
| Cooling Type | Forced air cooling |
| Mounting Type | Wall-mountable or cabinet integration |
| Dimensions | 320 x 852 x 390mm |
| Weight | 82 kg |
| Certifications | CE, UL, CSA, EAC, RoHS, IEC/EN 61800-5-1 |
Industry Applications
The Schneider ATV630C11N4 is ideal for use in industries such as:
-
Water and Wastewater Treatment Plants
-
HVAC Systems and Air Handling Units
-
Oil and Gas Pumping and Extraction
-
Food and Beverage Processing Lines
-
Mining and Minerals
-
Building Automation
-
Chemical and Pharmaceutical Manufacturing
Advantages
-
Energy Efficiency: Automatically adjusts motor performance to reduce energy consumption during partial load conditions.
-
Smart Process Control: Features dedicated pump, fan, and compressor functions to streamline operations.
-
Ease of Integration: Multiple embedded protocols and communication options for seamless automation system integration.
-
Durable Design: Designed to perform in harsh environments with conformal-coated PCBs and robust thermal management.
-
Reduced Downtime: Advanced diagnostics, alarms, and maintenance scheduling help ensure reliable operations.
-
User-Friendly Operation: LCD keypad with dial simplifies commissioning and parameter adjustments.
-
Cybersecure: Enhanced cybersecurity protocols help protect industrial networks.
-
Flexible Mounting: Designed for standalone wall mounting or panel/cabinet installation.
Frequently Asked Questions (FAQ)
-
What is the rated power output of the ATV630C11N4?
It is rated for 110 kW or 150 HP motors. -
Can this drive be used in outdoor applications?
The standard version is IP21, suitable for indoor use. For outdoor use, it requires additional enclosure or upgrade. -
Which motor control methods are supported?
It supports sensorless vector control, flux vector control, and V/f control. -
Does it have integrated communication protocols?
Yes, it includes Modbus TCP, Ethernet/IP, and CANopen as standard. -
Is the keypad detachable for remote operation?
Yes, the graphical keypad can be mounted remotely with optional accessories. -
What type of cooling system does it use?
It utilizes forced air cooling. -
Is there an EMC filter built in?
Yes, a Category C3 EMC filter is integrated for industrial environments. -
What is the overload handling capacity?
It can handle 150% overload for 60 seconds and 120% for 60 seconds. -
Can I integrate this drive with PLC systems?
Yes, it easily integrates with PLCs using Ethernet, Modbus, or CANopen. -
Does this drive meet global standards?
Yes, it is CE, UL, CSA, EAC, and RoHS compliant.
