Product Overview

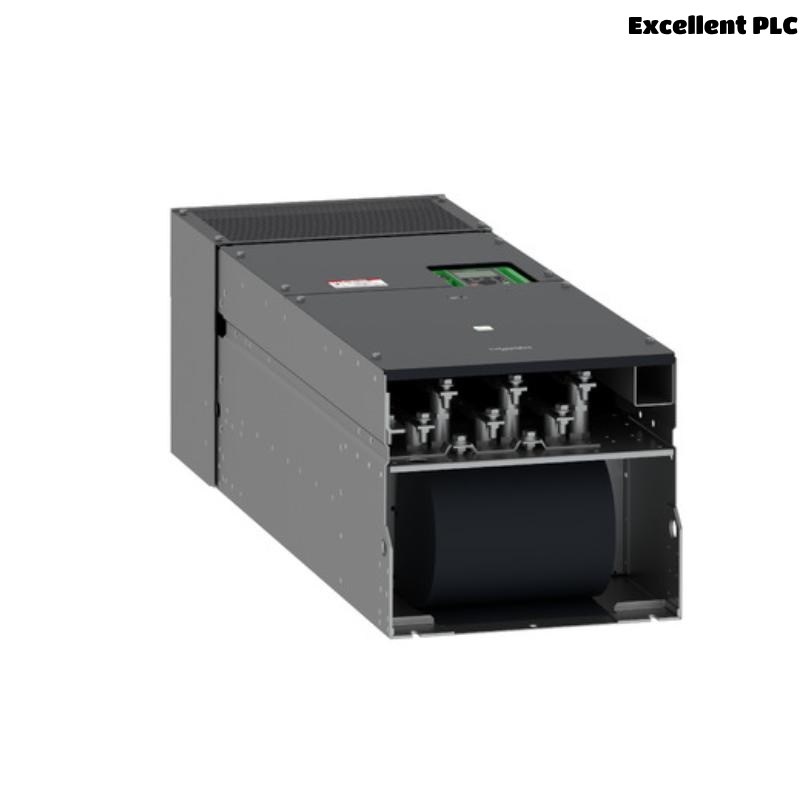

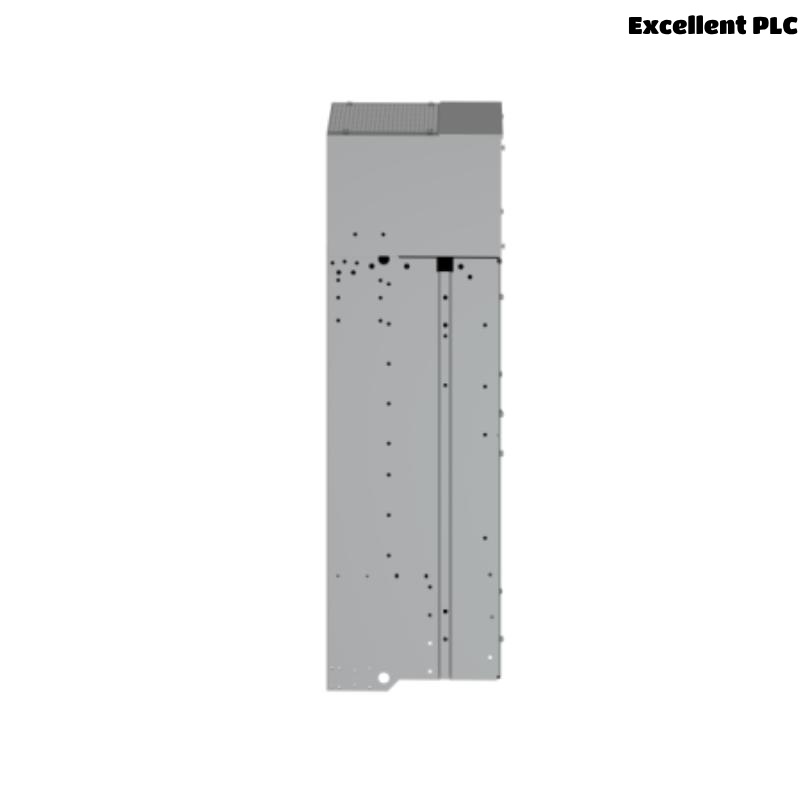

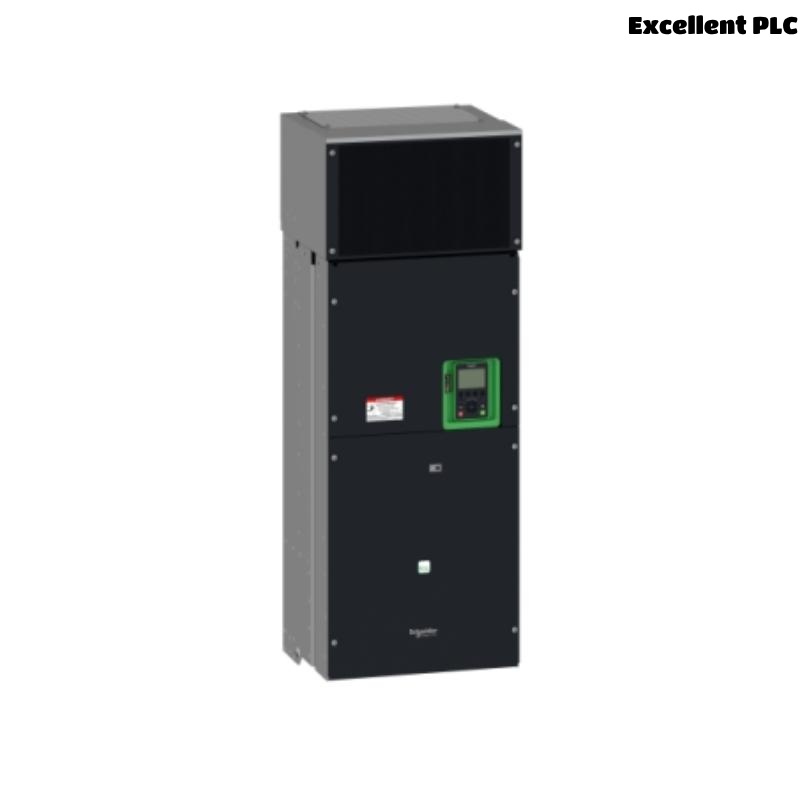

The Schneider Electric ATV630C22N4 is a high-performance variable speed drive from the Altivar Process ATV630 series, designed specifically for fluid and process control applications. Rated for motors up to 220 kW (300 HP), this drive is engineered for use with 3-phase 380–480 V power systems and delivers superior energy efficiency, operational reliability, and intelligent control features.
Its built-in communication protocols, application-specific functions, and environmentally robust design make it an ideal choice for industries seeking optimized motor management and system integration.
Key Features
-
Power rating: 220 kW (300 HP)
-
Input voltage: 380–480 V AC, 3-phase
-
Output frequency: 0.1 to 599 Hz
-
Sensorless vector and V/f motor control
-
Integrated EMC filter for reduced harmonics
-
Conformal-coated PCBs for harsh environments
-
Built-in Ethernet, Modbus, CANopen communication
-
IP21 (NEMA Type 1) enclosure for indoor installation
-
LCD graphical keypad with navigation dial
-
Advanced diagnostics and maintenance tools
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | ATV630C22N4 |
| Series | Altivar Process ATV630 |
| Power Rating | 220 kW (300 HP) |
| Supply Voltage | 380–480 V AC, 3-phase |
| Frequency Range | 50/60 Hz ±5% |
| Output Frequency | 0.1 to 599 Hz |
| Output Current (Nominal) | 401 A |
| Motor Control Type | V/f, Sensorless Vector, Flux Vector |
| Enclosure Rating | IP21 (NEMA Type 1) |
| Communication Protocols | Ethernet, Modbus TCP, CANopen |
| Display Interface | LCD graphical keypad with dial |
| Overload Capacity | 120% for 60 s, 150% for 60 s |
| EMC Filtering | Integrated C3 filter |
| Operating Temperature Range | -15°C to +50°C (no derating) |
| Cooling Method | Forced air |
| Mounting Type | Wall-mounted or cabinet integration |
| Dimensions | 440 x 1195 x 380mm |
| Weight | 172 kg |
| Certifications | CE, UL, CSA, EAC, RoHS, IEC/EN 61800-5-1 |
Industry Applications
The ATV630C22N4 is well-suited for:
-
Water and wastewater treatment plants
-
Oil and gas pump systems
-
HVAC and building automation
-
Chemical and pharmaceutical manufacturing
-
Food and beverage production
-
Mining and materials handling
-
Energy and utilities
Advantages
-
Energy Optimization: Built-in energy-saving functions improve efficiency and reduce operational costs.
-
Smart Process Control: Tailored for fluid management with pump and fan-specific features.
-
Reliable Performance: Handles heavy-duty loads with robust thermal and electrical design.
-
Flexible Communication: Supports multiple protocols for seamless automation integration.
-
Maintenance-Friendly: Diagnostic tools and alarms reduce troubleshooting time.
-
User-Centric Design: Easy setup with intuitive keypad and guided configuration wizards.
-
Cybersecurity: Built-in protection features ensure secure operation in networked environments.
-
Adaptable Installation: Supports both standalone and cabinet mounting options.
Frequently Asked Questions (FAQ)
-
What motor power is supported by the ATV630C22N4?
It supports motors up to 220 kW (300 HP). -
Can this drive be used with pumps and fans?
Yes, it is optimized for fluid control including pumps, fans, and compressors. -
What communication protocols are built in?
It includes Modbus TCP, Ethernet/IP, and CANopen. -
Is the keypad detachable?
Yes, the graphical keypad can be remotely mounted using optional accessories. -
Does it include a built-in EMC filter?
Yes, a Category C3 filter is included for compliance and noise reduction. -
What are the cooling requirements?
It uses forced air cooling and should be installed with adequate ventilation. -
Is this drive certified for global use?
Yes, it holds CE, UL, CSA, EAC, and RoHS certifications. -
What is the overload handling capacity?
It supports 150% overload for 60 seconds and 120% for 60 seconds. -
Can it be integrated into existing PLC systems?
Yes, it integrates easily using standard industrial communication protocols. -
What is the enclosure rating?
It comes with IP21 (NEMA Type 1) protection, suitable for indoor installations.
Related Models
| Model Number | Description |
|---|---|
| ATV630C22N4 | 220 kW, 380–480 V, IP21, Altivar Process VSD |
| ATV630C13N4 | 132 kW, 380–480 V, IP21, Altivar Process VSD |
| ATV630C16N4 | 160 kW, 380–480 V, IP21, Altivar Process VSD |
| ATV630C11N4 | 110 kW, 380–480 V, IP21, Altivar Process VSD |
| ATV630C75N4 | 75 kW, 380–480 V, IP21, Altivar Process VSD |
| ATV630D90N4 | 90 kW, 380–480 V, IP21, Altivar Process VSD |
Popular Schneider Electric Models
| Model Number | Description |
|---|---|
| ATV320U75N4B | Altivar Machine 320, 7.5 kW, 380–500 V |
| ATV930C13N4 | Altivar Process 930, 132 kW, advanced performance VSD |
| ATV212HU55N4 | Altivar 212, 55 kW, HVAC-specific drive |
| ATV12H075M2 | Altivar 12, 0.75 kW, compact VSD, single-phase input |
| ATV71HD75N4 | Altivar 71, 75 kW, high-performance drive |
