Product Introduction

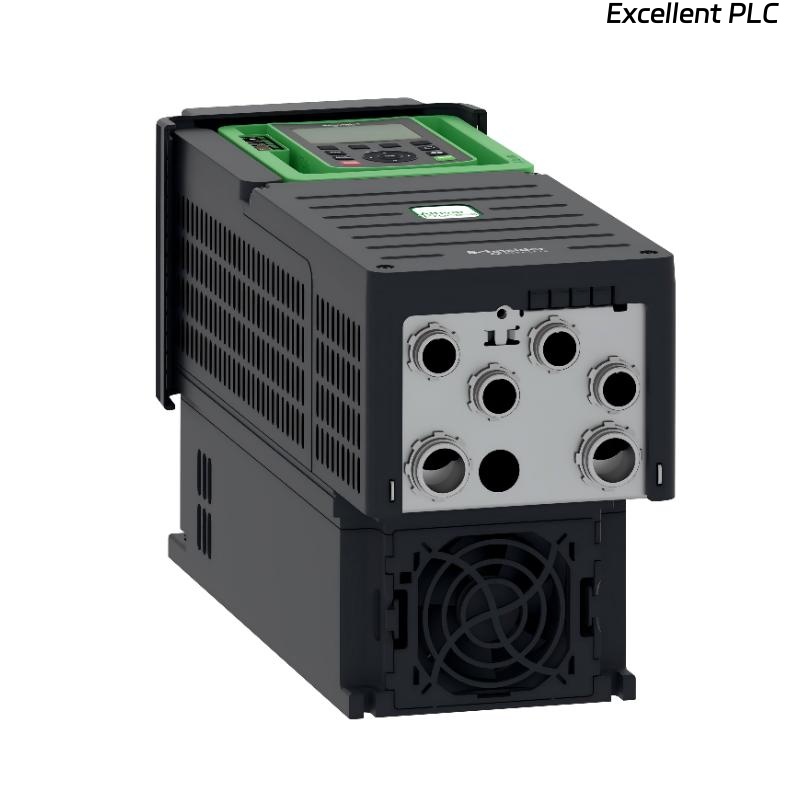

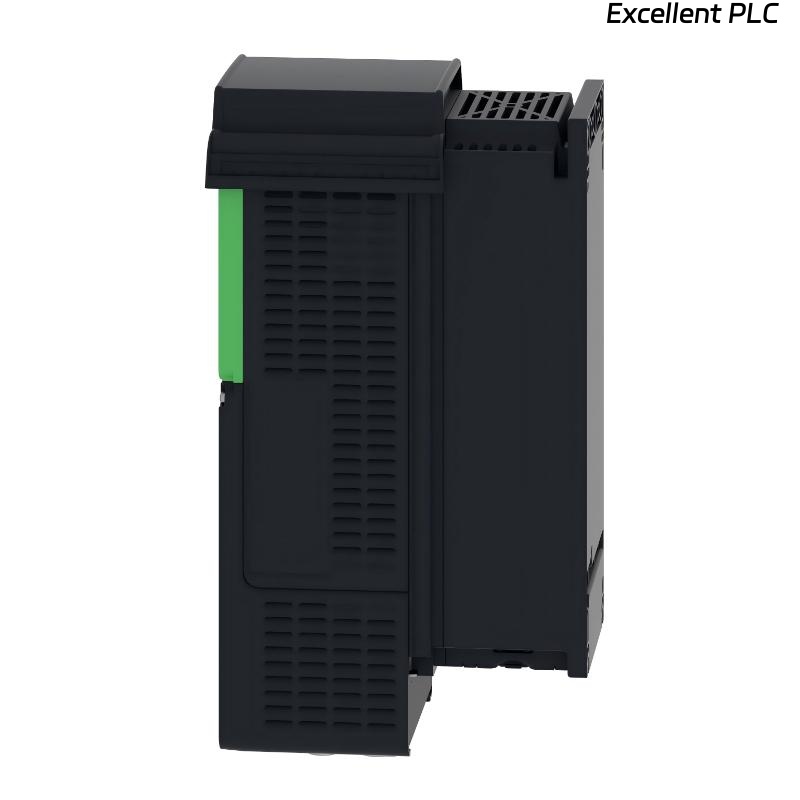

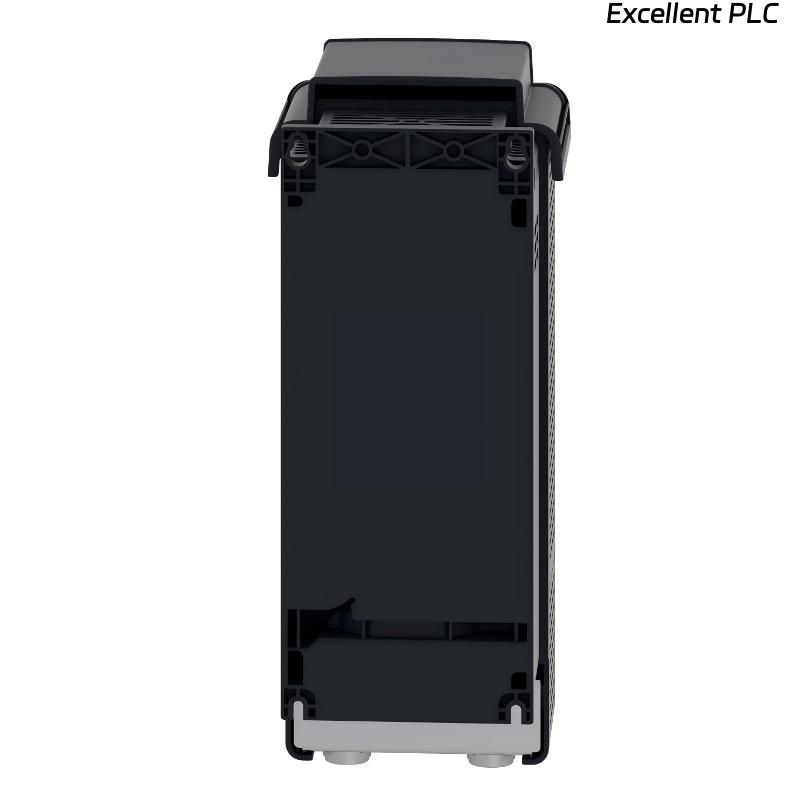

The Schneider Electric ATV630D11N4 Variable Speed Drive is part of the Altivar Process ATV600 series, engineered to supply power to three-phase synchronous and asynchronous motors. It is specifically designed to improve process efficiency, energy management, and asset performance in demanding industrial environments.
This drive operates on a rated supply voltage of 380–480 V AC and supports motors up to 11 kW / 15 HP for normal-duty applications and 7.5 kW / 10 HP for heavy-duty applications. A key feature is its innovative Start/Stop function, which can reduce energy consumption by up to 30% during standby operation, without requiring additional hardware or software.
The ATV630D11N4 integrates three RJ45 communication ports, one Ethernet port, and two serial communication ports, enabling seamless connectivity with automation systems. It is optimized for fluid management and energy efficiency, making it highly suitable for water, wastewater, and process industries.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | ATV630D11N4 |
| Product Series | Altivar Process ATV600 |
| Drive Type | Variable Speed Drive (VFD) |
| Motor Type Supported | Three-phase synchronous and asynchronous motors |
| Rated Supply Voltage | 380–480 V AC |
| Normal Duty Power Rating | Up to 11 kW / 15 HP |
| Heavy Duty Power Rating | Up to 7.5 kW / 10 HP |
| Overload Capability (Normal Duty) | Up to 120% |
| Overload Capability (Heavy Duty) | Up to 150% |
| Integrated Communication | 3 × RJ45 ports, Ethernet, 2 × serial ports |
| Installation Type | Vertical wall mounting (±10°) |
| Energy Saving Function | Start/Stop energy optimization |
| Accessories Available | Fan kits, graphic terminal |
| Optional Modules | I/O expansion, communication modules, EMC input filters |
| Dimensions | 409 × 171 × 233 mm |
| Weight | 7.7 kg |
Applications
• Water Treatment Plants: Optimized for pump and motor control with enhanced energy efficiency.
• Wastewater Treatment: Supports continuous operation with dynamic load adaptation.
• Mining and Minerals: Provides reliable speed control for conveyors and processing equipment.
• Oil and Gas: Ensures stable motor operation in energy-intensive processes.
• Food and Beverage: Enables precise flow and speed control for hygienic production systems.
• Industrial Fluid Management: Designed for pumps, fans, and compressors with variable demand.
Advantages
• Energy Efficiency: Integrated Start/Stop function reduces standby energy consumption by up to 30%.
• Advanced Connectivity: Built-in Ethernet and multiple RJ45 ports simplify system integration.
• Flexible Motor Support: Compatible with both synchronous and asynchronous motors.
• Process Optimization: Designed to improve overall process performance and asset utilization.
• Scalable Design: Supports multiple accessories and expansion modules.
• Reduced Total Cost of Ownership: Enhances equipment efficiency and simplifies maintenance.
