Product Introduction

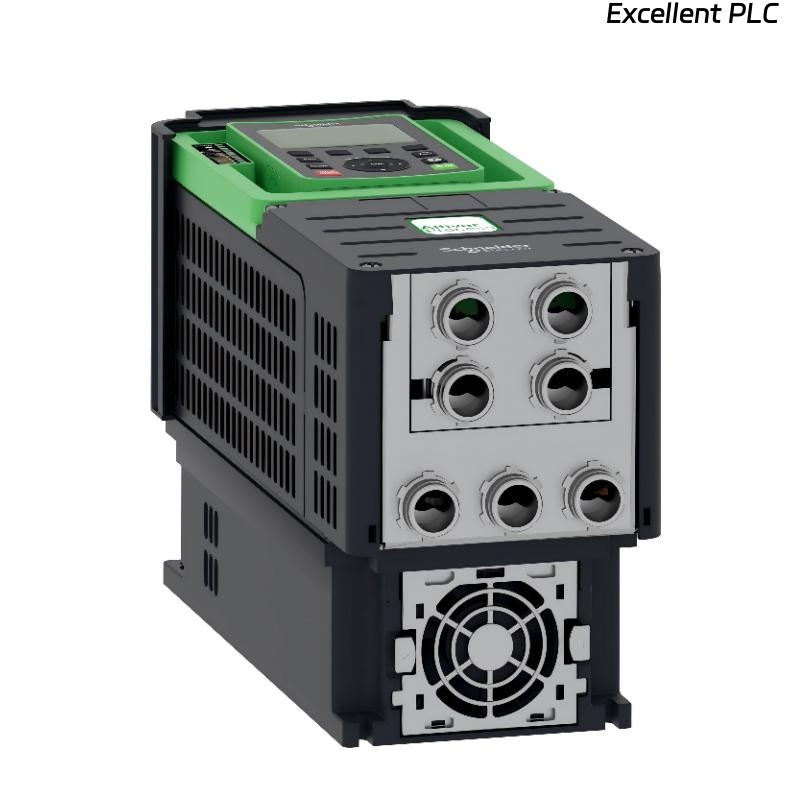

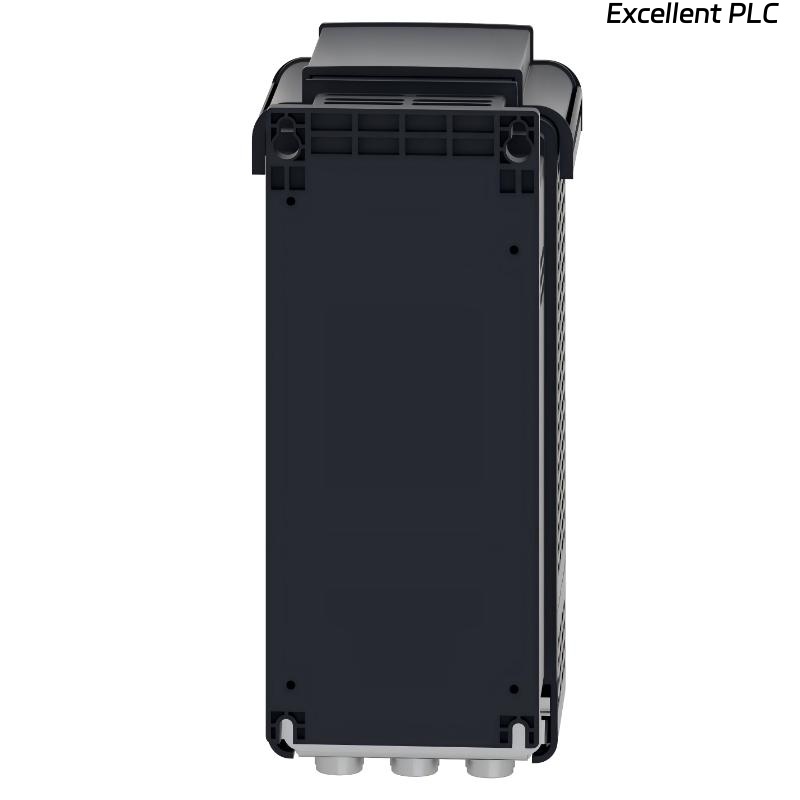

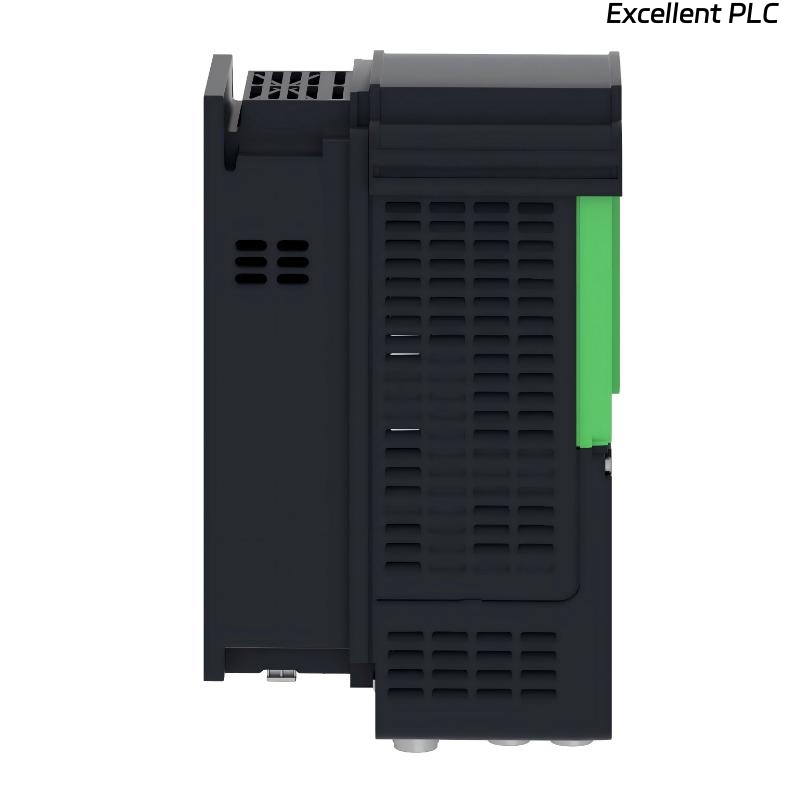

The Schneider Electric ATV630U07N4 belongs to the Altivar Process ATV600 series and is designed for process-driven industrial applications where energy efficiency, reliability, and advanced motor control are essential. This variable speed drive (VFD) supports three-phase synchronous and asynchronous motors, making it suitable for a wide range of low-power fluid and utility applications.
The drive is equipped with three integrated RJ45 communication ports, one Ethernet port, and two serial ports, enabling seamless integration into modern industrial networks. With its innovative Stop & Go function, the ATV630U07N4 can reduce standby energy consumption by up to 30% without additional cost. Despite its compact size, it delivers stable performance and precise control, particularly in applications focused on fluid management and energy optimization.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | Altivar Process ATV600 |
| Model Number | ATV630U07N4 |
| Component Type | Variable Speed Drive (VFD) |
| Motor Type Supported | 3-phase synchronous and asynchronous motors |
| Rated Supply Voltage | 380–480 V AC |
| Rated Motor Power (Normal Duty) | 0.75 kW / 1 HP (120% overload) |
| Rated Motor Power (Heavy Duty) | 0.37 kW / 0.5 HP (150% overload) |
| Control Method | Advanced vector control |
| Communication Ports | Integrated RJ45, Ethernet, serial ports |
| Mounting Method | Vertical wall mounting |
| Dimensions | 350 × 144 × 203 mm |
| Weight | 4.5 kg |
Applications
• Water treatment and wastewater treatment systems, particularly for small pumps and auxiliary equipment
• Fluid handling applications, such as circulation pumps and dosing systems
• Mining and mineral processing, for auxiliary drives and support equipment
• Oil and gas facilities, including secondary and low-power motor control tasks
• Food and beverage processing, where compact size and energy efficiency are critical
• Industrial utility systems, requiring reliable low-power motor speed regulation
Advantages
• Energy-saving operation, enabled by the Stop & Go function that reduces standby power usage
• Compact and space-efficient design, ideal for cabinets with limited installation space
• High communication flexibility, supporting Ethernet-based automation architectures
• Accurate motor control, even at low speeds and variable load conditions
• Optimized for process industries, ensuring stable operation and reduced downtime
• Lower total cost of ownership, through integrated energy and asset management features
