Product Introduction

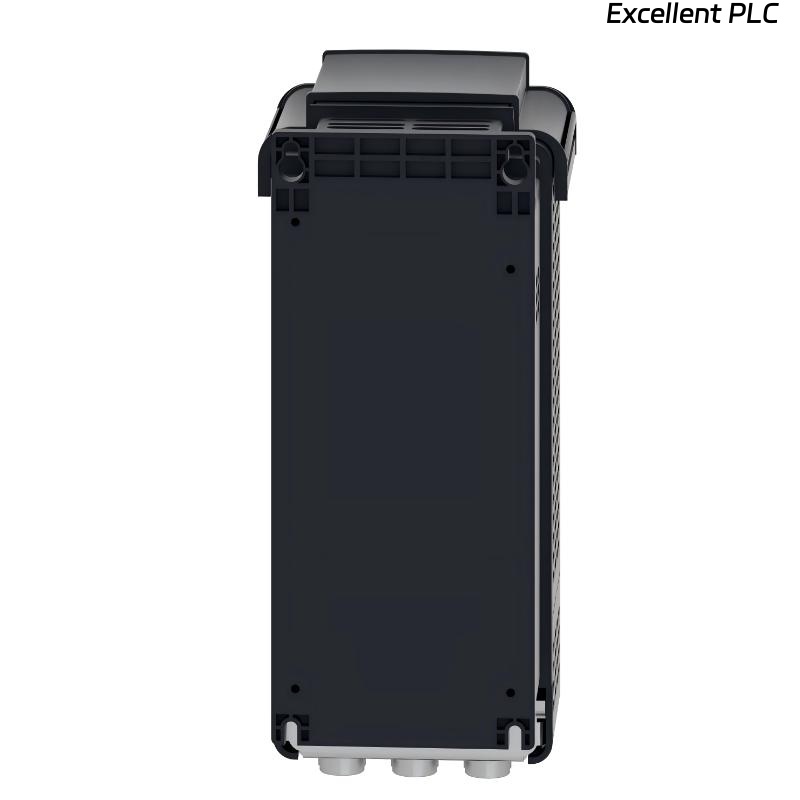

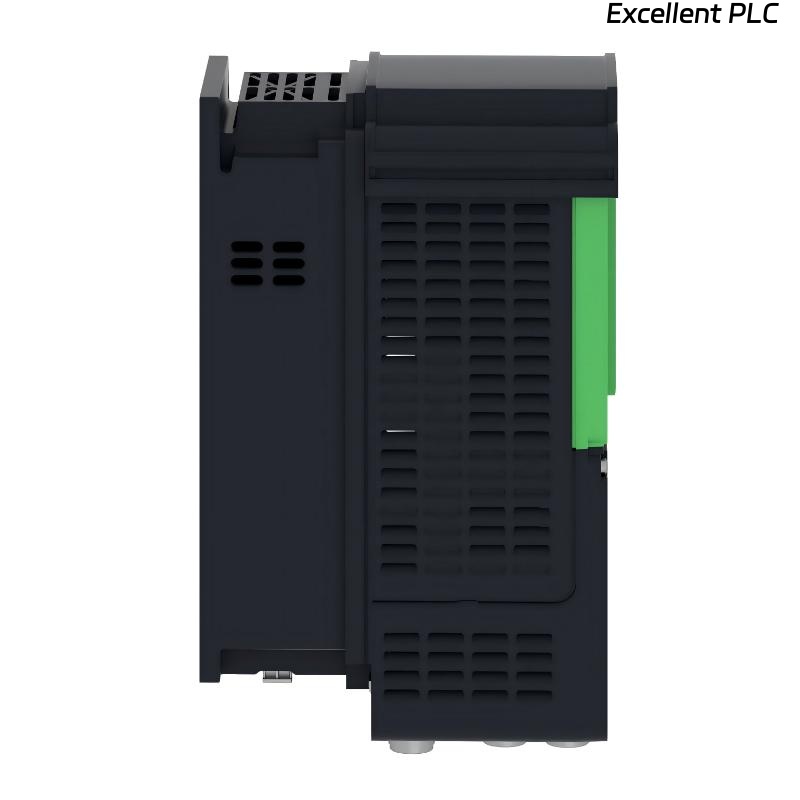

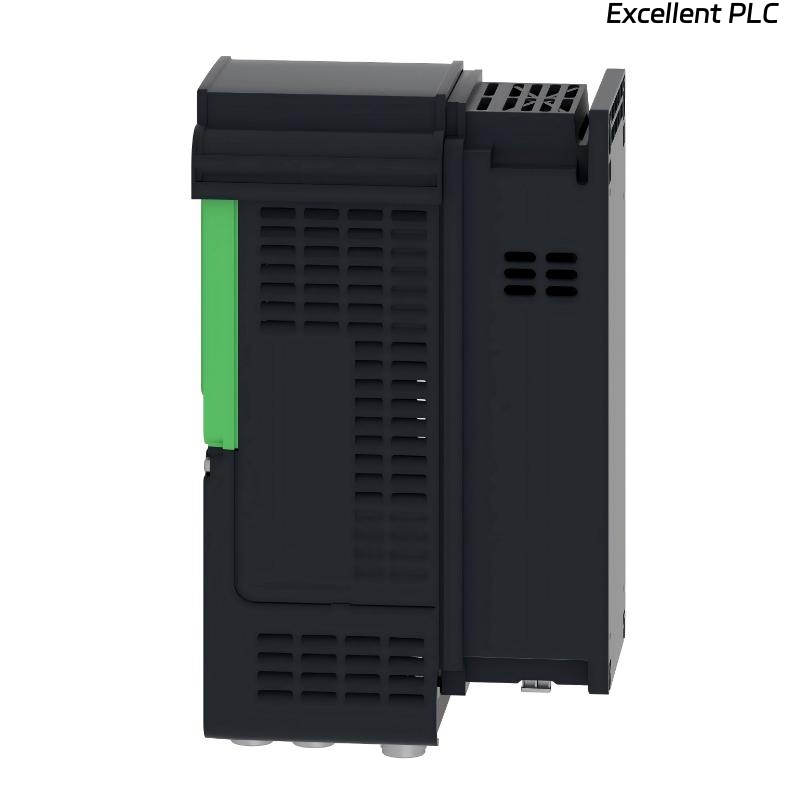

The Schneider Electric ATV630U15N4 Variable Speed Drive is part of the Altivar Process ATV600 series, engineered to deliver high-efficiency motor control and advanced energy management for industrial process applications. It is designed to supply three-phase synchronous and asynchronous motors, with a strong focus on fluid management and energy optimization.
This drive integrates multiple communication interfaces as standard, enabling seamless connectivity with industrial networks and control systems. Thanks to its innovative “Start/Stop” energy-saving function, the drive can reduce standby energy consumption by up to 30% without additional hardware or cost, making it an ideal choice for energy-conscious operations.
The ATV630U15N4 is optimized for applications requiring either light or heavy overload capability, offering flexibility across a wide range of industrial sectors such as water and wastewater treatment, oil and gas, mining, metals, and food & beverage processing.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Variable Speed Drive (VSD) |
| Manufacturer | Schneider Electric |
| Series | Altivar Process ATV600 |
| Model | ATV630U15N4 |
| Motor Type | Three-phase synchronous and asynchronous motors |
| Rated Supply Voltage | 380–480 V AC |
| Rated Motor Power (Light Overload) | Up to 1.5 kW / 2 hp (120% overload) |
| Rated Motor Power (Heavy Overload) | Up to 0.75 kW / 1 hp (150% overload) |
| Energy-Saving Function | Integrated Start/Stop energy optimization |
| Communication Interfaces | 3 × RJ45 ports, 1 × Ethernet port, 2 × serial ports |
| Network Integration | Designed for industrial Ethernet and fieldbus systems |
| Control Focus | Process control and energy efficiency |
| Application Type | Fluid management and industrial processes |
| Mounting Type | Panel mounted |
| Operating Mode | Continuous industrial operation |
| Dimensions | 350 × 144 × 203 mm |
| Weight | 4.5 kg |
Applications
• Water and wastewater treatment systems
• Pumping and fluid transport processes
• Oil and gas production and processing
• Mining, minerals, and metals industries
• Food and beverage processing lines
• Energy-efficient process automation systems
• Industrial plants requiring advanced motor control
Advantages
• Optimized energy efficiency with up to 30% standby energy savings
• Supports both synchronous and asynchronous motors
• Integrated communication ports reduce the need for external modules
• Flexible overload capability for light and heavy-duty applications
• Designed specifically for process industries
• High reliability and continuous operation capability
• Simplifies network integration and system architecture
