Product Introduction

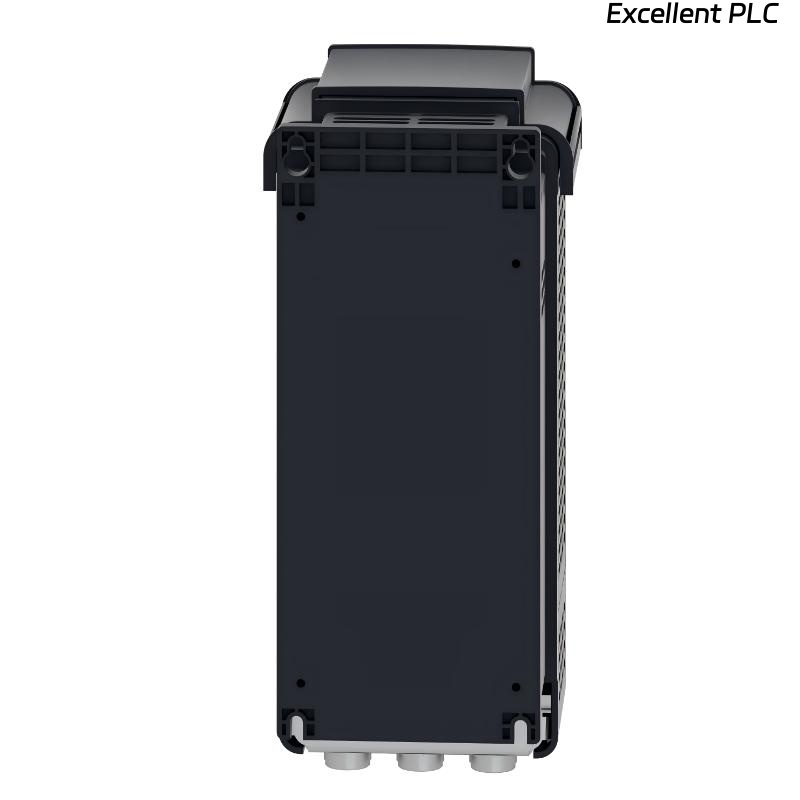

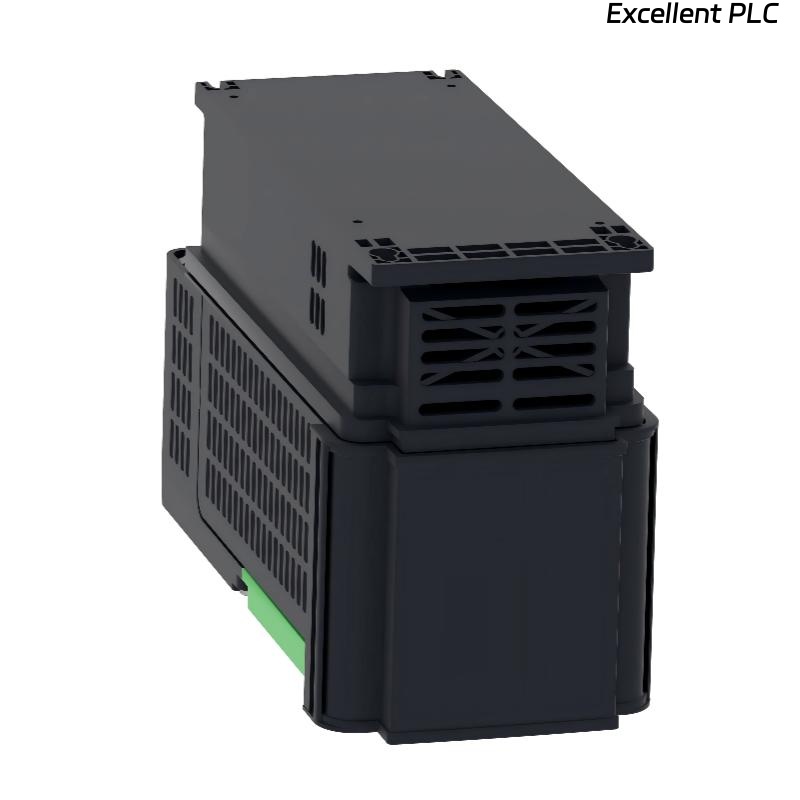

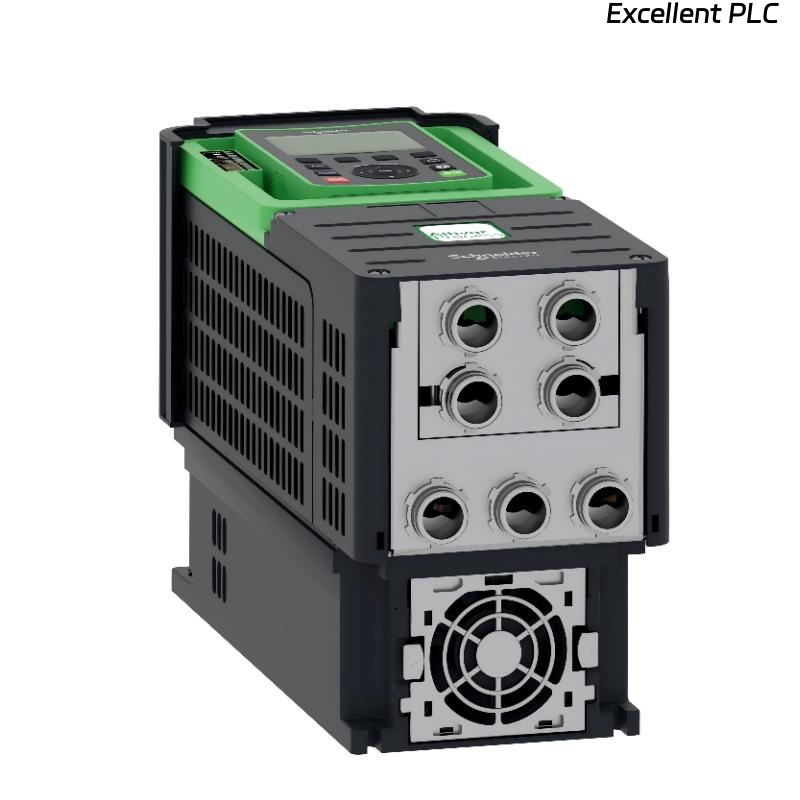

The Schneider Electric ATV630U22N4 Variable Speed Drive belongs to the Altivar Process ATV600 series, specifically engineered for process-driven industrial applications requiring high energy efficiency, reliable motor control, and advanced connectivity. It is designed to supply three-phase synchronous and asynchronous motors, ensuring stable and precise speed regulation under varying load conditions.
This drive integrates multiple communication interfaces as standard, allowing seamless connection to automation systems, PLCs, and supervisory platforms. The built-in Start/Stop energy-saving function enables the drive to reduce standby energy consumption by up to 30% without additional hardware, making it an ideal solution for energy-optimized process environments.
The ATV630U22N4 is optimized for fluid management and energy-efficient operation, supporting both light and heavy overload scenarios. Its flexibility and robustness make it suitable for demanding industrial sectors such as water treatment, oil and gas, mining, metals, and food & beverage processing.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Variable Speed Drive (VSD) |
| Manufacturer | Schneider Electric |
| Series | Altivar Process ATV600 |
| Model | ATV630U22N4 |
| Motor Compatibility | Three-phase synchronous and asynchronous motors |
| Rated Supply Voltage | 380–480 V AC |
| Rated Motor Power (Light Overload) | Up to 2.2 kW / 3 hp (120% overload) |
| Rated Motor Power (Heavy Overload) | Up to 1.5 kW / 2 hp (150% overload) |
| Energy Optimization | Integrated Start/Stop energy-saving function |
| Communication Ports | 3 × RJ45 ports |
| Ethernet Interface | 1 × Ethernet port |
| Serial Interfaces | 2 × serial ports |
| Control Focus | Process automation and energy efficiency |
| Application Orientation | Fluid management and industrial processes |
| Installation Method | Panel-mounted |
| Operating Mode | Continuous industrial duty |
| Dimensions | 350 × 144 × 203 mm |
| Weight | 4.5 kg |
Applications
• Water and wastewater treatment facilities
• Pumping and fluid transfer systems
• Oil and gas production and processing plants
• Mining, minerals, and metals industries
• Food and beverage manufacturing lines
• Energy-efficient industrial process systems
• Infrastructure requiring reliable motor speed control
Advantages
• Up to 30% energy savings during standby operation
• Supports both synchronous and asynchronous motors
• Integrated communication interfaces reduce system complexity
• Flexible overload capability for diverse process demands
• Optimized for fluid and pumping applications
• High reliability for continuous industrial operation
• Simplifies integration into modern automation architectures
