Product Introduction

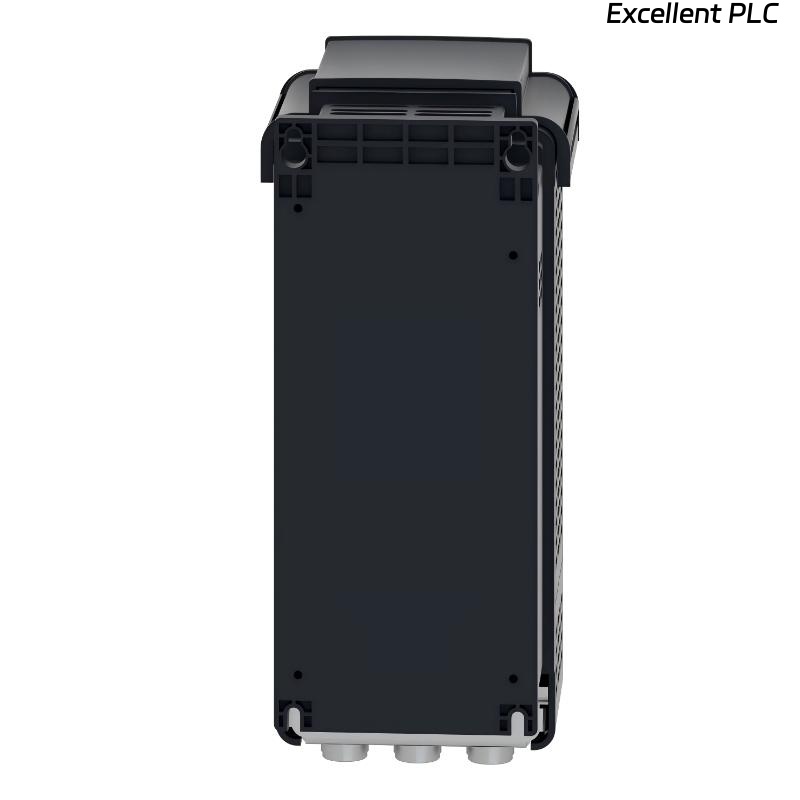

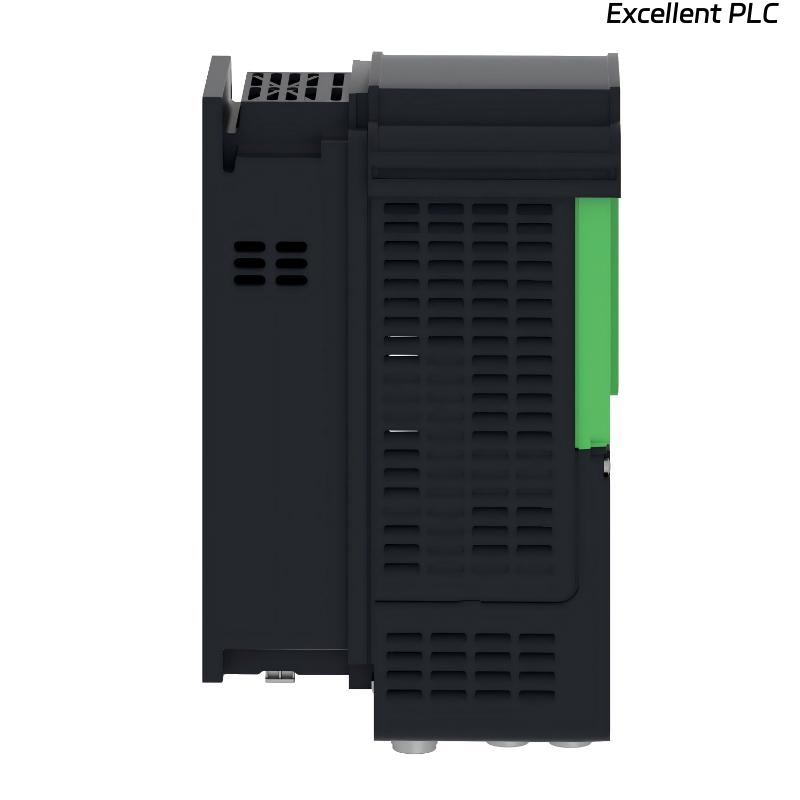

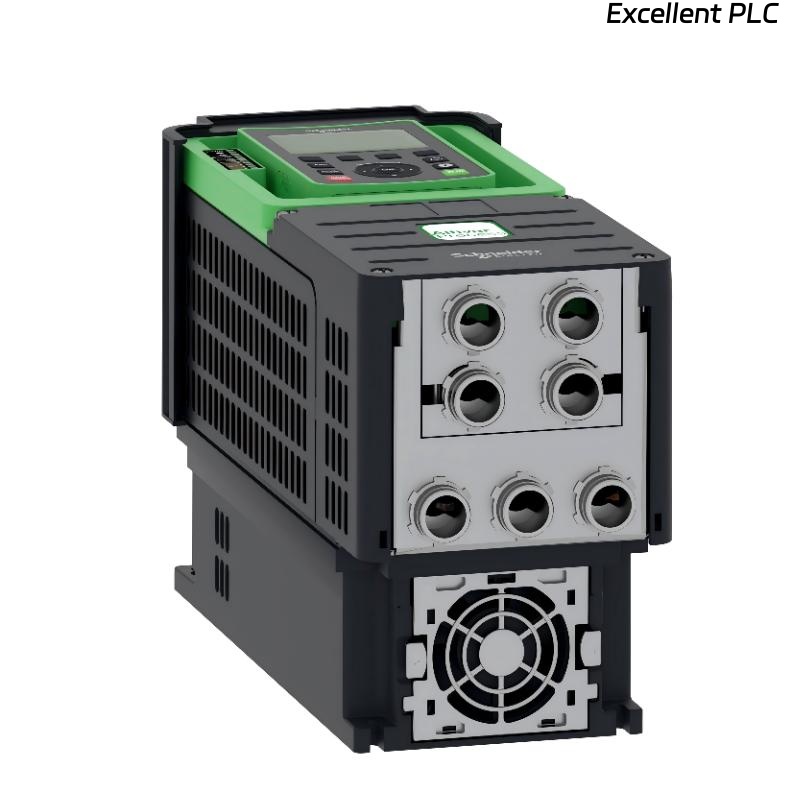

The Schneider Electric ATV630U30N4 Variable Speed Drive is a member of the Altivar Process ATV600 series, designed to deliver high-efficiency motor control, advanced process optimization, and energy savings for industrial applications. This drive is capable of supplying three-phase synchronous and asynchronous motors, making it suitable for a wide range of process-driven environments.
The ATV630U30N4 is equipped with multiple communication interfaces as standard, allowing seamless integration into modern automation and monitoring systems. Its innovative Start/Stop energy-saving function enables energy savings of up to 30% during standby operation, without requiring any additional hardware or configuration.
With support for both light and heavy overload applications, this drive is particularly well suited for fluid management, processing, and energy-efficient industrial systems. It is widely used across industries such as water and wastewater treatment, oil and gas, mining, metals, and food & beverage production, where reliability and efficiency are critical.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Variable Speed Drive (VFD) |
| Manufacturer | Schneider Electric |
| Series | Altivar Process ATV600 |
| Model | ATV630U30N4 |
| Motor Compatibility | Three-phase synchronous and asynchronous motors |
| Rated Supply Voltage | 380–480 V AC |
| Rated Motor Power (Light Overload) | Up to 3 kW (120% overload) |
| Rated Motor Power (Heavy Overload) | Up to 2.2 kW / 3 hp (150% overload) |
| Energy-Saving Function | Integrated Start/Stop energy optimization |
| Communication Ports | 3 × RJ45 ports |
| Ethernet Interface | 1 × Ethernet port |
| Serial Interfaces | 2 × serial ports |
| Control Strategy | Process-oriented motor control |
| Application Focus | Fluid management and energy efficiency |
| Installation Type | Panel mounted |
| Operating Mode | Continuous industrial duty |
| Dimensions | 350 × 144 × 203 mm |
| Weight | 4.6 kg |
Applications
• Water and wastewater treatment systems
• Pumping and fluid transport processes
• Oil and gas production and processing facilities
• Mining, minerals, and metals industries
• Food and beverage manufacturing plants
• Energy-optimized industrial processing lines
• Infrastructure requiring reliable variable speed control
Advantages
• Up to 30% reduction in standby energy consumption
• Supports both synchronous and asynchronous motor technologies
• Multiple integrated communication interfaces for system flexibility
• Handles both light and heavy overload process demands
• Optimized for fluid management and pumping applications
• High reliability for continuous process operation
• Reduces system complexity and external component requirements
