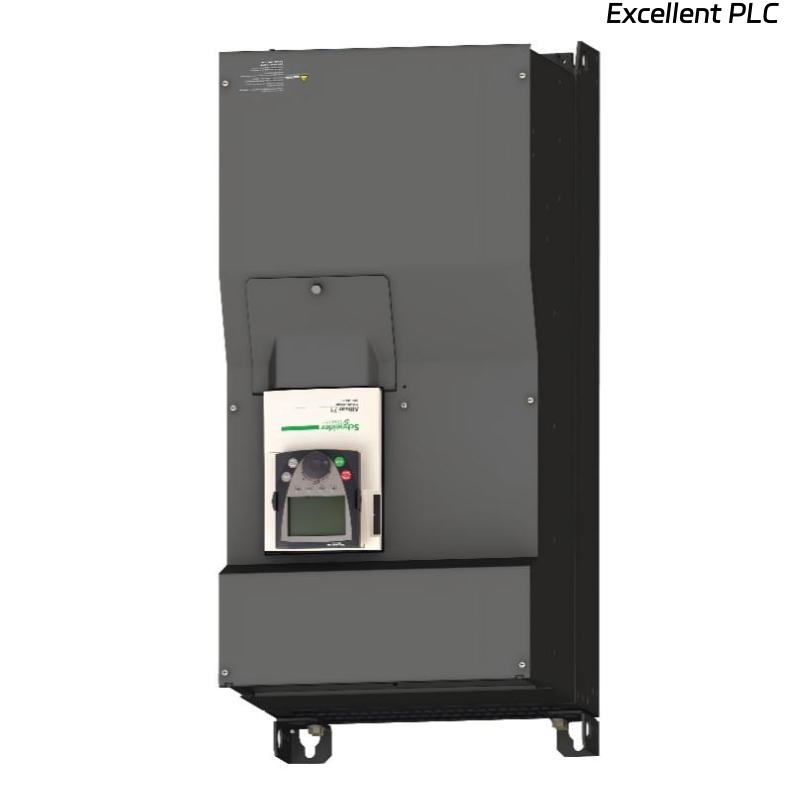

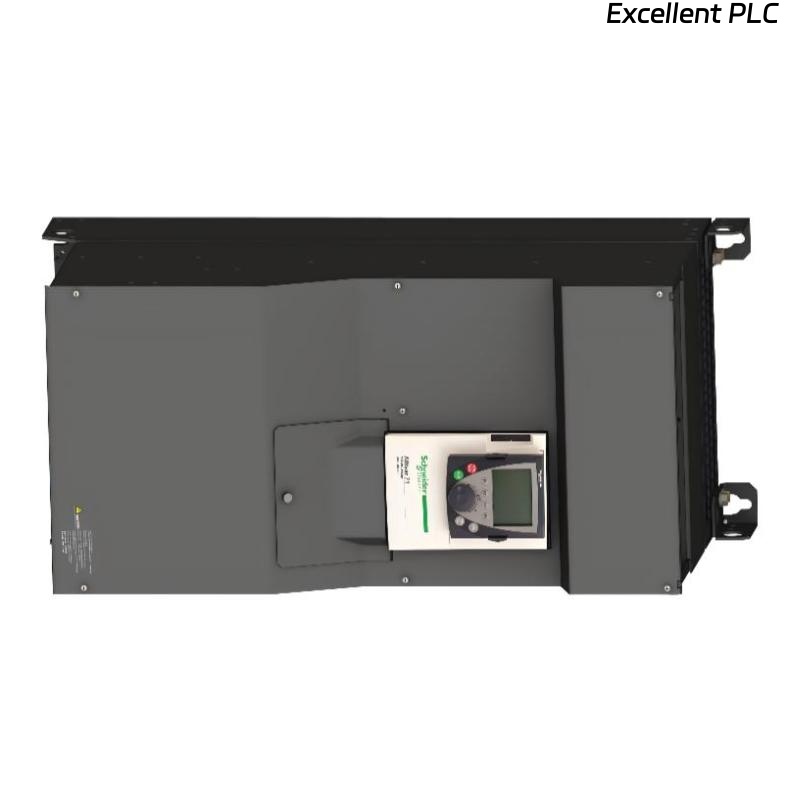

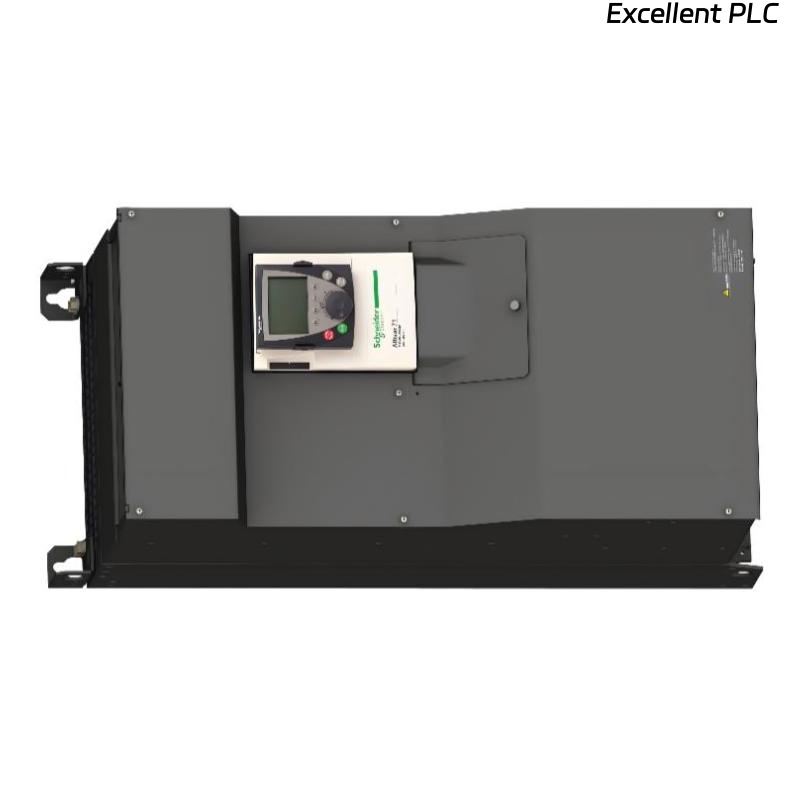

Schneider ATV71HC13N4 Variable Speed Drive

Product Introduction

The Schneider Electric ATV71HC13N4 Variable Speed Drive is a high-capacity industrial drive engineered for complex, high-power machine control within the Altivar 71 product family. Designed to manage demanding motor applications, this reinforced drive delivers precise speed regulation, high torque availability, and stable operation across a wide operating range.

Optimized for three-phase power systems, the ATV71HC13N4 supports large motor ratings and extended motor cable lengths, making it suitable for installations where equipment layout flexibility and robust electrical performance are required. Its mechanical structure and internal design are intended to withstand continuous industrial duty, ensuring reliable performance in harsh operational environments.

---

Product Specifications

---

Applications

• High-power industrial machinery, such as crushers, mills, and heavy conveyors

• Process industry equipment, requiring accurate speed and torque control

• Pumping and compression systems, operating under high load and continuous duty

• Material handling systems, including hoists and large transport mechanisms

• Energy-intensive production lines, where stable motor control is critical

• Modernization projects, replacing older high-power drive systems

---

Advantages

• High motor power support, handling up to 132 kW / 200 hp motors

• Reinforced industrial design, suitable for demanding operating conditions

• Wide voltage tolerance, ensuring stable operation despite supply fluctuations

• Long motor cable capability, enabling flexible system layouts

• Precise motor control, improving efficiency and operational consistency

• Proven Altivar 71 platform, widely used in high-power industrial applications

FAQ

1. What type of applications is the ATV71HC13N4 designed for?
   It is designed for complex, high-power machines requiring precise motor control.

2. What motor rating does this drive support?
   It supports motors rated up to 132 kW or 200 hp.

3. What power supply configuration is required?
   A three-phase 380…480 V power supply is required.

4. Can this drive support long motor cable installations?
   Yes, it supports up to 100 m shielded and 200 m unshielded motor cables.

5. Is the drive suitable for continuous operation?
   Yes, it is designed for continuous industrial duty.

6. Does it handle voltage fluctuations well?
   Yes, it operates within a −15% to +10% voltage tolerance range.

7. Is this model part of a standardized drive platform?
   Yes, it belongs to the Altivar 71 series.

8. Can it be integrated into existing industrial control systems?
   Yes, it is designed for seamless integration into industrial automation architectures.

9. Is it appropriate for retrofit projects?
   Yes, it is commonly used to upgrade legacy high-power drive installations.

10. What ensures stable performance under heavy load?
    Its reinforced design and advanced motor control functions ensure reliable operation.
