Product Introduction

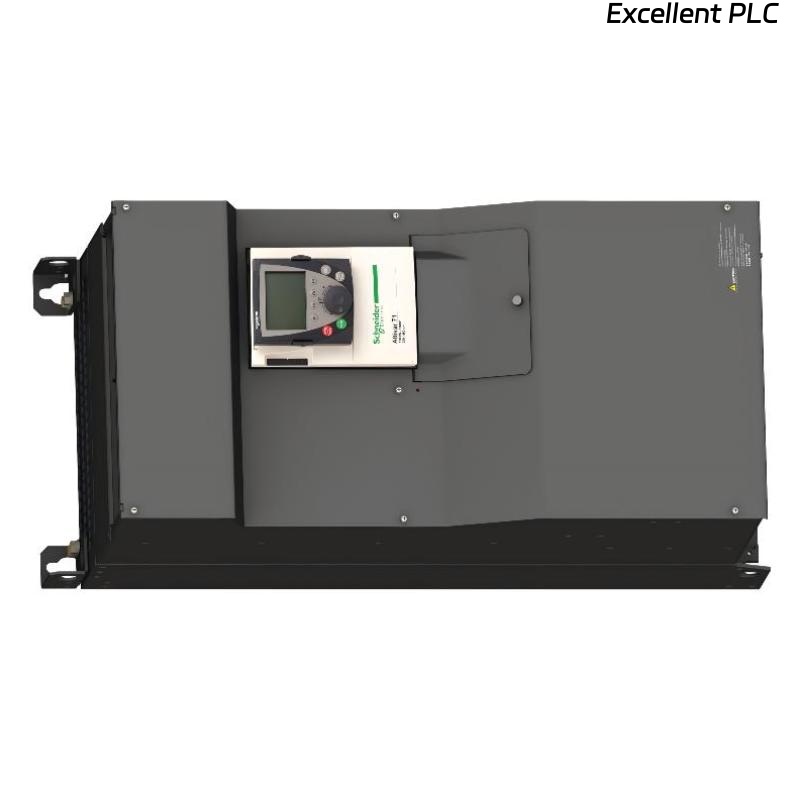

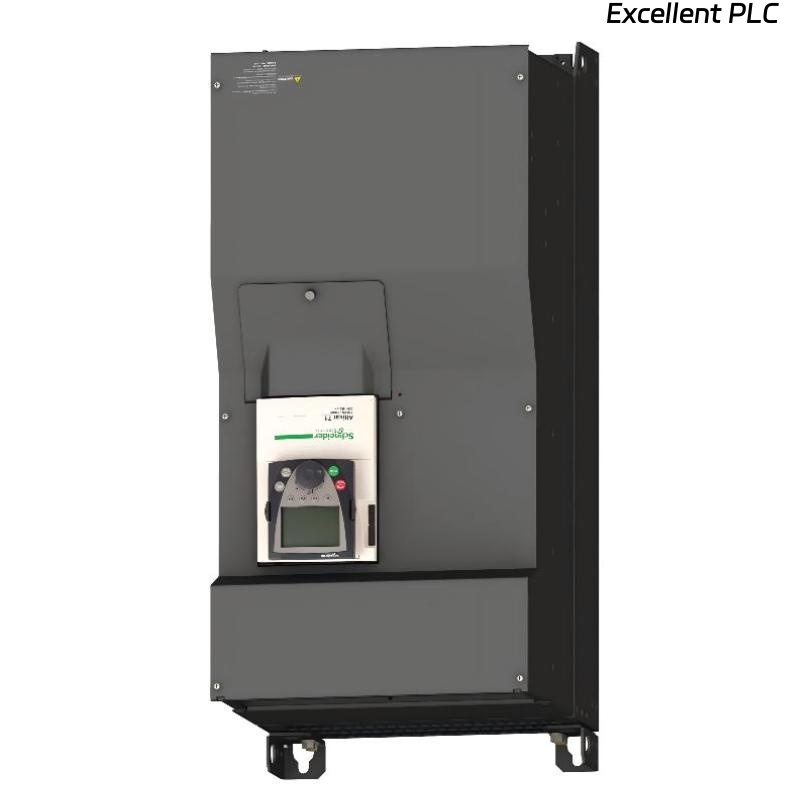

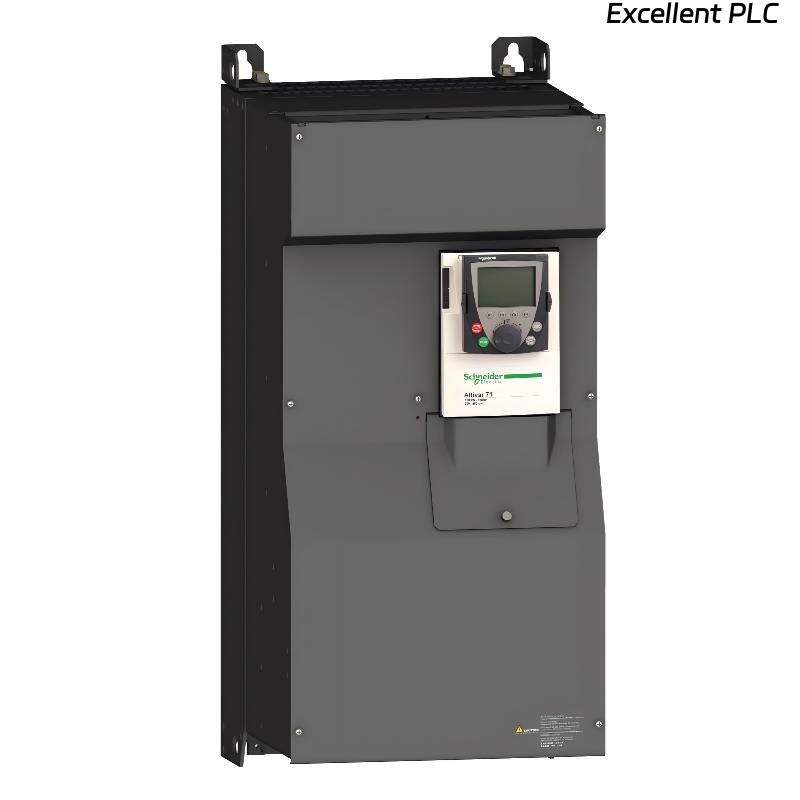

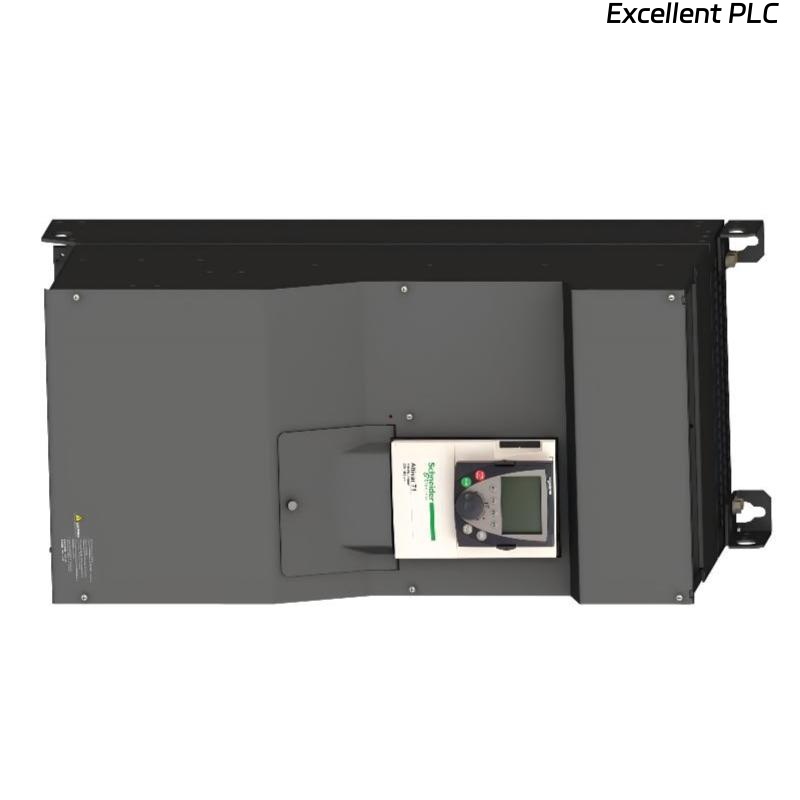

The Schneider Electric ATV71HC16N4 Variable Speed Drive is a high-capacity industrial drive from the Altivar 71 range, specifically designed for complex, high-power machine applications. It delivers precise motor speed control, high torque performance, and excellent operational stability for demanding industrial environments.
Built for heavy-duty use, this model supports large three-phase motors and is widely applied in systems where continuous operation, dynamic response, and reliability are essential. Its robust construction and proven control architecture make it a trusted solution for high-power automation and process control systems.
Product Specifications
| Parameter | Description |
|---|---|
| Range of Product | Altivar 71 |
| Product or Component Type | Variable speed drive |
| Component Name | ATV71 |
| Model | ATV71HC16N4 |
| Product Specific Application | Complex, high-power machines |
| Motor Power | 160 kW, 3 phase 380…480 V |
| Maximum Horse Power Rating | 250 hp, 3 phase 380…480 V |
| Power Supply Voltage | 380…480 V (-15…+10%) |
| Phase | 3 phase |
| Maximum Motor Cable Length | 100 m shielded / 200 m unshielded |
| Dimensions | 1190 × 377 × 440 mm |
| Weight | 163 kg |
Applications
• High-power industrial machinery, such as crushers, mixers, and large conveyors
• Process industry equipment, requiring stable speed and torque control
• Pumping and compression systems, operating under heavy load conditions
• Material handling systems, including hoists and large transport lines
• Energy-intensive production lines, demanding reliable motor regulation
• System upgrades and retrofits, replacing legacy high-power drives
Advantages
• Designed for very high motor power, supporting up to 160 kW
• Stable and precise speed control, improving process efficiency
• Robust industrial construction, suitable for harsh environments
• Support for long motor cable lengths, flexible system layout
• Proven Altivar 71 platform, widely used in industrial automation
• Reliable continuous operation, reducing downtime and maintenance
