Product Introduction

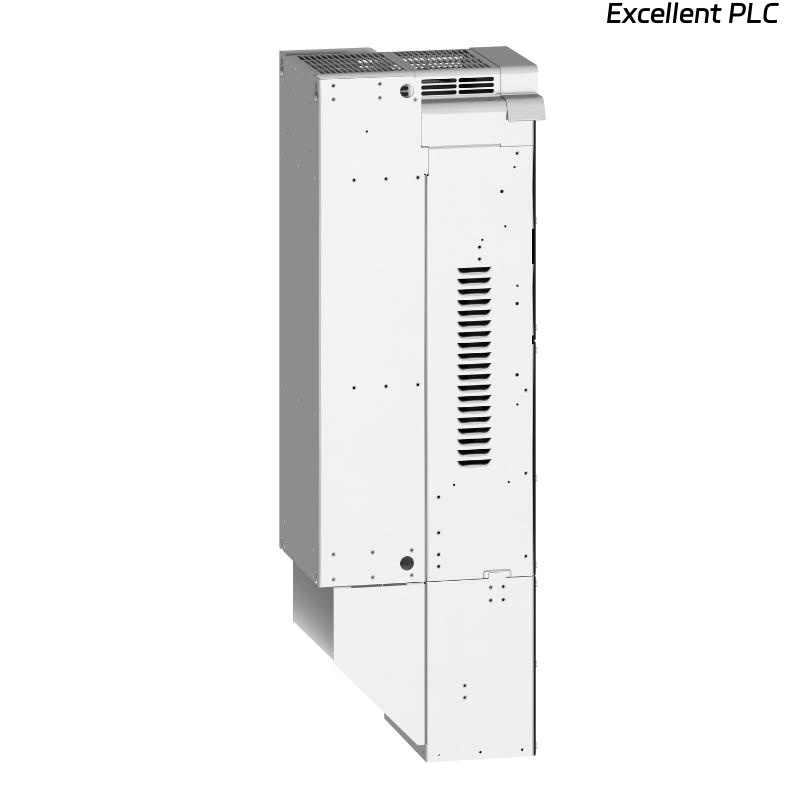

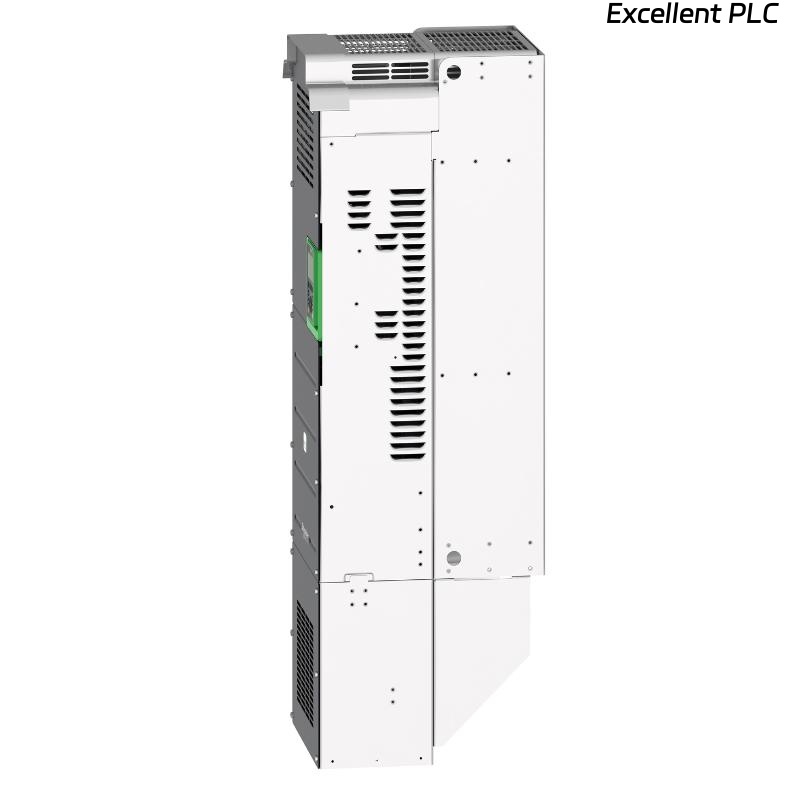

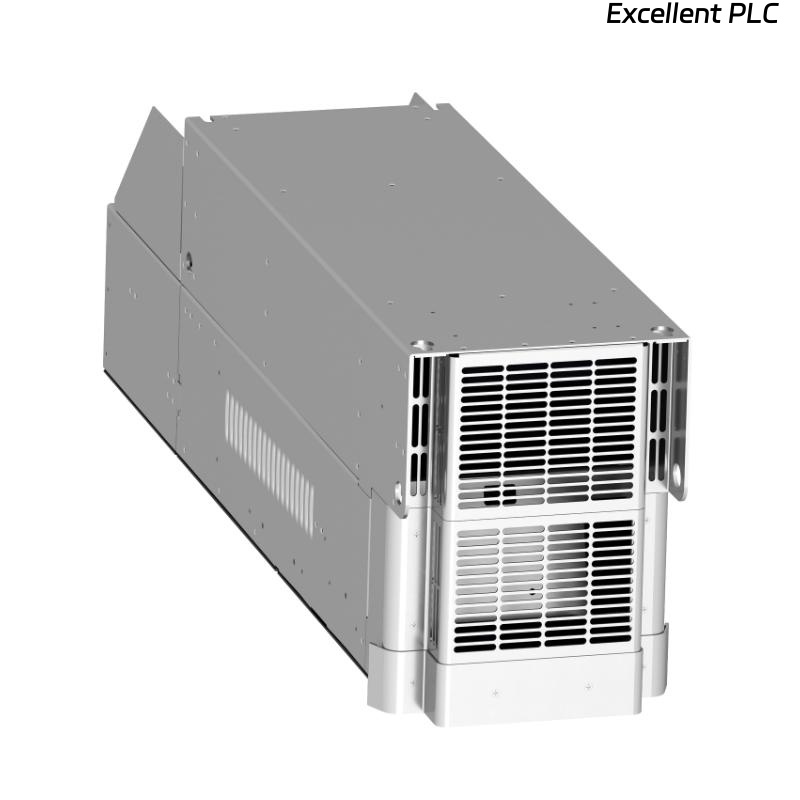

The Schneider ATV930C16N4 Variable Speed Drive is a high-performance drive from the ATV930 series, designed for advanced motor control in demanding industrial processes and infrastructure applications. This drive delivers 160 kW three-phase power at 400 V with IP21 protection, making it suitable for high-power and critical industrial environments.
The ATV930C16N4 is equipped with EMC filters (C2/C3) and an integrated braking unit, ensuring safe and efficient operation in applications requiring precise stopping and torque control. It is designed for vertical wall-mount installation (±10°), providing flexibility for industrial setup.
This drive supports advanced connectivity and process management functions, including master-slave coordination and braking control, for industries such as oil & gas, mining, metals, steelmaking, food & beverage, and water/wastewater treatment. Engineered for heavy-duty environments, it ensures reliable, energy-efficient motor control in high-demand applications like material handling, steel production, and industrial processing.
Product Specifications
| Parameter | Description |
| Series | ATV930 |
| Model Number | ATV930C16N4 |
| Product Type | Variable Speed Drive |
| Motor Power | 160 kW |
| Motor Phase | 3 phase |
| Supply Voltage | 400 V ±10% |
| Ingress Protection | IP21 |
| Maximum Current Rating | 260 A (typical for 160 kW) |
| EMC Filters | C2/C3 included |
| Braking Unit | Integrated |
| Installation | Vertical wall-mount (±10°) |
| Control Functions | Master/slave, braking control |
| Connectivity | EtherNet/IP, Modbus TCP |
| Target Applications | Steel, mining, oil & gas, material handling, water/wastewater, food & beverage |
| Dimensions | 1205 × 320 × 393 mm |
| Weight | 104 kg |
Applications
• Provides high-precision motor control for heavy industrial processes such as steelmaking, oil & gas, and mining
• Controls material handling, pumping, and conveyor systems requiring high-power drives
• Applied in water treatment, wastewater, and food & beverage industries for advanced process management
• Supports master-slave coordination and braking control for complex processes
• Designed for high-demand operations with energy efficiency and reliability
• Suitable for industrial installations requiring vertical wall-mount configuration
Advantages
• High-power performance for 160 kW motors in demanding environments
• Integrated braking unit for precise stopping and torque management
• Advanced connectivity with EtherNet/IP and Modbus TCP for automation integration
• Energy-efficient operation reduces operating costs and improves mechanical performance
• EMC-compliant design (C2/C3) ensures electromagnetic compatibility
• Engineered for harsh industrial conditions such as steel, mining, and oil & gas processes
