Product Introduction

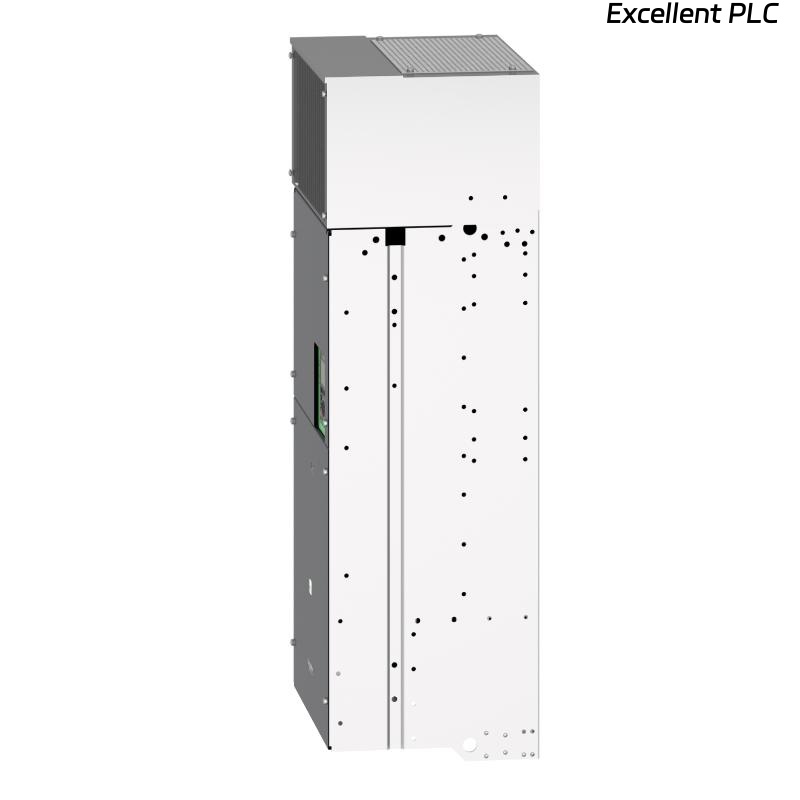

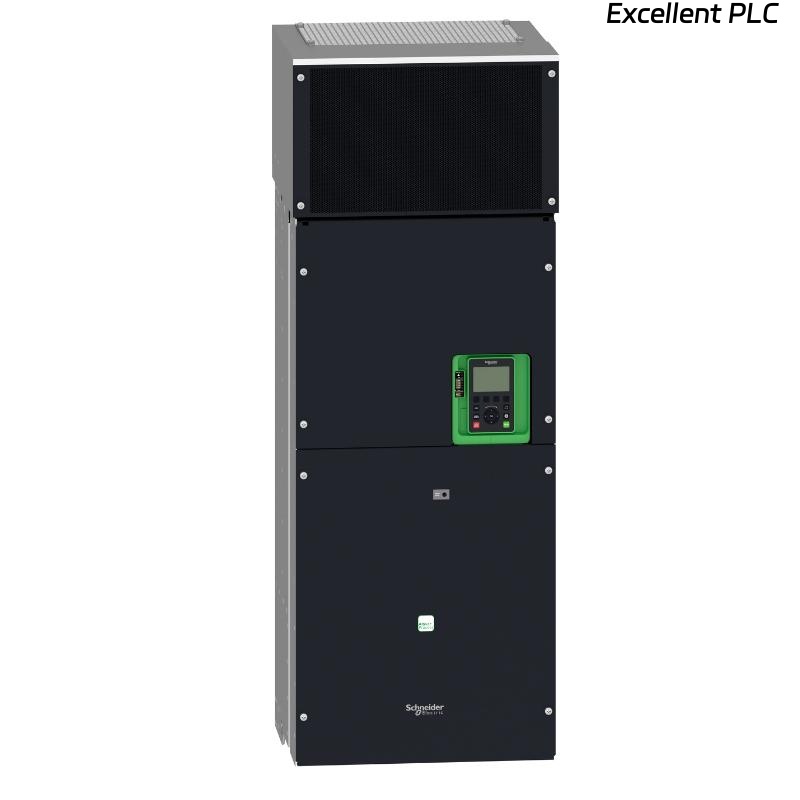

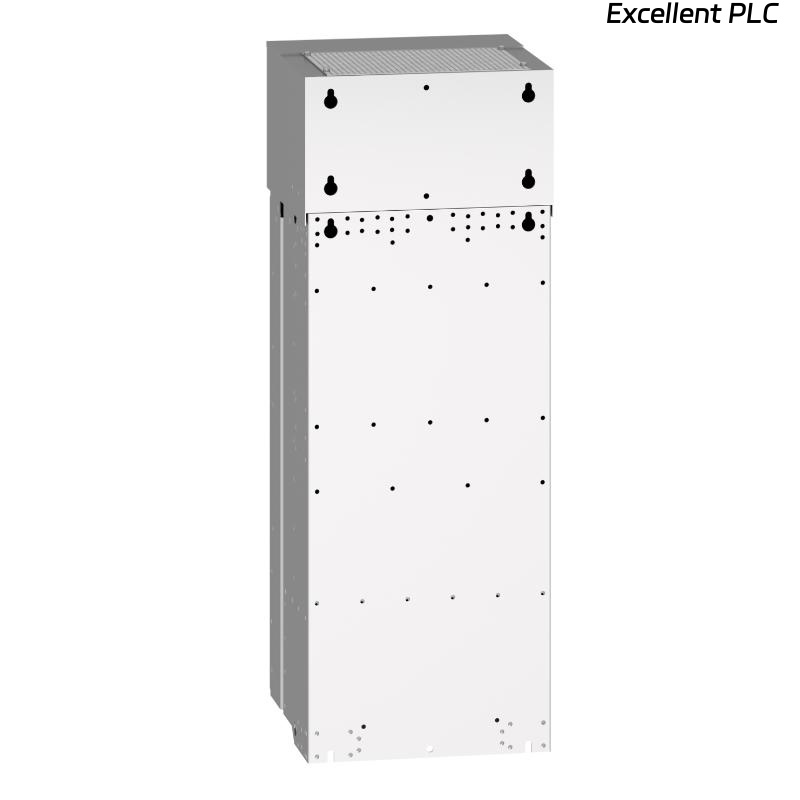

The Schneider ATV930C22N4 Variable Speed Drive is a high-performance drive from the Altivar Process ATV900 series, engineered for precise motor control of three-phase synchronous and asynchronous motors. It is designed for industrial processes that require high power, flexibility, and reliable operation under demanding conditions.
This drive supports motor power up to 220 kW (350 hp) for light overload applications and 160 kW (250 hp) for heavy overload applications, with a rated supply voltage of 380–480 V AC. Its robust design and advanced features make it suitable for industries such as oil & gas, mining, metals, minerals, food & beverage, water treatment, and wastewater management. The ATV930C22N4 ensures stable operation, precise torque control, and energy efficiency, even in heavy-duty industrial applications.
Product Specifications
| Parameter | Description |
|---|---|
| Series | ATV900 / Altivar Process |
| Model Number | ATV930C22N4 |
| Product Type | Variable Speed Drive |
| Motor Power | 220 kW (light overload), 160 kW (heavy overload) |
| Motor Phase | 3 phase |
| Supply Voltage | 380–480 V AC |
| Overload Capacity | Light: 120%, Heavy: 150% |
| Motor Compatibility | Synchronous and asynchronous motors |
| Maximum Current Rating | 380 A (typical for 220 kW) |
| Ingress Protection | IP21 |
| Control Functions | Speed control, torque control, master-slave coordination |
| Connectivity | EtherNet/IP, Modbus TCP |
| Mechanical Features | High-power process motor control, torque optimization |
| Dimensions | 1195 × 380 × 440 mm |
| Weight | 172 kg |
Applications
• Controls high-power industrial motors in processes such as oil & gas, mining, and metals
• Supports material handling, pumping, and conveyor systems with precise torque and speed control
• Applied in water treatment, wastewater, and food & beverage processing for industrial process optimization
• Provides advanced overload handling: light overload up to 120% and heavy overload up to 150%
• Compatible with synchronous and asynchronous motors for versatile industrial operation
• Integrates with automation systems using EtherNet/IP and Modbus TCP for centralized process control
Advantages
• High-power capability: up to 220 kW for light overload and 160 kW for heavy overload
• Versatile motor compatibility with synchronous and asynchronous motors
• Advanced process control including speed, torque, and master-slave coordination
• Energy-efficient operation reduces energy consumption and mechanical stress
• Reliable performance in heavy-duty industrial environments
• Designed for high-demand applications such as mining, metals, oil & gas, and water/wastewater
