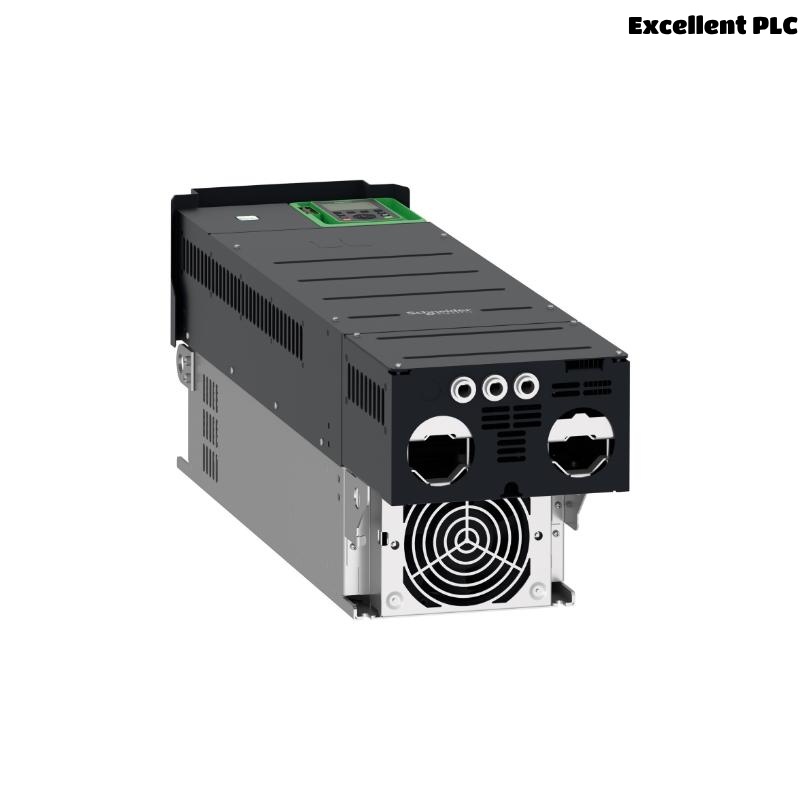

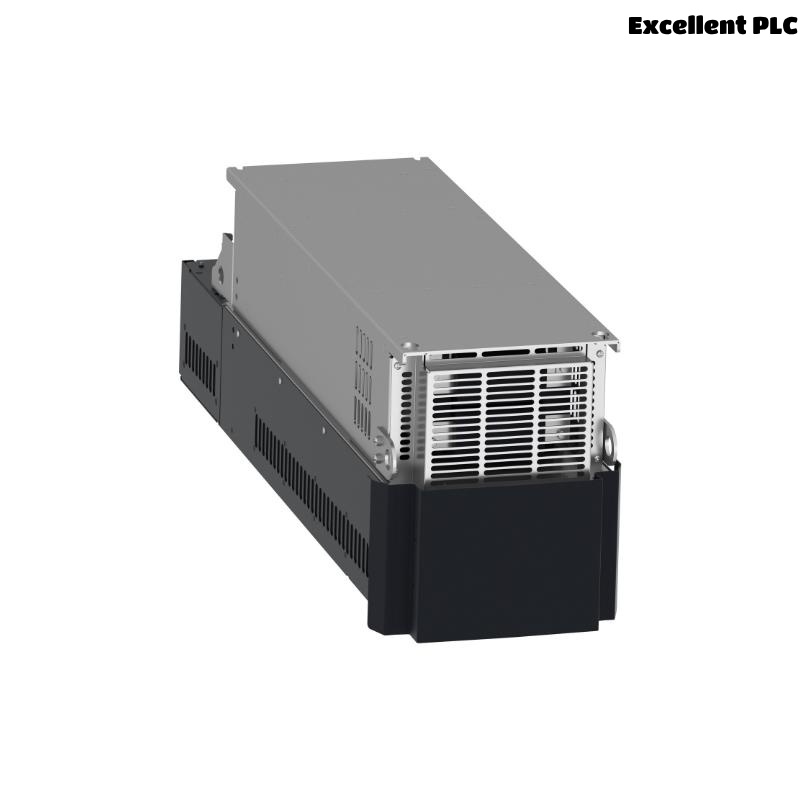

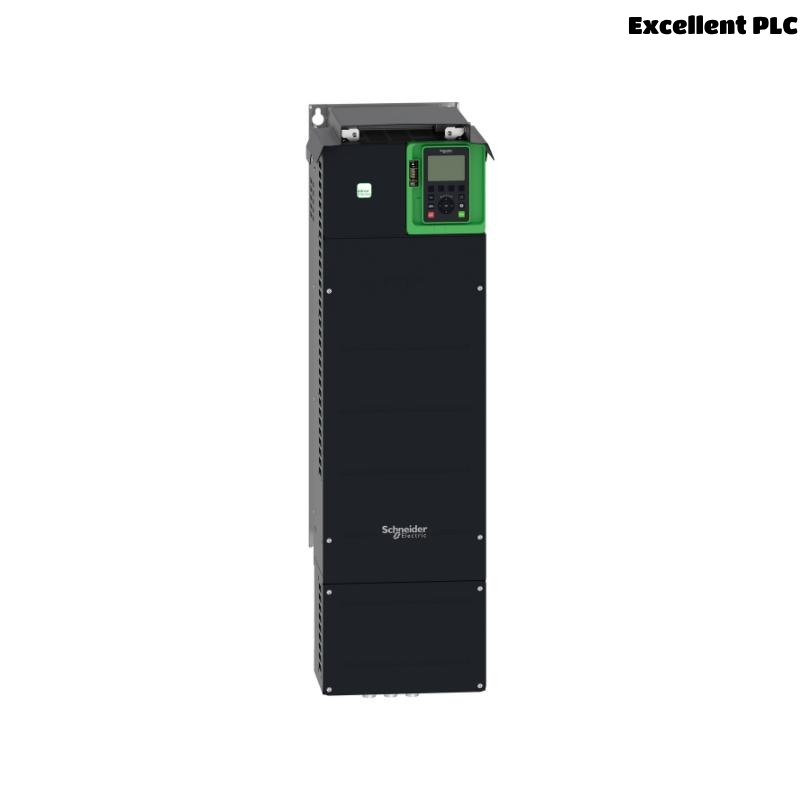

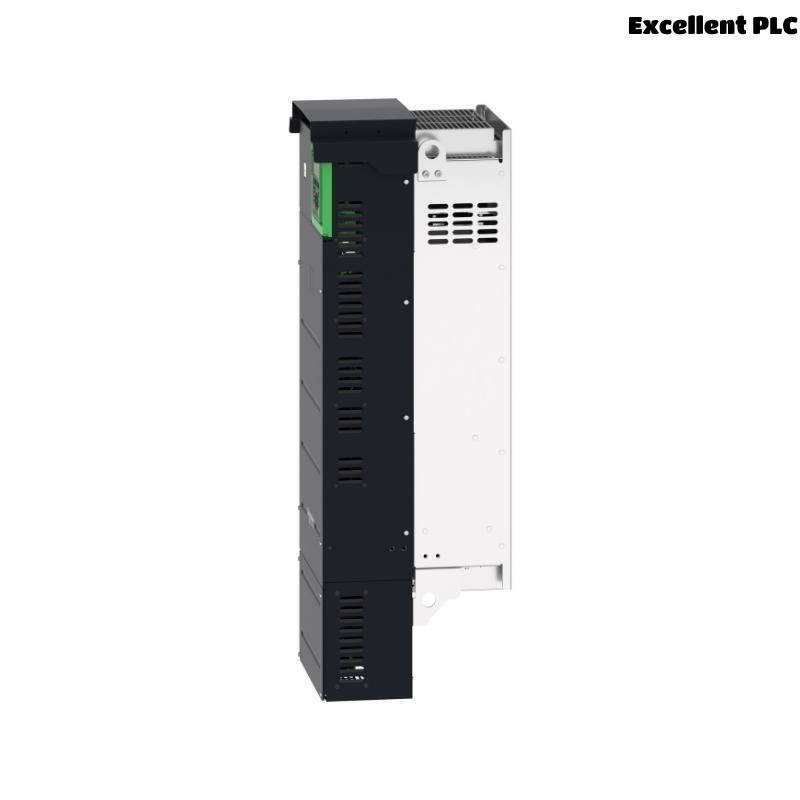

Schneider ATV930D90N4 Variable Speed Drive
The Schneider ATV930D90N4 is a robust variable speed drive designed for high-performance motor control in industrial applications. It provides energy efficiency, precise motor operation, and enhanced reliability for demanding environments.
Product Features
-
High torque and precision motor control
-
Energy-saving modes and advanced efficiency algorithms
-
Wide compatibility with industrial networks
-
Built-in safety and diagnostic features
-
Easy commissioning with user-friendly interface
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATV930D90N4 |
| Power Supply | 380…480 V, 50/60 Hz |
| Power Rating | 90 kW (125 HP) |
| Output Frequency | 0.1…599 Hz |
| Control Method | Sensorless vector control, V/F |
| Protection Level | IP21 |
| Communication Ports | Modbus, Ethernet, CANopen |
| Dimensions (W x H x D) | 290 x 922 x 325.5 mm |
| Weight | 59.5 kg |
Applications
-
Pumps, fans, and compressors in HVAC systems
-
Material handling equipment
-
Conveyor systems in manufacturing lines
-
Water and wastewater treatment plants
-
General industrial machinery
Advantages
-
Reduced energy consumption and operational costs
-
High reliability and durability in harsh environments
-
Precise motor control enhances process quality
-
Easy to integrate into existing systems
-
Comprehensive safety and protection features
Frequently Asked Questions
Q1: What is the input voltage range for the ATV930D90N4?
A1: It supports a three-phase 380…480 V AC supply.
Q2: Can it operate in high-temperature environments?
A2: Yes, it is designed to operate in temperatures up to 50°C with derating above 40°C.
Q3: Does it support Ethernet communication?
A3: Yes, it comes with built-in Ethernet and other industrial network protocols.
Q4: What control methods are available?
A4: It offers sensorless vector control, V/F, and field-oriented control.
Q5: Is it suitable for constant torque applications?
A5: Yes, it is designed for both variable and constant torque applications.
Q6: What is the enclosure protection rating?
A6: The standard model has an IP21 rating.
Q7: How is the drive programmed?
A7: It can be programmed via the integrated display, PC software, or remote keypad.
Q8: Can it be used in pump and fan energy-saving modes?
A8: Yes, it includes specific energy-saving modes for such applications.
Q9: Is maintenance complicated?
A9: No, it is designed for easy maintenance with modular components.
Q10: Does it have built-in safety functions?
A10: Yes, it includes integrated safety features such as STO (Safe Torque Off).
