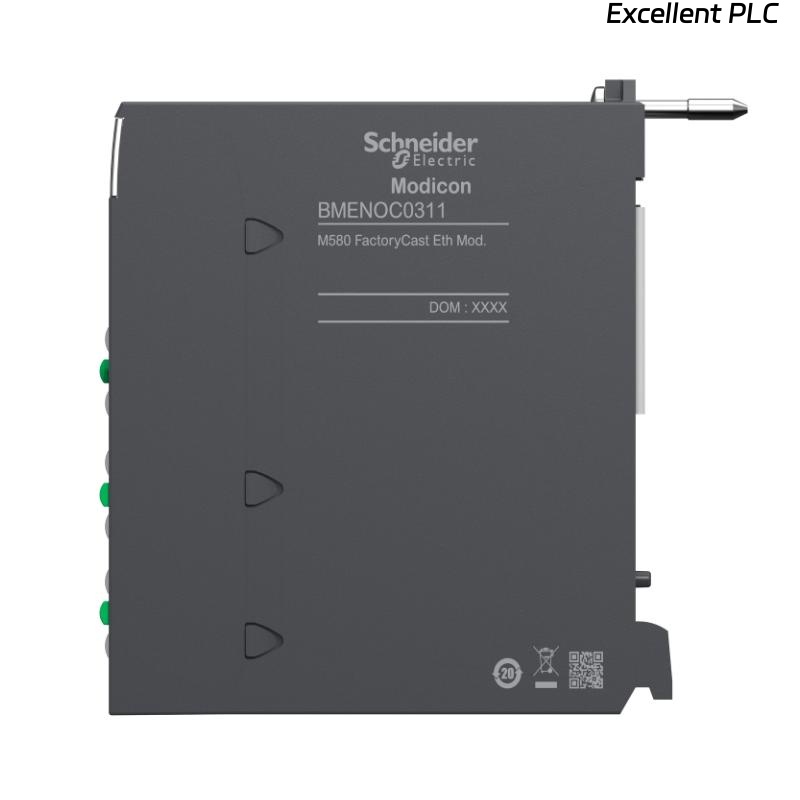

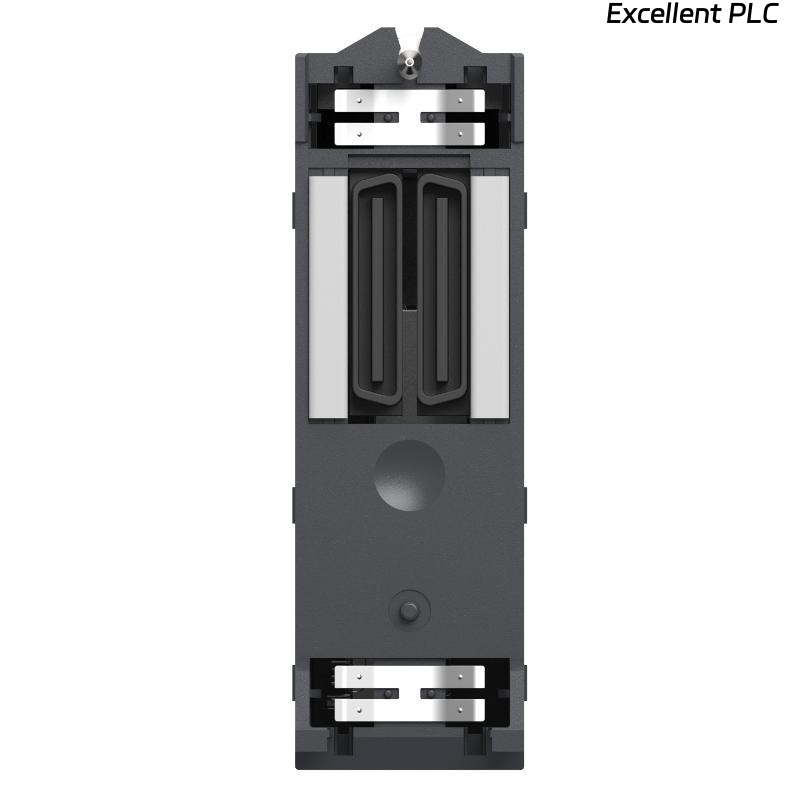

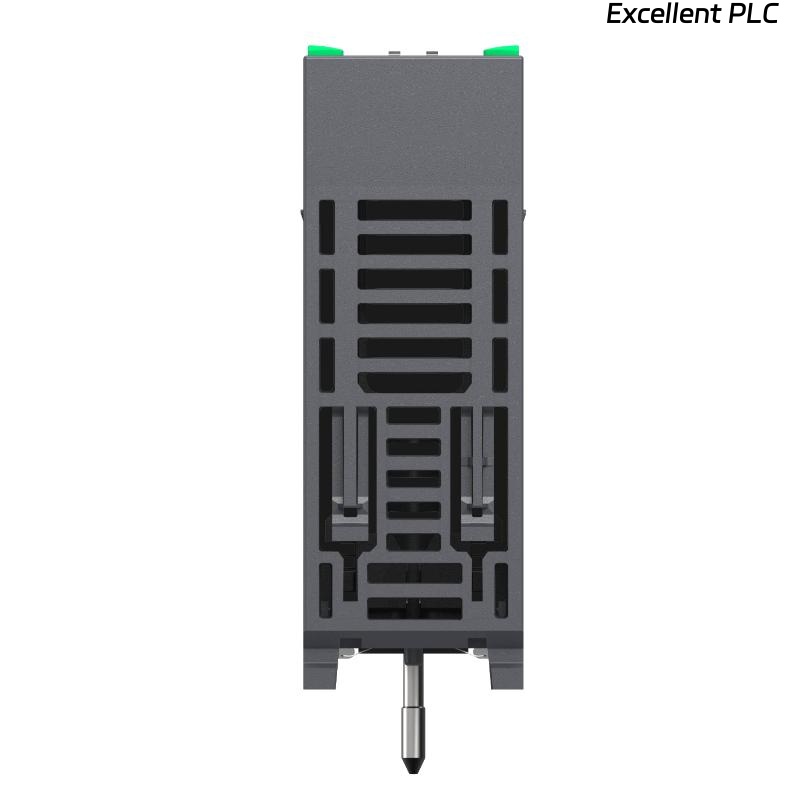

Schneider BMENOC0311 Ethernet Communication Module

Product Introduction

The Schneider BMENOC0311 Ethernet Communication Module is a high-performance communication interface designed for the Modicon M580 series. It enables robust network connectivity for medium to large-scale process automation systems, integrating multiple industrial protocols and advanced network management capabilities. The module facilitates seamless communication between controllers, I/O devices, and other networked components, ensuring reliable and efficient data exchange in distributed control architectures.

Equipped with three FactoryCast ports and three RJ45 Ethernet interfaces, the BMENOC0311 supports Modbus TCP I/O scanning, EtherNet/IP I/O scanning, and messaging services. An integrated 4-port Ethernet switch allows easy network expansion and redundancy. Advanced features such as RSTP (Rapid Spanning Tree Protocol), SNMP network management, and multi-port switching ensure high reliability, network resilience, and efficient traffic handling.

---

Product Specifications

---

Applications

• High-speed Ethernet communication for Modicon M580 control networks

• Integration of Modbus TCP and EtherNet/IP I/O devices for distributed automation

• Bandwidth management and traffic optimization for critical industrial networks

• Redundant and resilient network topologies using RSTP and multi-port switching

• Network monitoring and management with SNMP support

• FactoryCast network interfacing for efficient device integration

• Medium to large-scale process automation in chemical, petrochemical, and utility plants

---

Advantages

• Multi-protocol support, including Modbus TCP, EtherNet/IP, and FactoryCast

• Integrated 4-port Ethernet switch simplifies network expansion and connectivity

• Advanced network management, including RSTP and SNMP for high reliability

• Compact and lightweight design, facilitating easy installation in control panels

• Industrial-grade IP20 protection, suitable for standard cabinet environments

• Certified for global industrial standards (CE, UL, EN series)

• Efficient bandwidth handling and FDR server support for data management

FAQ

1. What is the primary function of the BMENOC0311 module?
   It provides high-speed Ethernet communication and protocol integration for the Modicon M580 series.

2. Which communication protocols are supported?
   Modbus TCP, EtherNet/IP, and FactoryCast protocols are supported.

3. How many Ethernet ports does the module have?
   It has three FactoryCast ports and three RJ45 Ethernet ports.

4. Does the module support network redundancy?
   Yes, RSTP (Rapid Spanning Tree Protocol) support ensures network redundancy and resilience.

5. Can the module manage bandwidth and network traffic?
   Yes, it includes bandwidth management and FDR server support for traffic optimization.

6. What is the module’s power consumption?
   The BMENOC0311 consumes 555 mA from its internal power supply.

7. Is the module suitable for industrial environments?
   Yes, it features IP20 protection and is compliant with multiple EN standards for industrial applications.

8. Can the module be used for large-scale process automation networks?
   Yes, it is designed for medium to large-scale process automation networks with multiple devices.

9. Does it support network monitoring?
   Yes, SNMP support enables network monitoring and management.

10. What certifications does the module have?
    It is certified for CE and UL and complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.
