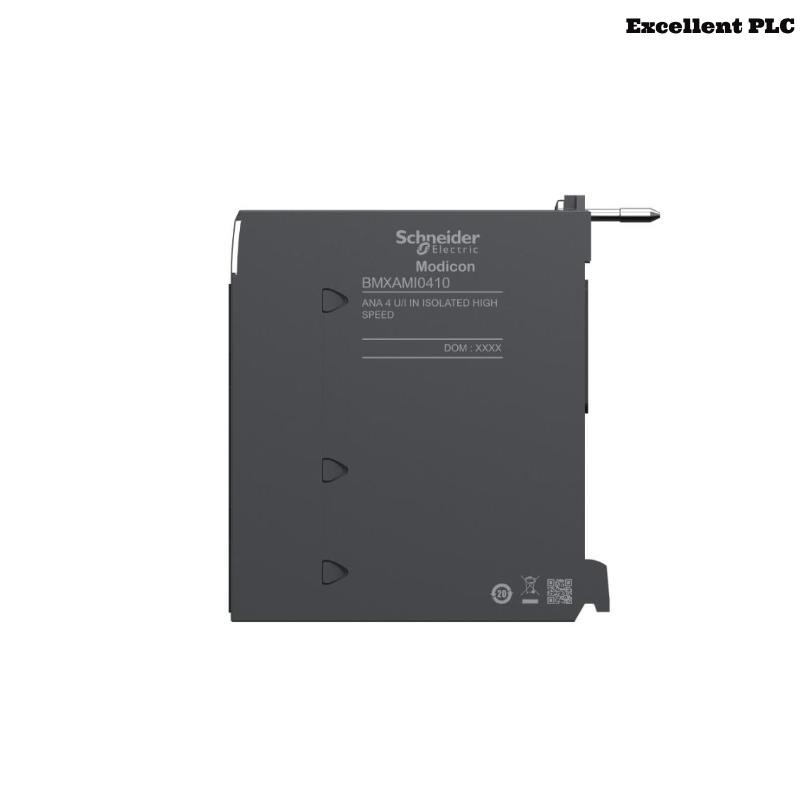

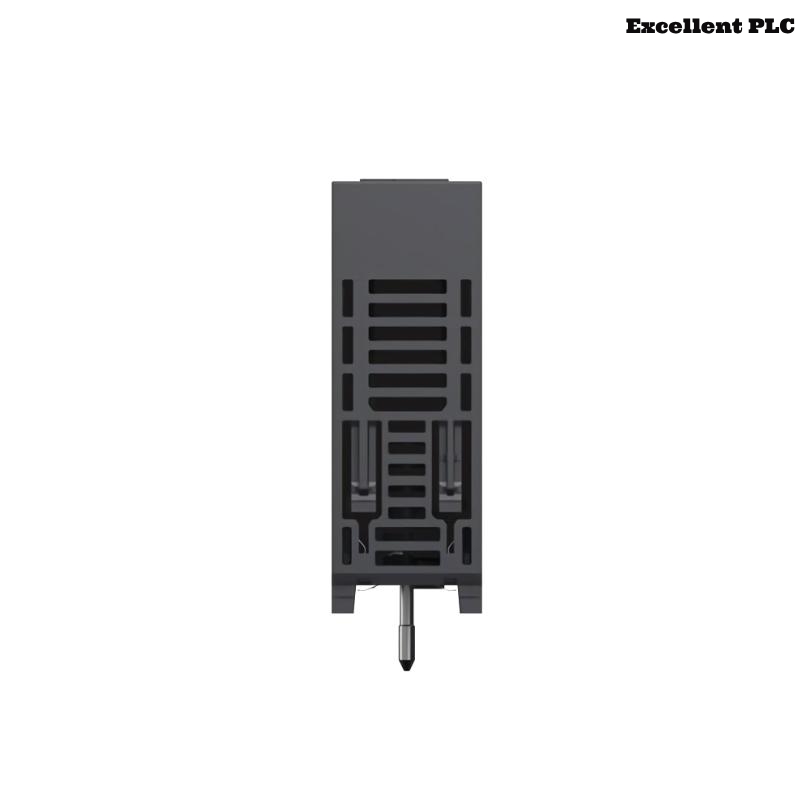

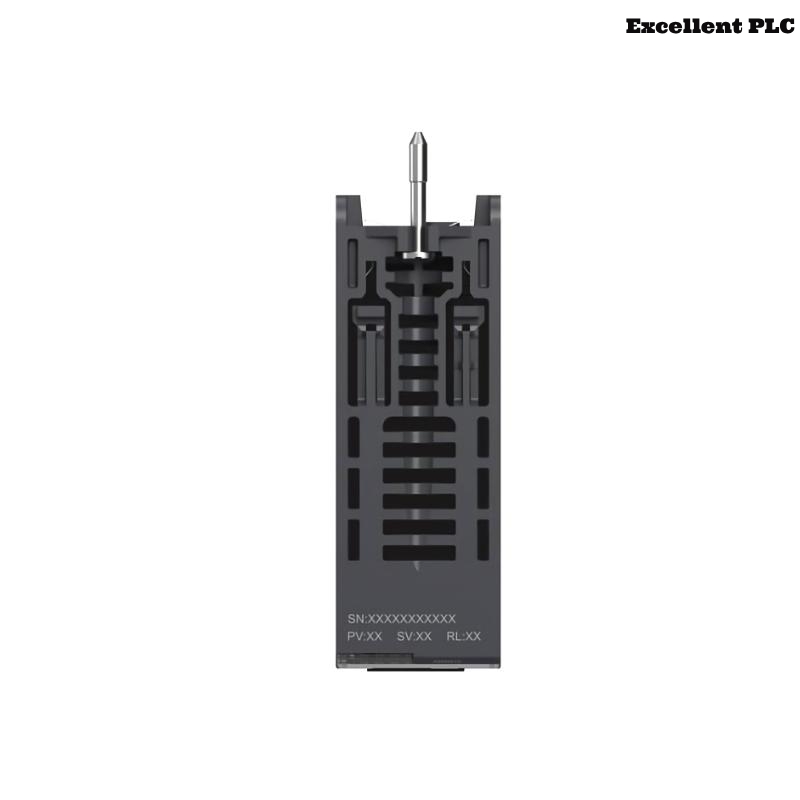

Schneider BMXAMI0410 Analog Isolated High Level Input Module

Product Introduction

The Schneider Electric BMXAMI0410 is an Analog Isolated High-Level Input Module designed for use in Modicon M340 programmable logic controllers (PLCs). It provides high-accuracy analog signal acquisition from industrial sensors and transducers, with each of its 4 input channels electrically isolated, ensuring enhanced noise immunity and safety in complex automation systems.

This module supports a wide range of analog input signal types, including voltage and current inputs, such as 0–10 V, ±10 V, 0–20 mA, and 4–20 mA, making it highly flexible for integration into modern industrial environments. Engineered to meet demanding control and monitoring applications, the BMXAMI0410 delivers high performance, diagnostics capabilities, and rugged reliability expected from Schneider Electric’s automation platforms.

Technical Specifications

Product Applications

The BMXAMI0410 is used across various industrial sectors for accurate analog signal acquisition. Common applications include:

• Process Control Systems in industries such as oil & gas, chemicals, and pharmaceuticals.

• Machine Automation, including precise position and force feedback in CNC machines and robotics.

• Building Automation for monitoring environmental sensors (temperature, pressure, humidity).

• Energy Management Systems for reading current/voltage signals from transducers.

• Water/Wastewater Treatment to monitor pressure, flow, and pH sensors.

• Food and Beverage Industry for quality control and environmental monitoring.

Product Advantages

• High Accuracy and Reliability: With 16-bit resolution and ±0.1% accuracy, the module ensures precise measurement.

• Electrically Isolated Channels: Each channel is individually isolated, minimizing signal interference and improving system safety.

• Wide Input Signal Support: Compatible with both voltage and current inputs, enhancing versatility.

• Fast Conversion Time: Ensures real-time responsiveness, vital for high-speed control loops.

• Built-in Diagnostics: Advanced error and status detection help reduce downtime and simplify maintenance.

• Compact DIN Rail Design: Saves space in control panels, simplifying integration.

• Seamless Integration: Natively supported by Modicon M340 platforms and easily configurable via Unity Pro/Control Expert software.

Frequently Asked Questions (FAQ)

1. What types of analog signals does the BMXAMI0410 support?
   The module supports 0–10 V, ±10 V, 0–20 mA, and 4–20 mA signal ranges.

2. Is each channel electrically isolated in this module?
   Yes, all 4 channels are individually isolated to ensure signal integrity and safety.

3. Can this module be used with Modicon M580 PLCs?
   It is specifically designed for M340, but integration with M580 through remote I/O stations may be possible.

4. What is the maximum resolution of the module?
   The resolution is 15 bits plus sign (total of 16 bits).

5. Is configuration software required to use this module?
   Yes, Unity Pro or EcoStruxure Control Expert is recommended for configuration.

6. What kind of diagnostics are available?
   It includes diagnostics for channel failure, signal out of range, and wire break.

7. Does it support hot swapping?
   No, the BMXAMI0410 does not support hot swapping; power must be off during module replacement.

8. What is the power consumption of this module?
   Approximately 3.5 W.

9. Can this module be used in harsh environments?
   Yes, within the temperature range of 0°C to +60°C and proper enclosure, it performs reliably.

10. What is the benefit of channel isolation?
    It prevents electrical noise from one sensor affecting others, increasing measurement accuracy and system safety.
