Product Introduction

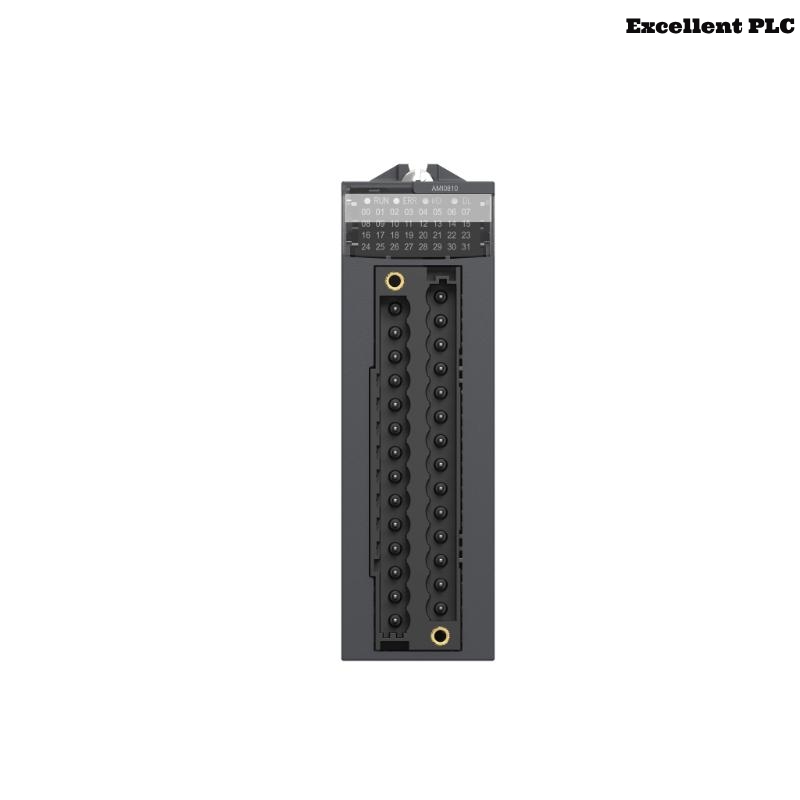

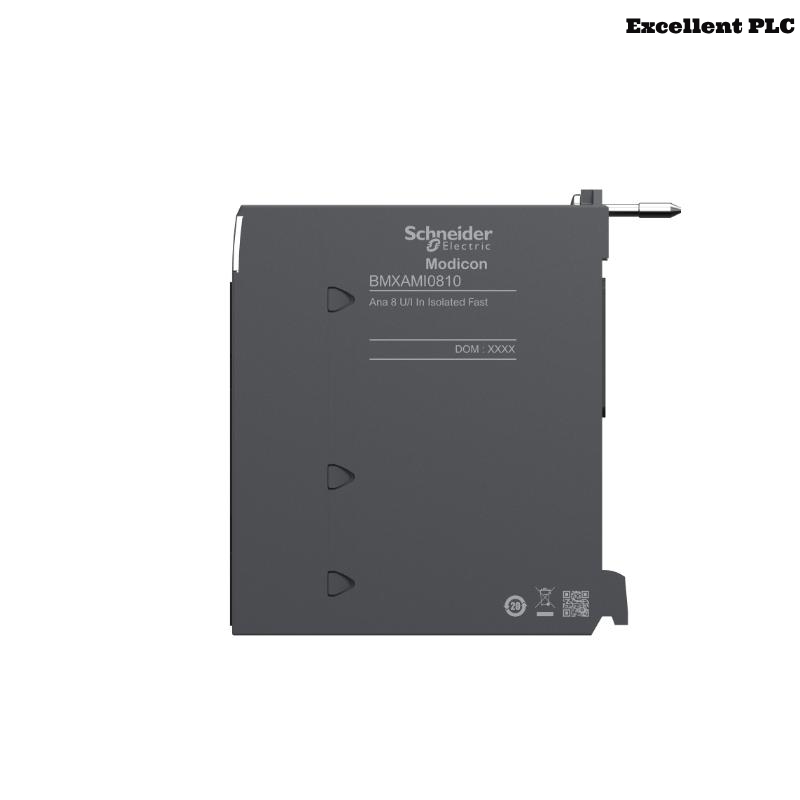

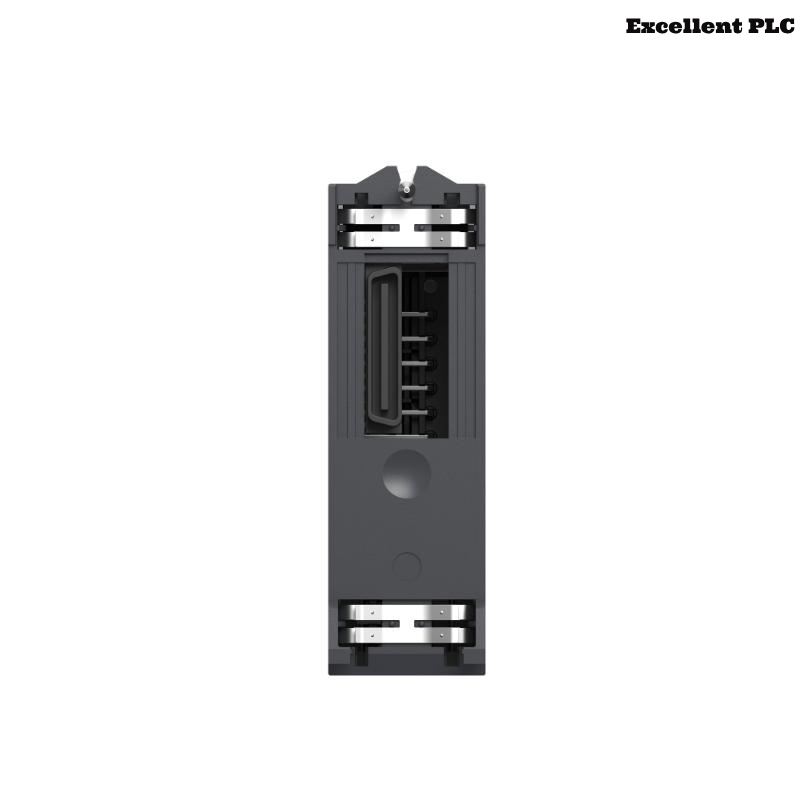

The Schneider Electric BMXAMI0810 is an advanced analog input module designed specifically for the Modicon M340 automation platform. Known for its precision, reliability, and modular architecture, the BMXAMI0810 enables seamless and isolated analog signal acquisition in industrial control systems. It provides 8 isolated analog inputs that support both voltage and current signals, ensuring superior noise immunity and signal integrity in demanding environments.
This module is particularly valued in systems where high signal quality and electrical isolation are critical. Its design follows international industrial standards, making it suitable for global deployment in automation projects across industries such as energy, water treatment, manufacturing, oil & gas, and food processing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | BMXAMI0810 |
| Brand | Schneider Electric |
| Product Type | Analog Input Module |
| Number of Channels | 8 isolated analog input channels |
| Input Type | Voltage (±10V), Current (0–20mA, 4–20mA) |
| Resolution | 12 bits |
| Input Impedance | Voltage: ≥1 MΩ; Current: 250 Ω |
| Channel Isolation | 500 V between channels and bus |
| Conversion Time | 4 ms per channel |
| Accuracy | ±0.2% of full scale |
| Signal Refresh Rate | Configurable per channel |
| Thermal Drift | ±0.01% / °C |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Power Consumption | 2.5 W max |
| Mounting Type | DIN rail |
| Communication Bus | Modicon X80 backplane (for M340) |
| Dimensions (W x H x D) | 93 x 33 x 104 mm |
| Weight | 0.175 kg |
| Certifications | CE, UL, CSA, ATEX |
| Protection Rating | IP20 (module), must be installed in IP54 enclosure |
Product Applications
-
Water and Wastewater Treatment Plants: For monitoring flow, pressure, and chemical dosing levels.
-
Food and Beverage Processing: Ensures quality control through temperature and process monitoring.
-
Pharmaceutical Manufacturing: High precision analog signal input is critical for lab automation.
-
Oil & Gas: Collects field instrumentation data such as pressure, temperature, and flow from remote locations.
-
HVAC Control Systems: Interfaces with temperature and humidity sensors in smart building systems.
-
Power Generation & Distribution: Analog monitoring of grid parameters like voltage and current.
Product Advantages
-
True Channel-to-Channel Isolation: Enhances safety and protects against signal interference and ground loops.
-
Universal Signal Support: Flexibility to handle both current and voltage input signals in a single module.
-
High Accuracy & Stability: Ensures precise monitoring even in long-term industrial operations.
-
Modular and Scalable: Fits seamlessly into Modicon M340 systems and X80 architecture.
-
Low Power Consumption: Contributes to energy-efficient panel design.
-
Robust Construction: Operates reliably in industrial environments with extended temperature tolerance.
-
Fast Setup and Integration: Supported by Schneider’s Unity Pro/Control Expert software suite.
-
Advanced Diagnostics: Built-in status indicators for quick troubleshooting and maintenance.
-
Certified for Global Use: ATEX, UL, and CE compliant for safe use in hazardous and international environments.
-
Compact Design: Saves valuable space in control cabinets.
Frequently Asked Questions (FAQ)
-
What types of signals can the BMXAMI0810 receive?
It supports both voltage signals (±10V) and current signals (0–20mA, 4–20mA). -
Is there isolation between input channels?
Yes, each input is fully isolated to prevent ground loops and reduce interference. -
What platforms is this module compatible with?
It is designed for the Modicon M340 and X80 automation platform. -
Can I mix voltage and current inputs on the same module?
Yes, but each channel must be configured individually and signal types must be wired correctly. -
What software is used for configuration?
Schneider Electric’s Unity Pro (now EcoStruxure Control Expert) is used. -
Does it support hot-swap?
No, the BMXAMI0810 does not support hot-swapping; power down before module replacement. -
What’s the maximum cable length supported?
Analog signal wiring should be kept as short as possible (<30 meters) and shielded for best results. -
Is it compatible with EcoStruxure systems?
Yes, it integrates well within the EcoStruxure architecture for IIoT solutions. -
Does the module have built-in diagnostics?
Yes, LED indicators provide real-time feedback on channel status and errors. -
What maintenance is required for the BMXAMI0810?
Minimal; ensure clean environment, proper ventilation, and check connection integrity periodically.
