Product Introduction

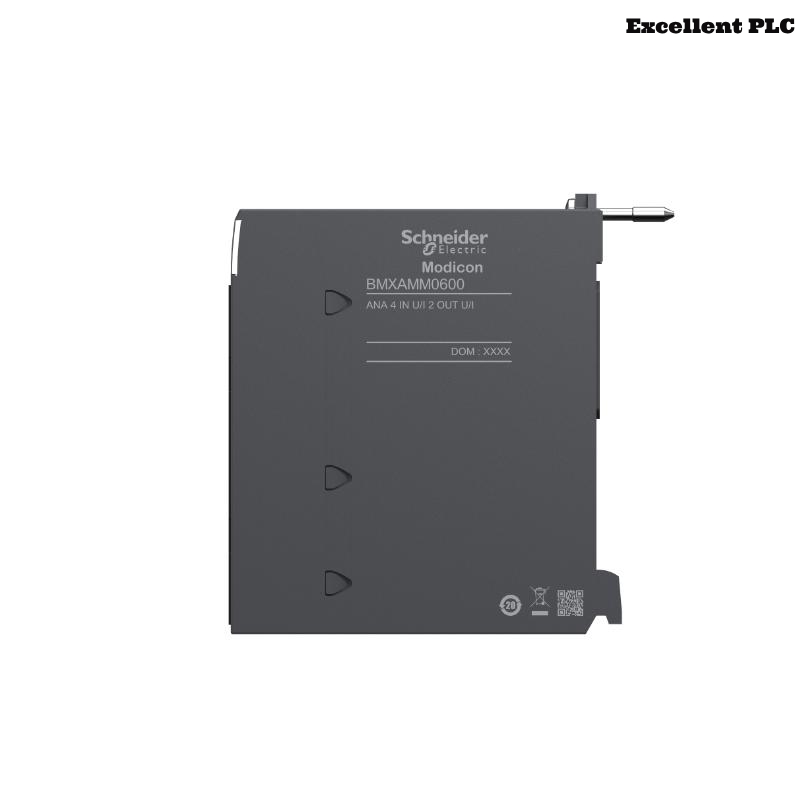

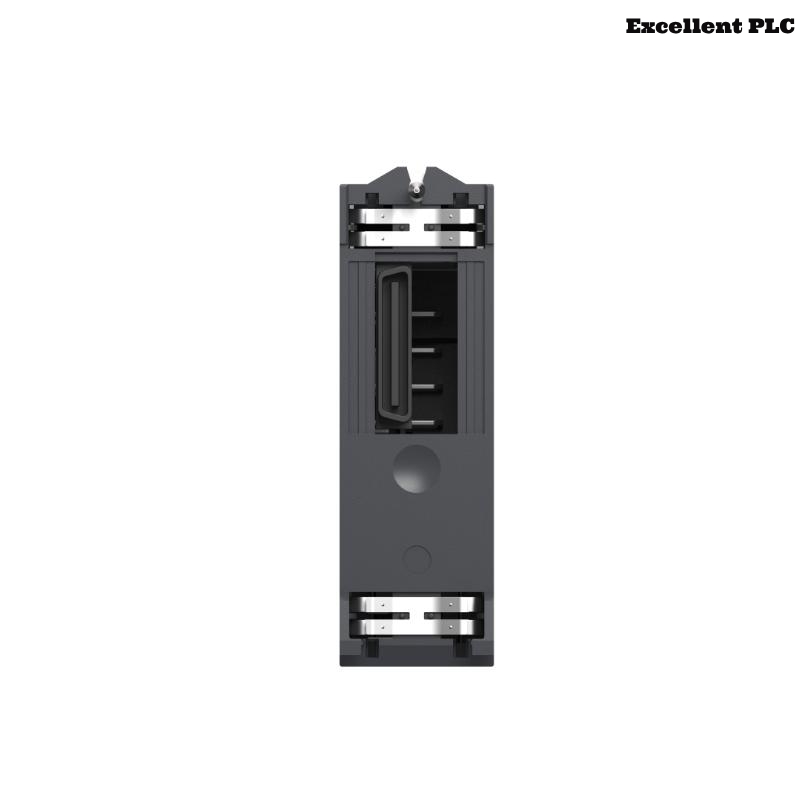

The Schneider Electric BMXAMM0600 is a versatile mixed analog input/output module designed for the Modicon M340 automation platform. This module is specifically engineered to meet the demands of industrial automation systems that require a combination of analog input and output signals within a compact and efficient solution.
It offers a total of 6 channels, consisting of 4 analog inputs and 2 analog outputs, allowing it to serve a broad range of monitoring and control applications. It supports both voltage and current signals, ensuring flexibility in system design. The BMXAMM0600 module is ideal for environments where space is at a premium and mixed I/O capabilities are required without compromising performance or reliability.
Its full integration with Schneider’s Unity Pro (now EcoStruxure Control Expert) software platform makes it straightforward to configure and deploy, contributing to a faster project timeline and reduced commissioning costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | BMXAMM0600 |
| Brand | Schneider Electric |
| Product Type | Mixed Analog I/O Module |
| Total Channels | 6 (4 analog inputs, 2 analog outputs) |
| Input Signal Types | Voltage (±10 V), Current (0–20 mA, 4–20 mA) |
| Output Signal Types | Voltage (±10 V), Current (0–20 mA, 4–20 mA) |
| Input Resolution | 12 bits |
| Output Resolution | 12 bits |
| Input Impedance | Voltage: ≥1 MΩ; Current: 250 Ω |
| Output Load Resistance | Current: ≤ 600 Ω; Voltage: ≥ 1 kΩ |
| Isolation | Channel-to-bus and channel-to-channel isolation |
| Accuracy | ±0.2% of full scale |
| Conversion Time (input) | 4 ms per channel |
| Output Update Time | < 1 ms |
| Thermal Drift | ±0.01% / °C |
| Operating Voltage | Supplied via backplane |
| Power Consumption | Approx. 3 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN rail |
| Bus Type | Modicon X80 backplane (for M340) |
| Dimensions (W x H x D) | 93 x 33 x 104 mm |
| Weight | 0.155 kg |
| Protection Rating | IP20 (module) |
| Certifications | CE, UL, CSA, ATEX |
Product Applications
-
Manufacturing Plants: For process control tasks involving pressure, temperature, and flow where both input and output analog signals are needed in one module.
-
Building Automation Systems: Ideal for interfacing with sensors and actuators in HVAC or lighting control.
-
Water and Wastewater Facilities: Used for real-time monitoring and control of flow, level, and chemical dosing systems.
-
Pharmaceutical Industry: Enables precision analog control in automated batching and quality assurance systems.
-
Food and Beverage Industry: Ensures compliance and quality in automated processing lines through accurate monitoring and control.
-
Energy Sector: Used in power generation facilities to manage analog feedback from transformers, sensors, or turbines.
Product Advantages
-
All-in-One Design: Combines analog inputs and outputs in a single module, reducing the need for multiple modules and simplifying wiring.
-
Flexible Signal Handling: Capable of handling both voltage and current signals, configurable per channel.
-
High Signal Fidelity: With 12-bit resolution and low drift, it provides precise and reliable signal measurement and generation.
-
Modular Integration: Seamlessly fits into the Modicon M340 and X80 platforms, enabling scalable and compact automation architectures.
-
Certified Reliability: Meets international safety and performance standards including CE, UL, and ATEX certifications.
-
Simplified Engineering: Supported by EcoStruxure Control Expert for fast configuration and diagnostics.
-
Compact Form Factor: Its slim profile helps optimize panel space without sacrificing I/O functionality.
-
Built-in Diagnostics: LEDs provide quick status information for inputs and outputs to aid in maintenance.
-
Energy Efficient: With low power consumption, it contributes to greener automation solutions.
-
Cost Effective: Reduces the need for separate modules and wiring, cutting down overall system costs.
Frequently Asked Questions (FAQ)
-
How many channels does the BMXAMM0600 have?
It provides 6 channels: 4 analog inputs and 2 analog outputs. -
Can I use voltage and current signals on the same module?
Yes, each channel is independently configurable to accept either voltage or current signals. -
Is the BMXAMM0600 isolated?
Yes, both input and output channels are electrically isolated from the bus and each other. -
What software is used to program and configure the module?
The module is configured using Schneider’s Unity Pro (EcoStruxure Control Expert). -
Can the output channels be used for control of actuators?
Yes, they can control analog actuators such as valves, VFDs, or proportional relays. -
What are the typical applications of this module?
Used in mixed analog monitoring and control scenarios like process control, HVAC, or batching. -
What is the update rate for analog outputs?
Outputs update in less than 1 ms, ensuring real-time performance. -
Is this module suitable for industrial environments?
Absolutely. It’s designed for harsh industrial conditions with temperature and electrical noise tolerance. -
Does it support hot-swap capability?
No, you must power down the PLC before removing or inserting the module. -
Is this module compatible with other Modicon systems like M580?
It is primarily designed for M340 and X80, but may be used with M580 depending on rack and backplane configuration.
Related or Same Series Models
| Model | Description |
|---|---|
| BMXAMI0810 | 8-channel isolated analog input module |

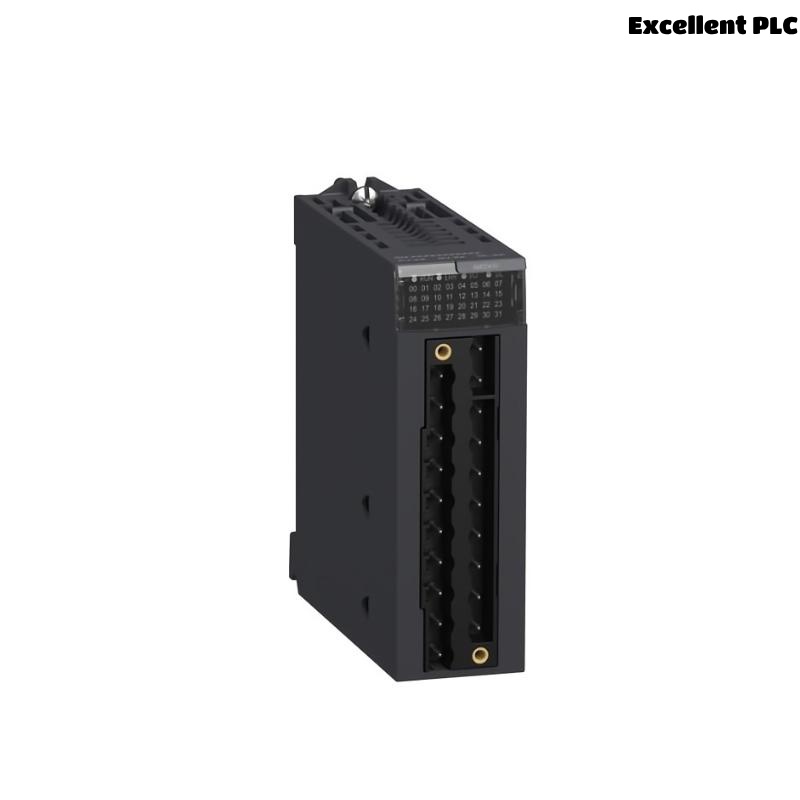

| BMXAMO0410 | 4-channel analog output module |
