Product Introduction

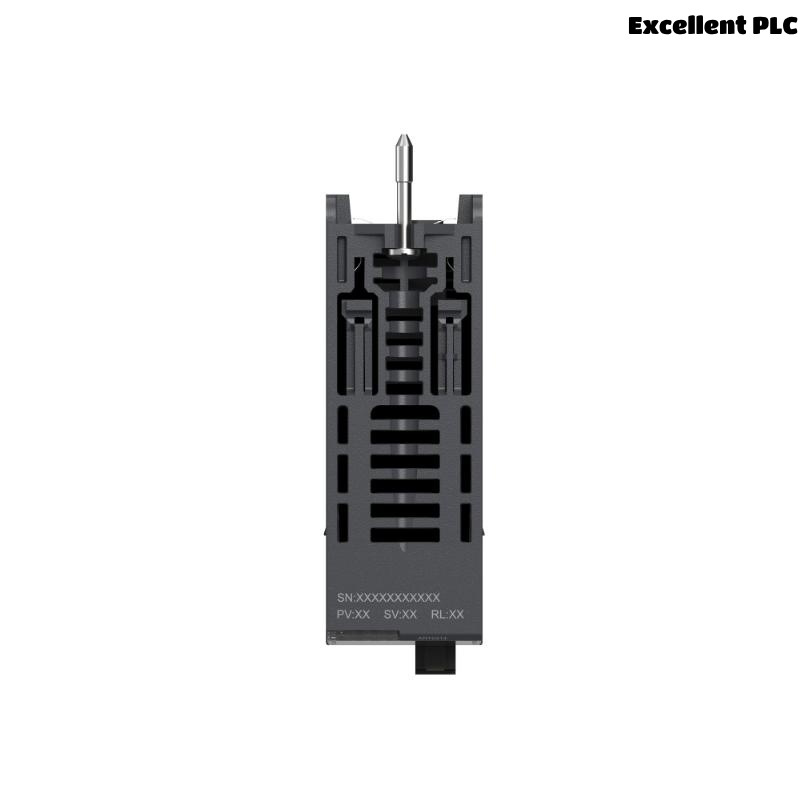

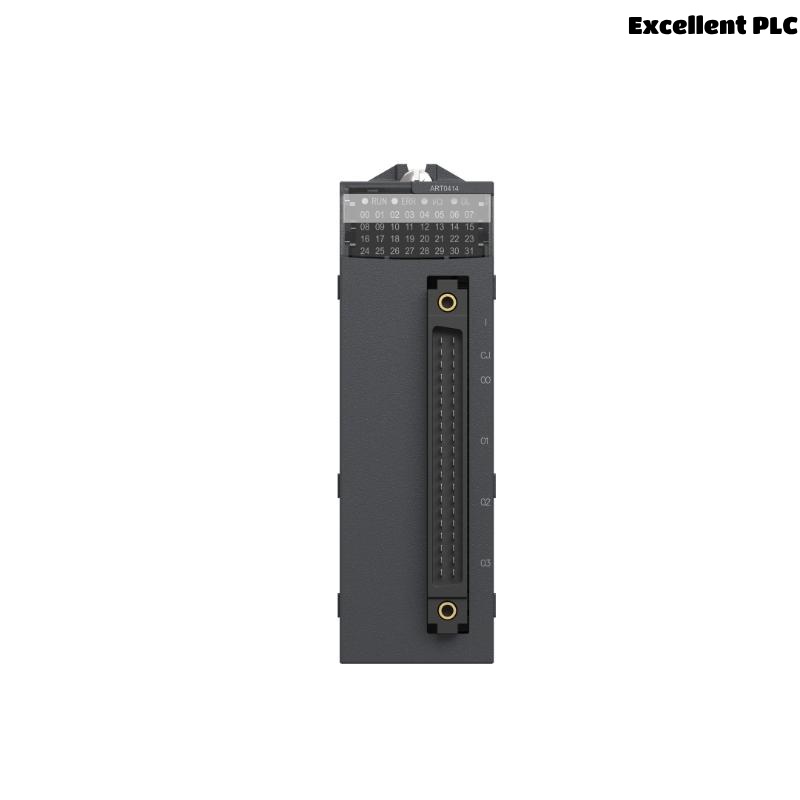

The Schneider Electric BMXART0414 is a 4-channel analog input module designed for the Modicon M340 automation platform. Engineered to handle low-level voltage and current signals, it is ideal for high-precision measurement tasks in critical industrial environments. Each channel is galvanically isolated, providing exceptional signal integrity and protection against ground loops or electrical noise.
With compatibility for low-voltage inputs such as 0–25 mV, 0–100 mV, 0–5 V, and low-level current signals like 0–20 mA, the BMXART0414 is suitable for instrumentation sensors and transducers that demand accurate low signal acquisition. The module integrates seamlessly with Schneider’s EcoStruxure Control Expert (formerly Unity Pro) for configuration, diagnostics, and control.
Product Specifications
| Parameter | Specification |
|---|---|
| Module Type | Analog Input Module (Isolated, Low-Level) |
| Input Channels | 4 |
| Input Signal Types | ±25 mV, ±100 mV, 0–5 V, 0–20 mA |
| Resolution | 16-bit |
| Input Impedance | >10 MΩ for voltage inputs |
| Input Type | Differential (Isolated) |
| Isolation Type | Galvanic isolation (channel-to-channel and to bus) |
| Isolation Voltage | 500 V RMS |
| Signal Update Time | 5 ms per channel |
| Accuracy | ±0.2% of full scale |
| Operating Voltage | Supplied via rack backplane |
| Configuration Tool | EcoStruxure Control Expert (Unity Pro) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | Rack/DIN rail with base |
| Dimensions (H × W × D) | 98 x 33 x 104 mm |
| Weight | 0.135 kg |
| Certifications | CE, UL, cUL, RoHS |
| Compliance | IEC 61131-2, EN/IEC 61000-6-2, EN/IEC 61010-1 |
Product Applications
-
Precision Process Monitoring – Captures low-level signals from field devices like thermocouples, strain gauges, and micro-sensors.
-
Pharmaceutical & Chemical Industries – Ideal for laboratory-scale processes and sensitive measurement environments.
-
Energy Sector – Used in fuel cell systems and power analyzers for capturing micro-voltage readings.
-
Research and Development – Supports testing benches and calibration systems requiring fine analog signal resolution.
-
Water and Wastewater Plants – Enables detection of trace-level sensor outputs like pH probes or dissolved oxygen sensors.
-
Food & Beverage Manufacturing – Monitors low-voltage signals from hygiene-critical sensor applications.
Product Advantages
-
High Accuracy – Offers ±0.2% full-scale accuracy, ideal for sensitive instrumentation.
-
True Isolation – Each channel is independently isolated from others and the backplane, preventing ground loops and improving safety.
-
Wide Input Compatibility – Accepts multiple analog signal types, including millivolt and current loop signals.
-
16-bit Resolution – Provides detailed signal resolution suitable for laboratory-grade applications.
-
Fast Update Rate – Enables rapid signal acquisition with a 5 ms per channel update time.
-
Compact Form Factor – Space-efficient design fits seamlessly in Modicon M340 racks without compromising performance.
-
Simple Configuration – Integrated into EcoStruxure architecture for easy parameterization and diagnostics.
-
Rugged Construction – Built to withstand harsh industrial environments with temperature and humidity tolerance.
-
Low Power Consumption – Draws minimal power from the backplane, contributing to efficient system performance.
-
Global Compliance – Certified for international use with safety and EMC standards adherence.
Frequently Asked Questions (FAQ)
-
Q: How many input channels does the BMXART0414 support?
A: It supports 4 isolated analog input channels. -
Q: What kind of input signals are compatible with this module?
A: The module supports ±25 mV, ±100 mV, 0–5 V, and 0–20 mA signals. -
Q: Are the input channels isolated from each other?
A: Yes, each channel is galvanically isolated from the others and from the system bus. -
Q: Can this module measure thermocouple signals directly?
A: While it supports low-voltage signals, thermocouples may require signal conditioning depending on the type. -
Q: What is the resolution of the module?
A: It features 16-bit resolution for accurate analog measurements. -
Q: What software is used to configure the BMXART0414?
A: Configuration is done using EcoStruxure Control Expert (Unity Pro). -
Q: Does it support both voltage and current input modes?
A: Yes, the module supports both voltage (mV, V) and current (0–20 mA) inputs. -
Q: Can the module operate in high EMI environments?
A: Yes, it complies with industrial EMC standards like EN/IEC 61000-6-2. -
Q: What is the physical size of the module?
A: The dimensions are 98 x 33 x 104 mm. -
Q: How much does the module weigh?
A: It weighs 0.135 kg.
Recommended Models from the Same Series or Related
| Model Number | Description | Type | Channels | Input/Output | Isolation | Dimensions (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| BMXAMI0410 | Analog Input Module (Isolated) | Voltage Input | 4 | Input | Yes | 130 x 35 x 118 | 210 |
| BMXAMI0810 | Analog Input Module (Non-Isolated) | Voltage Input | 8 | Input | No | 130 x 54 x 118 | 240 |
| BMXART0814 | Analog Low-Level Input Module (Isolated) | mV/Current | 8 | Input | Yes | 130 x 54 x 118 | 250 |
| BMXAMO0410 | Analog Output Module (Isolated) | Voltage Output | 4 | Output | Yes | 130 x 35 x 118 | 200 |
| BMXAMI0210 | Analog Input Module (Compact) | Voltage Input | 2 | Input | Yes | 130 x 35 x 118 | 190 |
| BMXAMI0412 | Analog Input Module (High-Precision) | Voltage Input | 4 | Input | Yes | 130 x 35 x 118 | 210 |
