Product Introduction

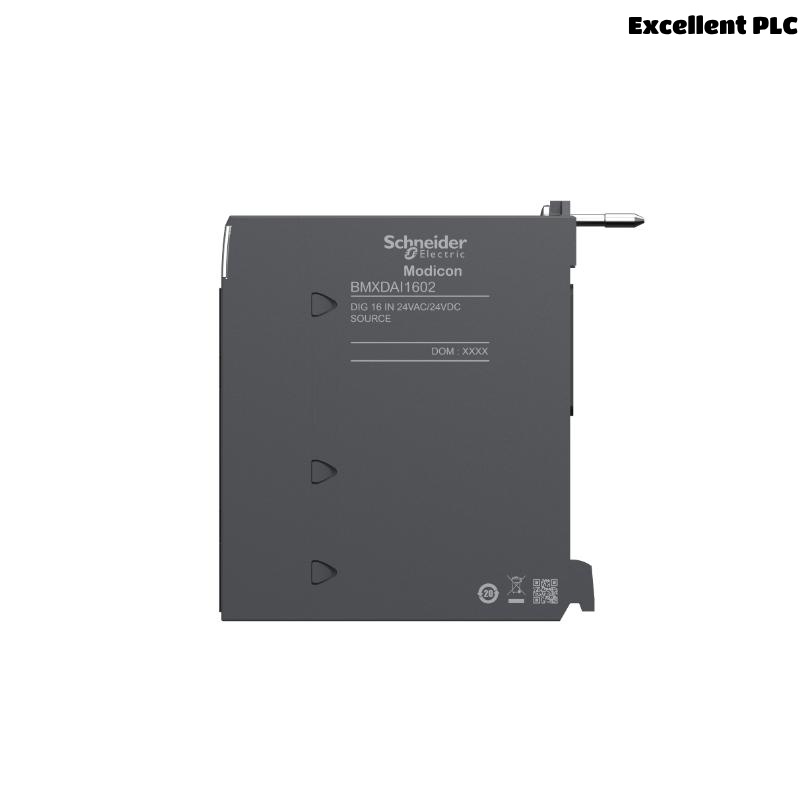

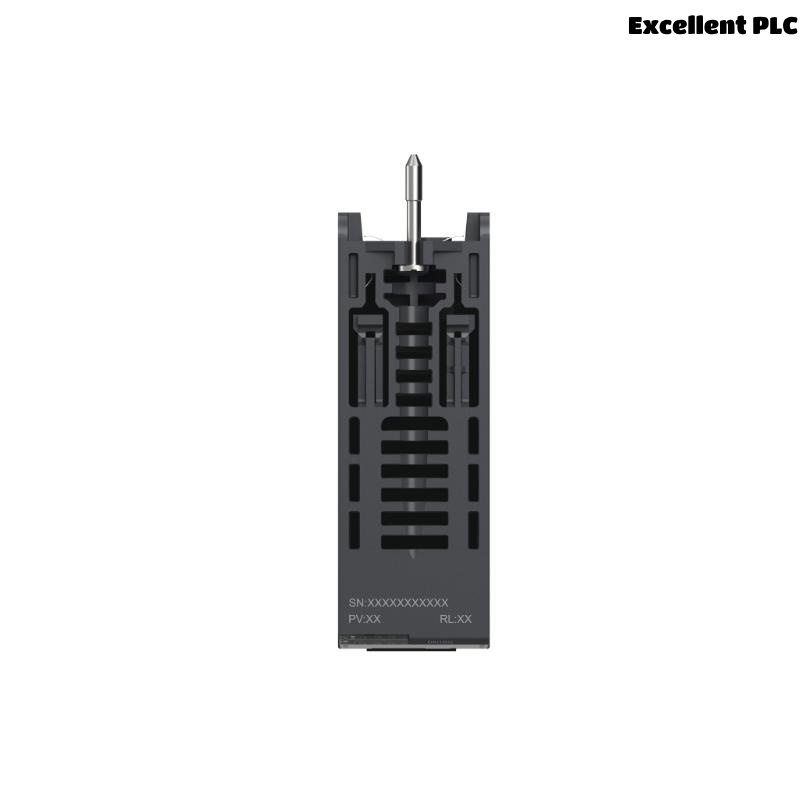

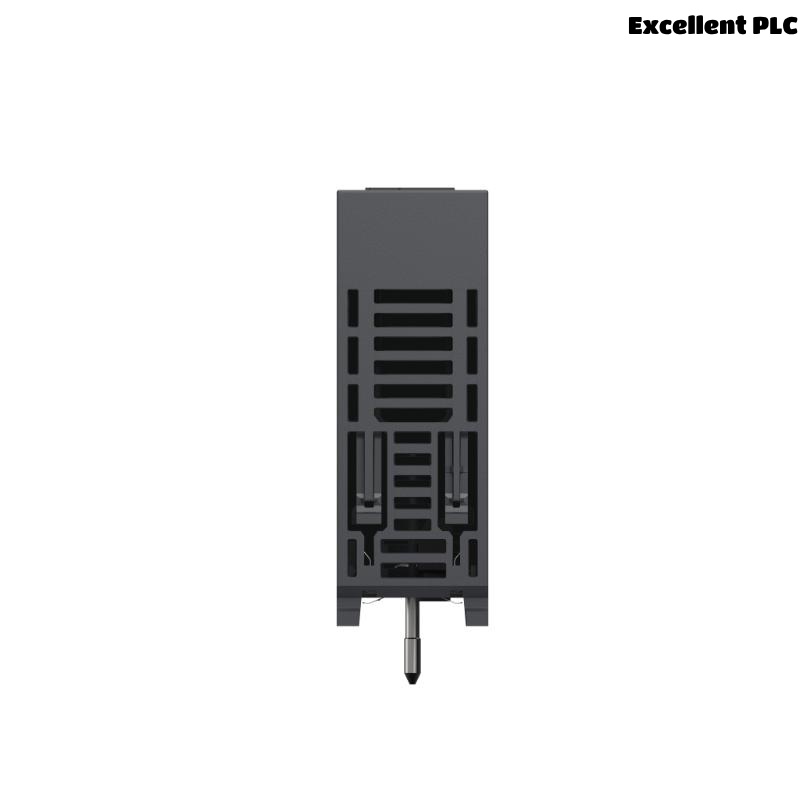

The Schneider BMXDAI1602 is a high-performance discrete input module designed to provide 16 channels of digital input for Modicon M258 and M580 PLC platforms. This module serves as a critical interface between field devices and the programmable logic controller, allowing for precise and reliable monitoring of binary signals such as switches, sensors, and pushbuttons.
Built with industrial-grade components, the BMXDAI1602 ensures stable performance in demanding environments. It supports a nominal input voltage of 24 V DC and is engineered for both sourcing and sinking input configurations, offering great flexibility for various wiring schemes.
The module’s compact design fits neatly into Schneider Electric’s automation racks, with LED indicators for each input channel simplifying troubleshooting and status verification. Its rugged construction, combined with low power consumption and ease of installation, makes the BMXDAI1602 a dependable choice for industrial automation applications requiring multiple discrete inputs.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | BMXDAI1602 |
| Manufacturer | Schneider Electric |
| Product Type | Discrete Input Module |
| Compatible PLC Series | Modicon M258, M580 |
| Number of Input Channels | 16 |
| Input Type | Digital / Discrete |
| Nominal Input Voltage | 24 V DC |
| Input Current per Channel | 6 mA typical |
| Input Configuration | Sourcing or sinking |
| Response Time | < 5 ms |
| Isolation | Channel-to-backplane isolation |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (WxHxD) | 160 x 100 x 35 mm |
| Weight | 0.12 kg |
| Mounting | DIN rail |
| Certifications | CE, UL, CSA |
Product Applications
-
Manufacturing Automation: Interfaces with various switches and sensors on assembly lines to detect machine states and safety conditions.
-
Process Control: Monitors alarms, limit switches, and equipment status in chemical, pharmaceutical, and food processing plants.
-
Building Automation: Captures input signals from lighting controls, security alarms, and HVAC system switches.
-
Water & Wastewater Management: Detects pump on/off signals, valve positions, and fault alarms.
-
Material Handling: Tracks conveyor sensors, emergency stops, and presence detection in warehouses and distribution centers.
-
Energy Management: Integrates discrete signals from circuit breakers, meters, and remote monitoring devices.
Product Advantages
-
High Channel Density: Provides 16 discrete input channels in a single compact module, saving rack space.
-
Dual Input Configuration: Supports sourcing and sinking inputs to accommodate various sensor types and wiring preferences.
-
Fast Response Time: Less than 5 ms response ensures timely detection and processing of input signals.
-
Robust Construction: Designed to operate reliably across wide temperature and humidity ranges for harsh industrial environments.
-
LED Status Indicators: Each channel features an individual LED to provide instant visual feedback on input status.
-
Easy Integration: Compatible with Modicon M258 and M580 PLCs for seamless system expansion.
-
Low Power Consumption: Efficient electronics minimize the load on the power supply system.
-
DIN Rail Mounting: Facilitates quick and secure installation in control panels.
-
Hot-Swappable: Allows module replacement without shutting down the entire system, reducing downtime.
-
Comprehensive Certifications: Complies with international safety and quality standards, ensuring reliability and peace of mind.
Frequently Asked Questions (FAQ)
-
How many inputs does the BMXDAI1602 module support?
It supports 16 discrete digital input channels. -
What voltage level is required for the inputs?
The nominal input voltage is 24 V DC. -
Can the module’s inputs be wired as sourcing and sinking?
Yes, the BMXDAI1602 supports both sourcing and sinking input configurations. -
Which PLC series are compatible with this module?
It is compatible with Schneider’s Modicon M258 and M580 series PLCs. -
What is the typical input current per channel?
About 6 mA per input channel. -
What is the response time for input signal changes?
The response time is less than 5 milliseconds. -
Does the module have status indicators?
Yes, each input channel has an LED to show its status. -
What are the environmental operating conditions?
The module operates between -20°C and +60°C with 5% to 95% humidity (non-condensing). -
Is the module hot-swappable?
Yes, it supports hot-swapping for easy maintenance without system shutdown. -
What type of mounting does the module use?
It uses standard DIN rail mounting.
